Zigbee WiFi Heating Thermostat

ABOUT THERMOSTATS

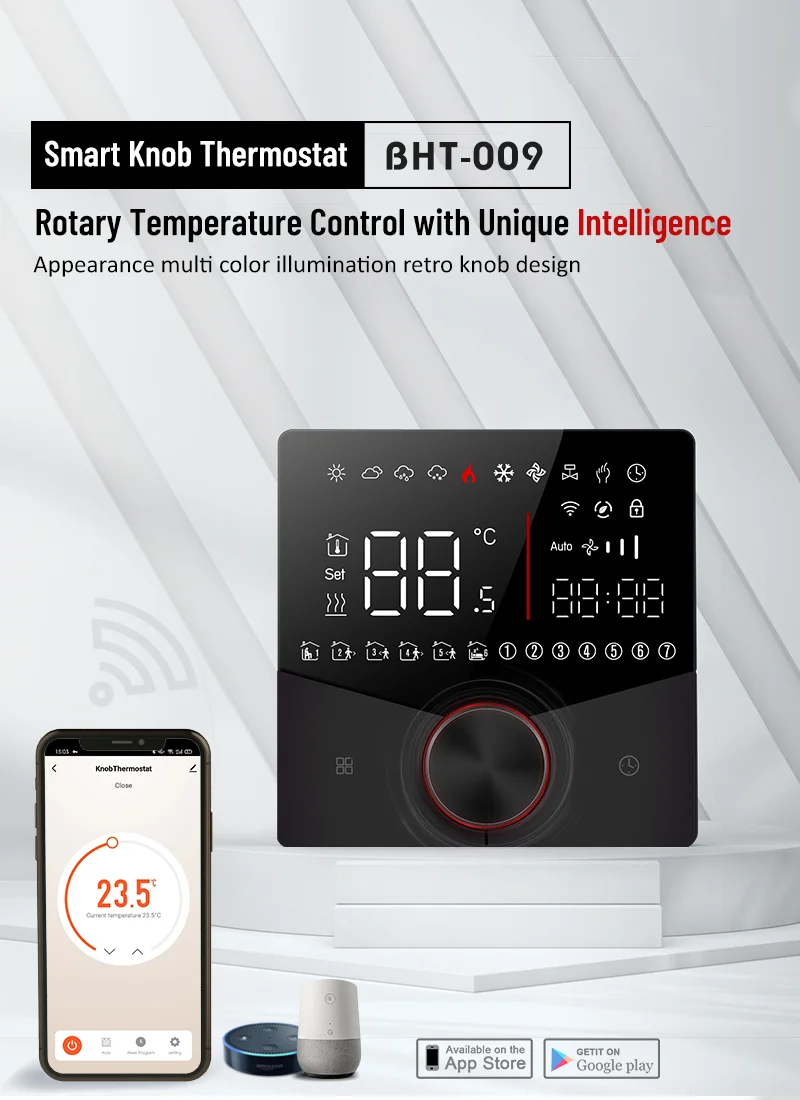

The BHT-009 range has been developed to control electric underfloor ,water heating or water/gas boiler system. These units are designed for use in commercial, industrial, civil and domestic properties.

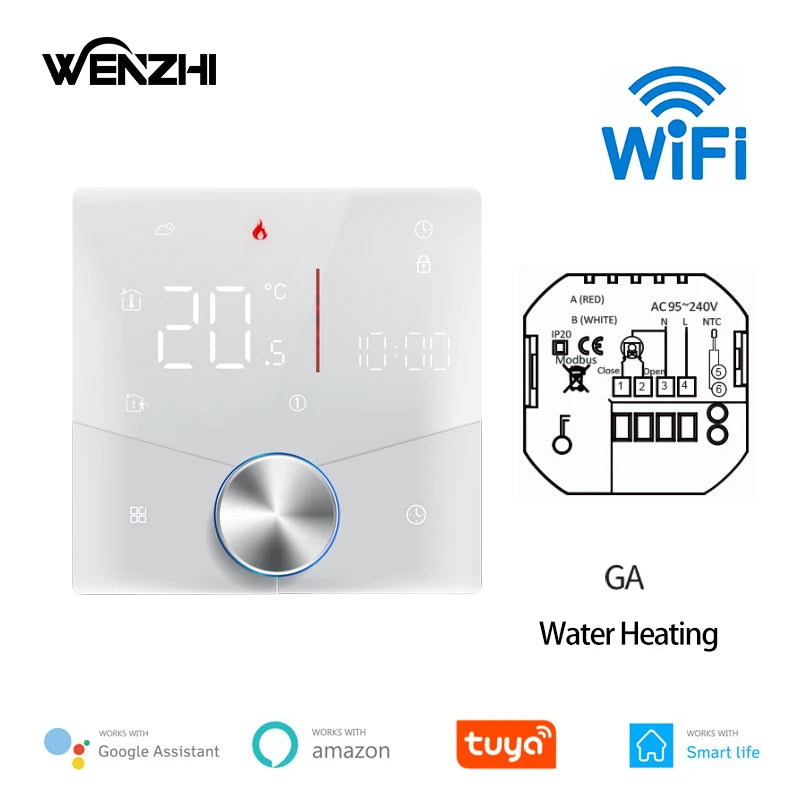

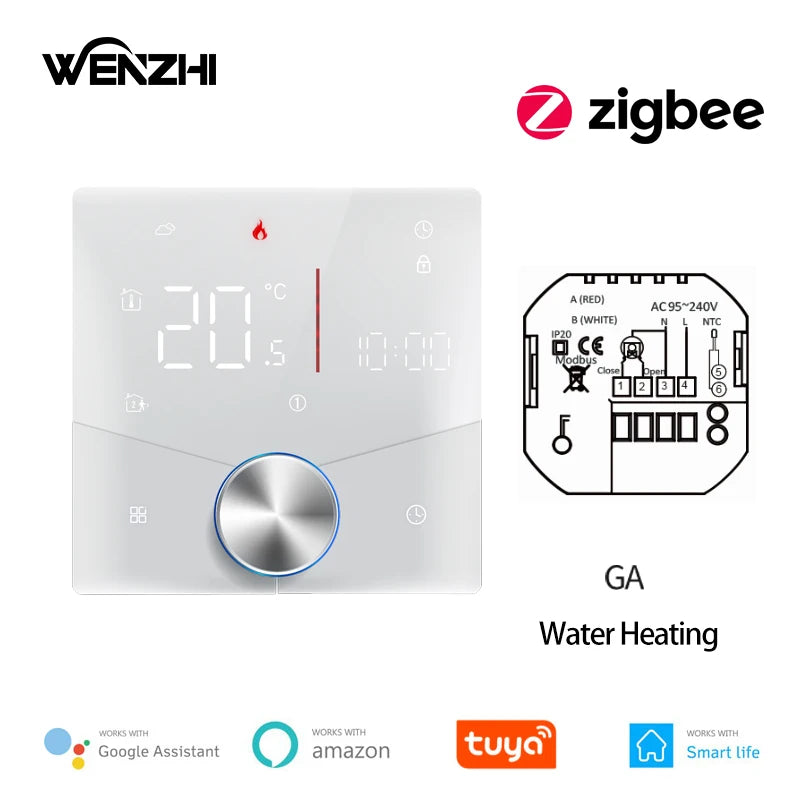

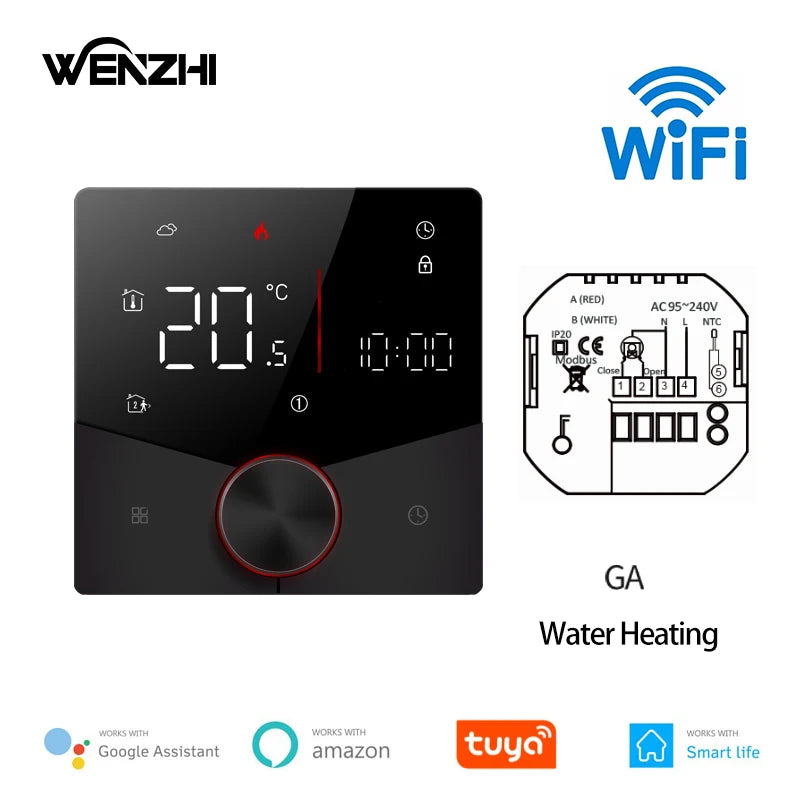

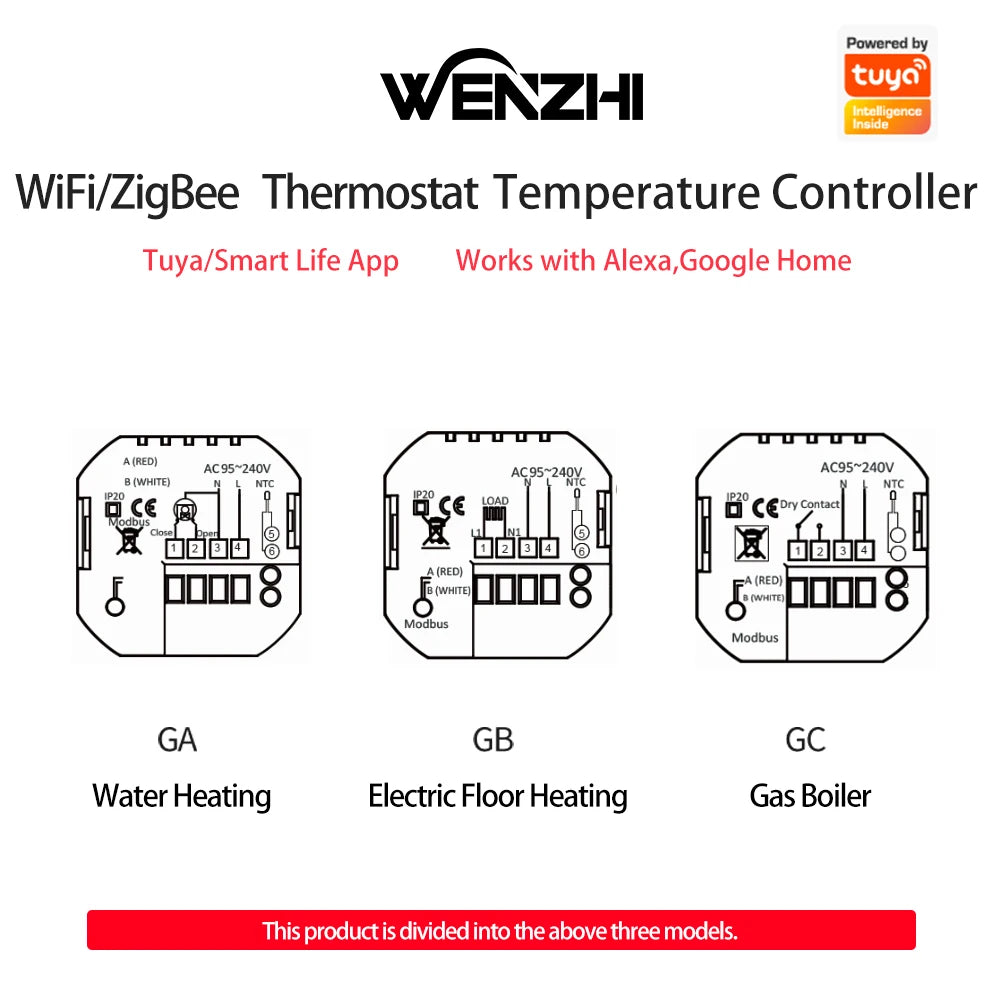

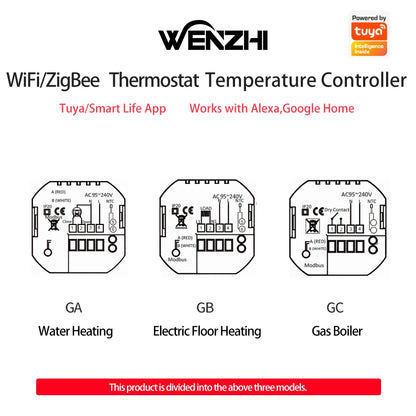

GA： for water heating;

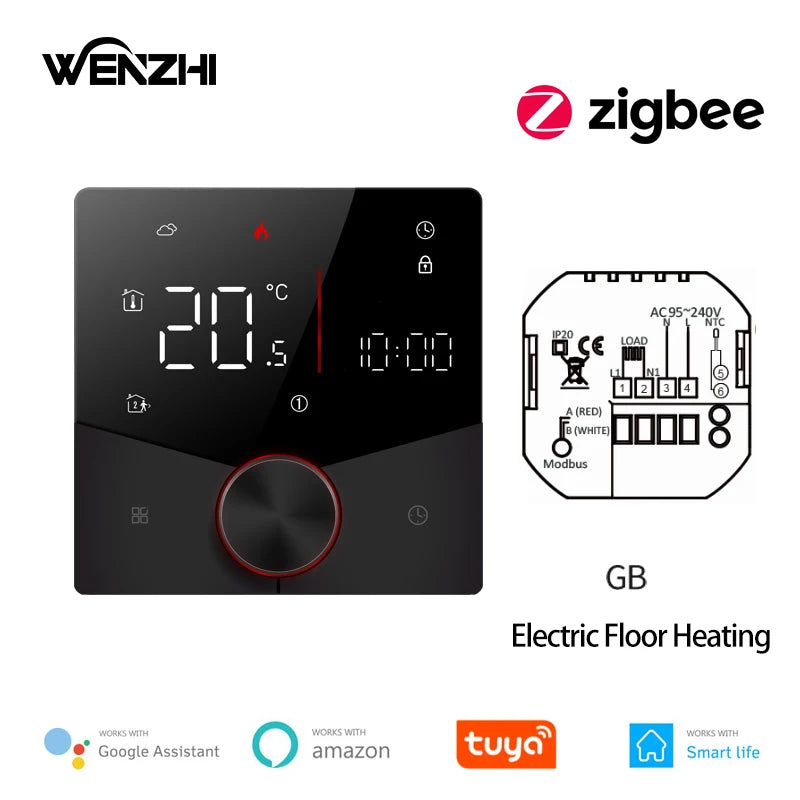

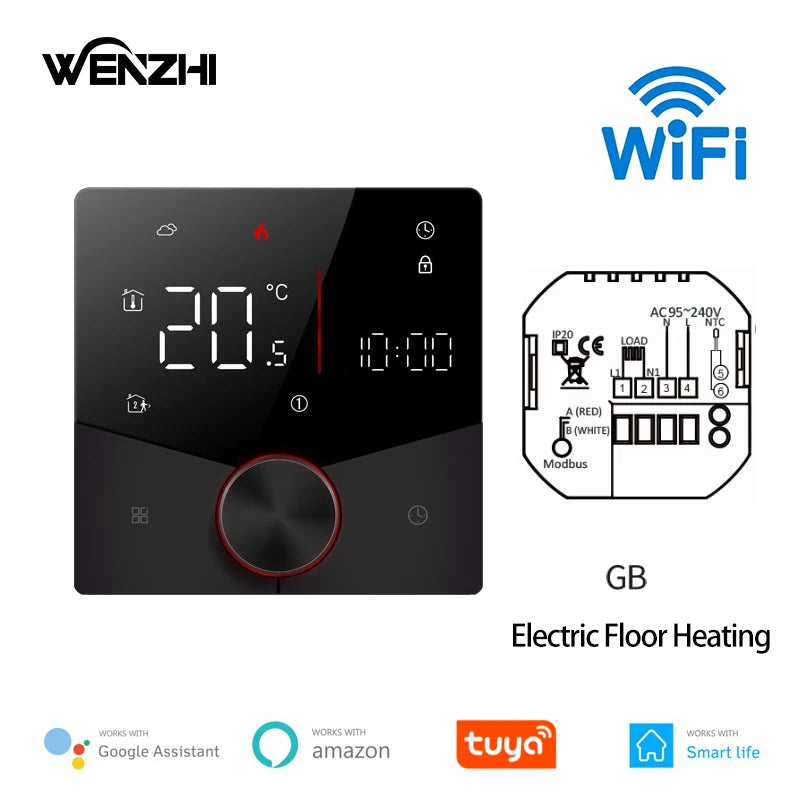

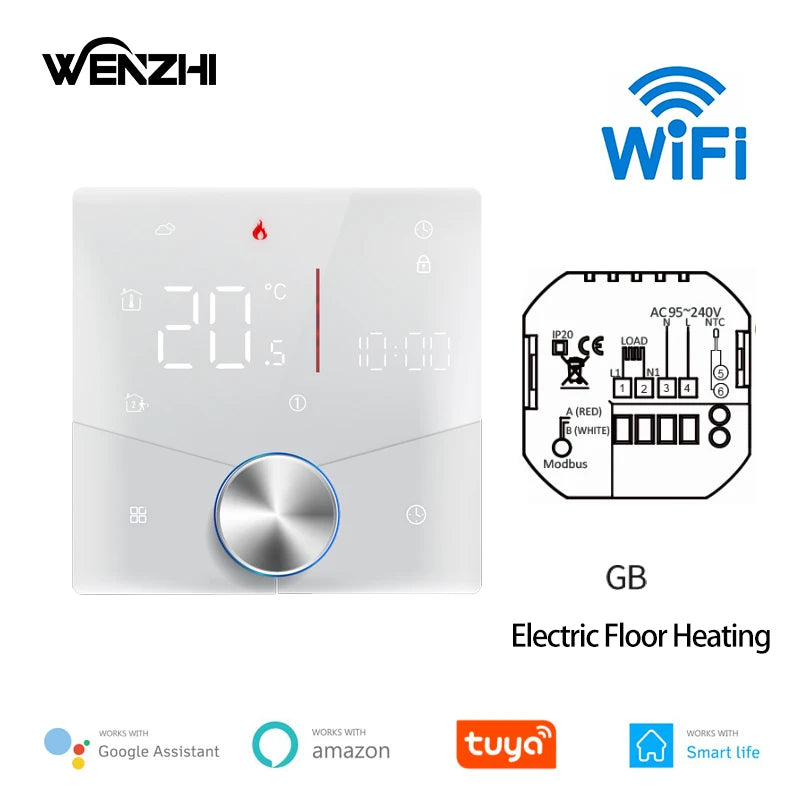

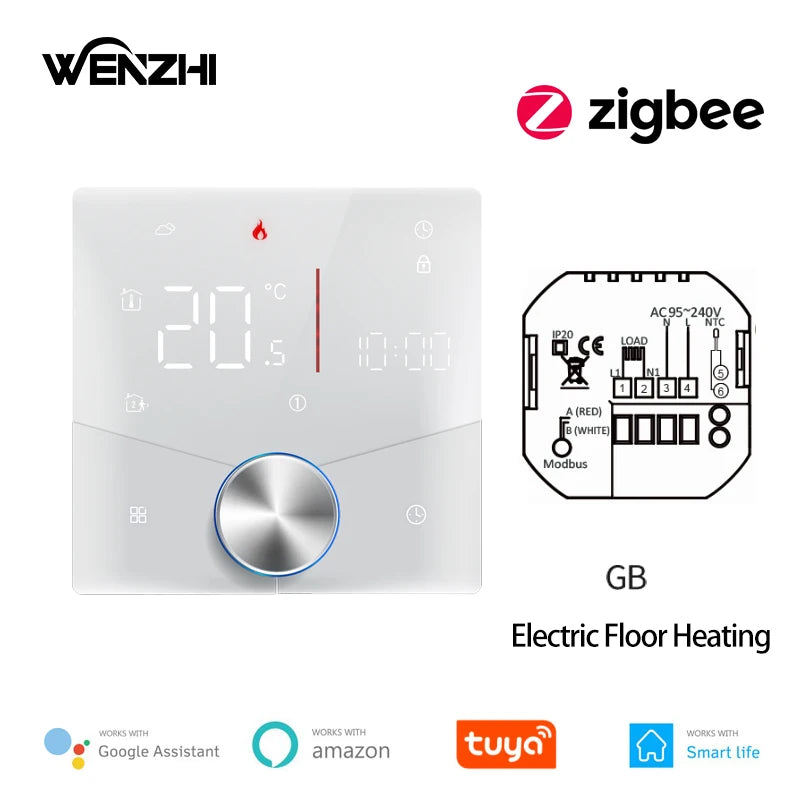

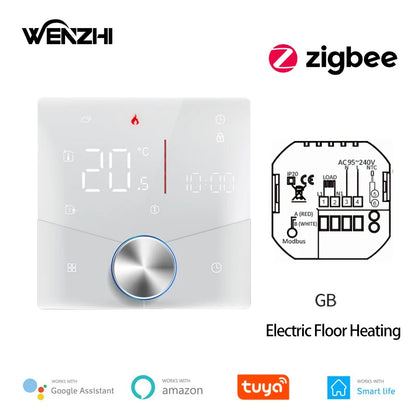

GB： for electric heating;

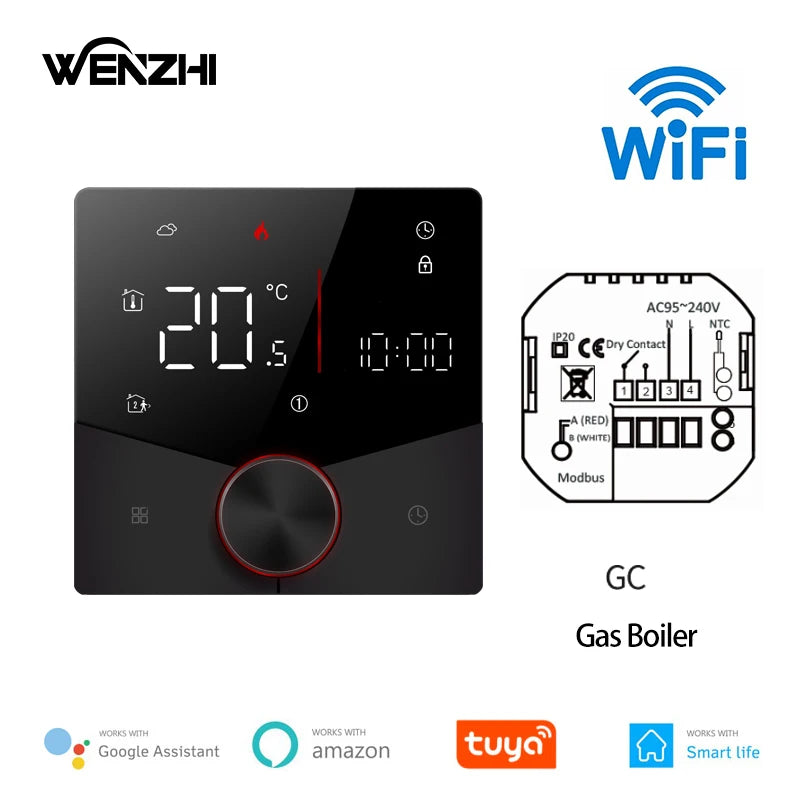

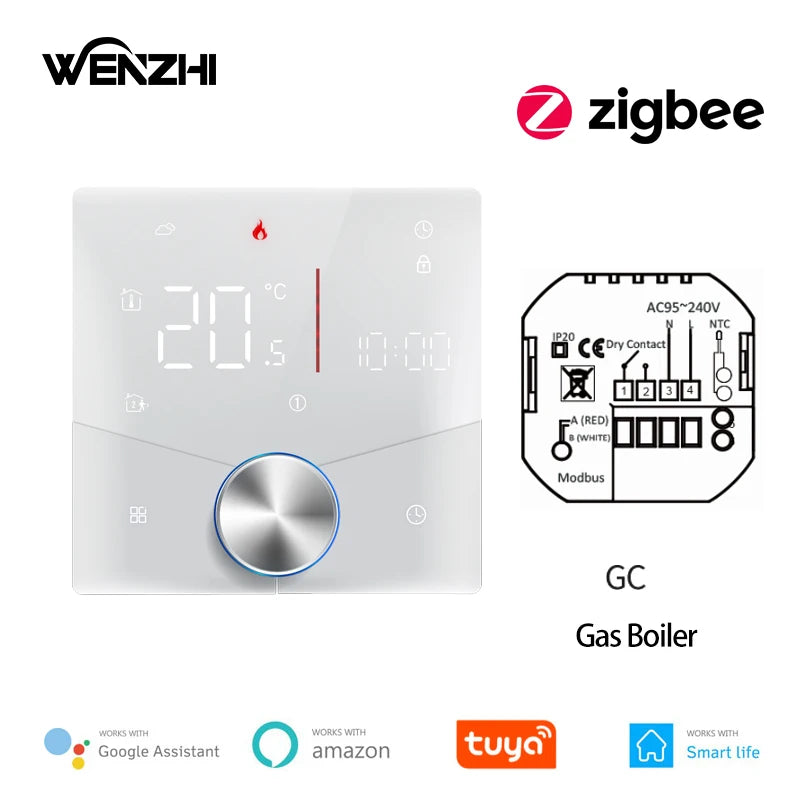

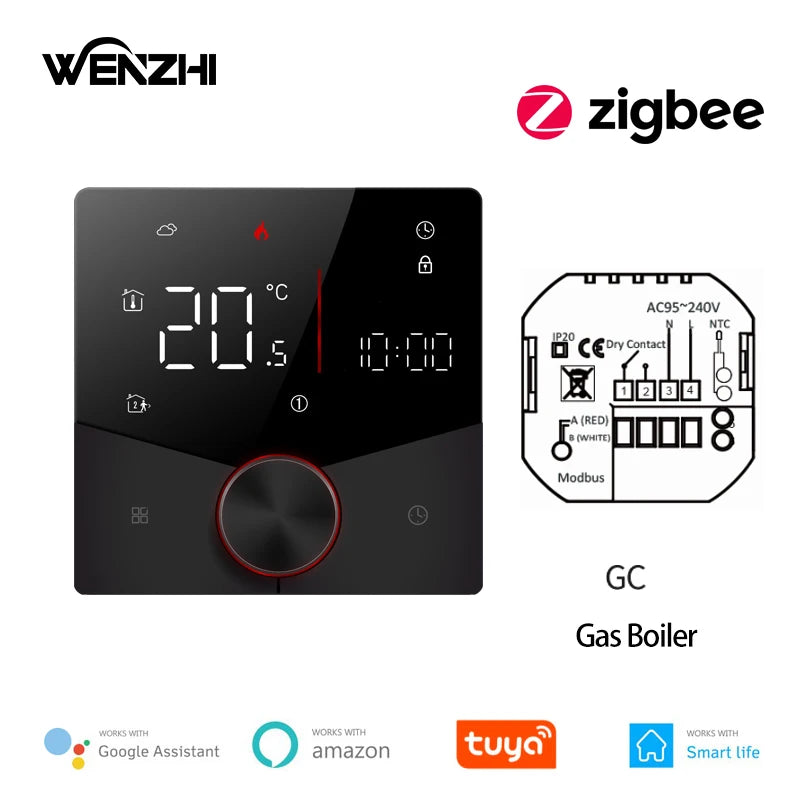

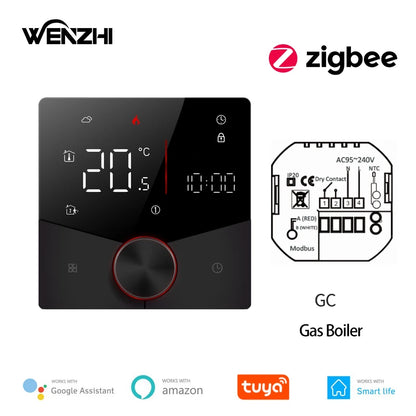

GC：for gas boiler;

Thermostat 1pc
Screws 2pc
User Guide 1pc
QC Passed 1pc
Floor Sensor 1pc (Floor Sensor is Optional)

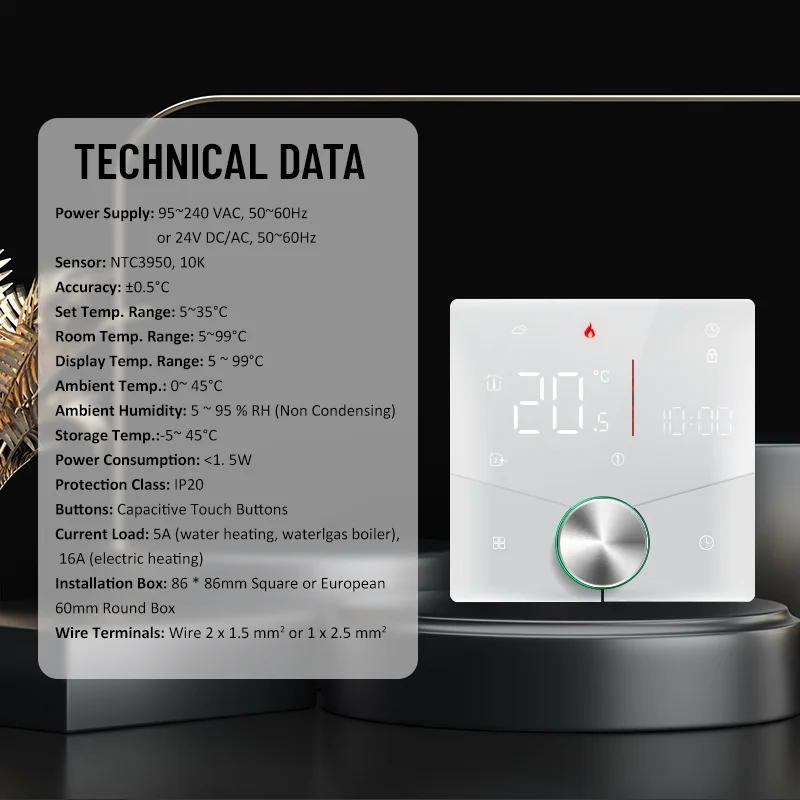

TECHNICAL DATA

Current Load: 5A (water heating, waterlgas boiler),
16A (electric heating)
Sensor: NTC3950, 10K
Network: ZigBee / Wi-Fi
App: Smart life/Tuya
Accuracy: ±1°C
Set Temp. Range: 5-35°C
Room Temp. Range: 5-70°C
Display Temp. Range: 5 ~ 70°C
Ambient Temp.: 0~ 45°C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:-5~ 45°C
Power Consumption: <1. 5W
Timing Error: < 1%
Shell Material: PC +ABS ( Fireproof)

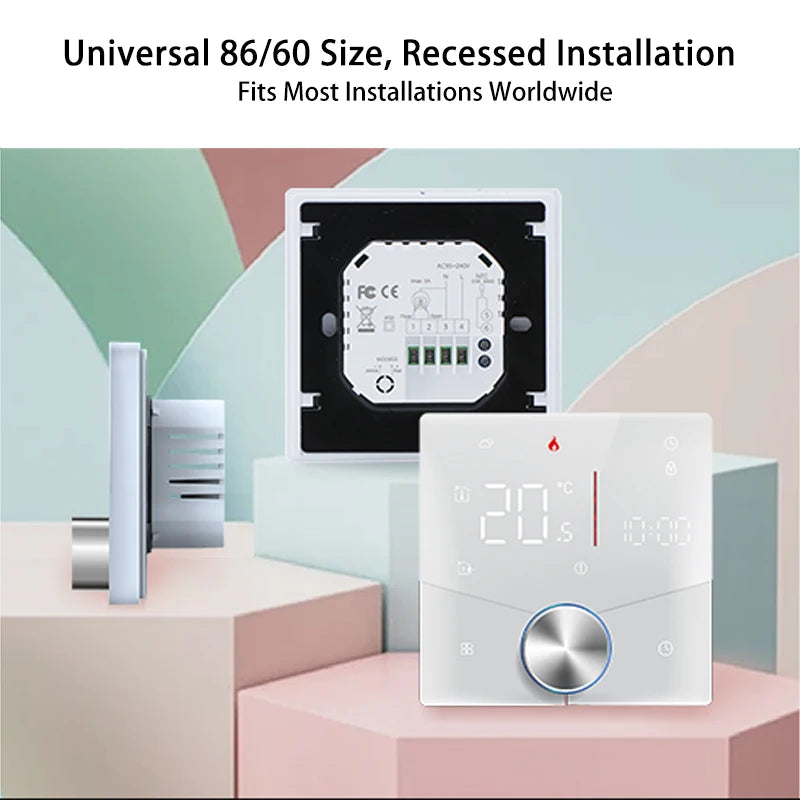

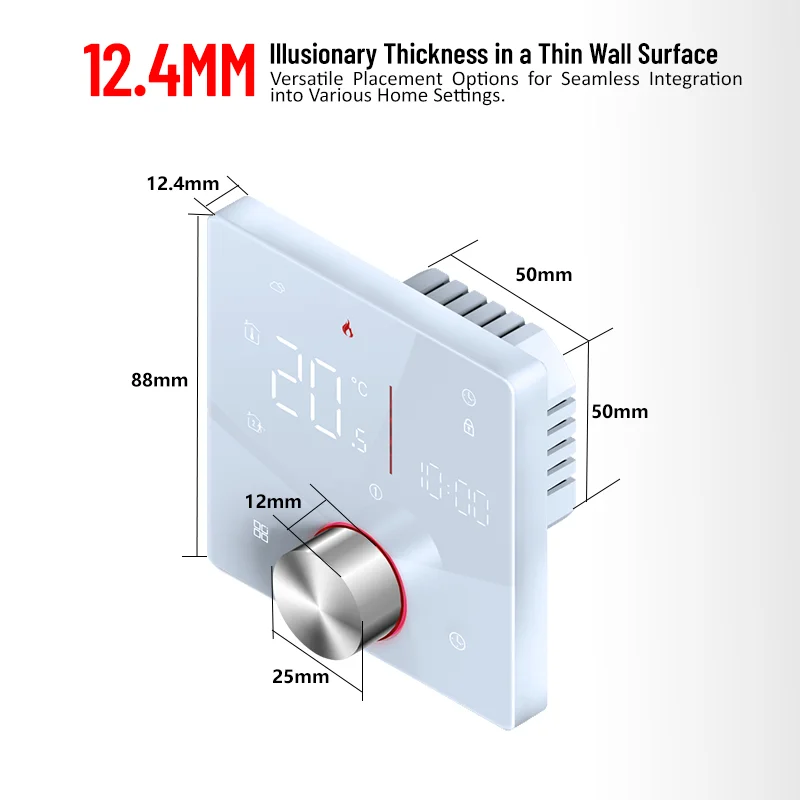

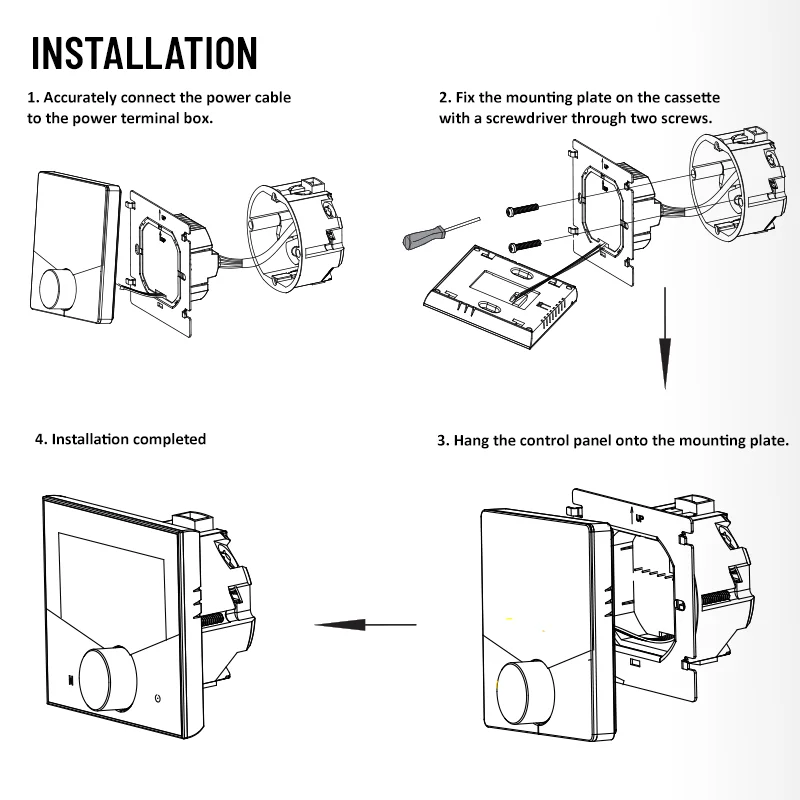

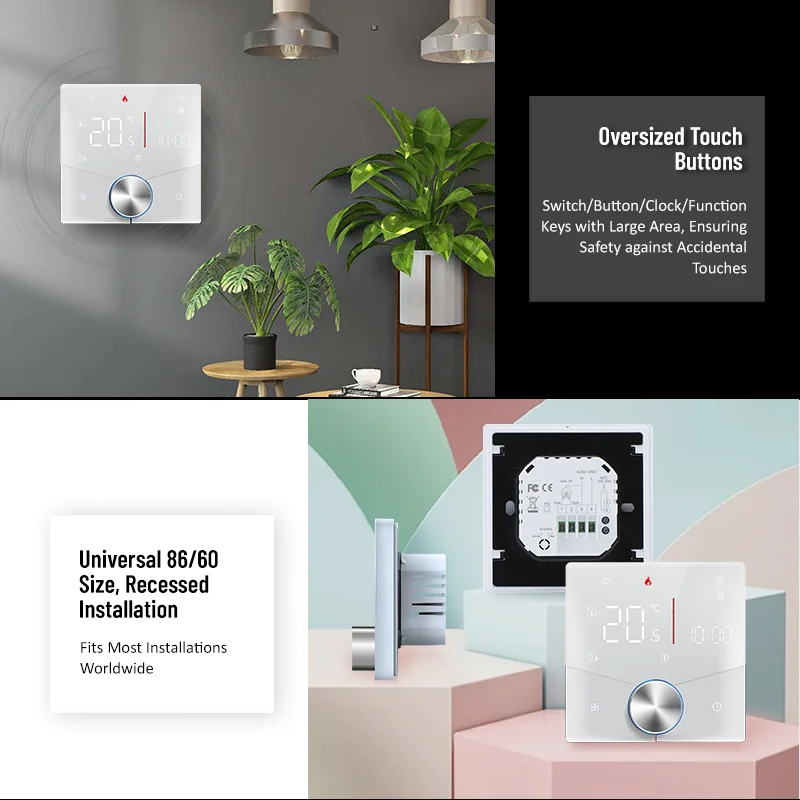

Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

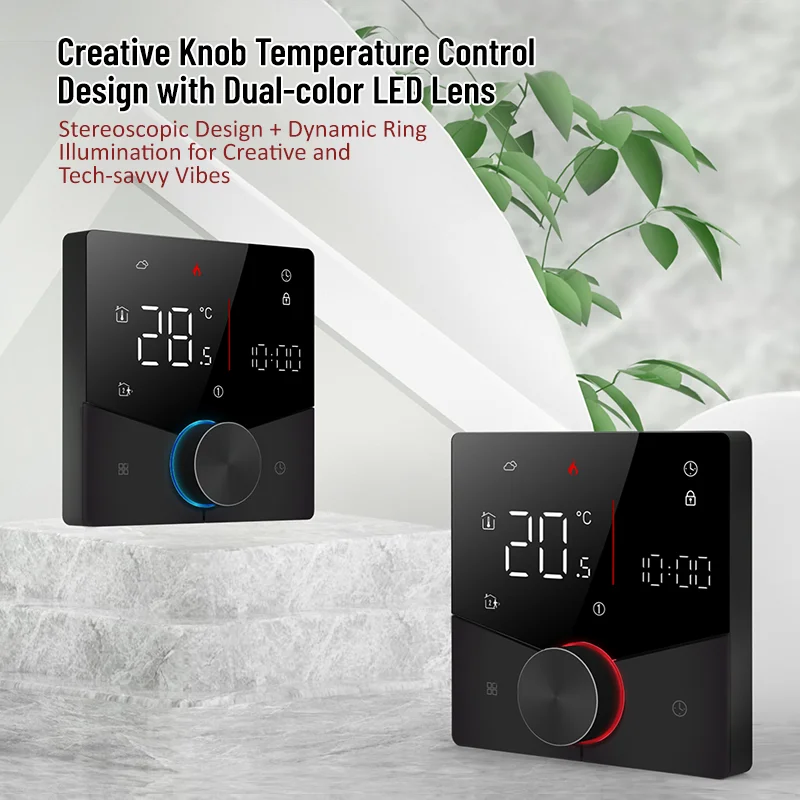

Buttons: Capacitive Touch Buttons
