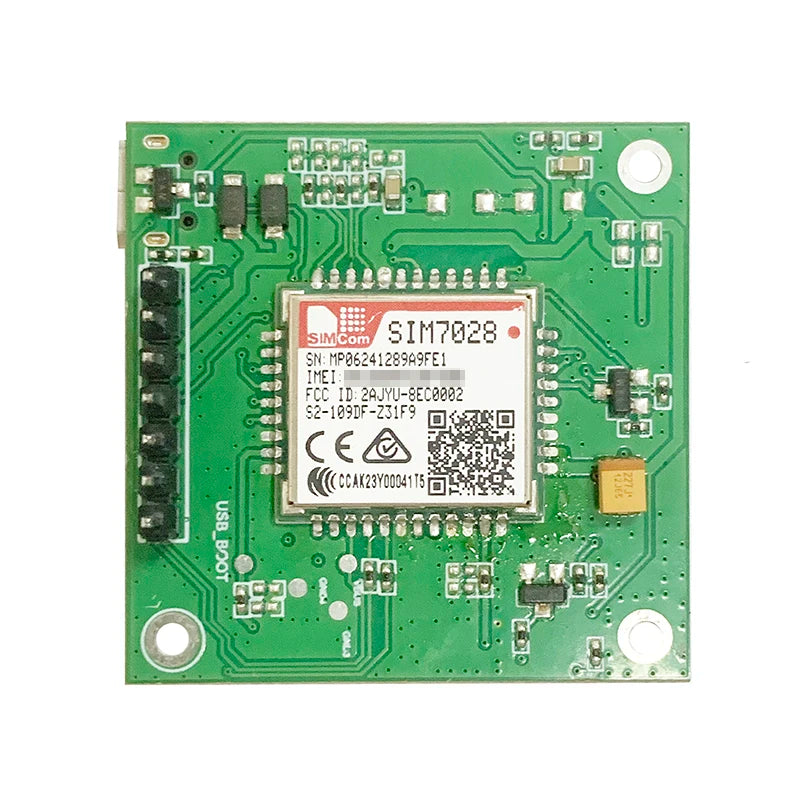

NB IoT Development Board with Low Power Wide Coverage

SIM7028

SIM7028 is a multi band NB IoT wireless communication module, packaged in LCC+LGA. This product supports a maximum downlink rate of 125Kbps and a maximum uplink rate of 150Kbps.

SIM7028 has rich hardware interfaces, including serial port, GPIO, ADC, etc., which make the module have rich scalability and provide great convenience for user product development.

The packaging of SIM7028 is compatible with SIM800C and SIM7020. This also maximizes the investment efficiency of customers and shortens the time to market.

The SIM7028 module is the optimal solution for low latency, low power consumption, and low throughput applications, making it highly suitable for IoT applications such as metering, remote control, asset tracking, remote monitoring, remote healthcare, shared bicycles, and more.

Product advantages

Low power consumption: The module supports PSM low-power mode, and theoretically, two No. 5 batteries can support 10 years

Wide coverage: Compared to GSM, NB IoT has strong gain and wide signal coverage, which also enables the product to have wireless communication capabilities in locations such as basements

Product details

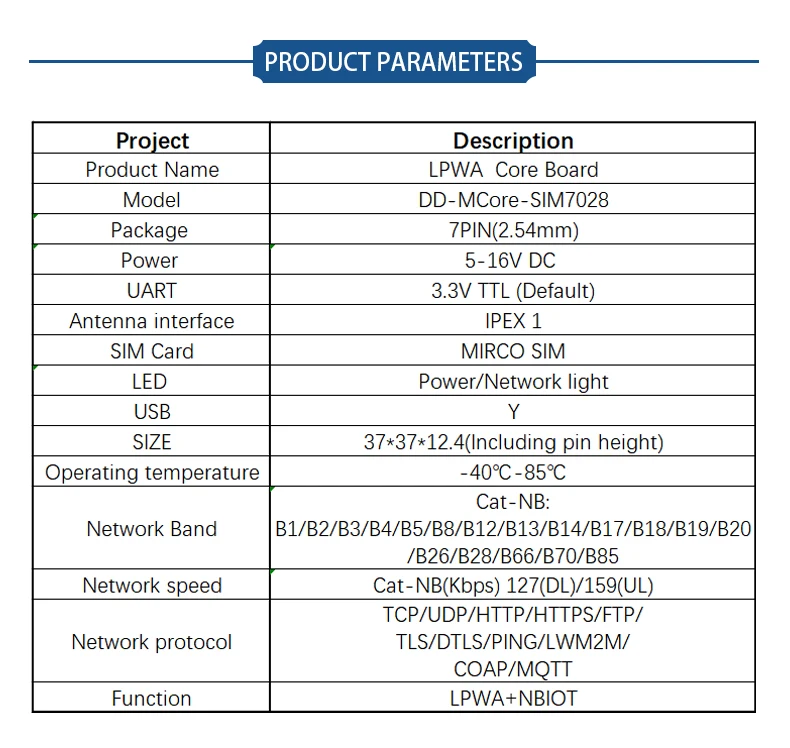

Main features

Supported frequency band: Cat-NB

B1/B2/B3/B4/B5/B8/B12/B13/B1

4/B17/B18/B19/B20/B25/B26/B2

8/B66/B70/B85

Voltage: 2.2V~4.3V

Working temperature: -40 ℃~+85 ℃

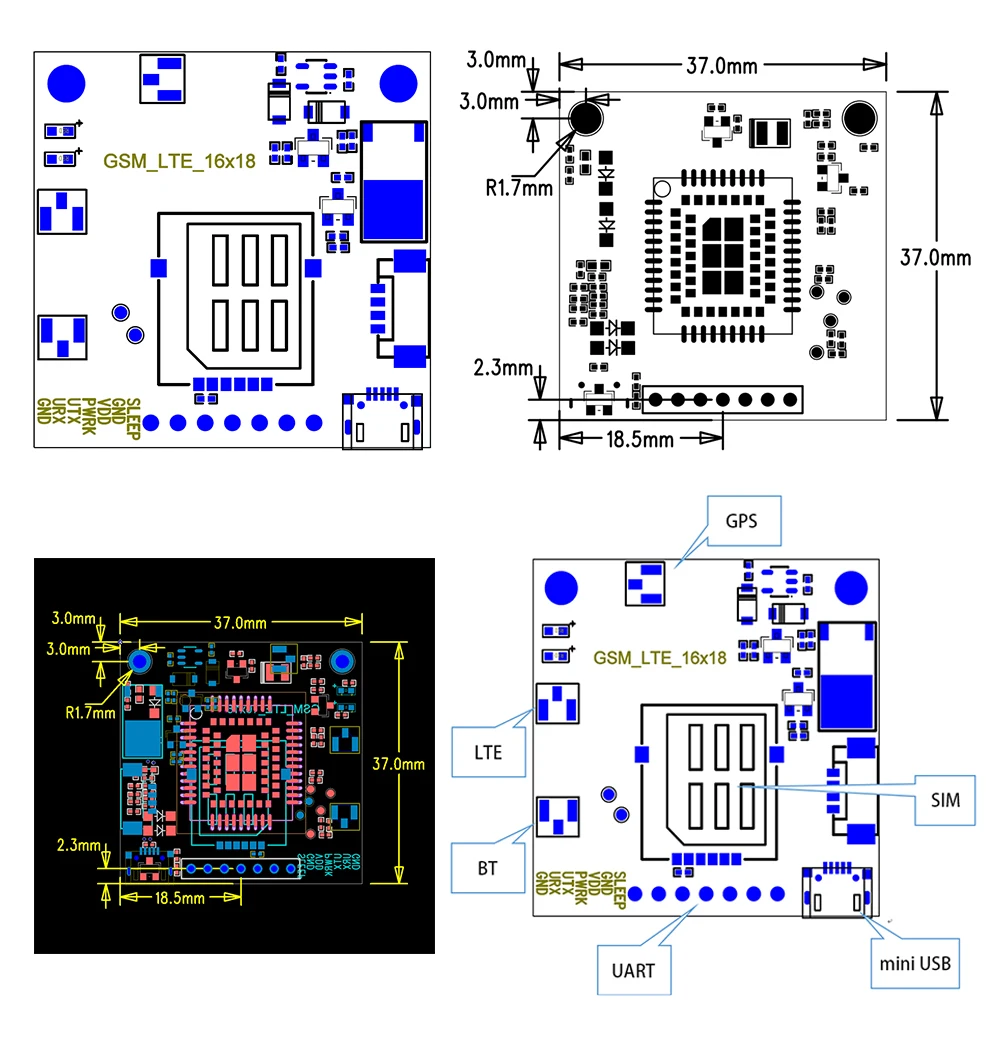

Size: 17.6 * 15.7 * 2.1 mm

Weight: TBD

AT instruction operation

Data Transmission

Cat NB:

Up to 159Kbps

Maximum downlink speed of 127Kbps

Other features

Upgrading software through serial port

TCP/UDP/TLS */DTLS*

LWM2M */COAP */MQTT*

OneNET/Telecom Cloud

DFOTA*

Interface Characteristics

UART serial port

USIM card (1.8V/3V)

Network light

RI signal

Reset

ADC

GPIO

WARKUP

Consumption

PSM: 0.8 uA

Sleep: TBD

Standby: TBD

eDRX@655.36s TBD

Authentication

SRRC */NAL */CCC*

CE-RED */GCF*

Deutsche Telekom */Vodafone */Telefonica*

RoHS */REACH*

China Telecom*

China Mobile*

China Unicom*
