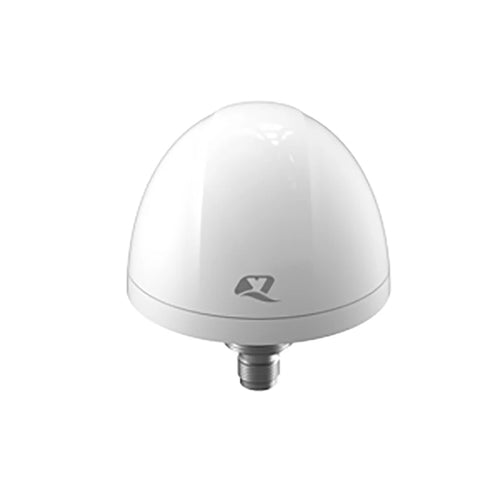

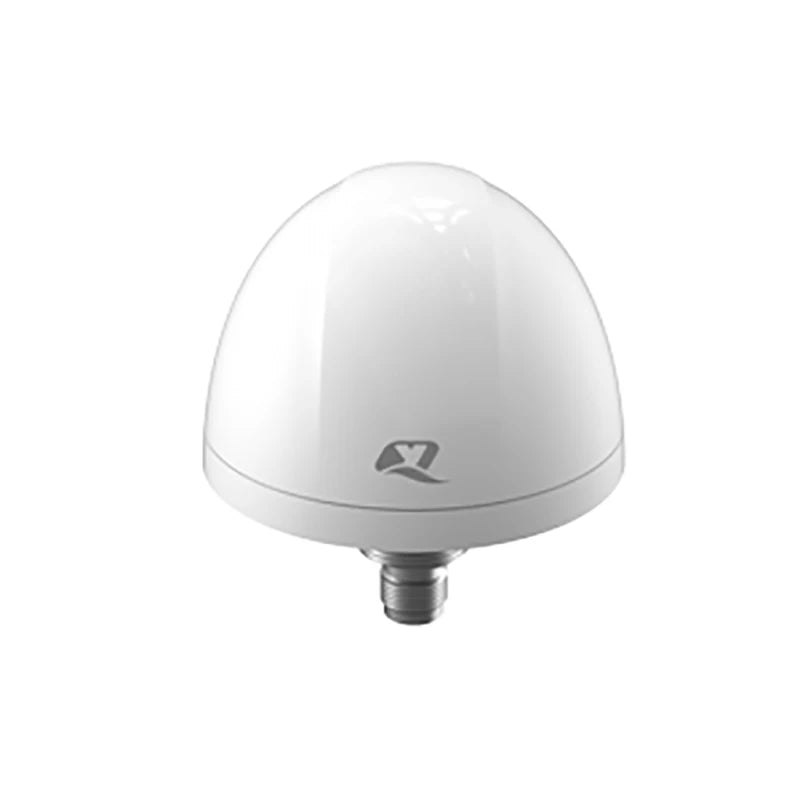

Dual Band GNSS Antenna for Agricultural Navigation and Mapping

Overview

This Quectel GNSS antenna adopts a diversity of forms to guarantee the most suitable polarization type. Quectel’s positioning products support single-band or multi-band operation modes to meet various high precision positioning requirements of customers’ products. Quectel provides both passive and active antennas to satisfy the customer demand for high gain, supporting different installation or connection methods such as pin mount, surface mount, magnetic mount, internal cable, and external SMA. Customized connector type and cable length are provided according to requirements.

Key features

Active GNSS L1 & L5 screw mount antenna

LNA gain: 28±2dB

ASA casing

M18 nut

IP67

TNC-K connector

Parameter

Antenna Gain: 28DBI

Frequency: 1164-1189MHz/1559-1606MHz

Technology:Timing GNSS L1 & L5 (active)

Antenna Dimensions: 56*45mm

Connector: TNC-K

Mounting type:Screw

IP leve:IP67

Compliant:RoHS
