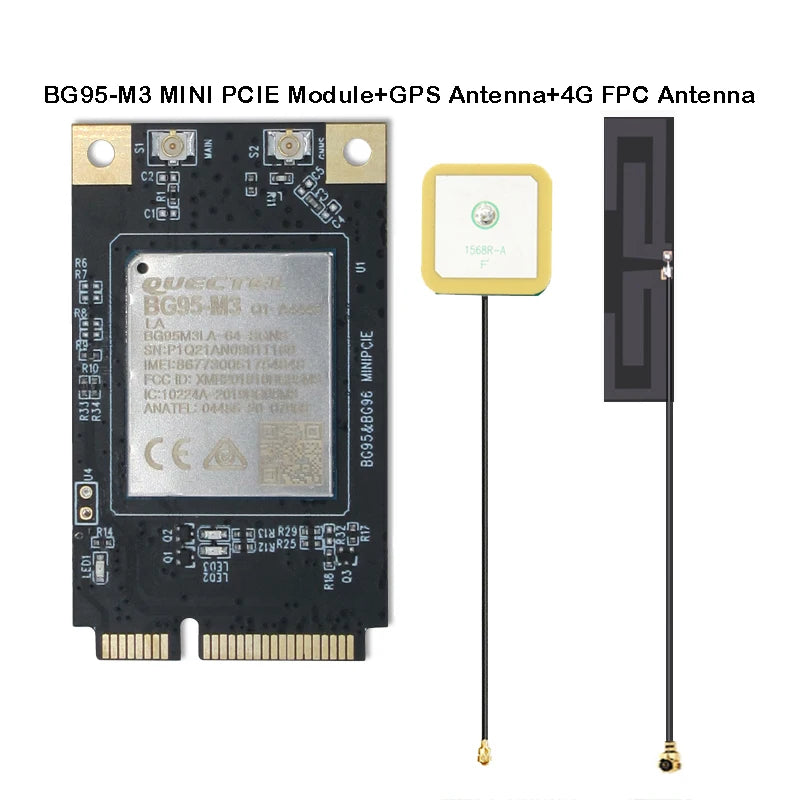

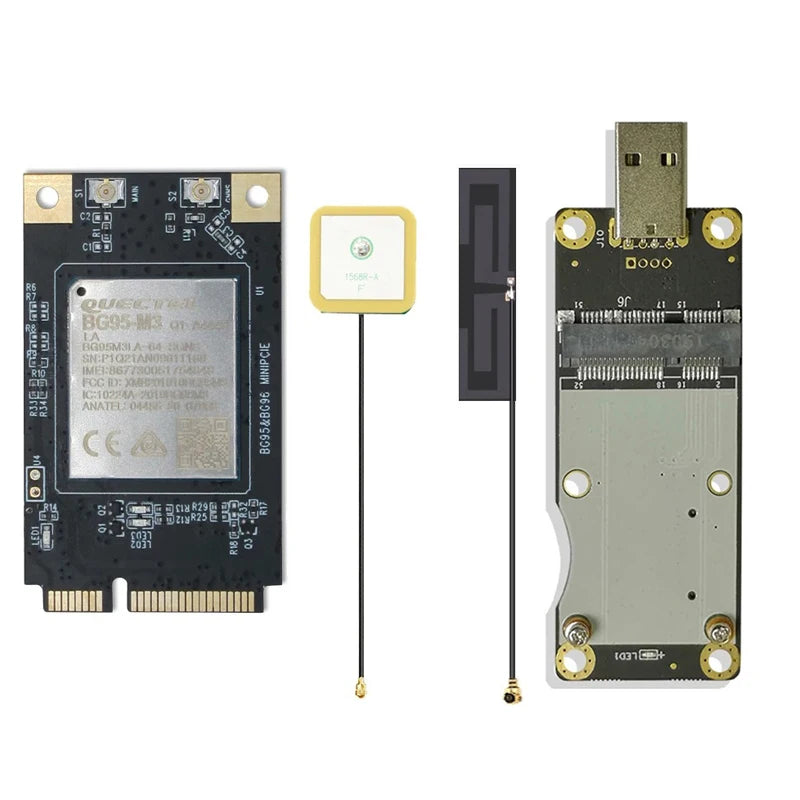

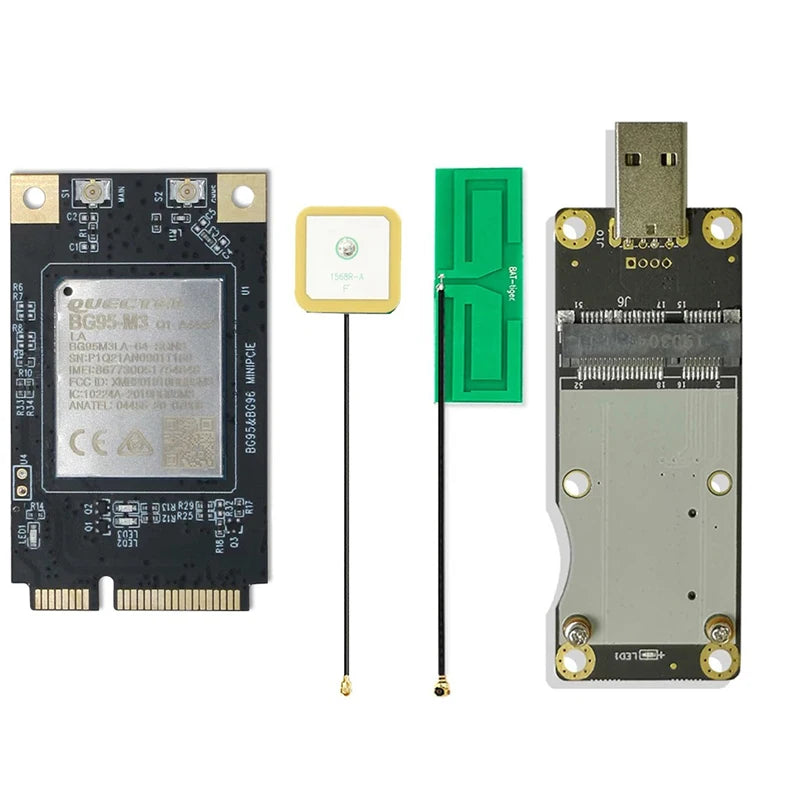

Mini PCIE Cellular Module with GNSS and Low Power Connectivity
Mini PCIE Cellular Module with GNSS and Low Power Connectivity
Couldn't load pickup availability
Mini PCIE Cellular Module with GNSS and Low Power Connectivity

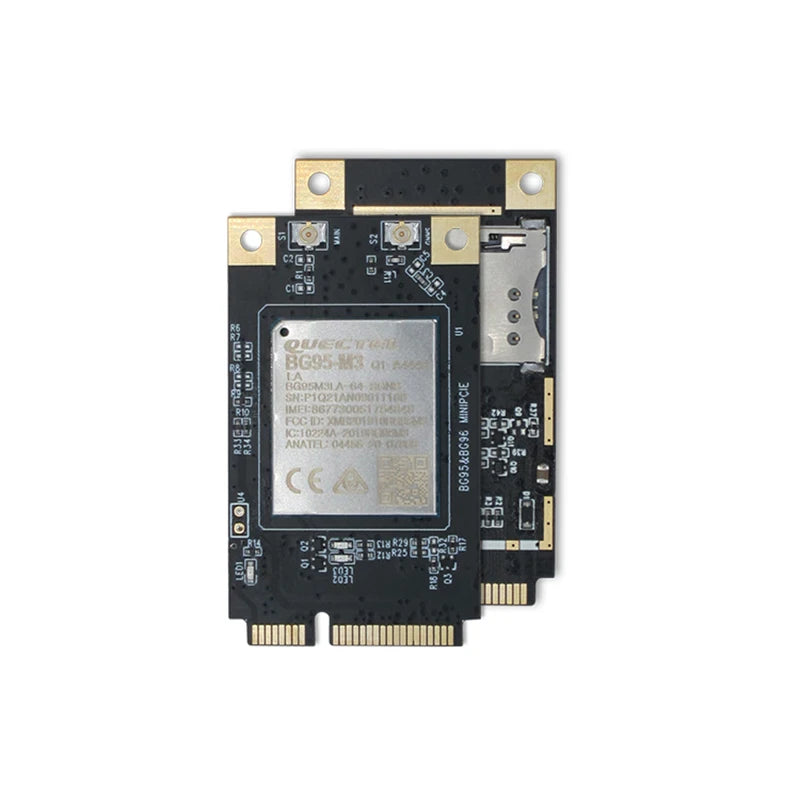

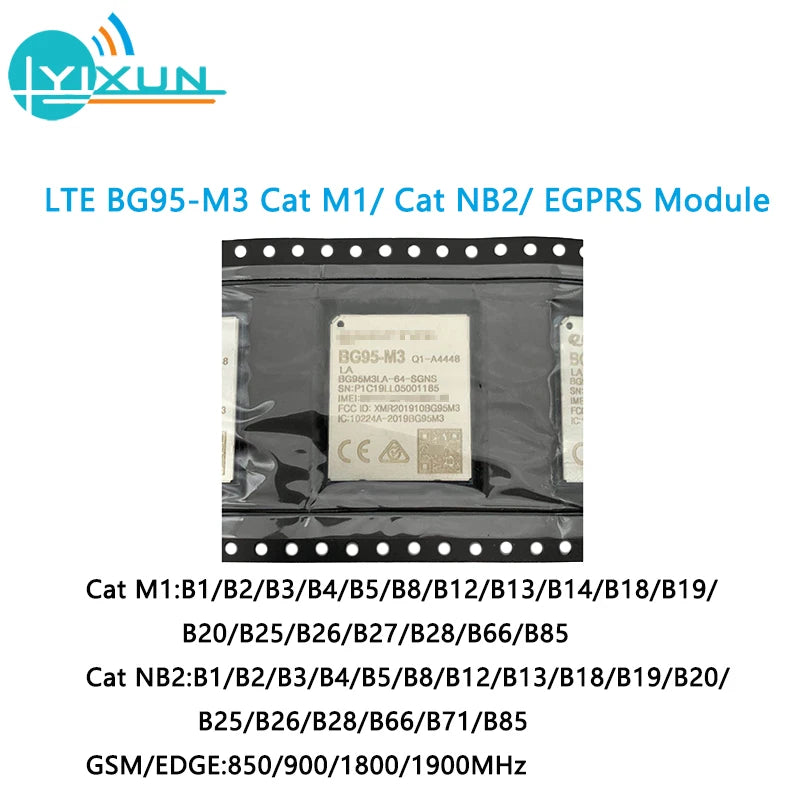

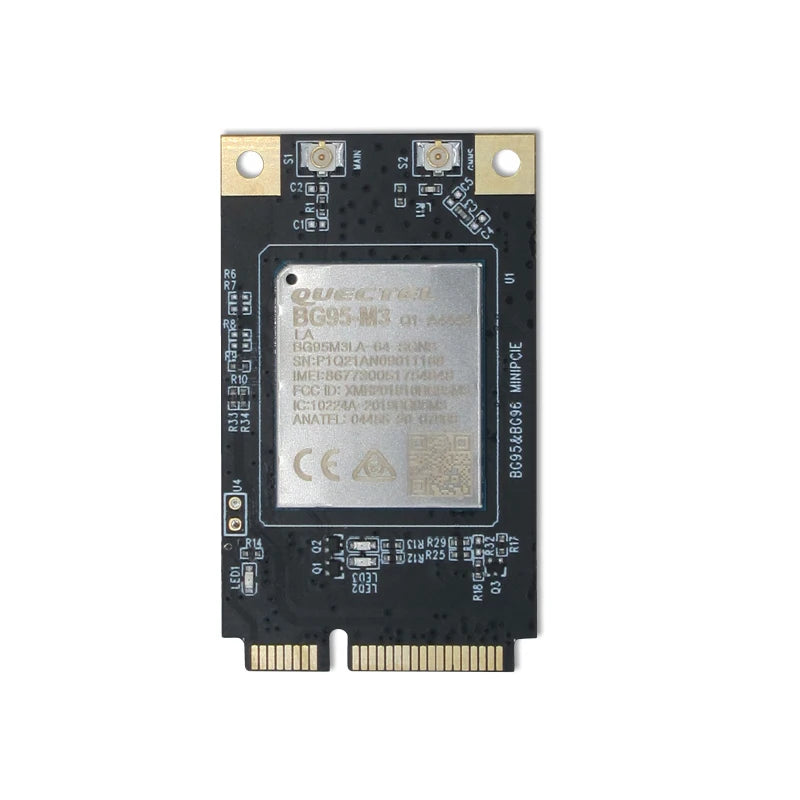

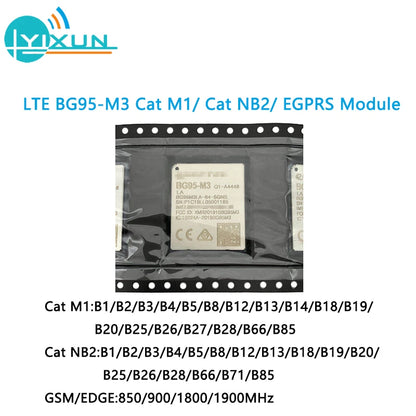

LTE BG95 Cat M1/ Cat NB2/ EGPRS Module
BG95 is a series of multi-mode LPWA modules supporting LTE Cat M1/Cat NB2/EGPRS and integrated GNSS. It is 3GPP Rel. 14 compliant and offers maximum data rates of 588Kbps downlink and 1119Kbps uplink under LTE Cat M1. It features ultra-low power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX, achieving up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor.
BG95 boasts a comprehensive set of hardware-based security features and enables trusted applications to run directly on the Cortex A7 TrustZone engine. Additionally, BG95 provides pin-to-pin compatibility with Quectel LTE Cat 4 modules EG91/EG95, LTE Cat M1/Cat NB1/EGPRS module BG96, NB-IoT module BC95, UMTS/HSPA modules UG95/UG96 and GSM/GPRS module M95.
With a cost-effective SMT form factor of 23.6mm × 19.9mm × 2.2mm and high integration level, BG95 enables integrators and developers to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications. A rich set of Internet protocols, industry-standard interfaces and abundant functions extend the applicability of the module to a wide range of M2M applications such as wireless POS, smart metering, tracking, wearable devices, etc.
Key Benefits
● LTE Cat M1/Cat NB2/EGPRS module with ultra-low power consumption
● Easy migration from Quectel GSM/GPRS, UMTS/HSPA and LTE modules
● Super slim profile in LGA package
● Integrated RAM and flash in the baseband chipset
● Comprehensive set of hardware-based security features
● Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
● Compact SMT form factor ideal for size-constrained applications with tight space
● Robust mounting and interfaces
Specification
|
Frequency |
BG95-M1 |
BG95-M2 |
BG95-M3 |
BG95-N1 |
|
|
Region/Operator |
For the Global |
For the Global |
For the Global |
For the Global |
|
|
LTE FDD |
Cat M1 Only: |
Cat M1: |
Cat M1: |
Cat NB2 Only: |
|
|
GSM/EDGE |
/ |
/ |
850/900/1800/1900MHz |
/ |
|
|
GNSS (Optional) |
GPS/GLONASS/BeiDou/ |
GPS/GLONASS/BeiDou/ |
GPS/GLONASS/BeiDou/ |
GPS/GLONASS/BeiDou/ |
|
|
Wi-Fi (For Positioning) |
/ |
/ |
/ |
/ |
|
|
Certification |
Carrier: North America: Regulatory: Global: GCF* Others: RoHS |
Carrier: North America: Regulatory: Global: GCF* Others: RoHS |
Carrier: Global: Vodafone* Regulatory: Global: GCF Others: RoHS/PEN/ATEX* |
Carrier: North America: Regulatory: Global: GCF* Others: RoHS |
|
|
Frequency |
BG95-M4* |
BG95-M5* |
BG95-MF (Planning) |
|
|
Region/Operator |
For the Global |
For the Global |
For the Global |
|
|
LTE FDD |
Cat M1: |
Cat M1: |
Cat M1: |
|
|
GSM/EDGE |
/ |
850/900/1800/1900MHz |
/ |
|
|
GNSS (Optional) |
GPS/GLONASS/BeiDou/ |
GPS/GLONASS/BeiDou/ |
GPS/GLONASS/BeiDou/ |
|
|
Wi-Fi (For Positioning) |
/ |
/ |
2.4GHz |
|
|
Certification |
Carrier: Planning Regulatory: Planning Others: Planning |
Carrier: Planning Regulatory: Planning Others: Planning |
Carrier: Planning Regulatory: Planning Others: Planning |
|
