LPWA Cellular Module with GNSS and Integrated Memory

Overview

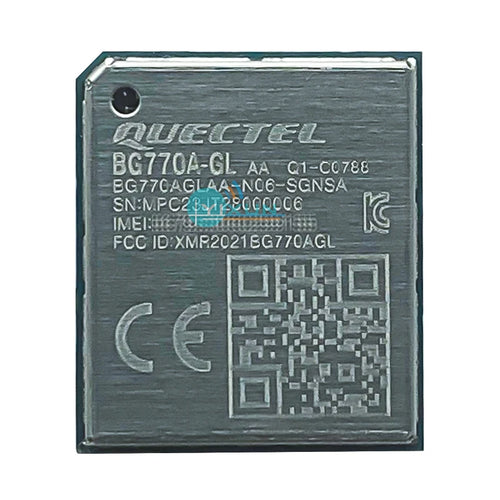

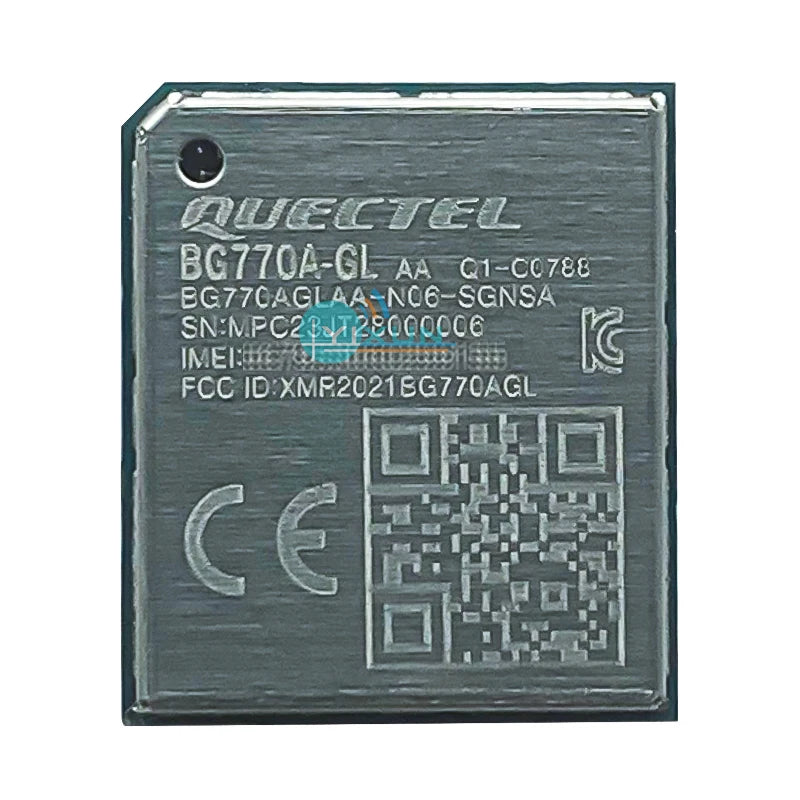

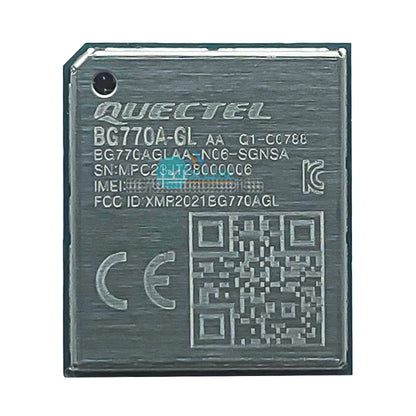

The BG77xA-GL is a series of LPWA modules with an SMT form factor of 14.9mm × 12.9mm × 1.9mm and integrated GNSS engine, which supports LTE Cat M1 and LTE Cat NB1/NB2 bands. The module is fully compliant with the 3GPP Rel-14 specification and provides global carrier band combinations. It features the MIPS 5150 processor and ultra-low power consumption by leveraging the integrated RAM and flash to achieve extremely low current consumption in various standby/hibernation modes, including 3GPP PSM and e-I-DRX. In addition, the BG77xA-GL contains a GNSS and cellular-based location engine that supports GPS and GLONASS.

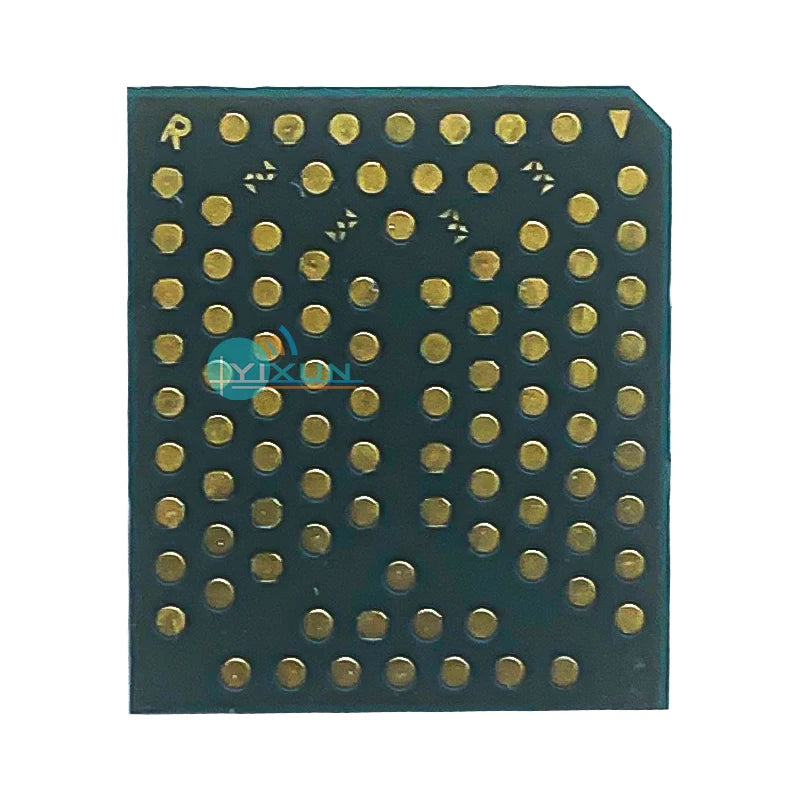

The BG77xA-GL boasts a comprehensive hardware based security feature - Integrated Security Elements (ISE). The ultra-compact form factor and high integration level of the module enables integrators and developers to easily design their applications and take advantage of low-power consumption and mechanical intensity. The BG77xA-GL’s advanced LGA package allows for fully automated manufacturing required for high-volume applications.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities extend the applicability of the module to a wide range of IoT applications, such as wireless POS, smart metering, tracking, wearable devices, and many more.

Key Features

Integrated RAM and flash

Embedded with abundant Internet service protocols

Support for QuecLocator® and DFOTA

Rich set of external, multi-band interfaces that ensure convenient applications

Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design in time and development efforts

Robust mounting and interfaces
