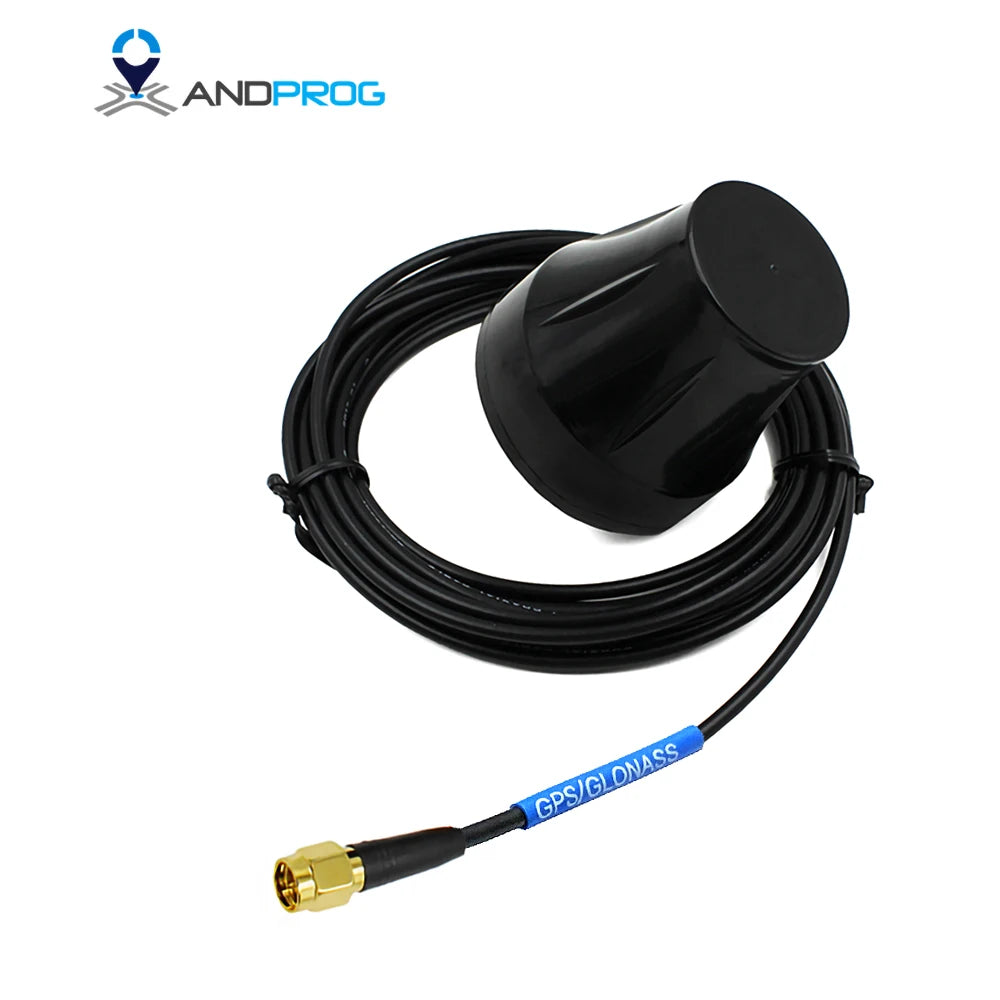

Waterproof Car GLONASS GNSS Antenna with L Band Support
Waterproof Car GLONASS GNSS Antenna with L Band Support
Couldn't load pickup availability
Waterproof Car GLONASS GNSS Antenna with L Band Support
FAQ
Q:The picture is real product?
A:Yes,all product pictures are real product.
Q:If stock quantity is not enough from link, how to do?
A: Contact/Leave message to us, we will reply and help check exact stock within 12 hours.
If go to bulk ordering, usually lead time 10-15 days.
Q:when I go to bulk several items, and find shipping cost is different, how do I do?
A: Shipping cost depends on unit weight, but if you find shipping cost very high,
Contact/Leave message to us, we will check whether shipping cost can be reduced.
Q:How can I get commercial invoice for company finance?
A: Contact/Leave message to us,leave billing address, we will send PDF version there.
Q:Is the antenna has different length cable or connectors?
A:Yes, can be custom-made, Contact/Leave message to us, we can quote for you.
GPS is for SMA Male/Fakra C(blue), which are normal.
Fakra C has straight and right angle(90 degree).
Wellcome to tell us of your requirements.
Q:Is GLONASS better than GPS?
A:The 2 systems also differ somewhat on accuracy. GLONASS position accuracy is 5-10m while GPS is 3.5-7.8m.
Therefore, GPS outweighs GLONASS in accuracy as lower error numbers are better.
Q:Should you use GPS with GLONASS?
A:Actually only gps should do its job in case satellite reception is perfect.
The combination with another system will improve accuracy when the signal gets weaker.
Q:Does GPS work without an antenna?
A:GPS (Global Positioning System) systems work by receiving signals from satellites.
That isn't possible without an antenna
Q:Where to put a GPS antenna?
A:In most cases, you can mount the GPS antenna near the top of the underside of your dash (behind or above the receiver).
|
|
|
|
|

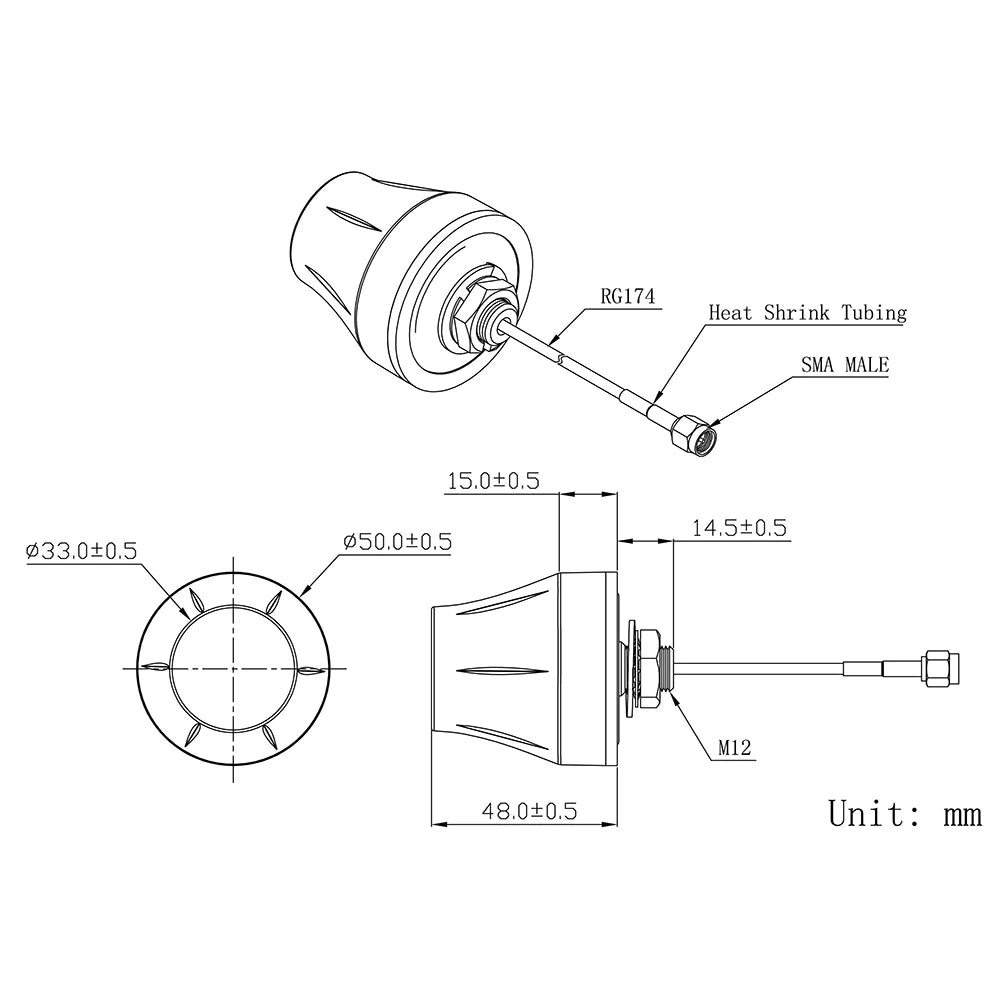

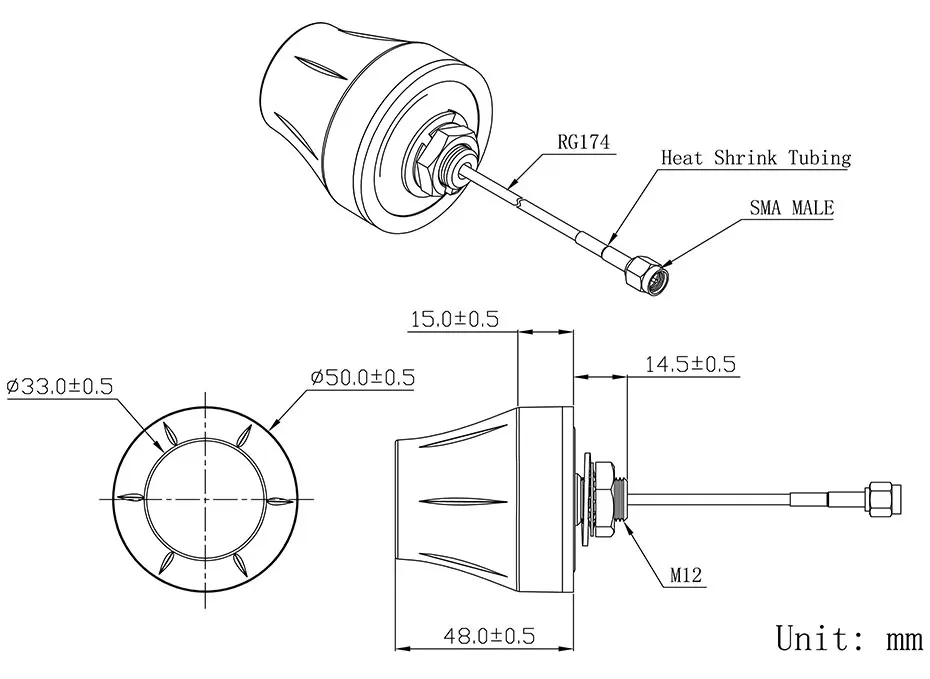

DIMENSIONS&SPECIFICATIONS |
|
|
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
2dBic(Zenith) |
|
|
V.S.W.R |
<1.5 |
|
|
Impendance |
50Ω |
|
|
Axial Ratio |
3dB(max) |
|
|
Dimension |
25*25*4mm |
|
|
LNA |
Gain |
28±2dB |
|
Noise Figure |
<1.5dB |
|
|
Supply Voltage |
2.2~5V DC |
|
|
Current Consumption |
5~15mA |
|
|
V.S.W.R |
<2.0 |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
<2.5 |
|
|
Polarization |
SMA/BNC/N or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP65~IP67 (exclude cable outlet) |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
Current Consumption |
|
|

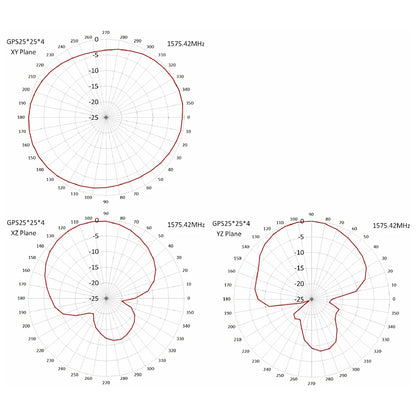

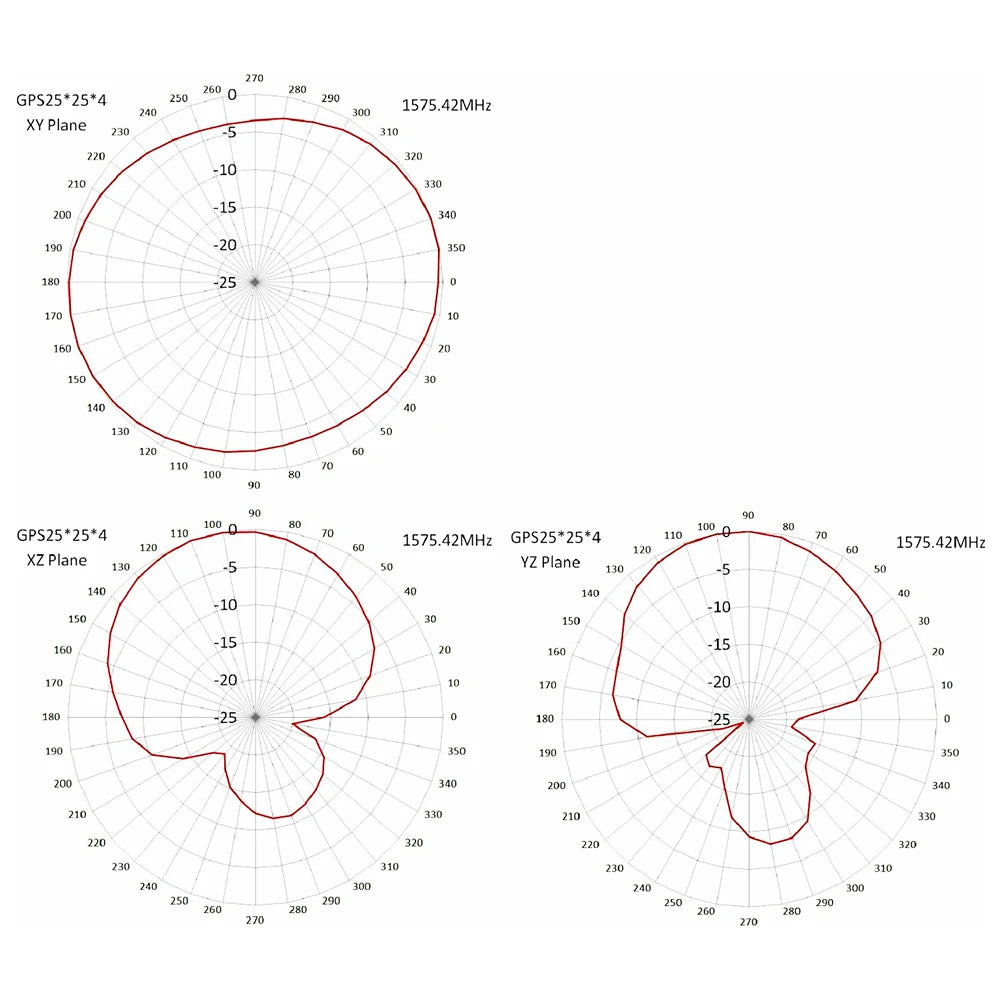

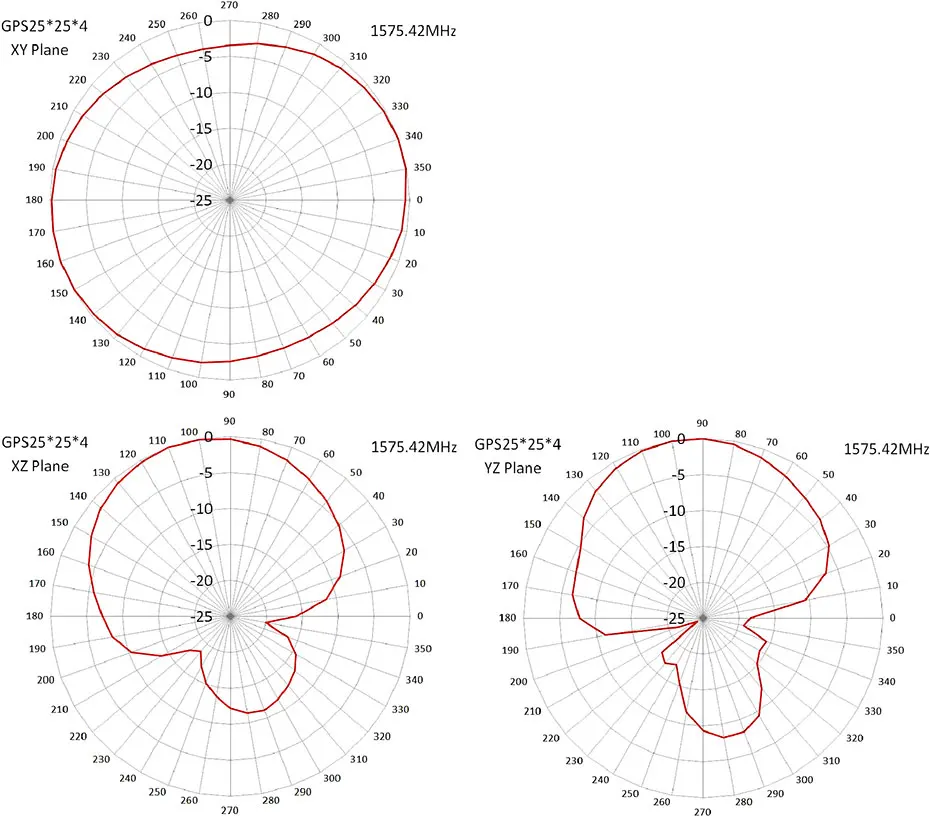

Radiation Pattern |
|
|
|
|
|
|
|
|
|
|
|
|
