NOYAFA NF-858C Wire Tracker Network Cable Tester POE Voltage Measure
Regular price
$152.79
Regular price
$152.79
Sale price
$0.00
Unit price
per
Main features:
PoE function: identify which pins are providing power and detect how much voltage .
Identify telephone cable condition ( Tip or Ring) / polarity (anode or cathode).
Easily trace and locate cables without AC Current noise.
Hub blink for locating network port by the flashing port light on Hub / Switch.

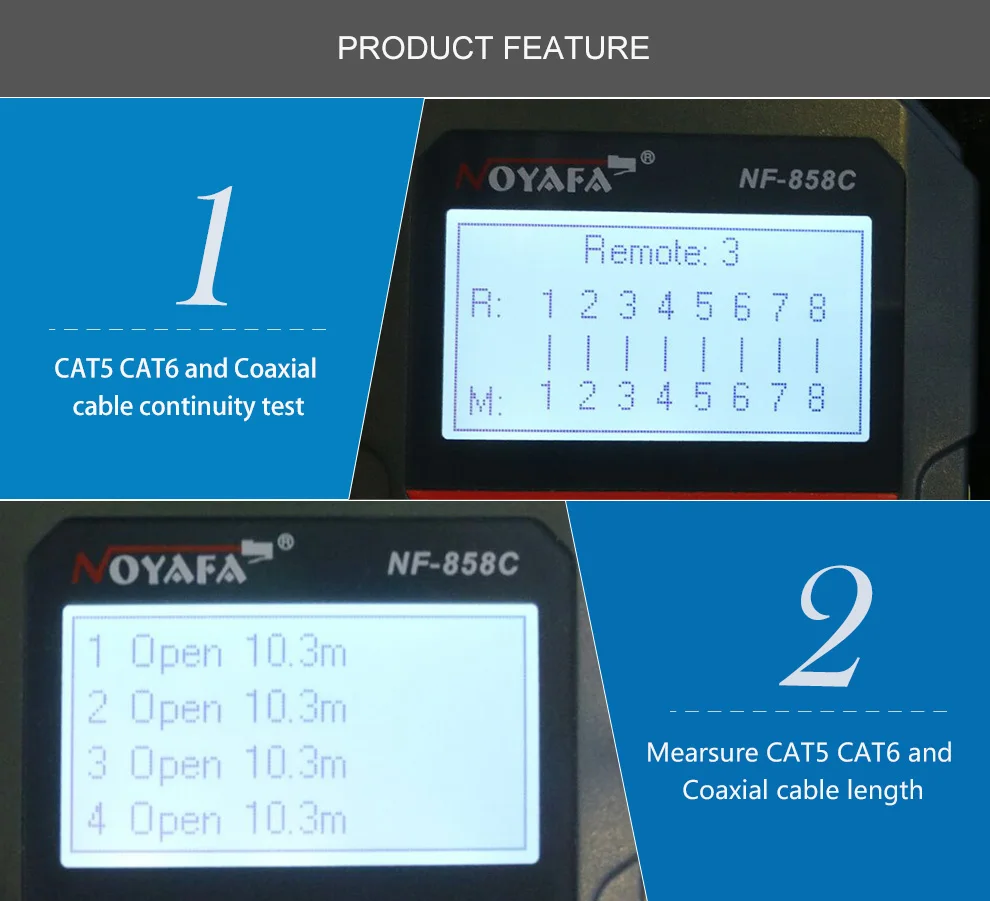

Measure cable length for Lan cable and Coax cable.
Check open, short, cross for Lan cable and Coax cable.
Benefits:
Different scan modes, easily help locate target cable.
Memory and storage function
LCD Screen shows test result clearly
Technical indexes
NF-858 Transmitter specifications
LCD screen58 x 40mm
Tone frequency130kHz
Max testing range2000m
Trace cable coonected to switchanti-jamming
Compatible with connectorsRJ45, BNC, VFL , Mic USB
Low battery display3.4 ± 0.2V
Storage data6 sets
Battery type3.7V 1000mAh Lithium battary

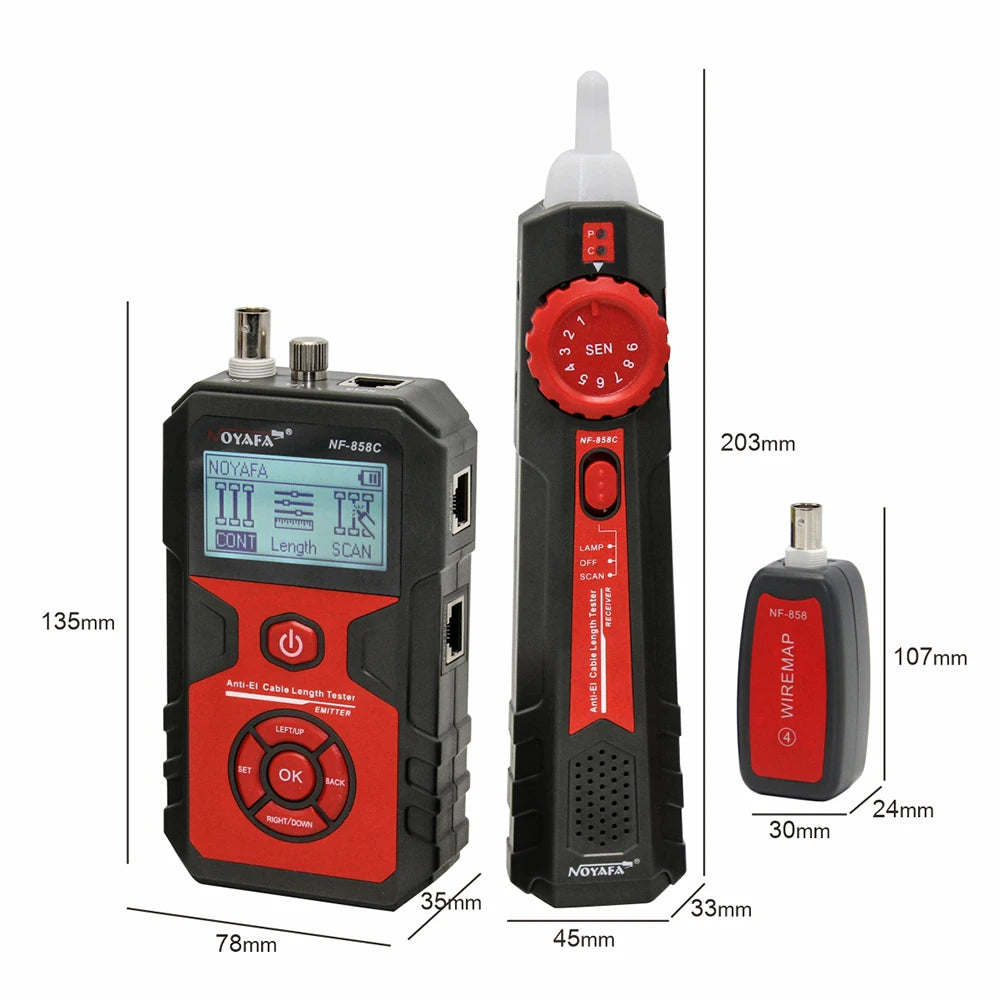

Dimensions (LxWxD)135 x 78 x 35 mm
NF-858 Receiver specifications
Frequency130kHz
Led illumination2
Battery type3.7V 1000mAh Lithium battary
Dimensions (LxWxD)203 x 45x 33mm
NF-858 Remote unit specifications
Compatible with connectorsRJ45,BNC
Remote units4 sets
Dimensions (LxWxD)107 x 30 x 24mm

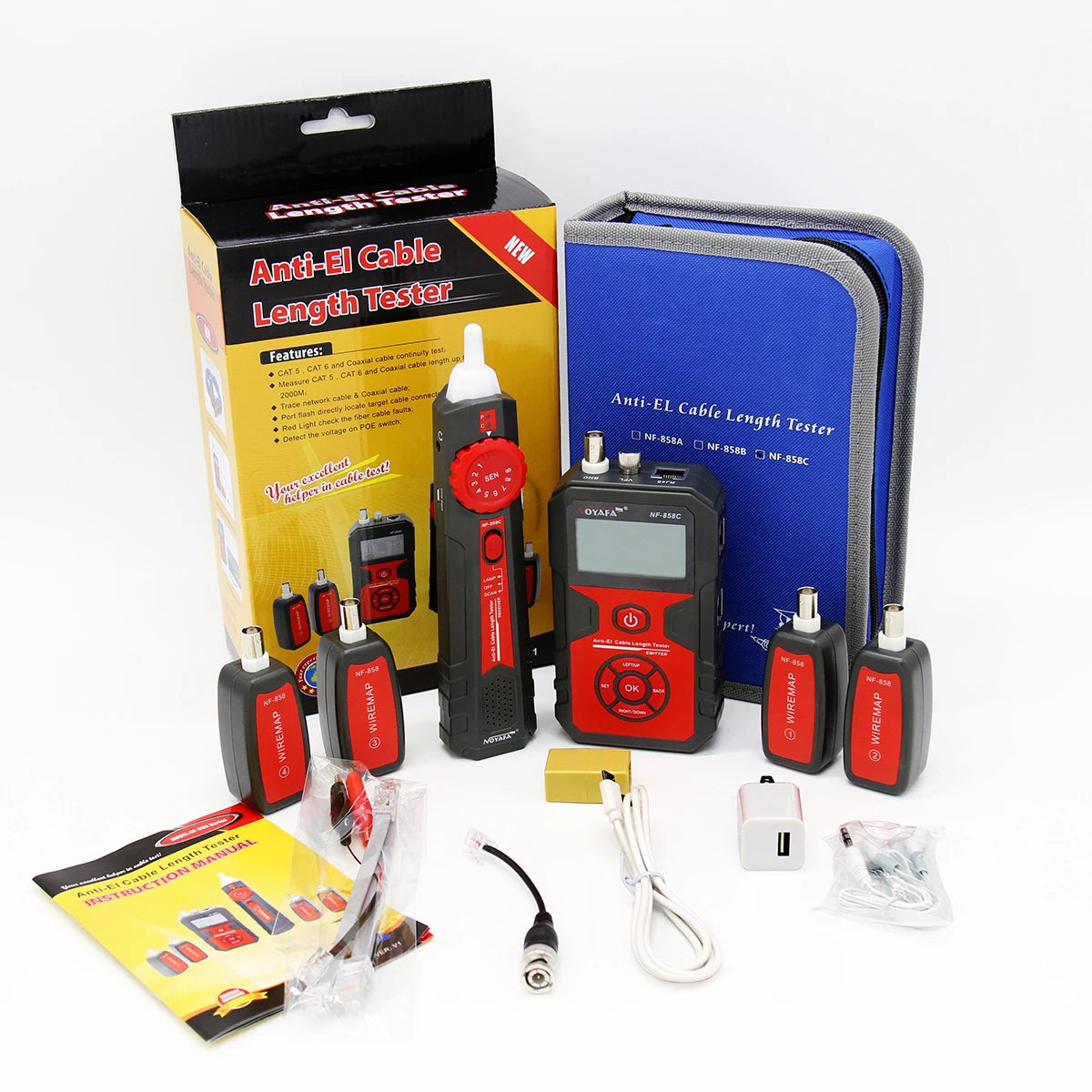

Accessories Included:
BNC-RJ11 Cable adaptor x 1 set
RJ45 Cable adaptor x 1 set
8P extender adaptor x 1pc
Cable clip x 1 set
Charging adaptor x 1 set
Lithium battary x 2 sets
