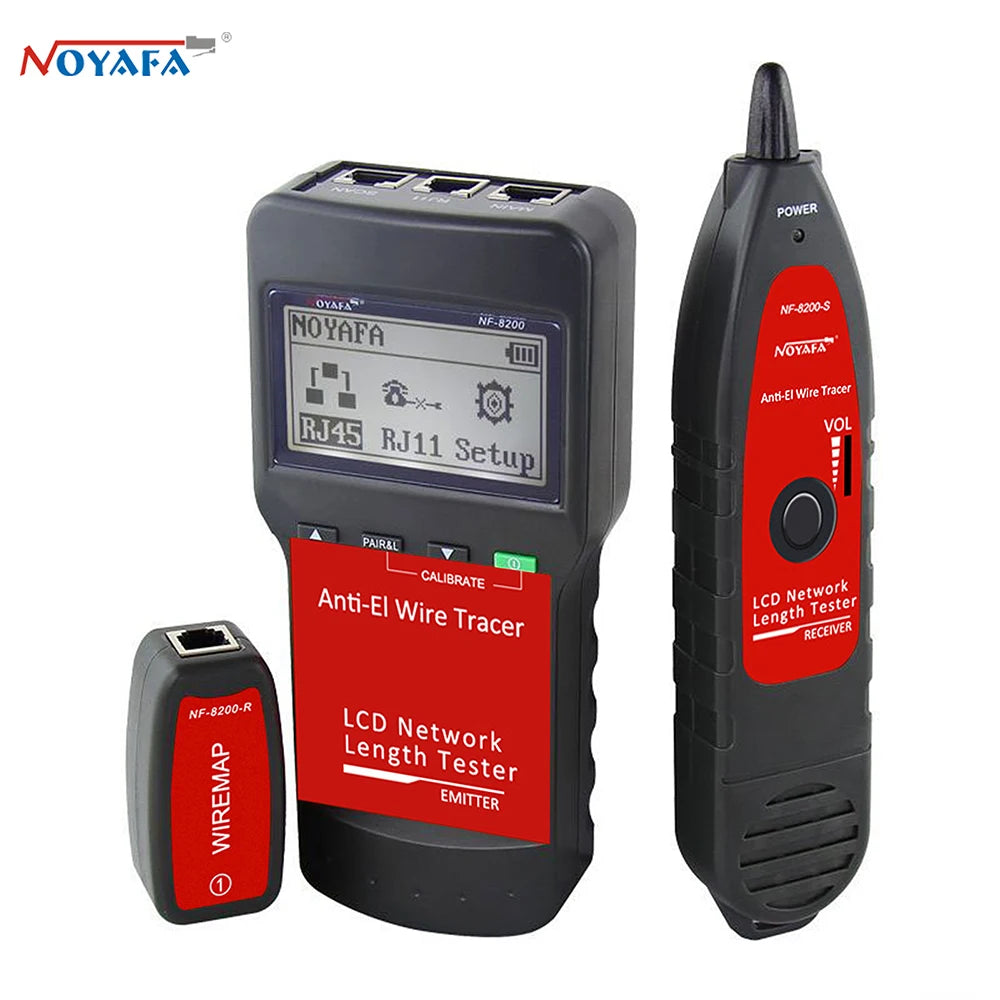

LCD Network Cable Tester with Continuity Check and Wire Locator

overview

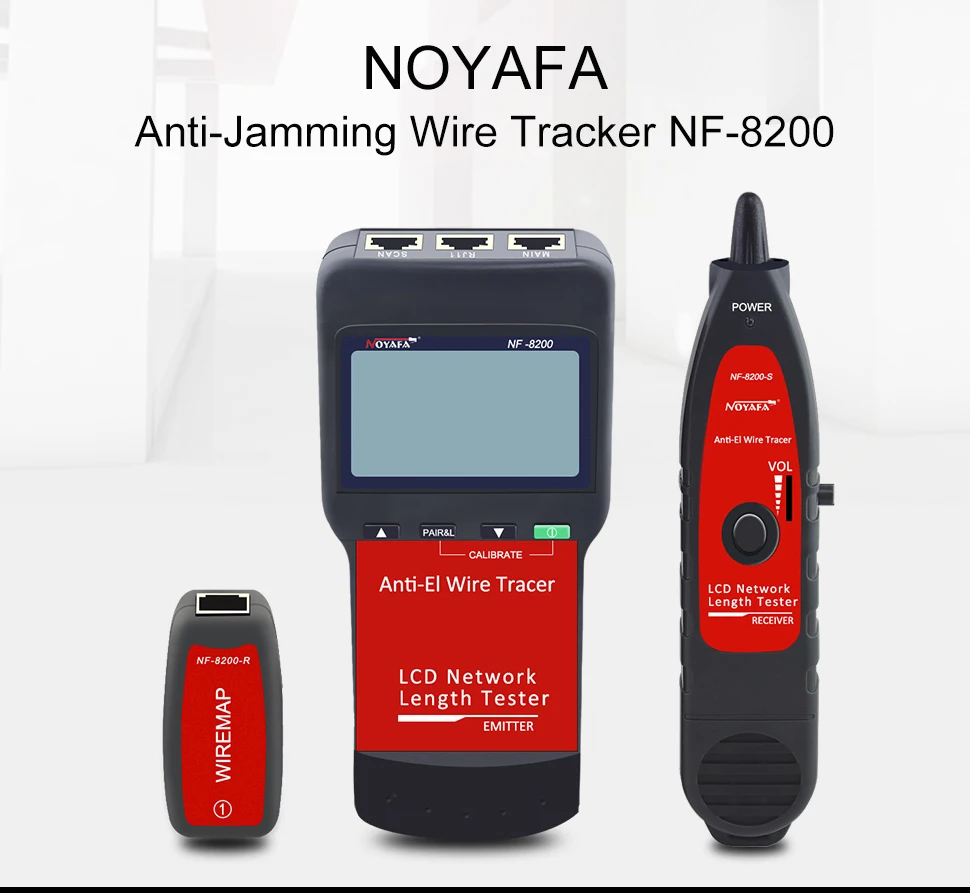

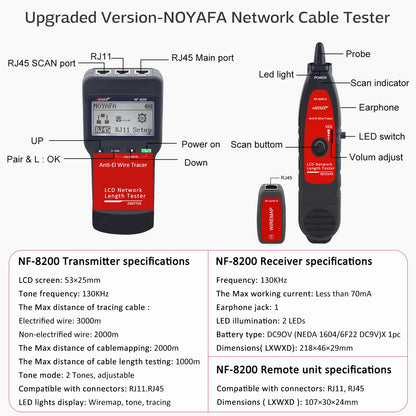

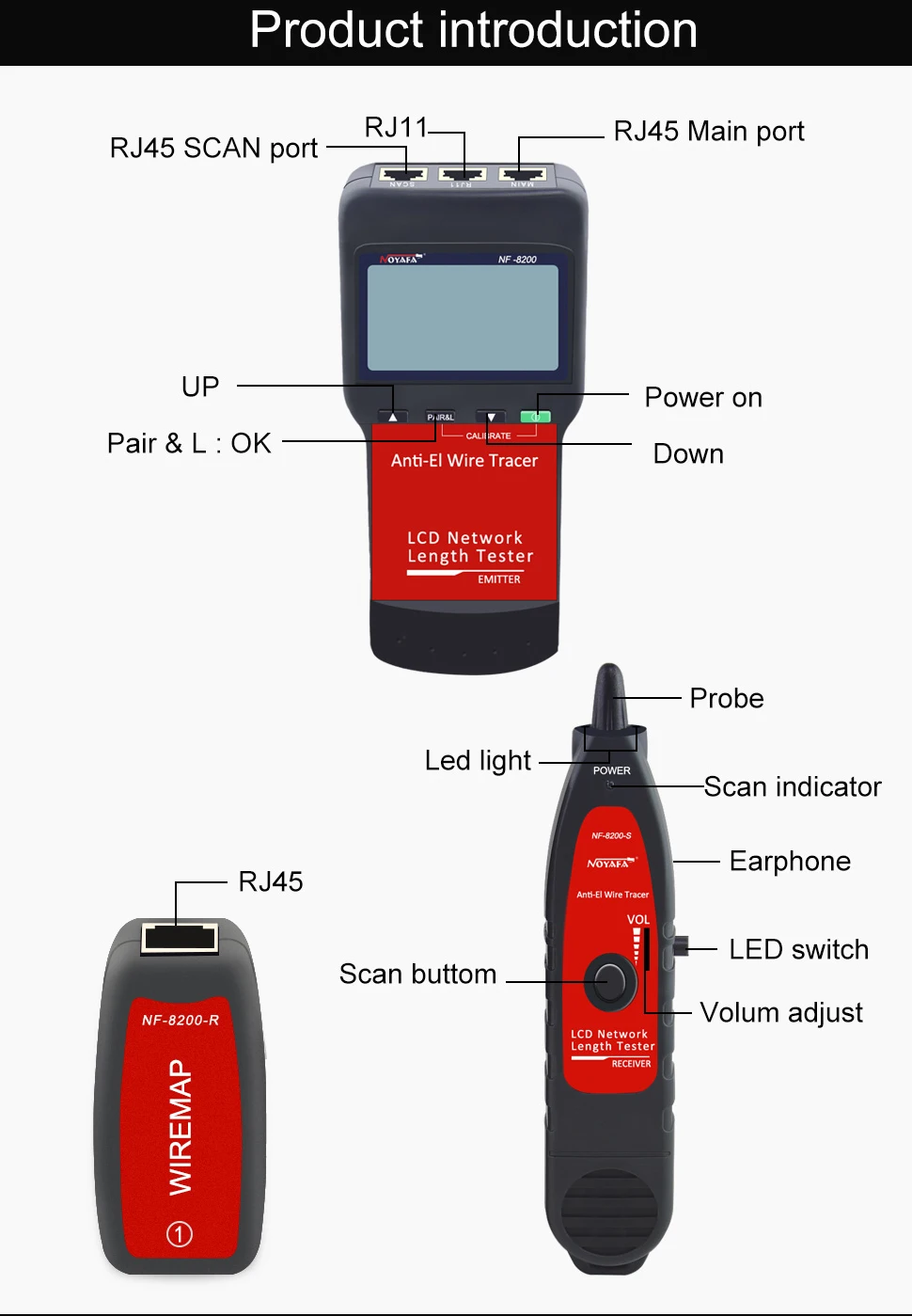

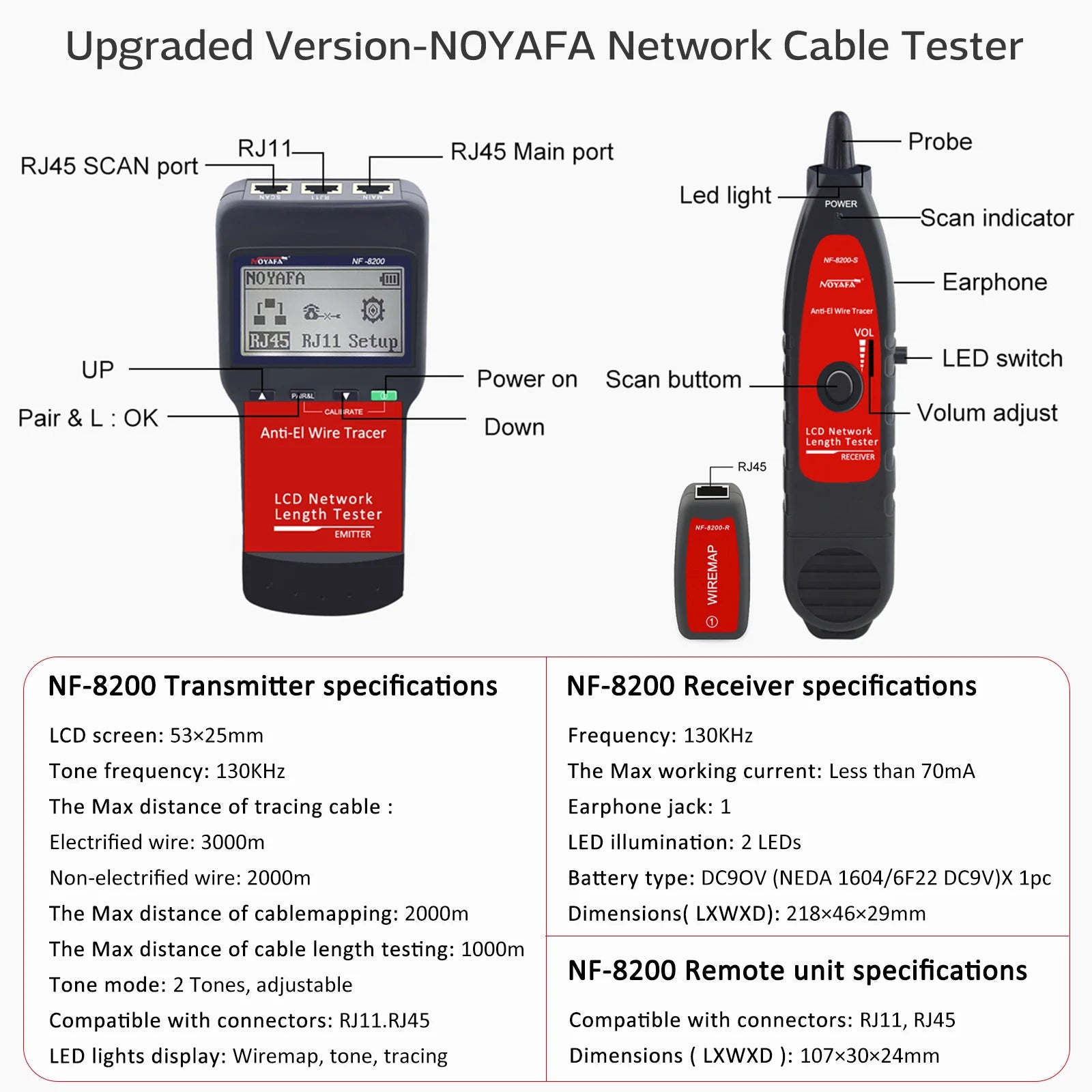

NF-8200 is newly developed by our company which are capableof avoiding current inteference . The equipment is composedof three parts: main tester (NF-8200),receiver (NF-8200-S) andremote identifier(NF-8200-R).lt has couples of circuit state testingfunctions including length test,cable line finding,line-to-line,crosstalk and breaking point,serving as a practical tool for lowvoltage system installation and maintenance techniciansof communication circuits and comprehensive wiring circuits. lt iswidely used in the fields like telephone system, computer networksand other metallead circuits.

Main functions

1）.Capable to test open,short , cross connection, reverse,pairingconnection and broken wire positioning ( RJ11,RJ45).

2）.To perform crosstalk test on network cable to solve the potentialproblem of slow speed.

3）.To quickly find the target wire or cable among kinds of wires.

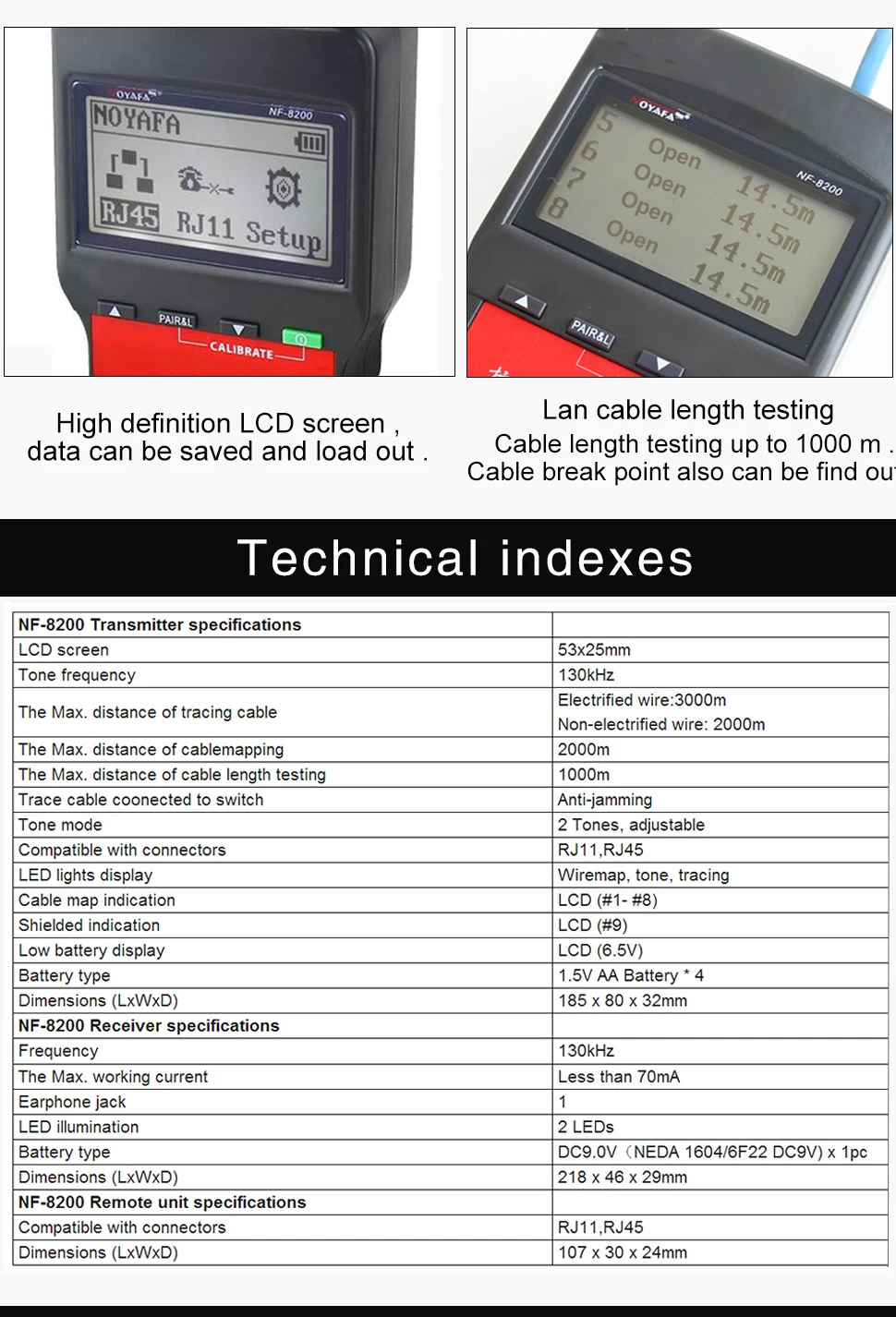

4）.Measure length of network cable, telephone cable up to 2500m,no need of remote unit when measuring length.

5）.To make a accurate determination of short circuit position .

6）.To trace cable on exchanger or Router without current inteference.

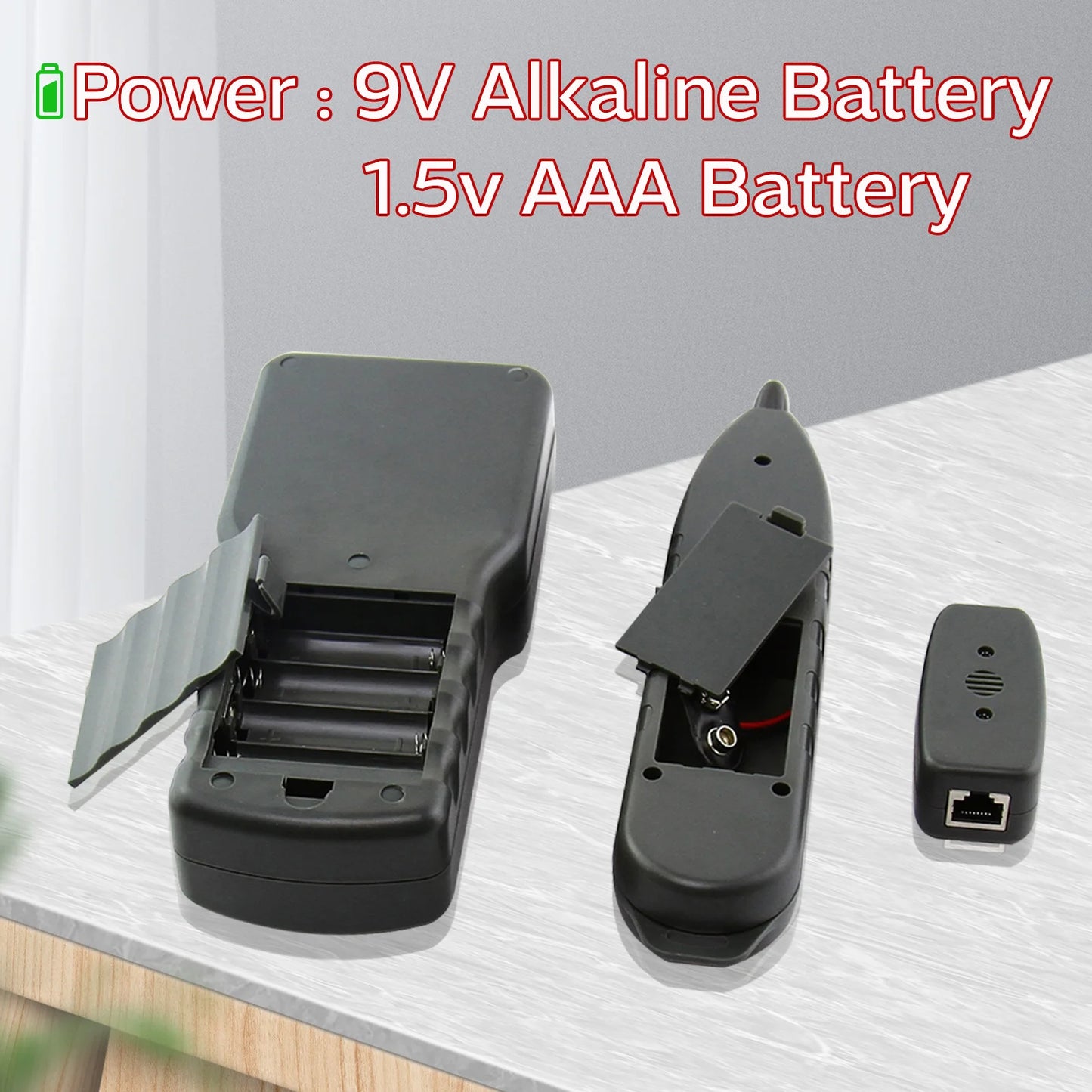

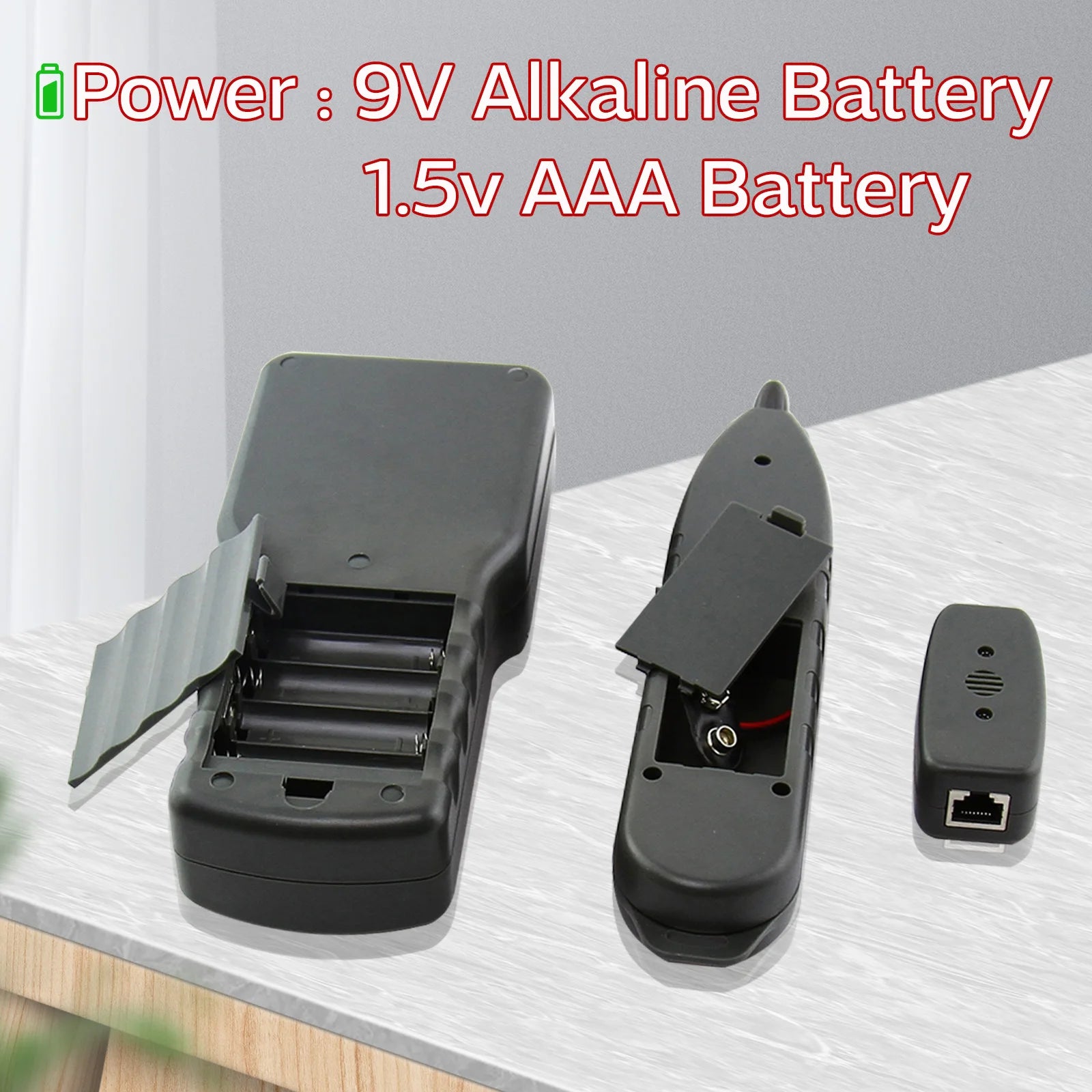

7）.Low voltage prompt function is available (<4.5V) .

8）.Functions of storage and memory.

9）.Automatic delay power on-off and backlight function.

10）.Lanuage& light brightness can be set in the system.

11）.Single chip software watchdog design runs reliably.
