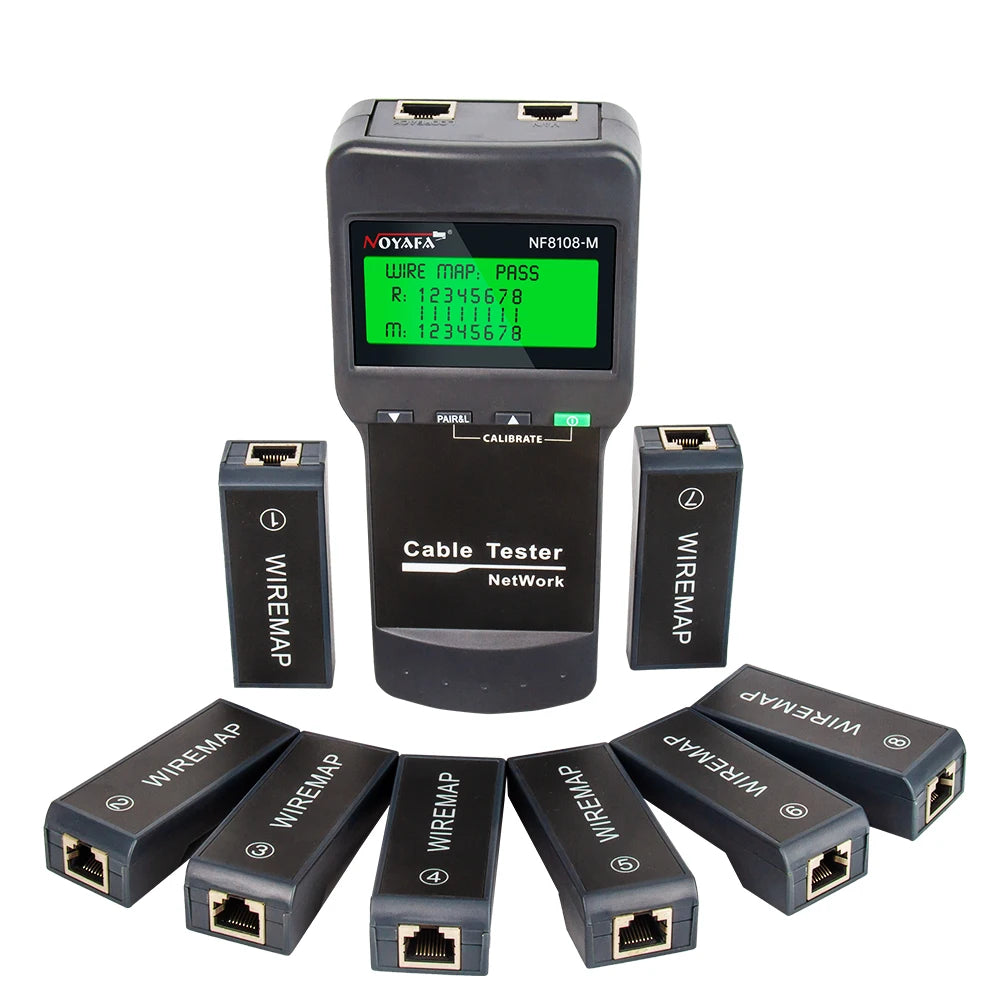

NOYAFA NF-8108M Professional Network Cable Tester RJ45 Multifunction PoE

NOYAFA NF-8108M Professional Network Cable Tester RJ45 Multifunction PoE

$87.36 AUD
$87.36 AUD $0.00 AUD
25% Off Sold out
NF-8108M
NF-8108M
NOYAFA NF-8108M Professional Network Cable Tester RJ45 Multifunction PoE

NOYAFA NF-8108M Professional Network Cable Tester RJ45 Multifunction PoE

$87.36
$87.36 $0.00
SAVE Sold out


Features:

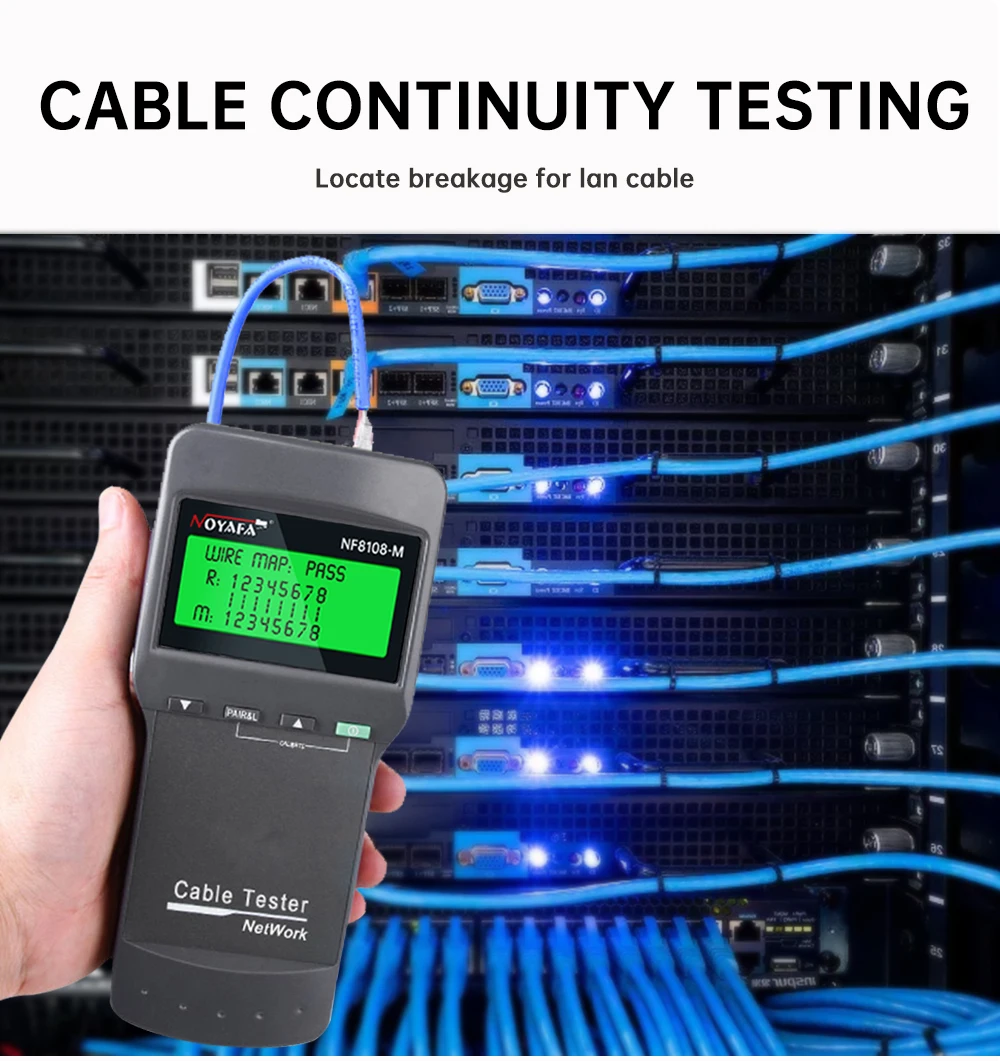

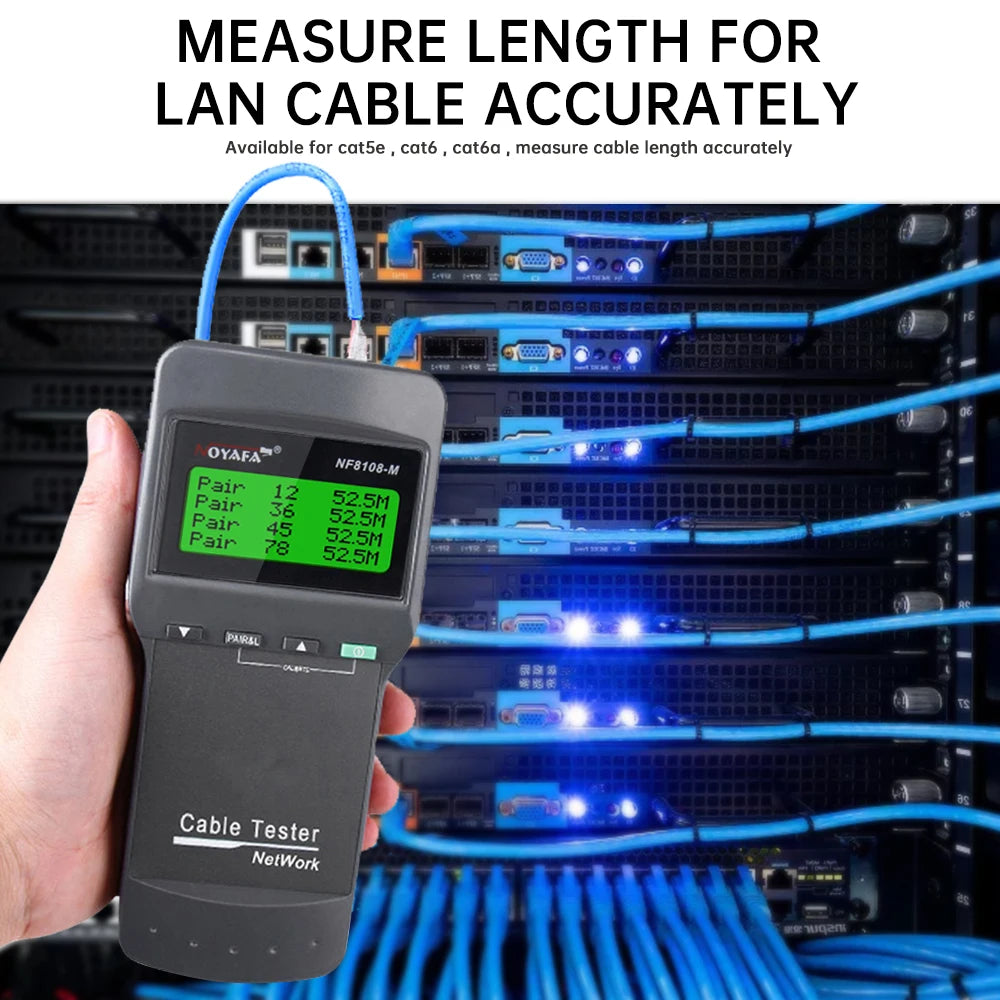

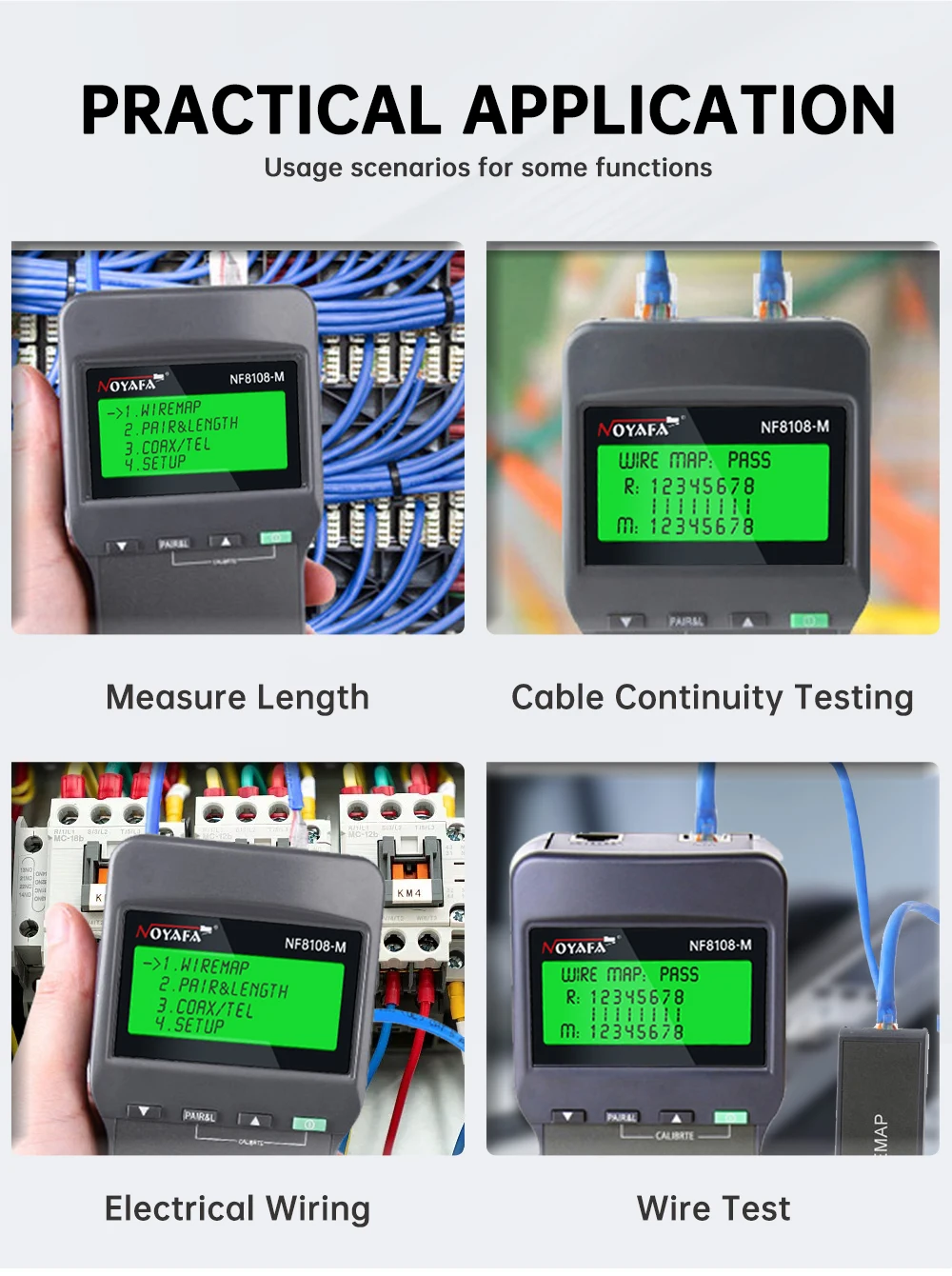

1. Measure network cable length and determine the distance of open and short circuit.

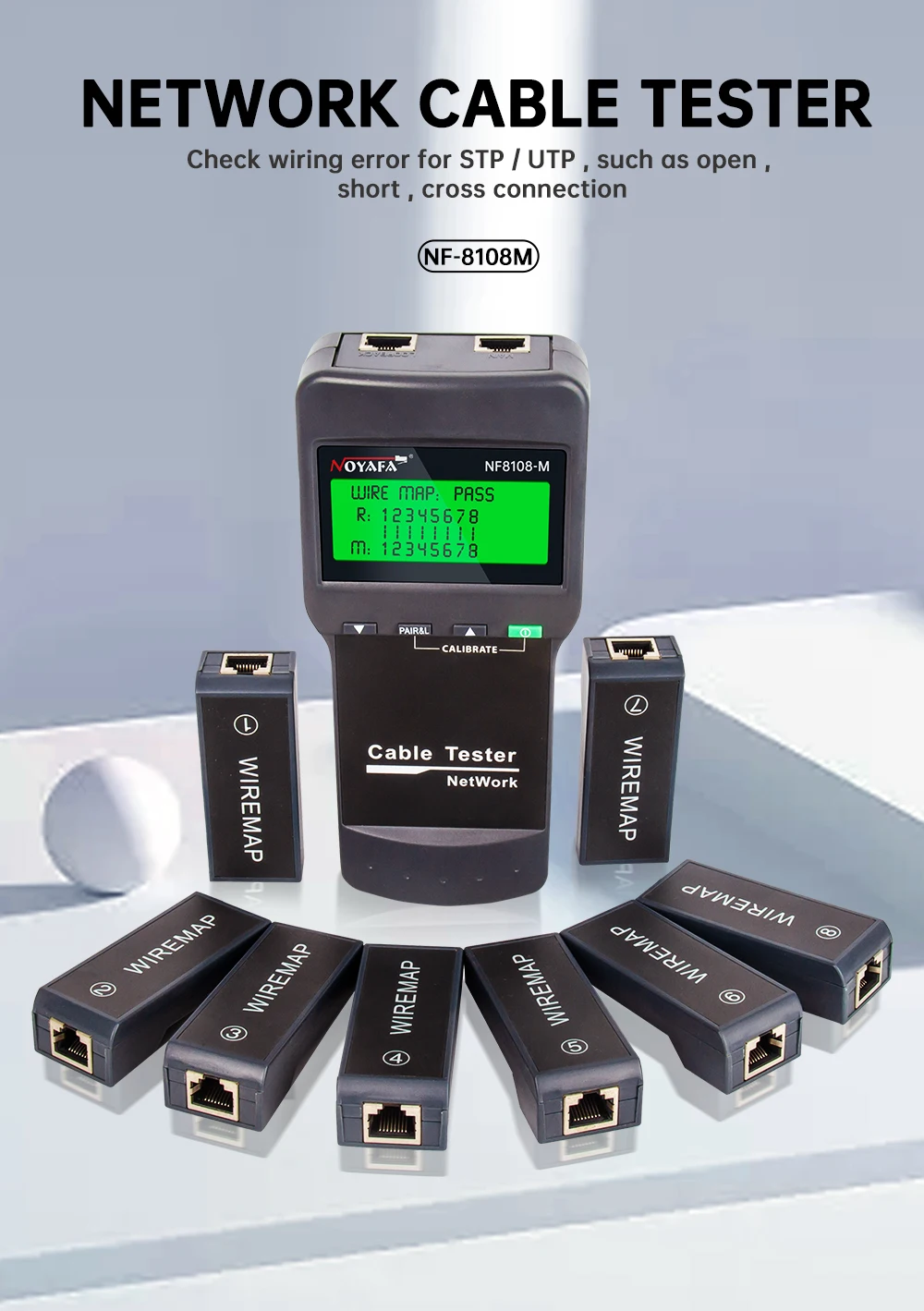

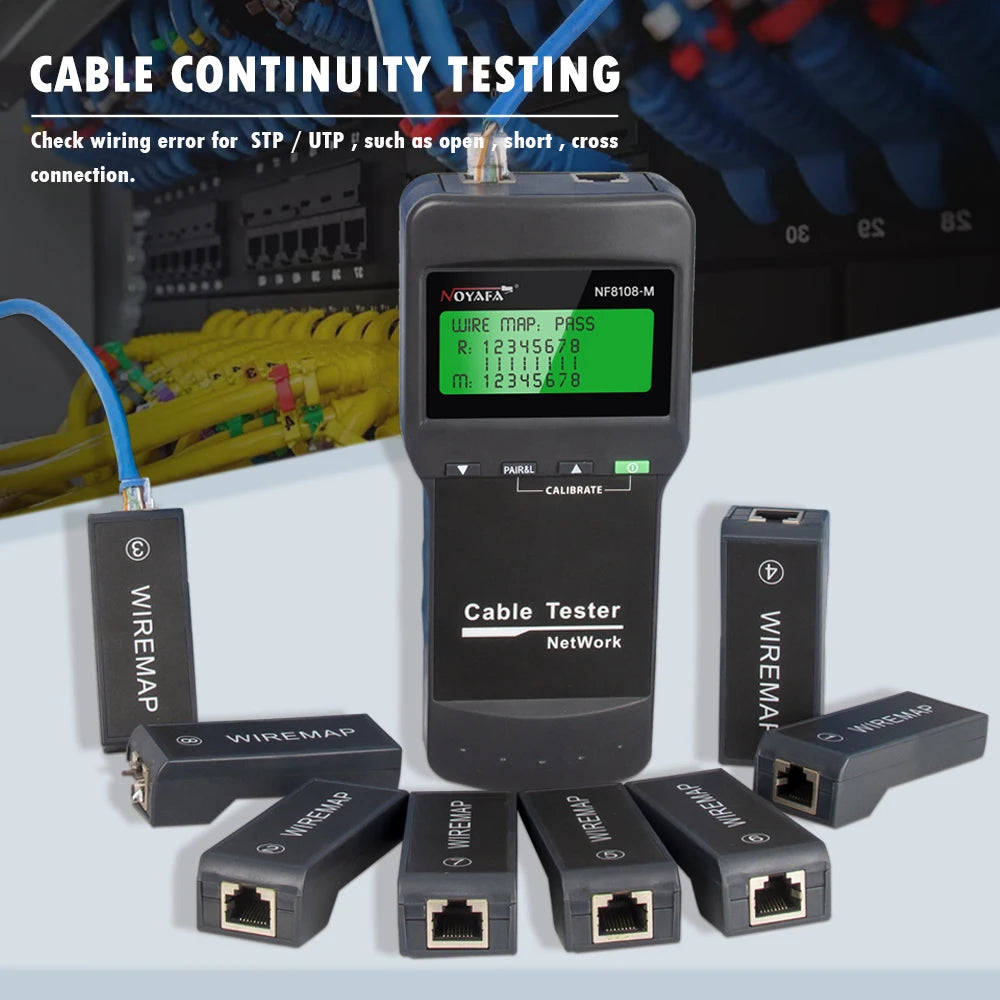

2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection .

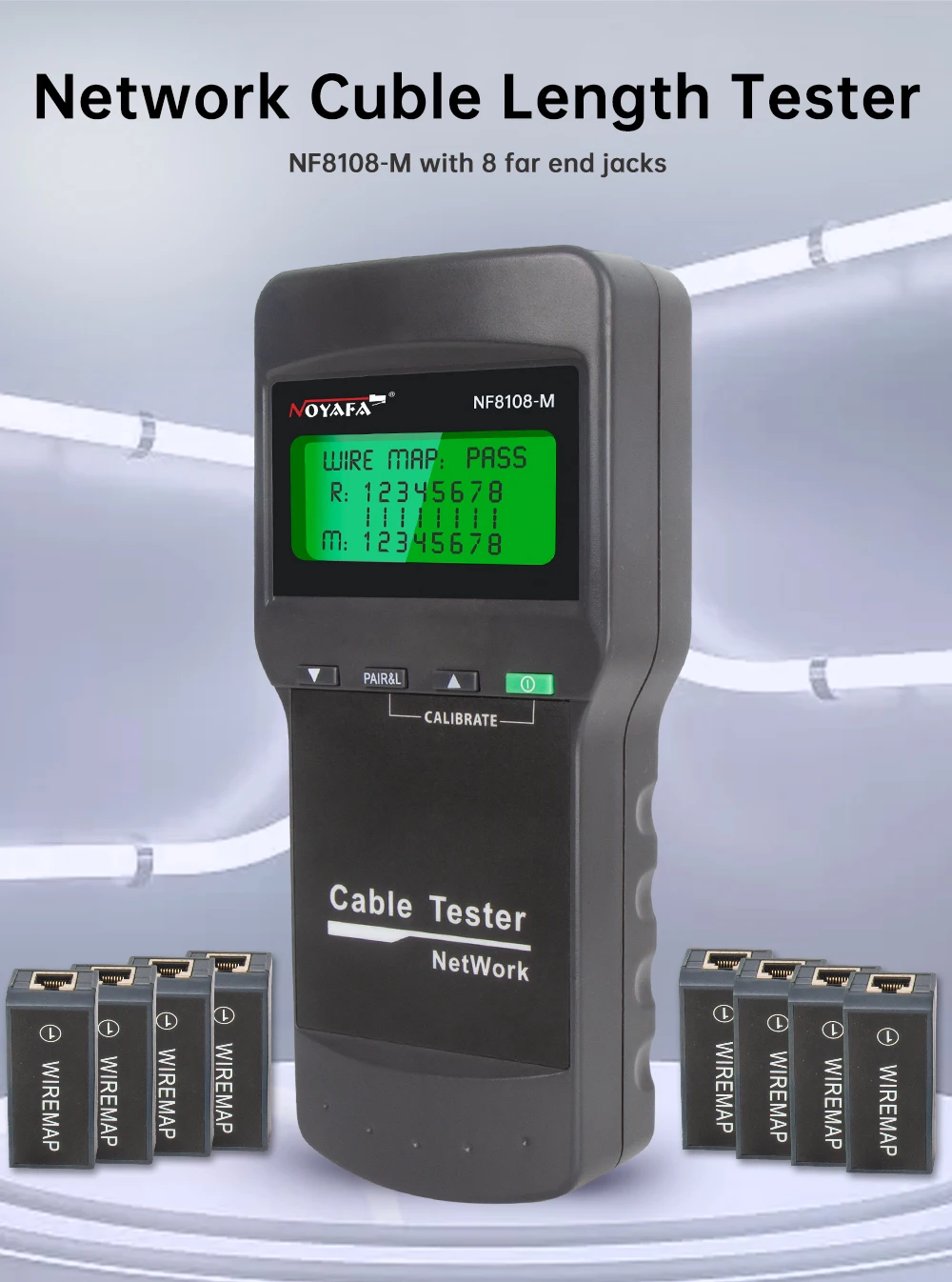

3. With 8 remote identifiers , more easy to work.
4. Portable unit with long battery life (wait-case 50 hours).
5. Automatically time-delay shut off.
6. Self-checking and automatically compensate any change in battery capacity or ambient temperature.
Technical indexes:

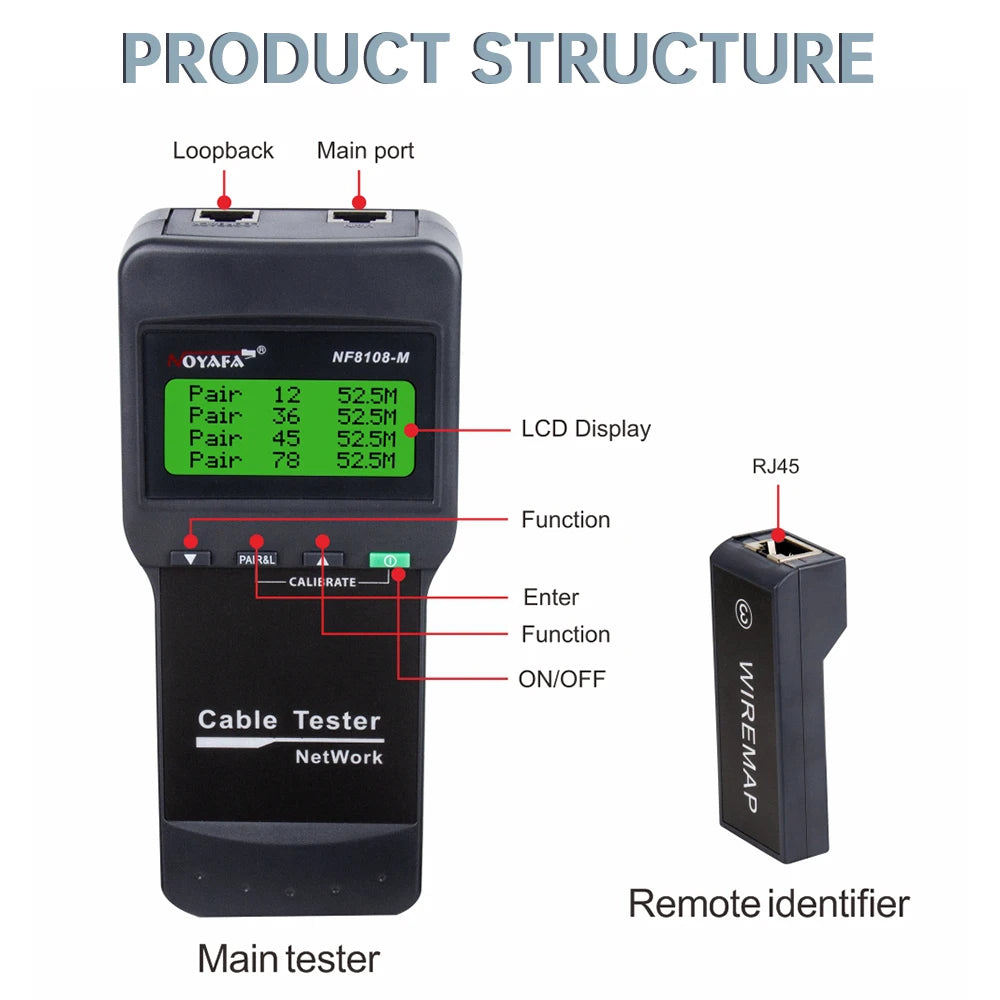

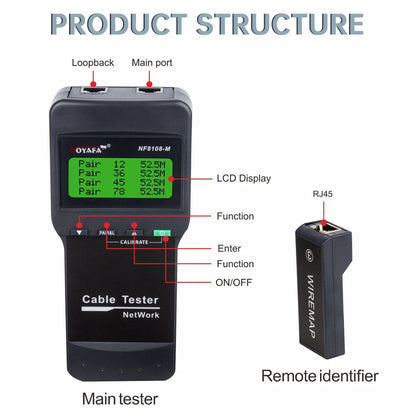

NF8108-M Transmitter specifications
IndictorLCD 53x25 mm
Tone frequency225 Hz
Max. distance of cable map300m
Max. working currentLess than 70mA
Compatible connectorsRJ45
Faults LCD displayLCD display
Low battery displayLCD ( 6.5V)
Voltage protectionAC 60V/DC 42V
Battery TypeDC 4x1.5v

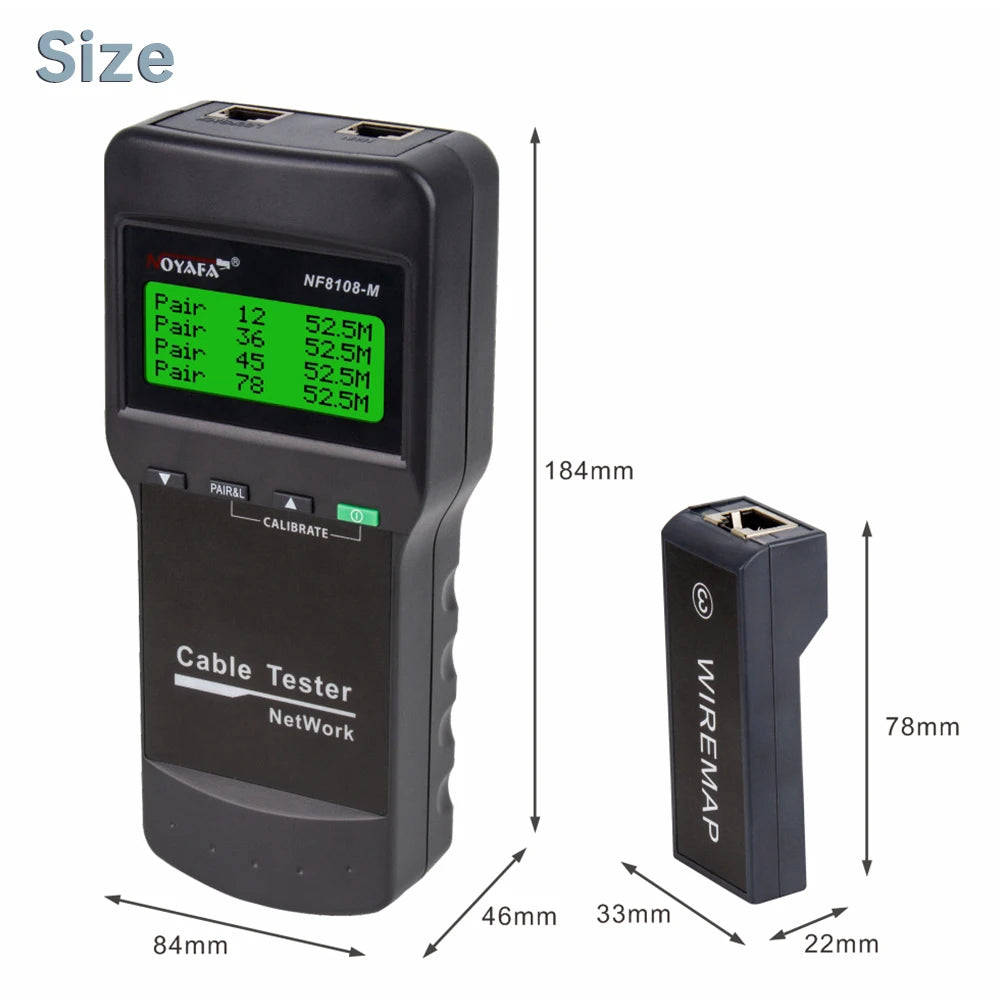

Dimension(LxWxD)184x84x46mm
NF8108-M Remote unit specifications
Compatible connectorsRJ45
Remote units8
Dimension(LxWxD)78x33x22mm
Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.

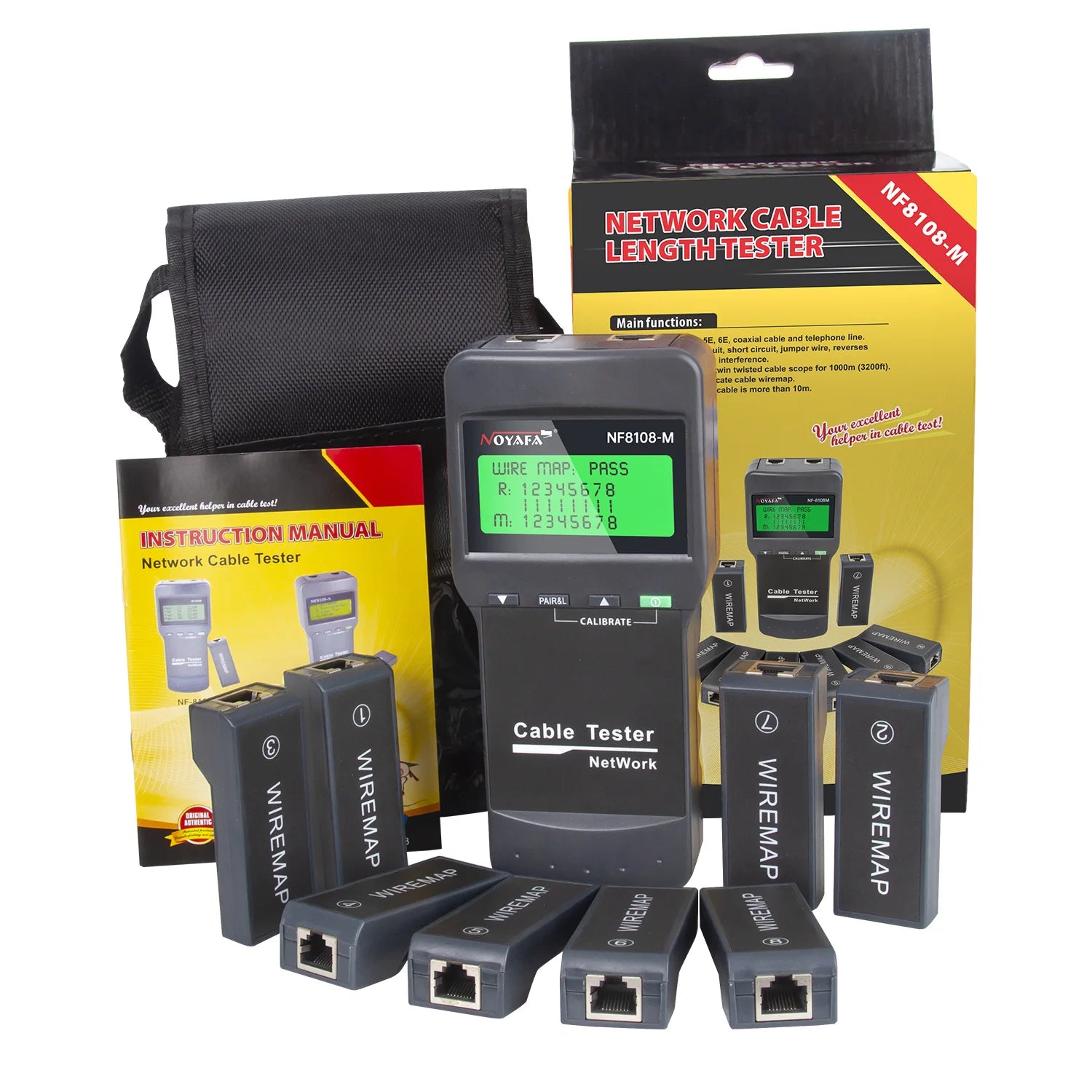

Package Include:
1 X transmitter( battery is not include )
8 X remote
