MA510-GL LPWA LTE Cat-M1/NB2 EGPRS GNSS Module Multi-Band

Air Interface：LTE-M, NB-IoT

Region： Global

Operator Certifications:Global

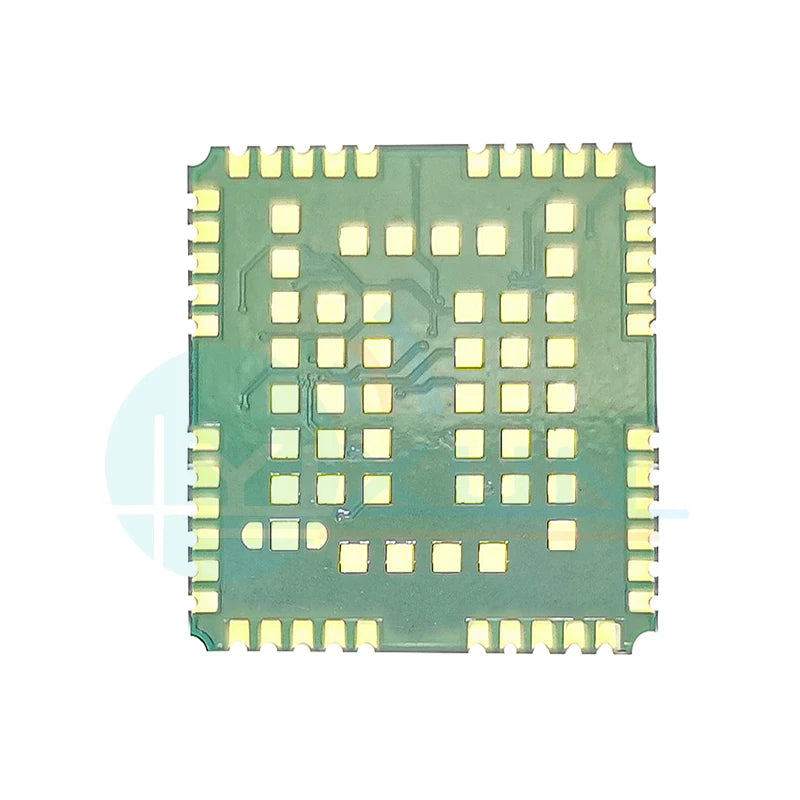

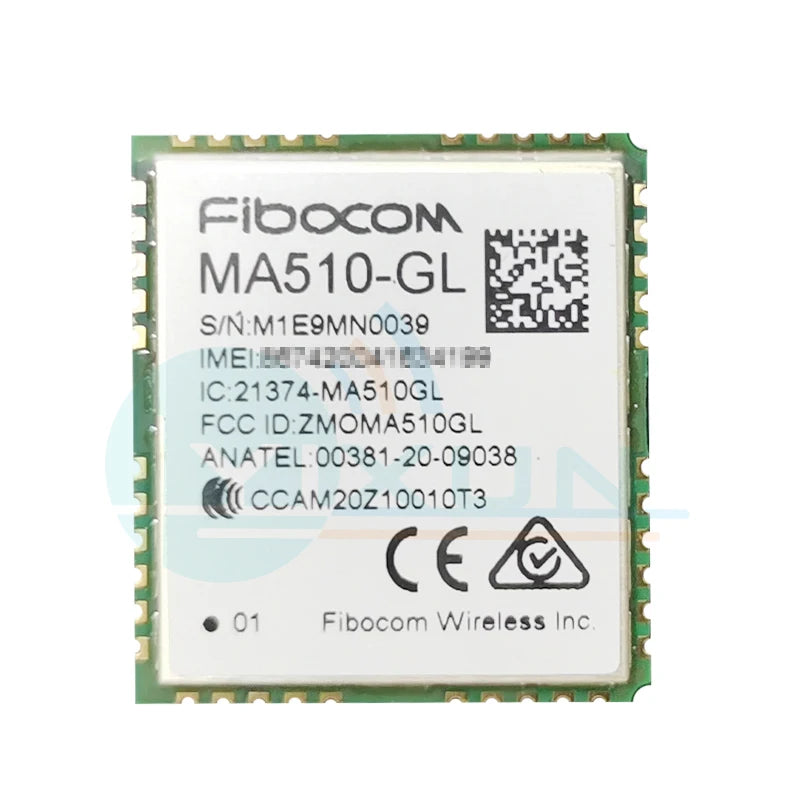

Fibocom MA510-GL-00 is a high-performance IoT module, which is tailor-made for the global IoT market. It is developed based on the Qualcomm platform and is packaged in LCC+LGA. It also supports LTE Cat-M1/ Cat-NB2/ EGPRS.

Product Specifications

Basic Features

Cat-NB2:B1/2/3/4/5/8/12/13/18/19/20/25/26/28/66/71/85

EGPRS:850/900/1800/1900MHz

GNSS:GPS/GLONASS/BeiDou/Galileo/QZSS

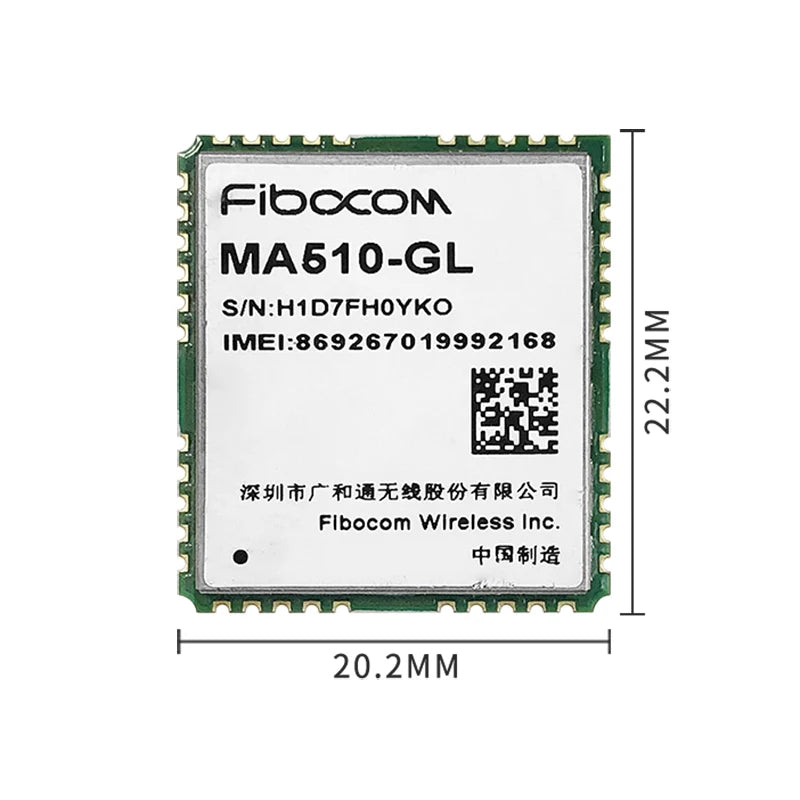

Dimension:22.2x20.2x2.1mm

Operating Temperature:-40~+85℃

Operating Voltage:3.3V~4.5V

AT Command Set:3GPP TS 27.007 and 27.005, and proprietaryFIBOCOM AT commands

TX Power:(Power Class 5)

GSM850/900:32.5dBm±1dB

DCS1800/PCS1900:29.5dBm±1dB

Cat-M1:21dBm±1dB

Cat-NB2:21dBm±1dB

Data Transmission

Cat-M:Max1119Kbps (DL)/ Max 375Kbps (UL)

Cat-NB1:Max63.4Kbps (DL)/ Max 95.1Kbps (UL)

Cat-NB2:Max127Kbps (DL)/ Max 158.5Kbps (UL)

EGPRS:Max296Kbps (DL)/ Max 236.8Kbps (UL)

GPRS:Max107Kbps (DL)/ Max 85.6Kbps (UL)

Features

Function:

PPP/TCP/UDP/SSL/TLS/FTP(S)/HTTP(S)

MQTT/CoAP/LWM2M

VoLTE/NITZ/PING/Jamming Detection

DFOTA:DFOTA

Interfaces

SIM:1.8V

UARTx3

USB2.0x1

I2Cx1

SPIx1

I2Sx1

ADCx2

GPIOx4

OS Drivers

OS Drivers:Linux, Android, Windows

Certifications

RoHS/HF/GCF/RCM/Telstra*/NCC/Reach

FCC/IC/PTCRB/Sprint/AT&T/Verizon/ANATEL

JATE/TELEC/Softbank*/DoCoMo*/KDDI

CE/DT/VDF/Telefonica*
