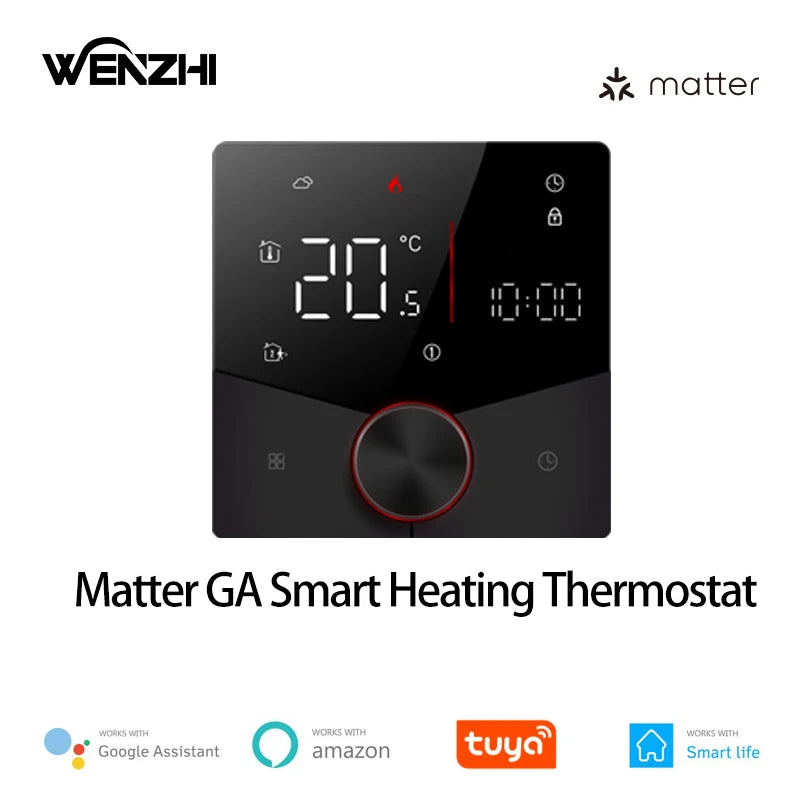

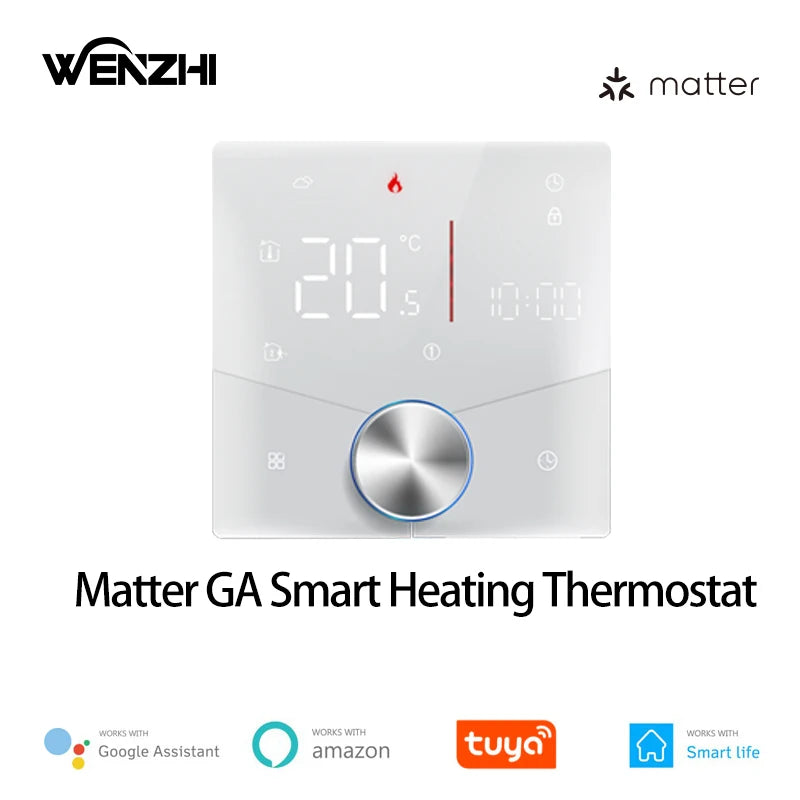

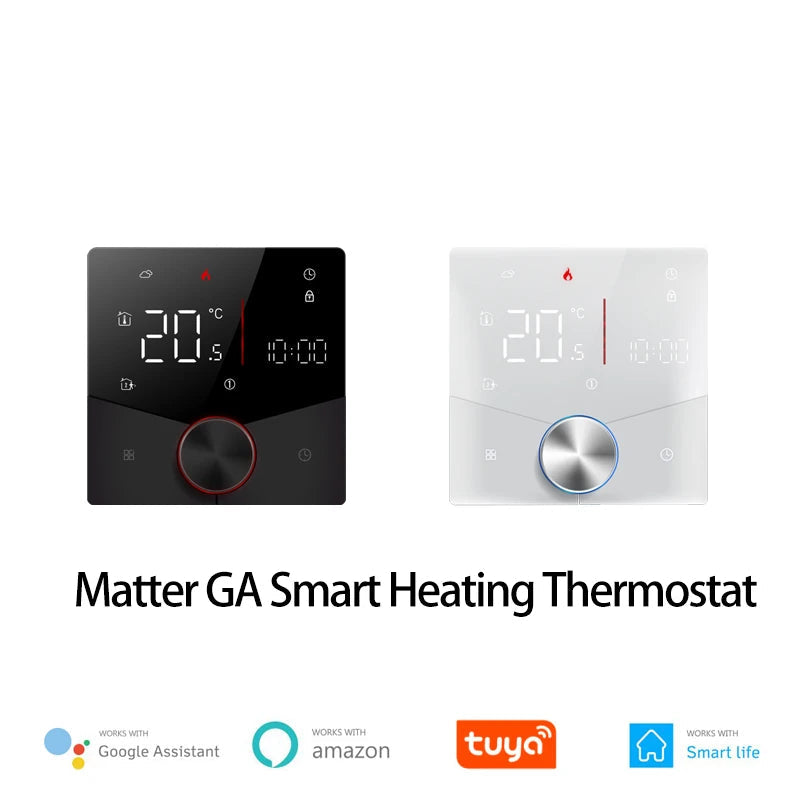

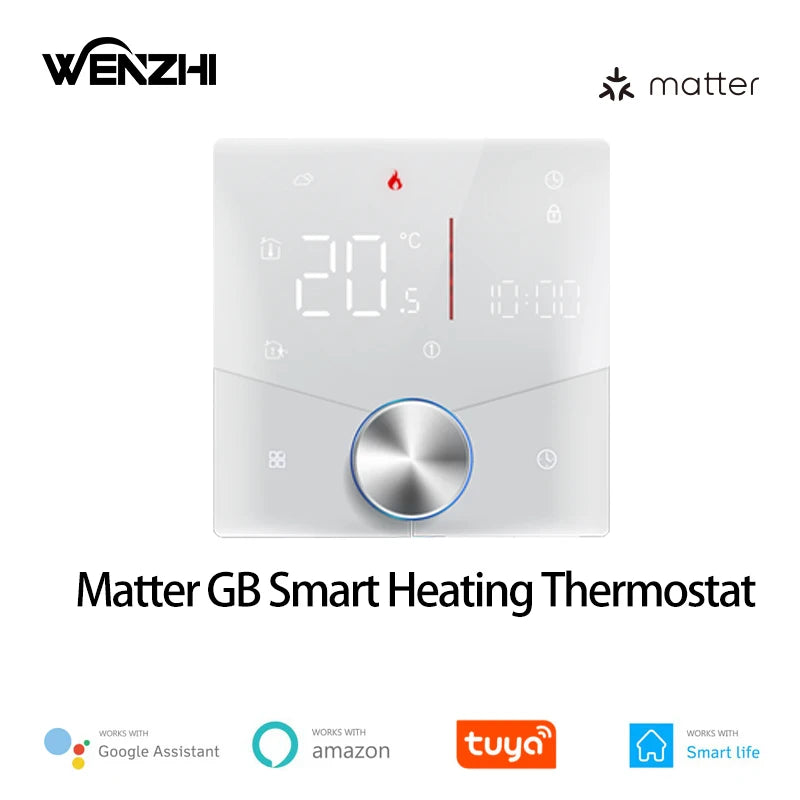

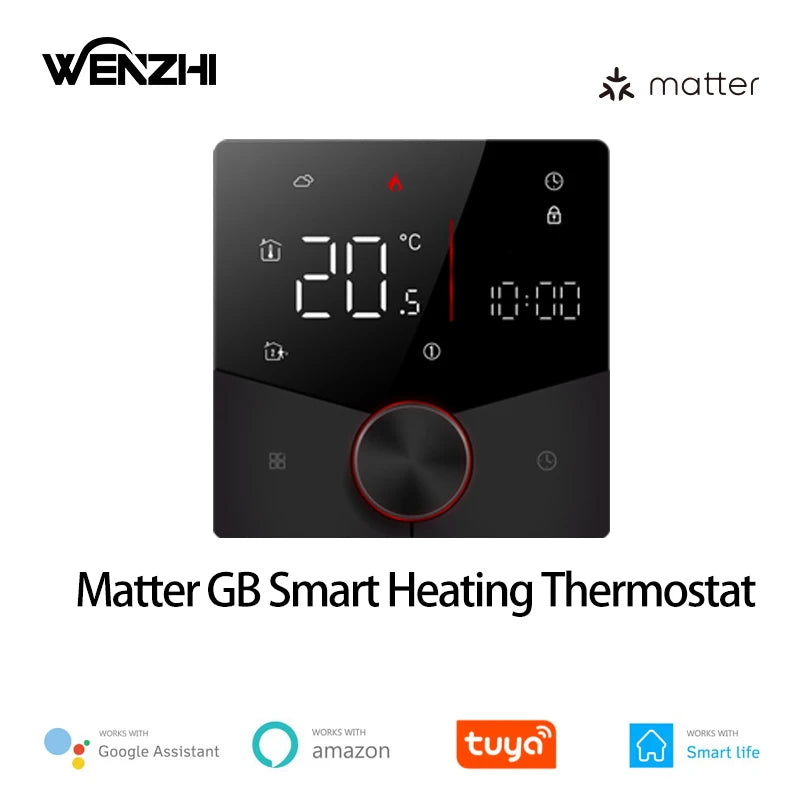

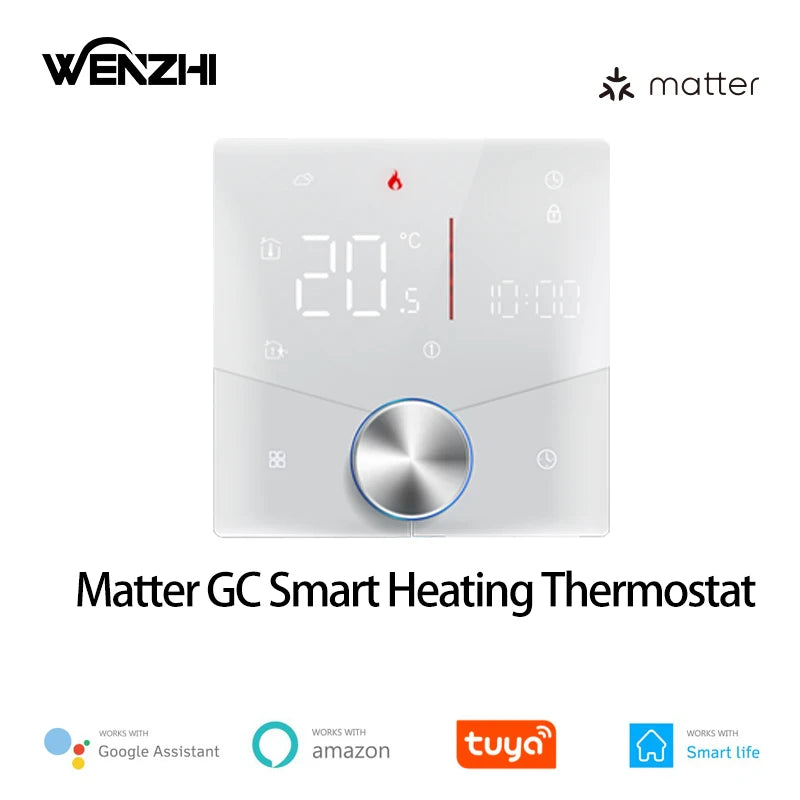

Smart Heating Thermostat

ABOUT YOUR THERMOSTATS

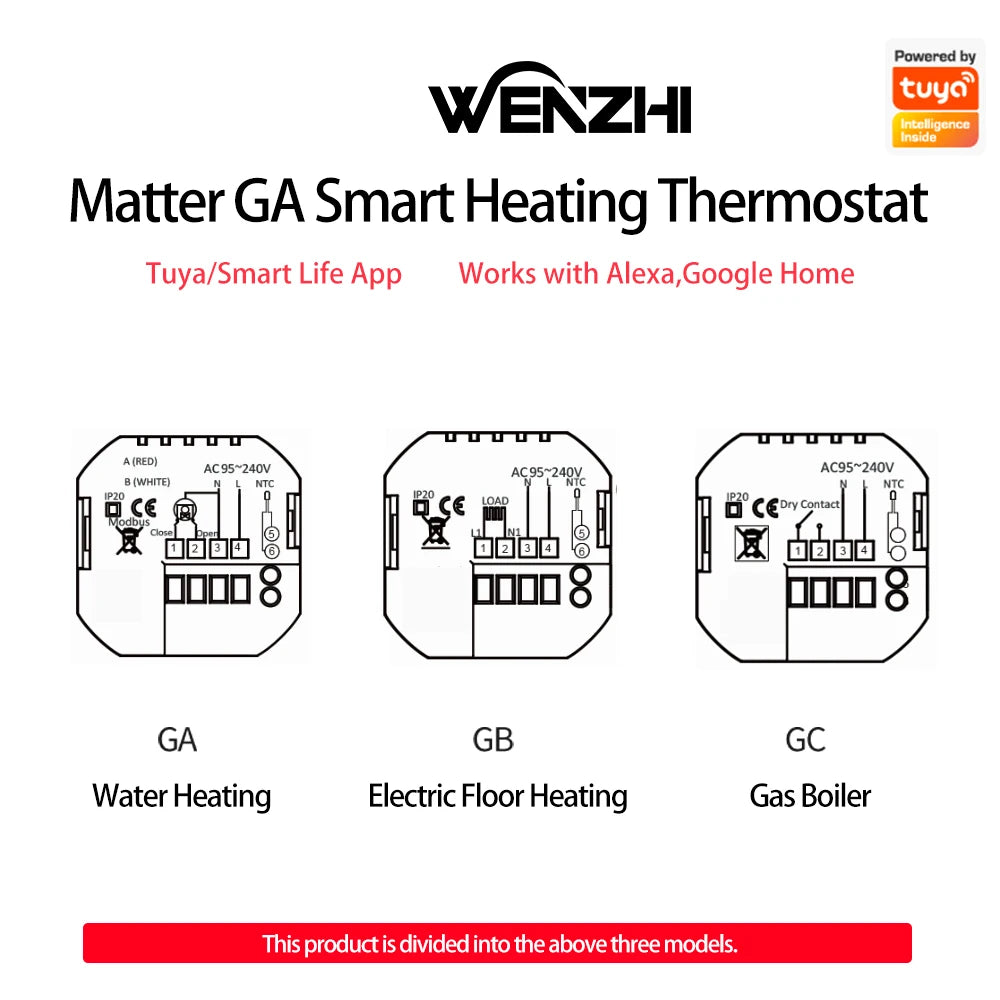

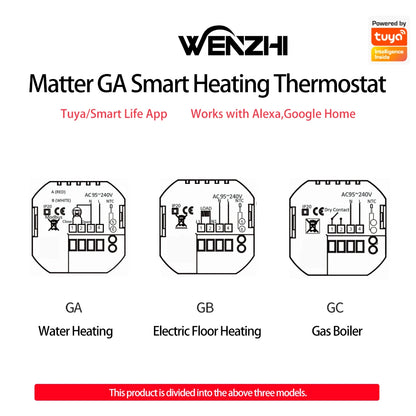

The BHT-009 Matter range has been developed to control electric underfloor ,water heating or water/gas boiler system. These units are designed for use in commercial, industrial, civil and domestic properties.

Package List

Thermostat 1pc
Screws 2pc
User Guide 1pc
QC Passed 1pc
Floor Sensor 1pc (Floor Sensor is Optional)

TECHNICAL DATA

Current Load: 5A (water heating, waterlgas boiler),
16A (electric heating)
Sensor: NTC3950, 10K
Accuracy: ±1°C
Set Temp. Range: 5-35°C
Room Temp. Range: 5-70°C
Display Temp. Range: 5 ~ 70°C
Ambient Temp.: 0~ 45°C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:-5~ 45°C
Power Consumption: <1. 5W
Timing Error: < 1%
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Buttons: Knob+Capacitive Touch Buttons
