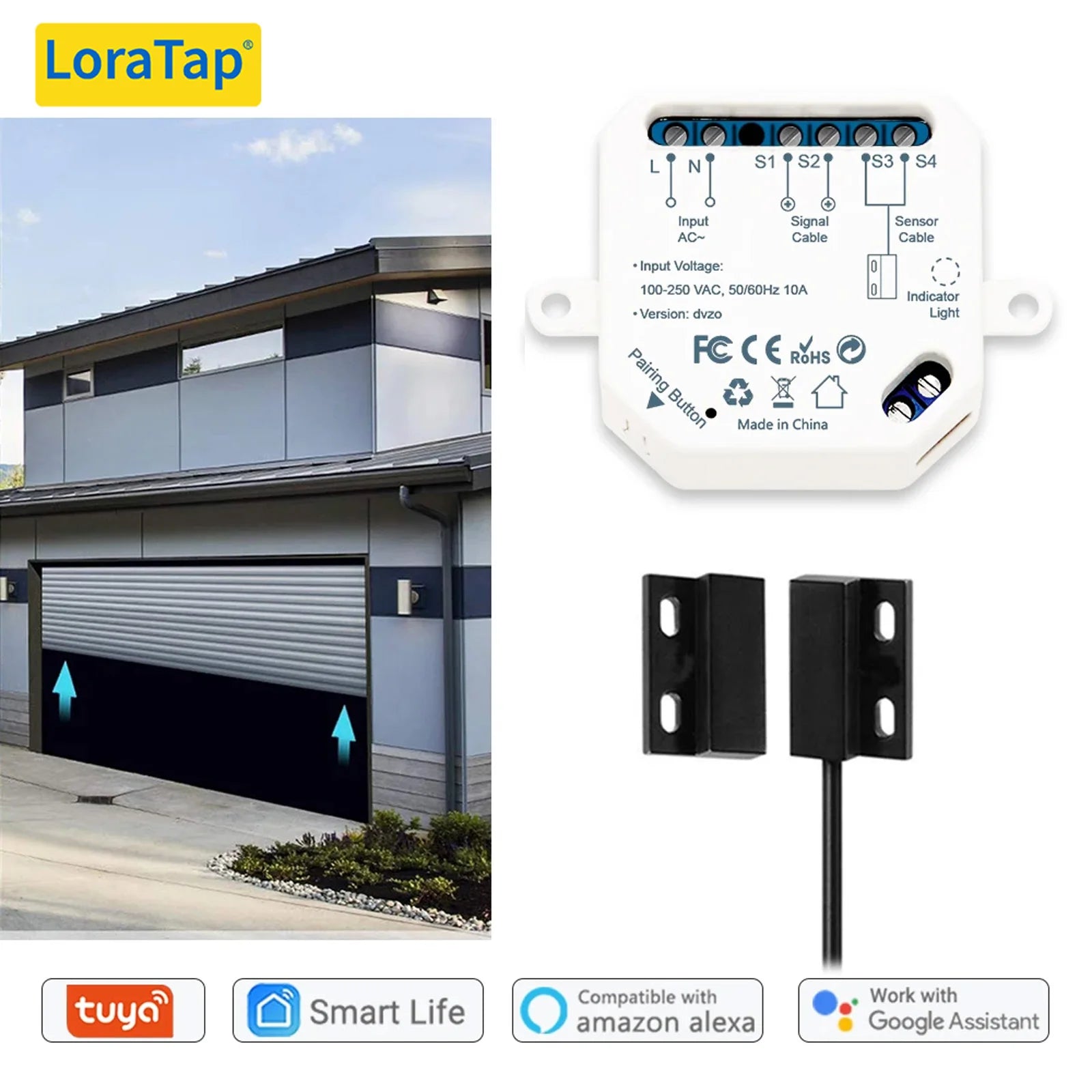

Smart Garage Door Opener with WiFi Sensor and App Control

FAQ

• It is not important to the brand of the engine. This smart device is connected in parallel with the existing wall push button.

• The output of this device is impulse dry contact signal. The relay is isolated from the internal circuit of the module. You can hang parallel to the button with any voltage. This gives a short pulse(not a constant pulse) and simulates the pressing button.

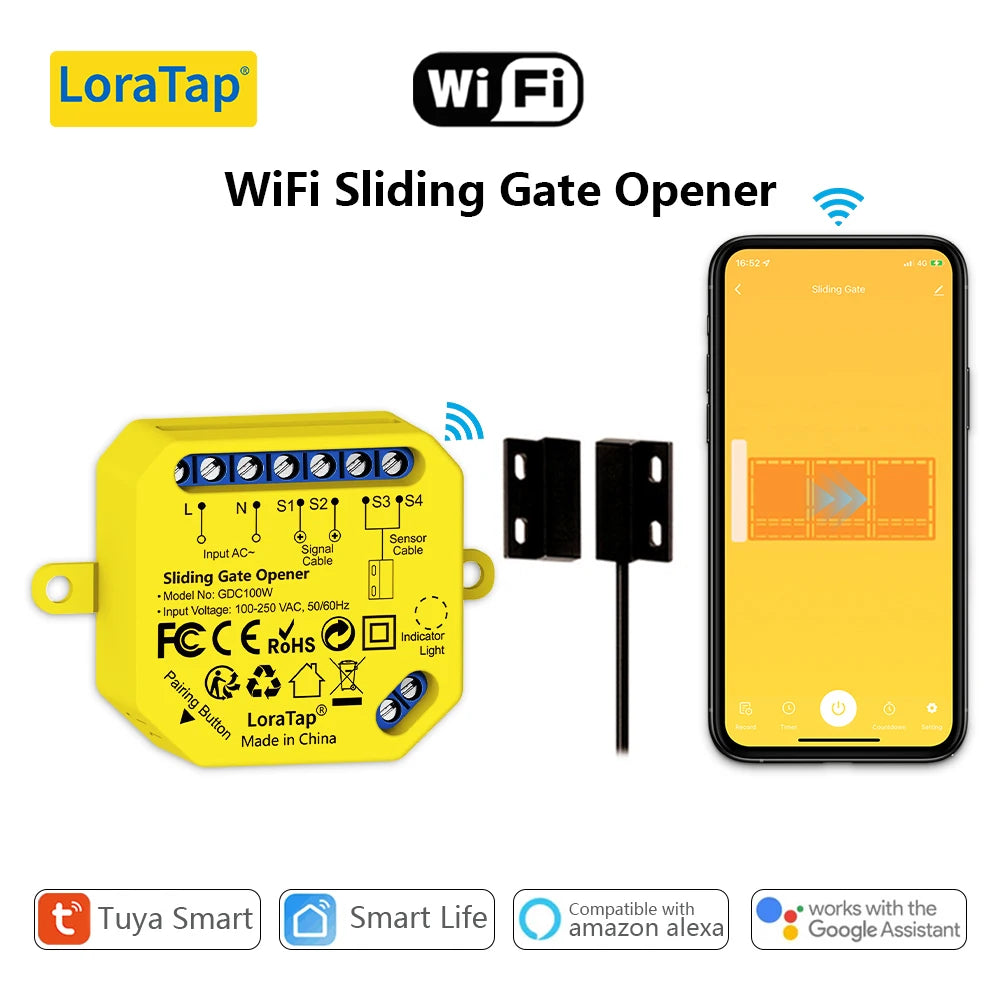

• It can work for opening a sliding gate if you have a one gang wall push button for the gate. This smart device is connected in parallel with the wall push button.

• You don’t need to buy a Hub for this device, this device connects to the WiFi of the House. But a strong WiFi signal is a must for this device, try to connect your phone to WiFi next to the engine, if it works the device will work otherwise look for a WiFi signal repeater.

• This is a WiFi only device, it doesn’t work with any RF 433Mhz or RF 868Mhz remote.

• This device is not compatible with HomeKit. But you can add Tap-to-Run Scene to Siri Shortcut in smart life app.

• You can choose EU Standard Plug option if you are in Brazil.

Garage door opener controller characteristics:

1、Smart your garage Door by phone，Remote and Voice Control, just tapping the Tuya or Smart Life App from anywhere or speaking to your Alexa, Google Assistant . Enable the door open or close even when you are not at the site
2、Bluetooth pairing function，In order to ensure the stable connection of the device, we have added the Bluetooth configuration method to increase the stability of the device connection.
3、Voice Control by Google Home, or Alexa Assistant device

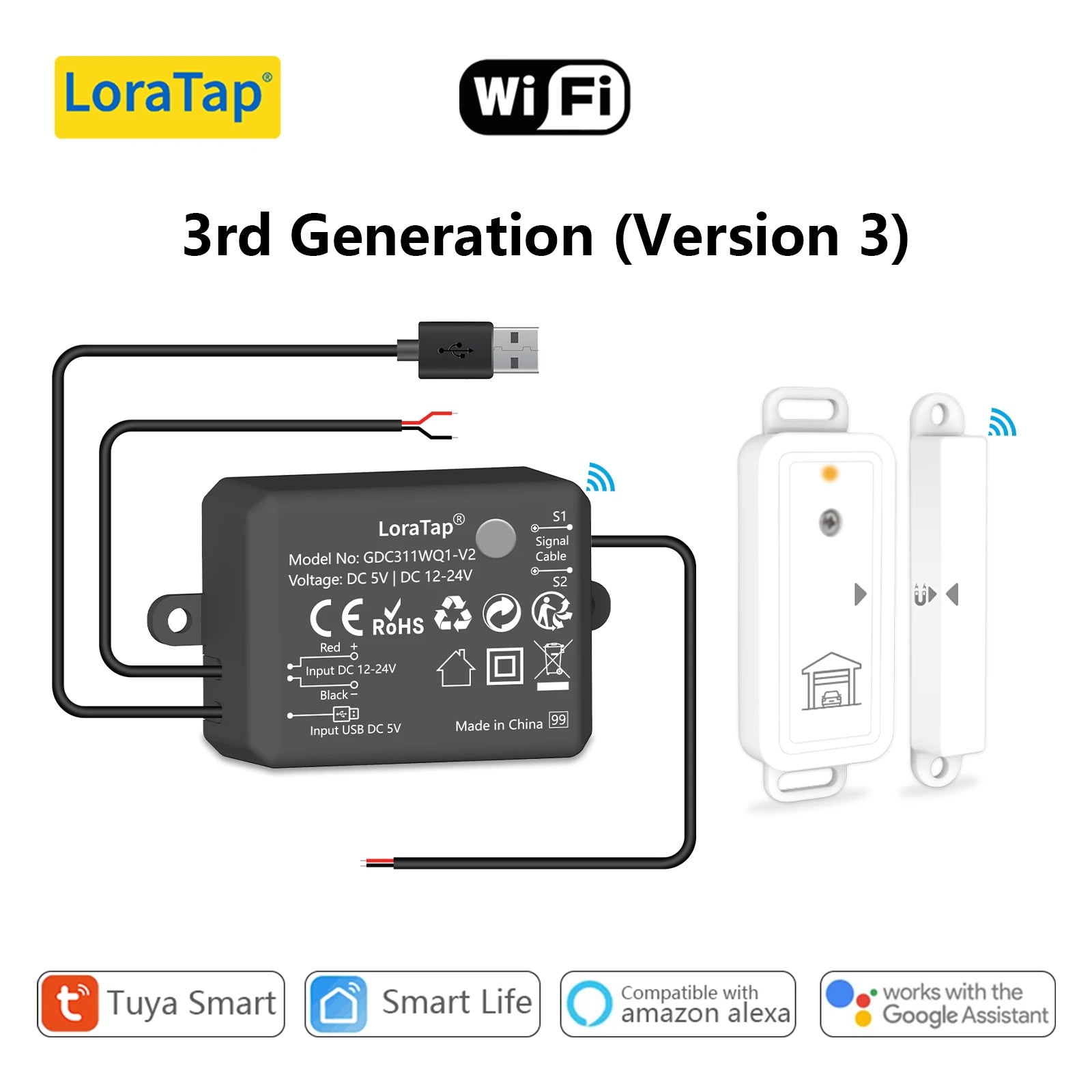

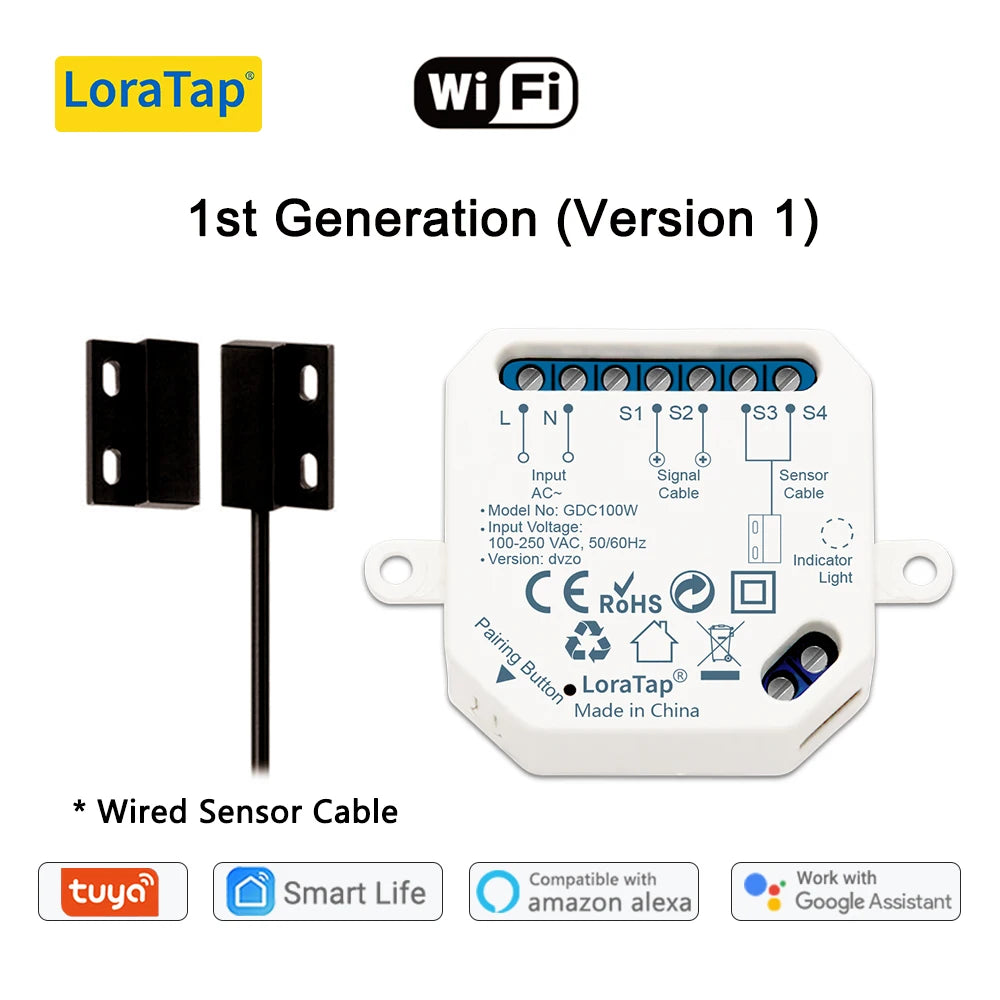

4、Multi-type garage doors, easy to use，Our garage doors are available in wired and wireless versions, as well as WiFi and ZigBee versions, which can basically cover most garage door environments.
5、Device security note，Be alerted from App with different notification modes such as garage door open/ close status, overtime notification and overnight notification to remind you close the garage door.

Smart your garage Door by phone

Remote and Voice Control, just tapping the Tuya or Smart Life App from anywhere or speaking to your Alexa, Google Assistant . Enable the door open or close even when you are not at the site.

Stay Safe

Be alerted from App with different notification modes such as garage door open/ close status, overtime notification and overnight notification to remind you close the garage door

Voice Control

Voice Control by Google Home, or Alexa

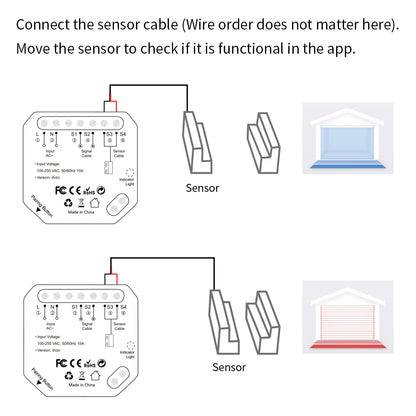

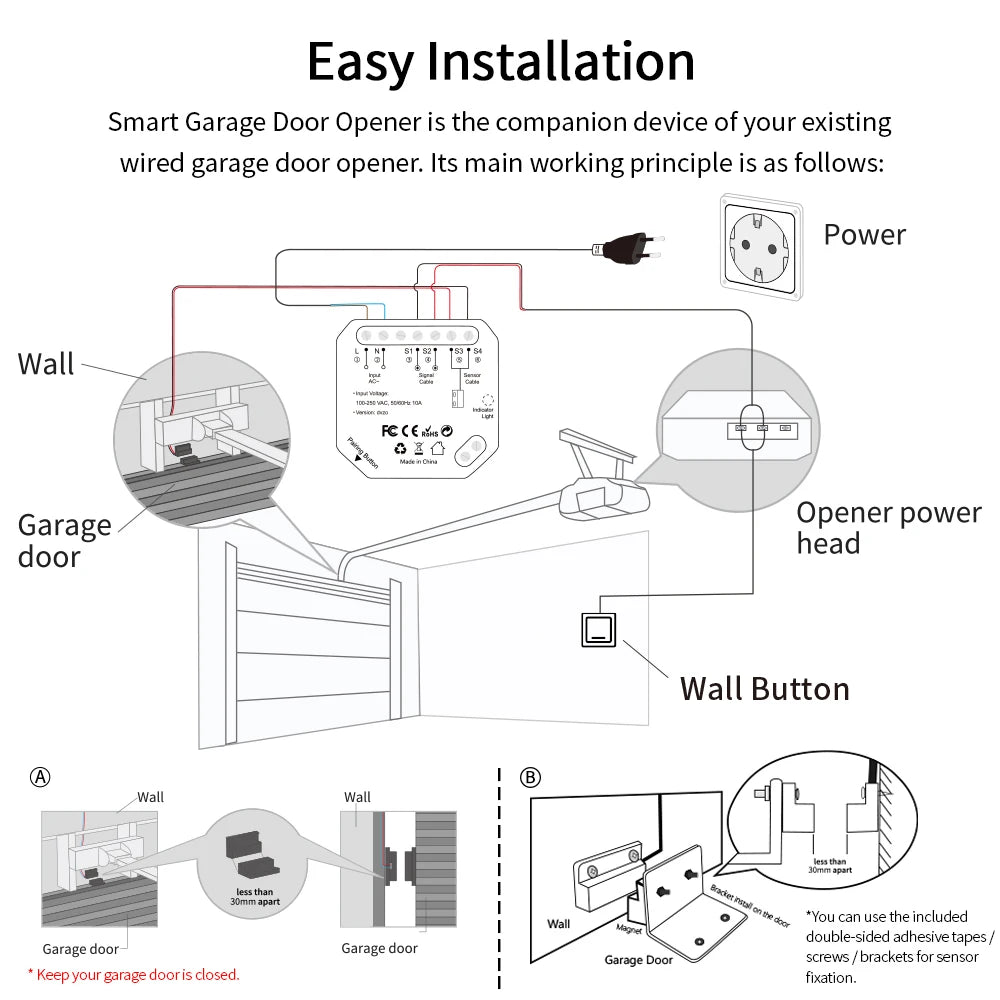

Installation

The main working principle is as below

Specification

Voltage: 100-250VAC, 50/60Hz

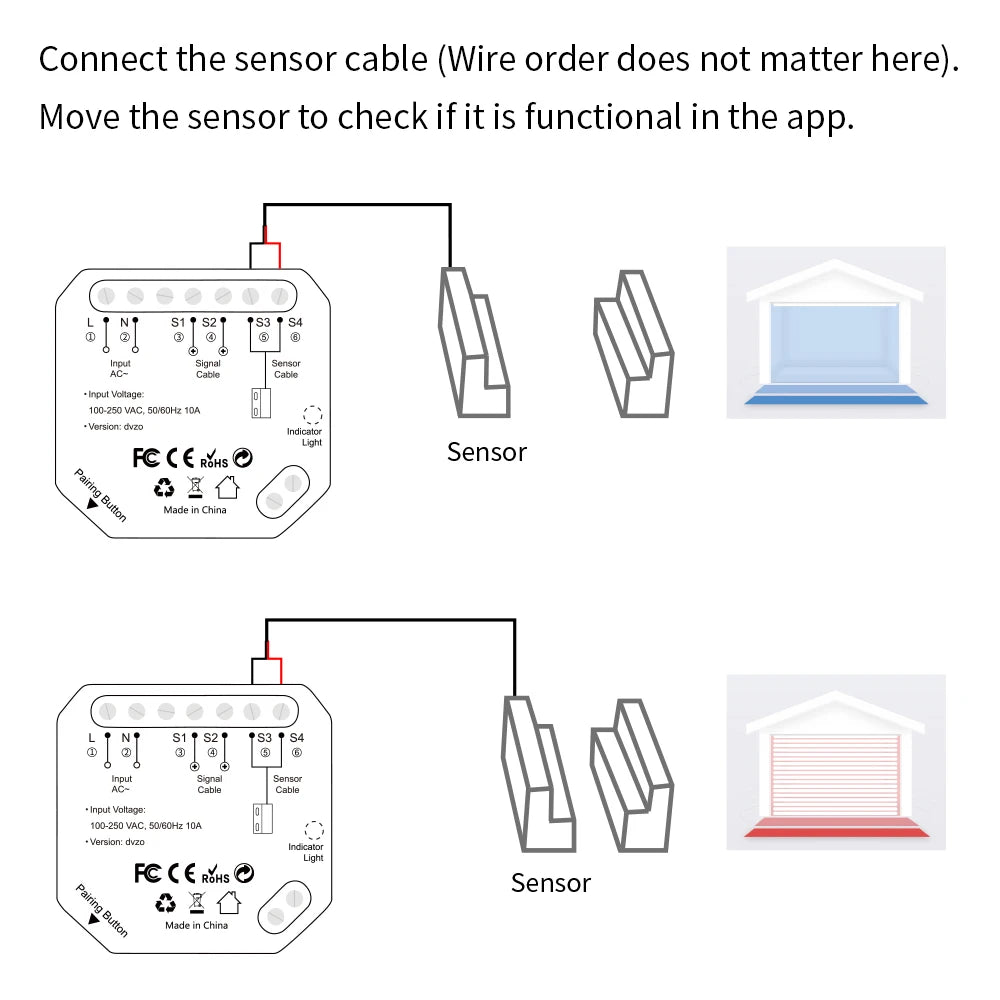

sensor action distance: below 30mm
length of the sensor cable: 5 meters
Wireless Protocol: Wi-Fi 2.4 Ghz( don't support 5Ghz Wifi band)
APP Name: Smart Life, Tuya
Voice Conrol: Google Assistant, Amazon Echo Alexa
Dimensions:48mm*47mm*22mm
Colour: White
Plastic Material: Fireproof ABS
Certification: CE, RED, EMC, RoHS
Produced by ISO9001:2015 factory: Yes
Patented Product: Yes
