High Capacity LiFePO4 Storage Battery for Home Solar Systems

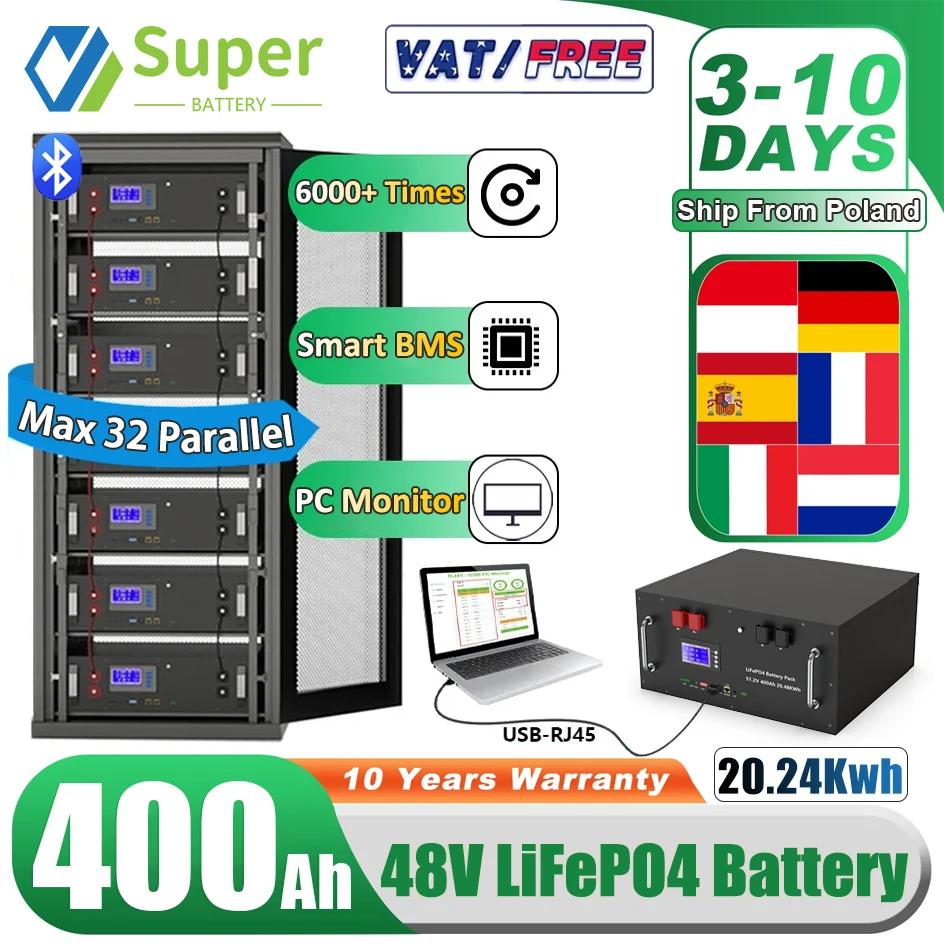

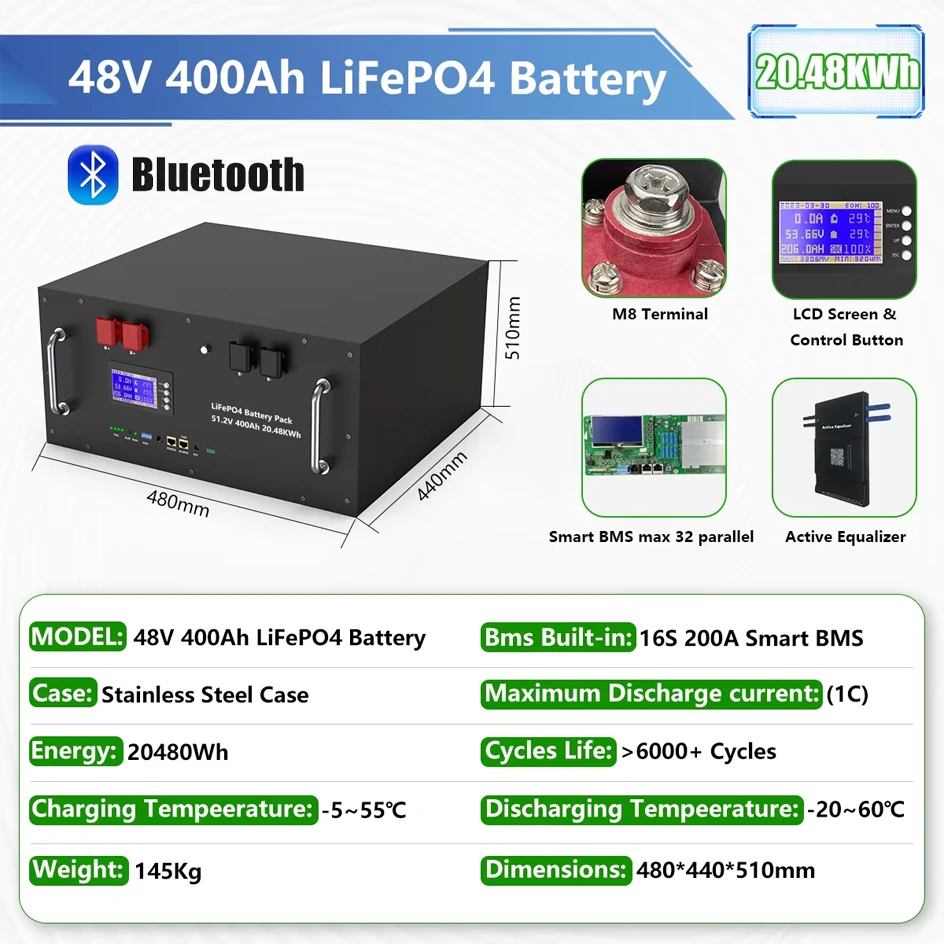

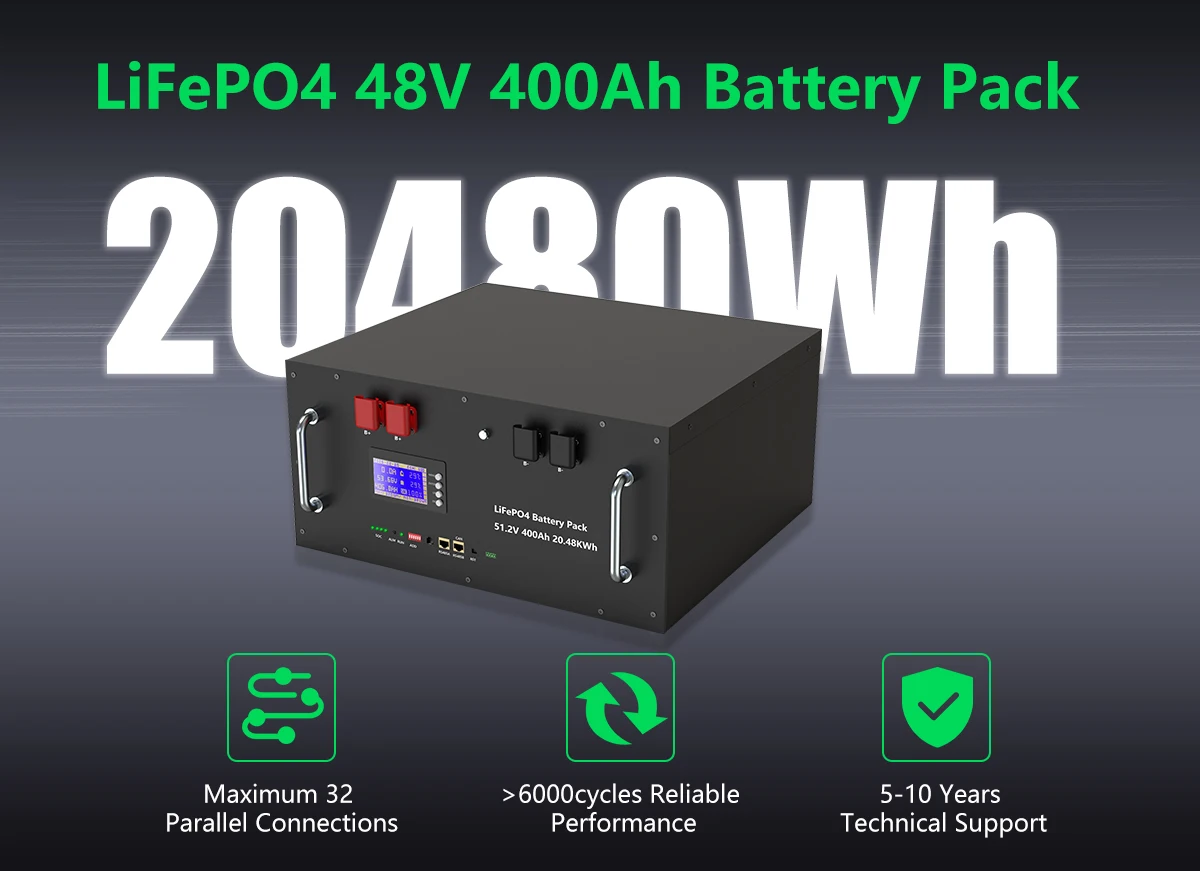

Max 32 Parallel 6000+ Cycles PC Monitor 51.2V 400Ah 20.24Kwh LiFePO4 Inverter Battery Pack
Specifications:
Parallel : Max 32 Parallel
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Max Charge Voltage : 58.4V
Rate Capacity : 400Ah
Energy Power : 20.24Kwh
Maximum Charging Current : 0.5C
Maximum Dicharge Current : 1C
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 678*450*285 mm
Studs : M8 Terminal
Weight : About 153Kg
1.We provide online 1-to-1 guide to connect the inverter communication.
2.Compatible with the following brands of inverters: Victron, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA, etc.

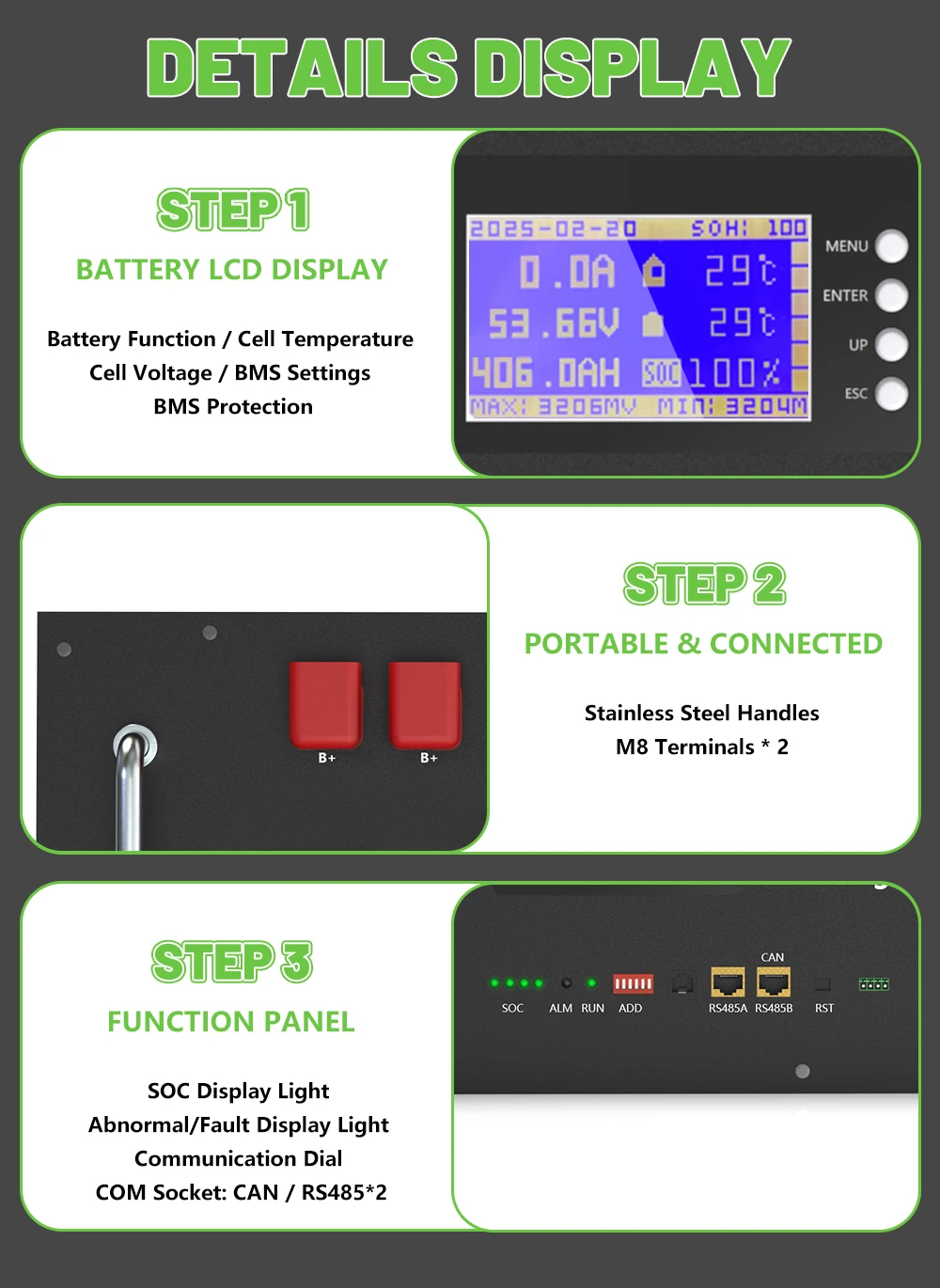

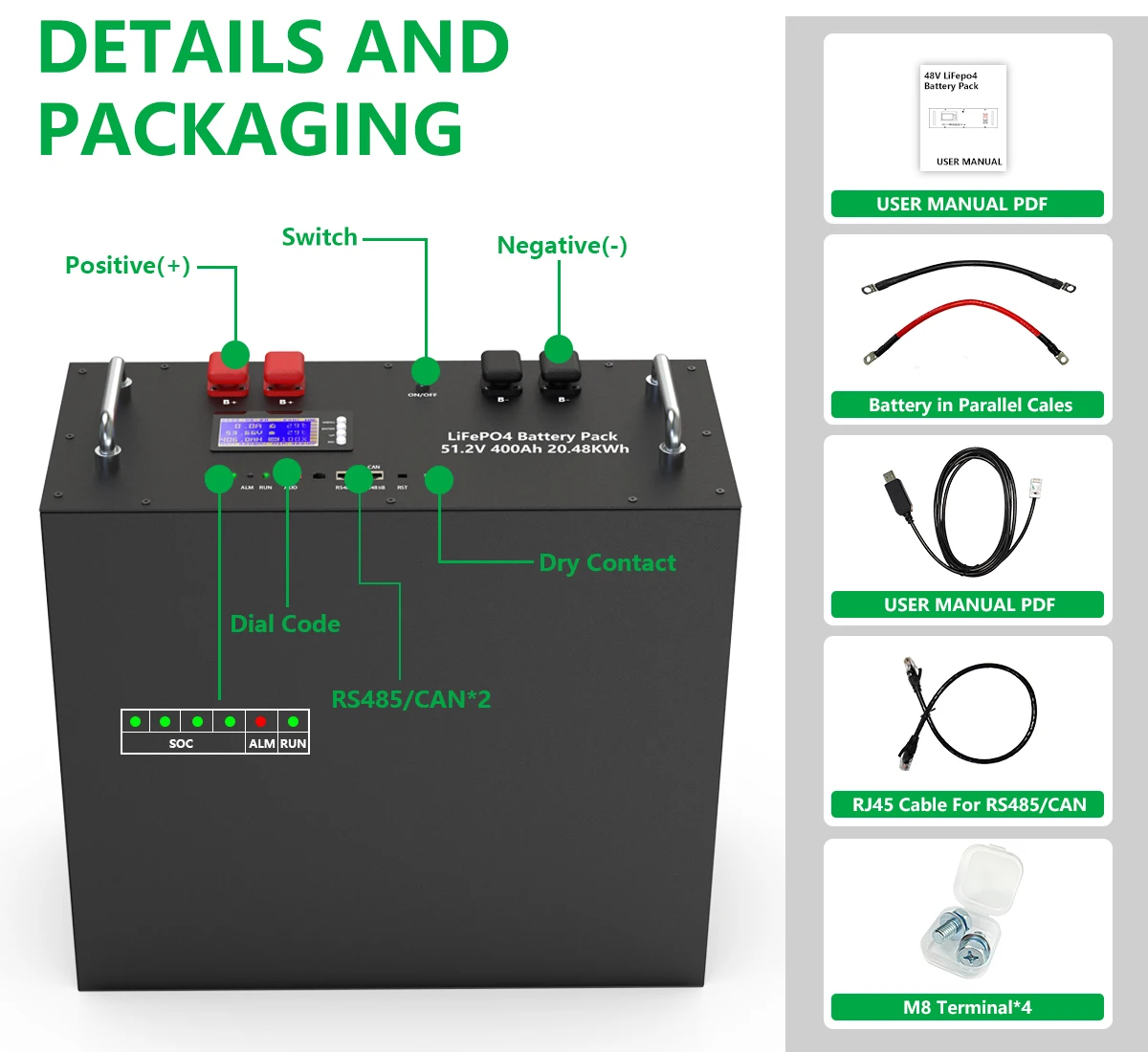

OEM Custom LCD Control Buttons, CAN, RS485, Drawing Code Switch, Positive and Negative.

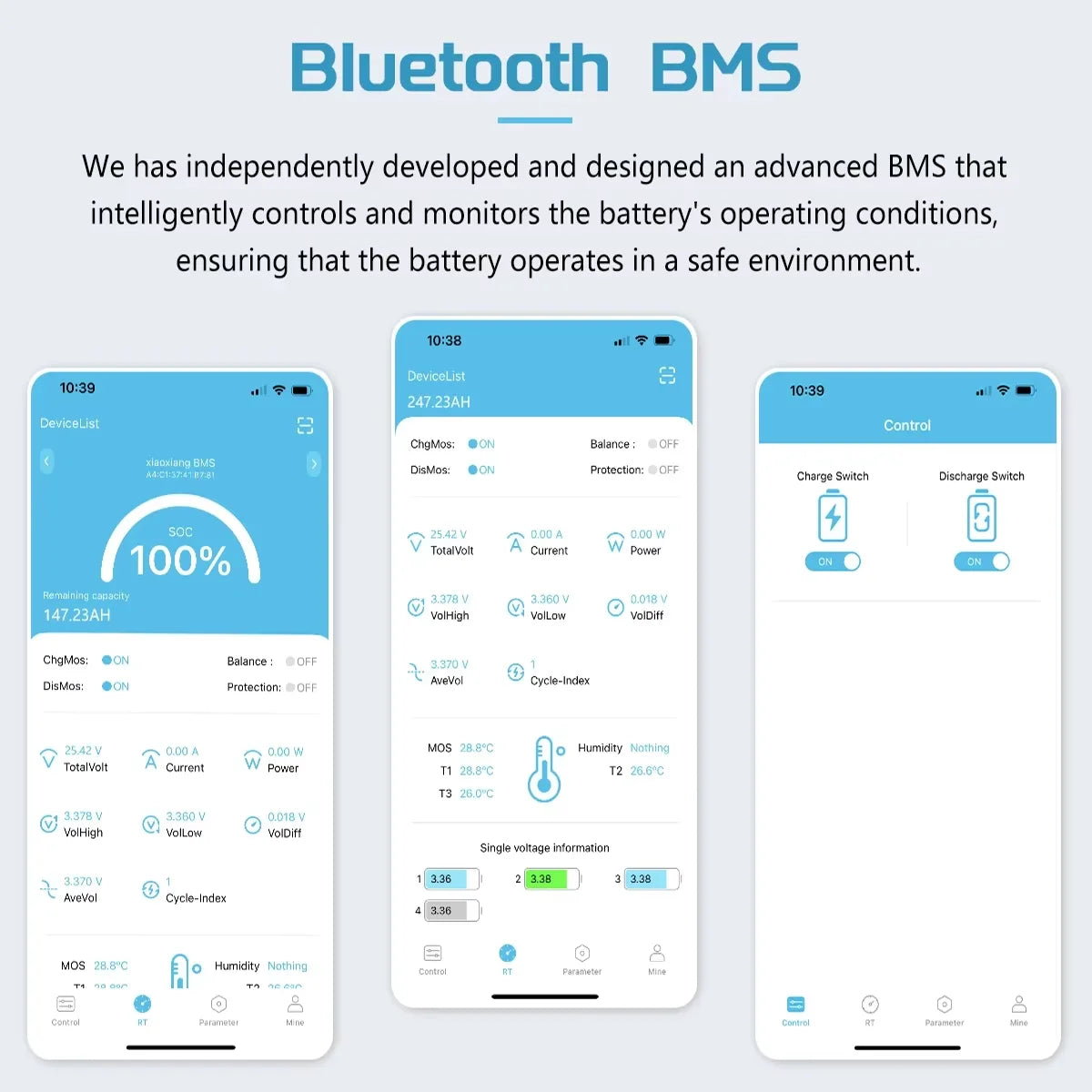

Intelligent display controller, constantly watch the battery cells temperature and voltage.

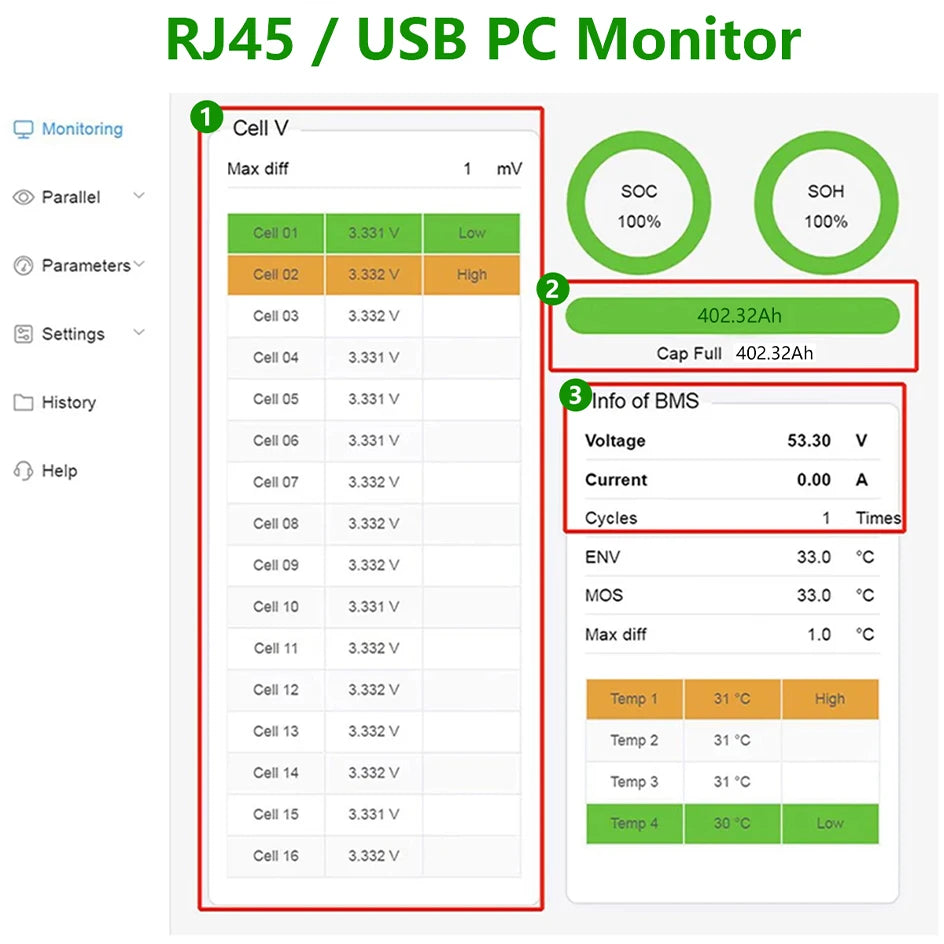

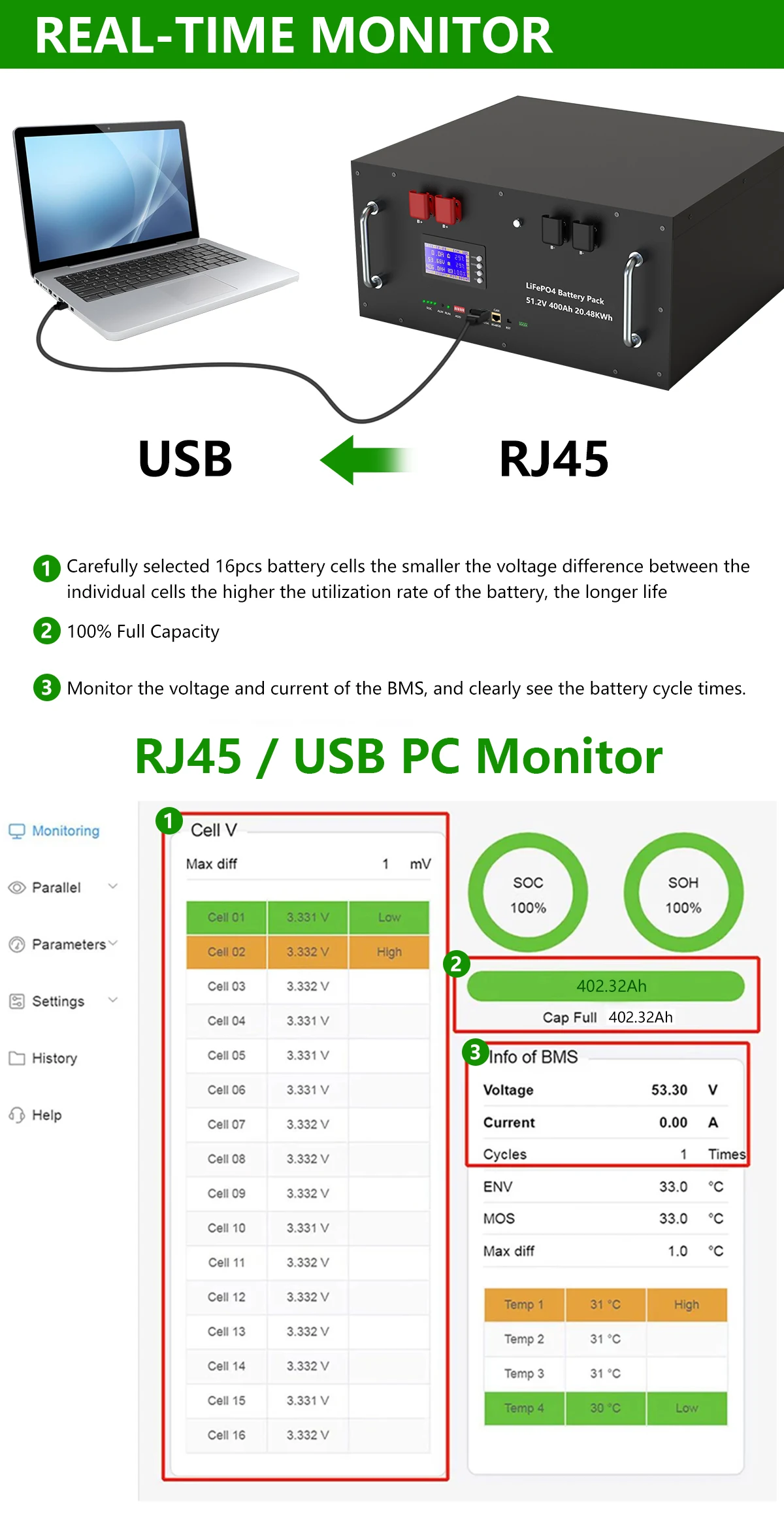

RS485 to USB, PC Monitoring : Monitor Battery Capacity, Voltage and Battery Cell Status

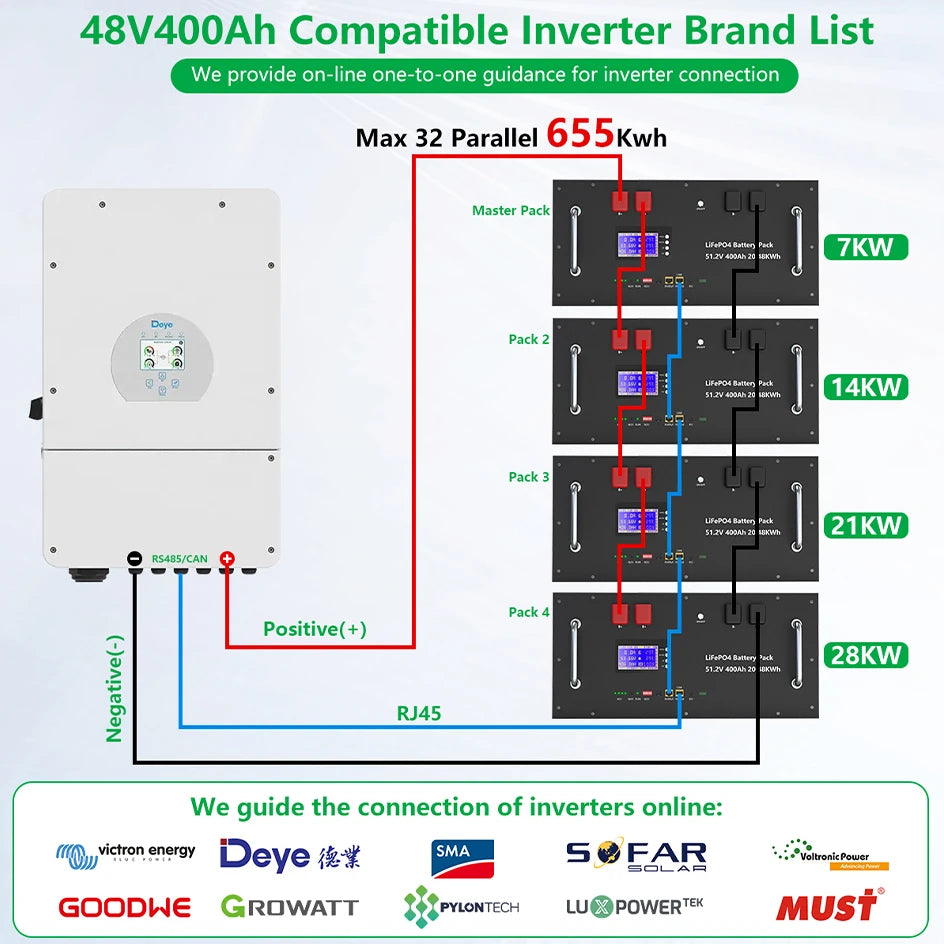

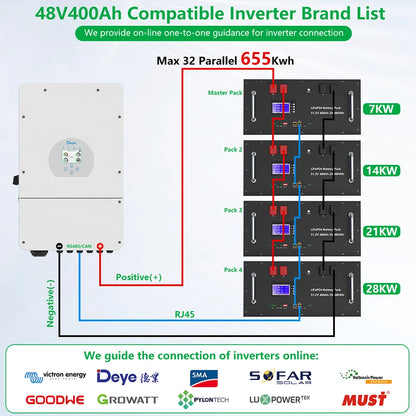

Support Max 32 Parallel，Support OEM Series Connection
About Compatible Inverter Brands List:
Dear customer, our 48V battery pack is compatible with the following brands of inverters: Victron, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA, etc.
SGS On-Site Factory Inspection: 32 Parallel Connection Process Display
