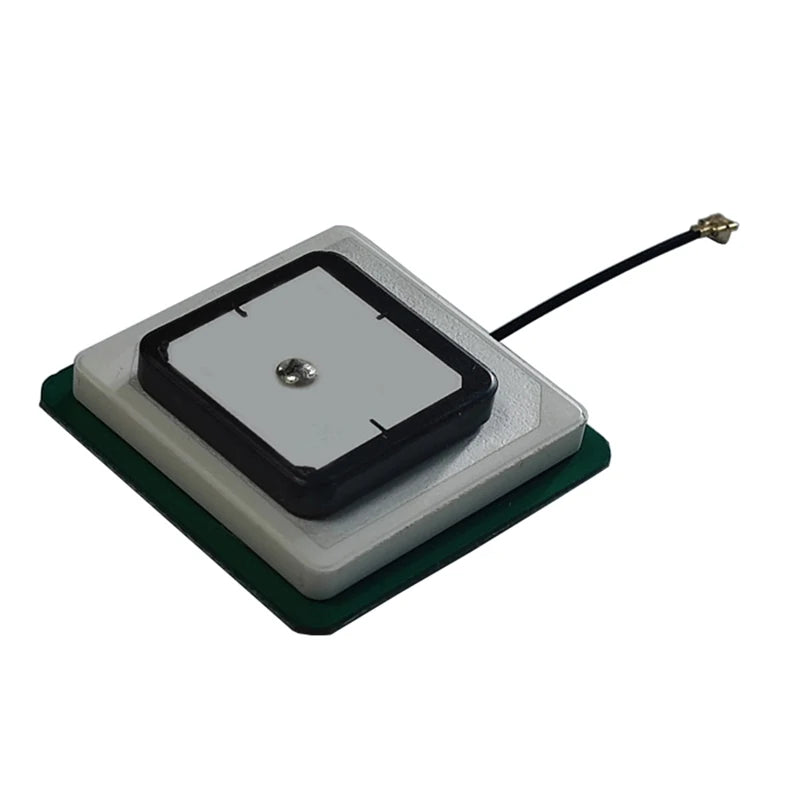

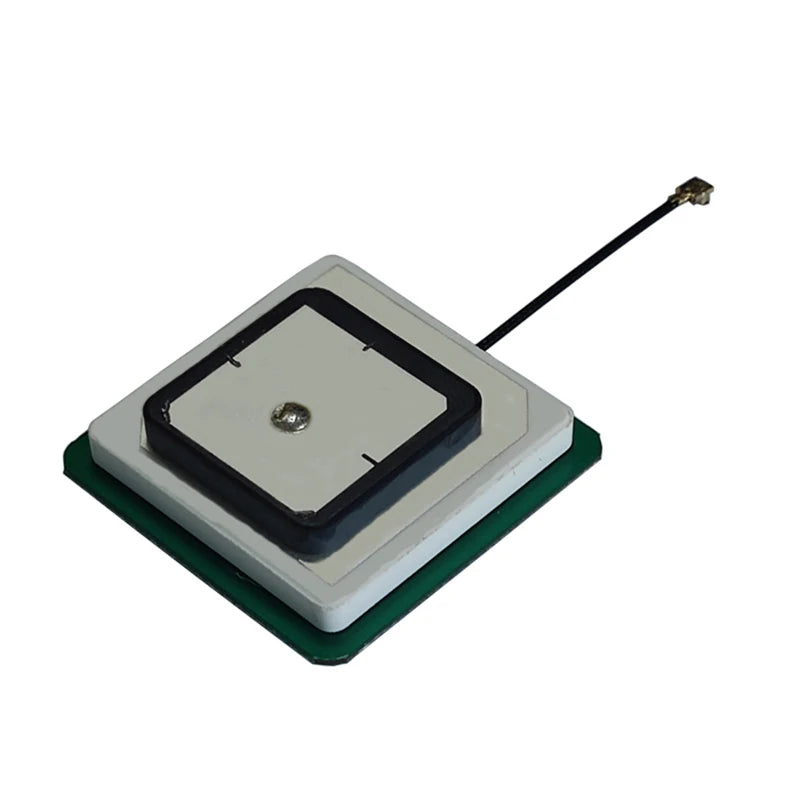

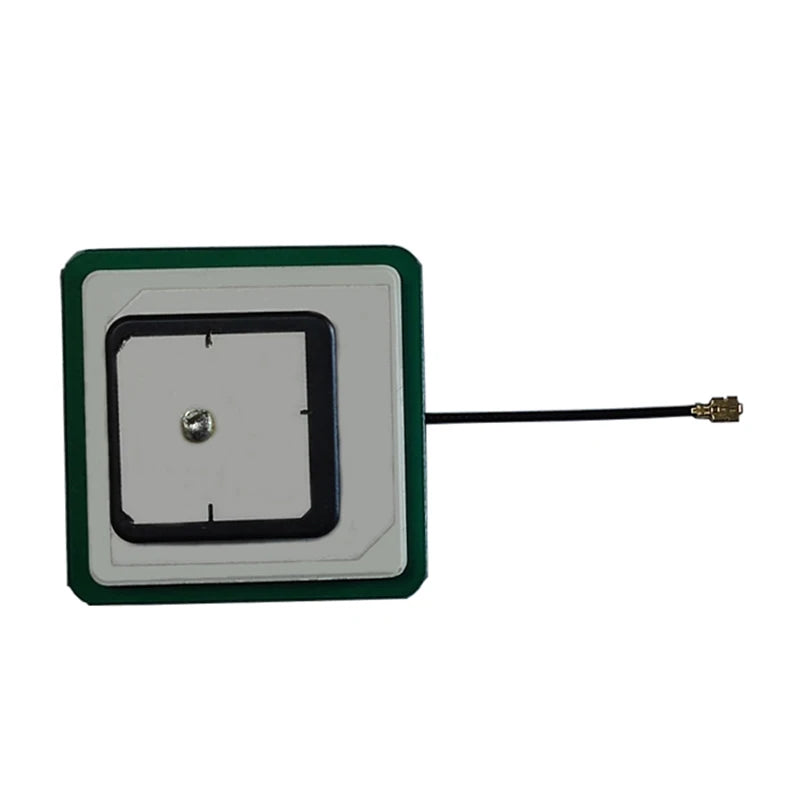

Dual Band GNSS Antenna for High Precision Navigation
Dual Band GNSS Antenna for High Precision Navigation
Regular price
$35.26 AUD
Regular price
$35.26 AUD
Sale price
$0.00 AUD
Unit price
per
Couldn't load pickup availability
Dual Band GNSS Antenna for High Precision Navigation
Regular price
$35.26
Regular price
$35.26
Sale price
$0.00
Unit price
per
Electrical Characteristics
Antenna model: GNSS Antenna
Ceramics Size(mm): 20*20/35*36

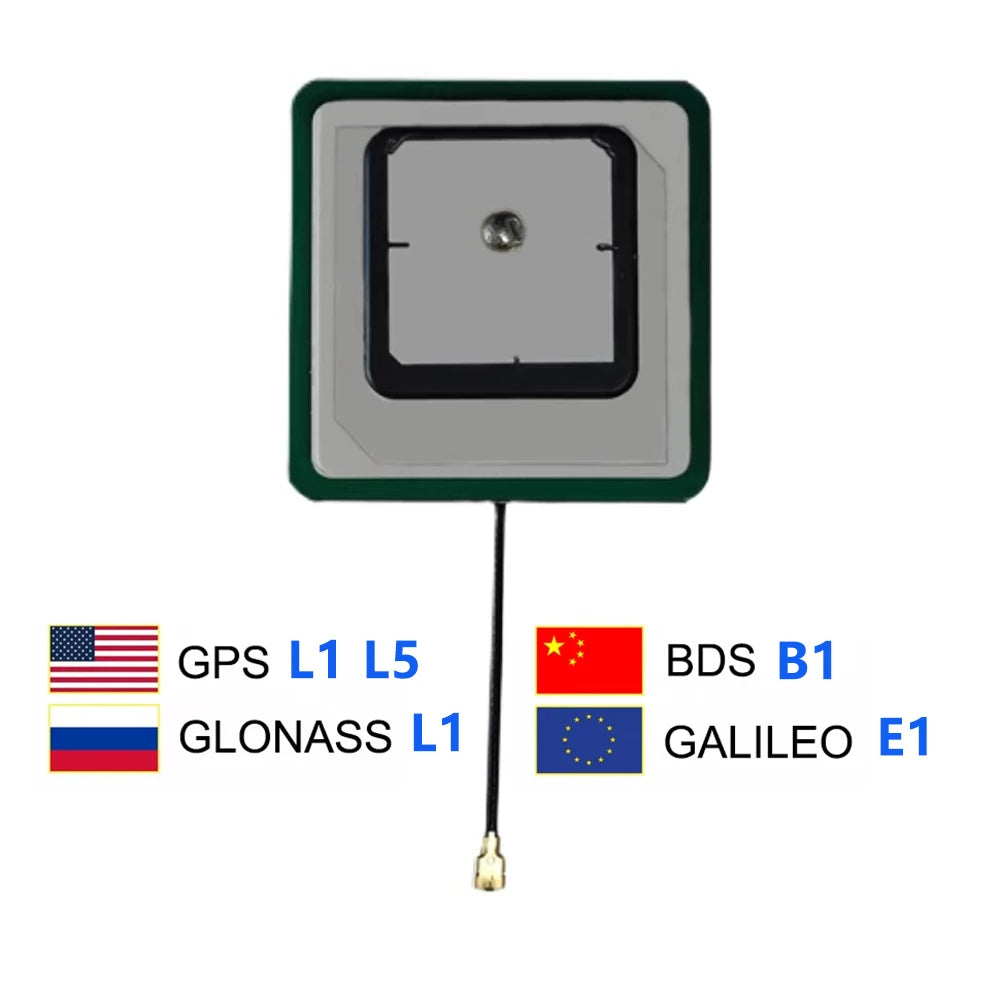

Nominal frequency:
GPS L1:1575.42±1.023MHz L5: 1176.45±1.023MHz
BD B1:1561.42±2.046MHz
GALILEO E1:1575MHz
GLONASS L1:1602±0.5625*K(MHz)
V.S.W.R: ≤2.0
-10dB Bandwidth MHz min: 10min
Gain: L1:5±1dBi L5:3±1dBi
Impedance: 50Ω
Polarization: RHCP
LNA
LNA Gain: L1:32±3dBi L5:28±3dBi
V.S.W.R: ≤2.0
Noise Figure: ≤1.0dB
Voltage: DC 3~5V
Current: 15~25mA
Impedance: 50Ω
Line Length: 5cm
Linear interface: IPEX
Material
Part Name: SPEC
Antenna: Ceramics
PCB: FR4
Environment Condition
Working Temp: -40℃~+85℃, 10%~95%RH
Storage Temp: -40℃~+85℃, 10%~95%RH
Vibration: Sine sweep @1.5mmAM 10~55Hz each Axis
