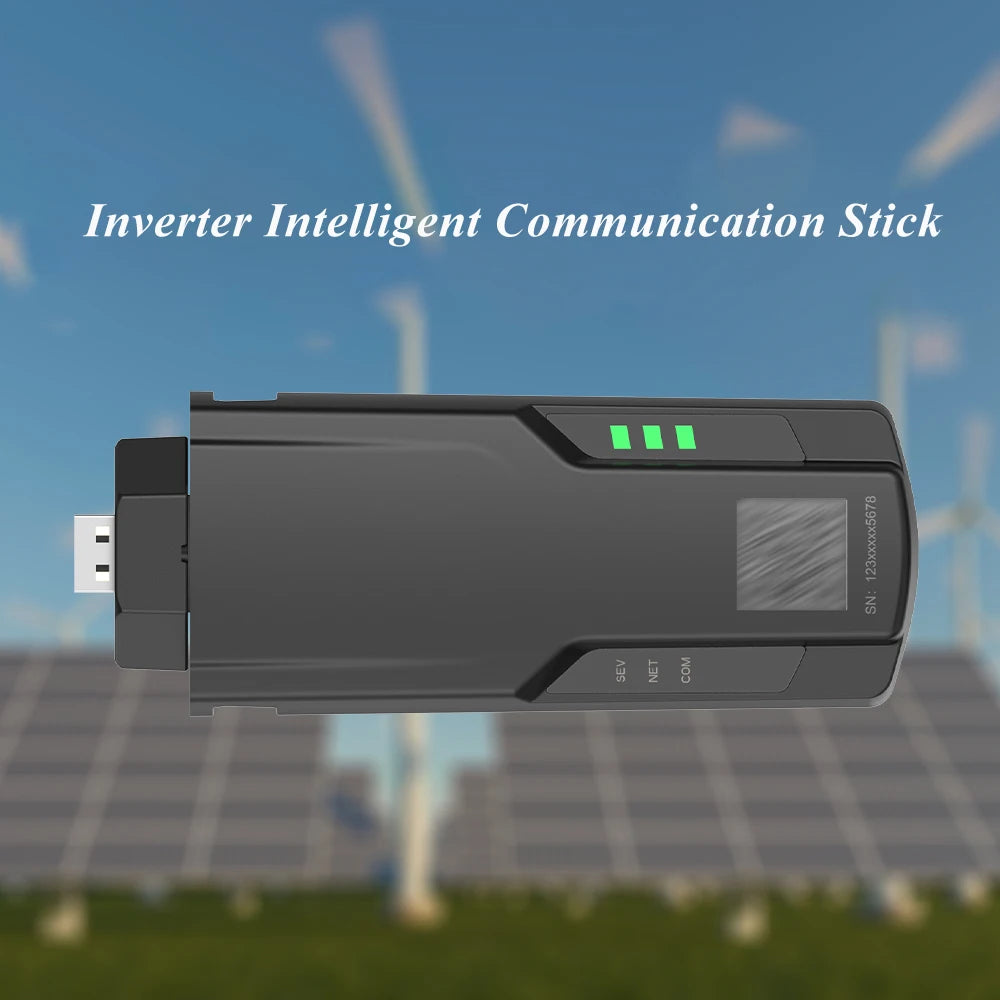

FCM360W WiFi6 BT RJ45 USB Industrial Inverter Communication Stick

The intelligent communication stick of the inverter supports Wi Fi&BT function, 232 communication with RJ45 interface, adapts to dual output inverters such as Gauss Bao 4 \ 6 \ 12kw, and adapts to ModBus communication protocol for off grid high-frequency inverters

Support MGTT's BMS STM32 DSP-M DSP-S and other OTA

Its processor has a clock speed of up to 240MHz, supports IEEE802.11b/g/n/ax protocol and BLE 5.1, built-in 512 KB SRAM and 4 MB/8 MB Flash, complies with WPA-PSK, WPA2-PSK, and WPA3-SAE security protocol standards, and supports AES 128 bit hardware encryption algorithm

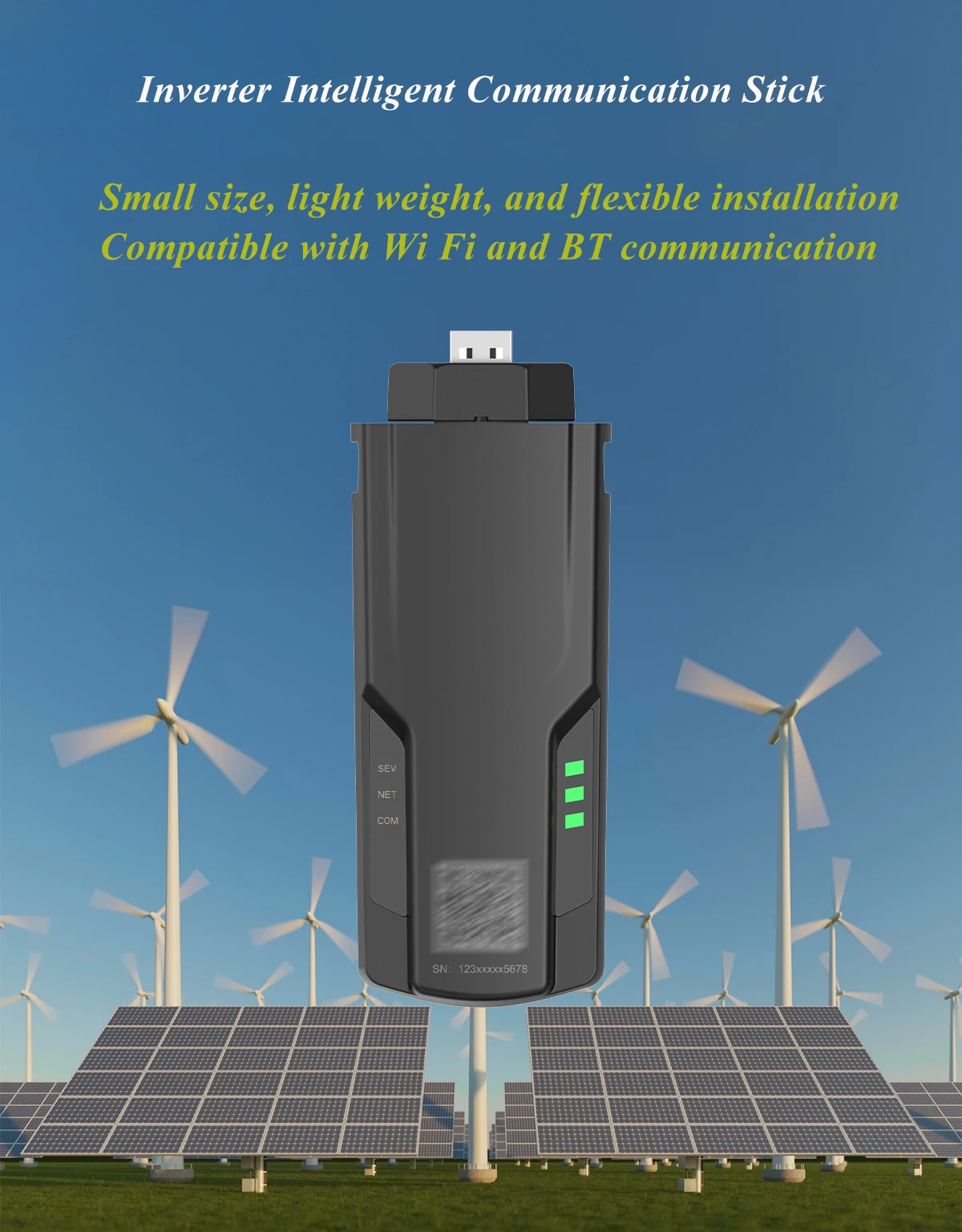

The intelligent communication stick supports Wi Fi/BT/4G network * connection, plug and play, and easily completes data communication between the inverter and the photovoltaic management system.

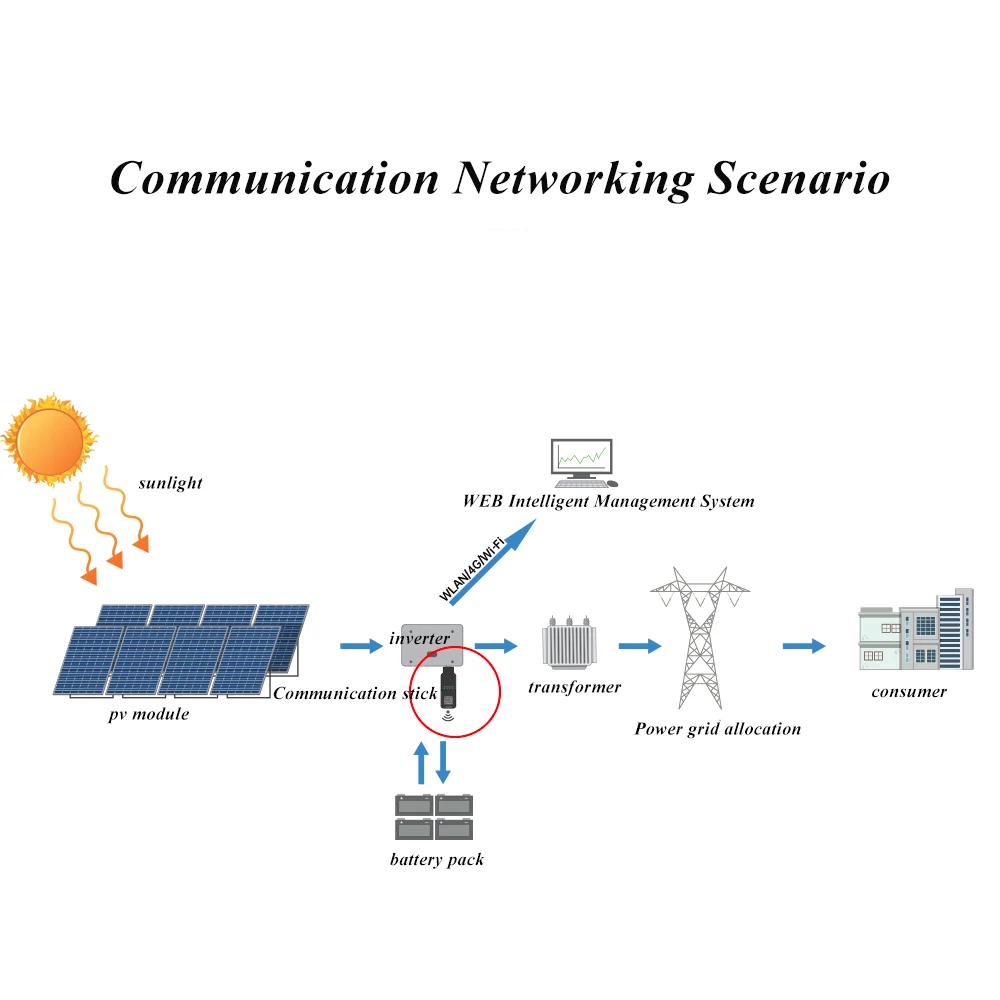

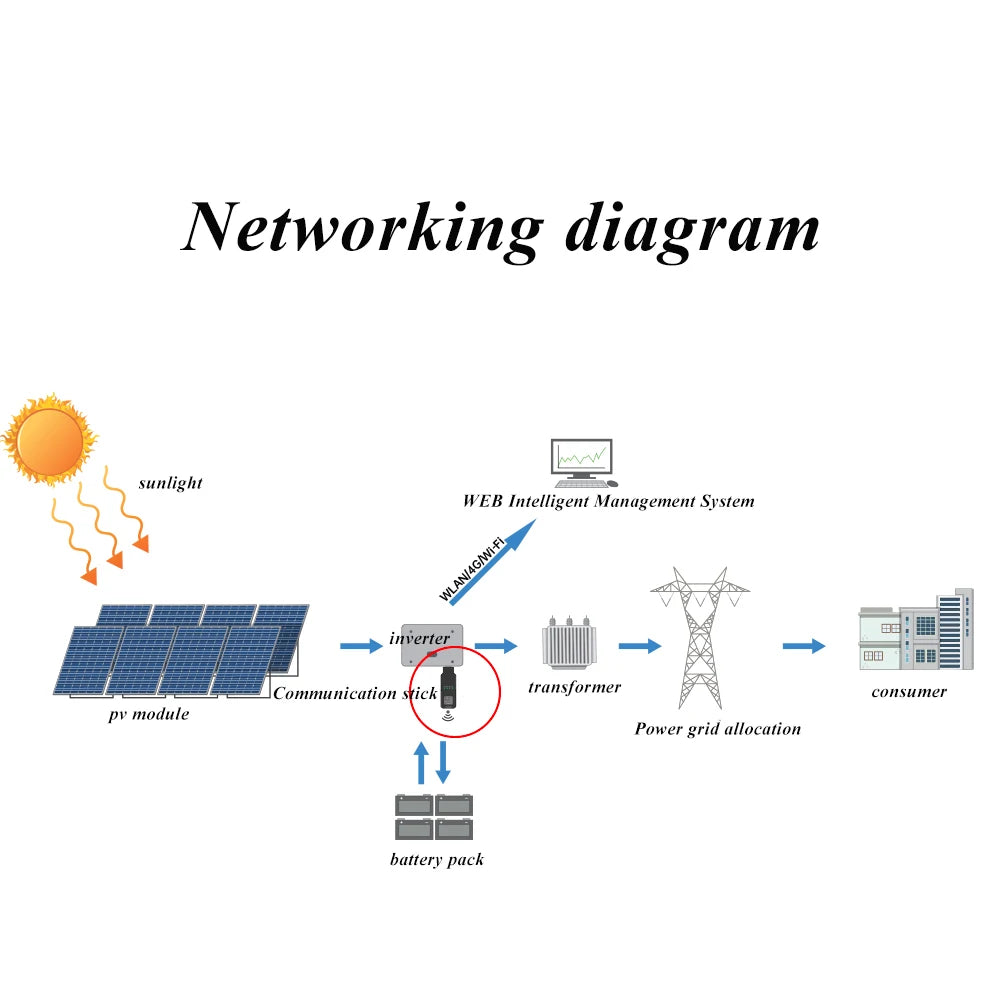

Paired with an intelligent photovoltaic management system, achieve intelligent electricity management and power station maintenance.

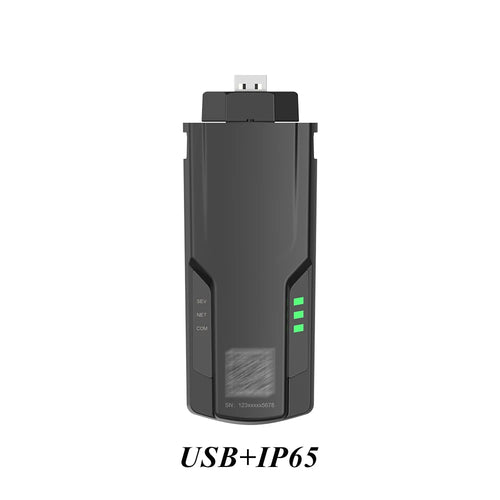

With an IP65 protection level, it is not afraid of harsh outdoor environments such as sand and rain.

TECHNICAL INDEX

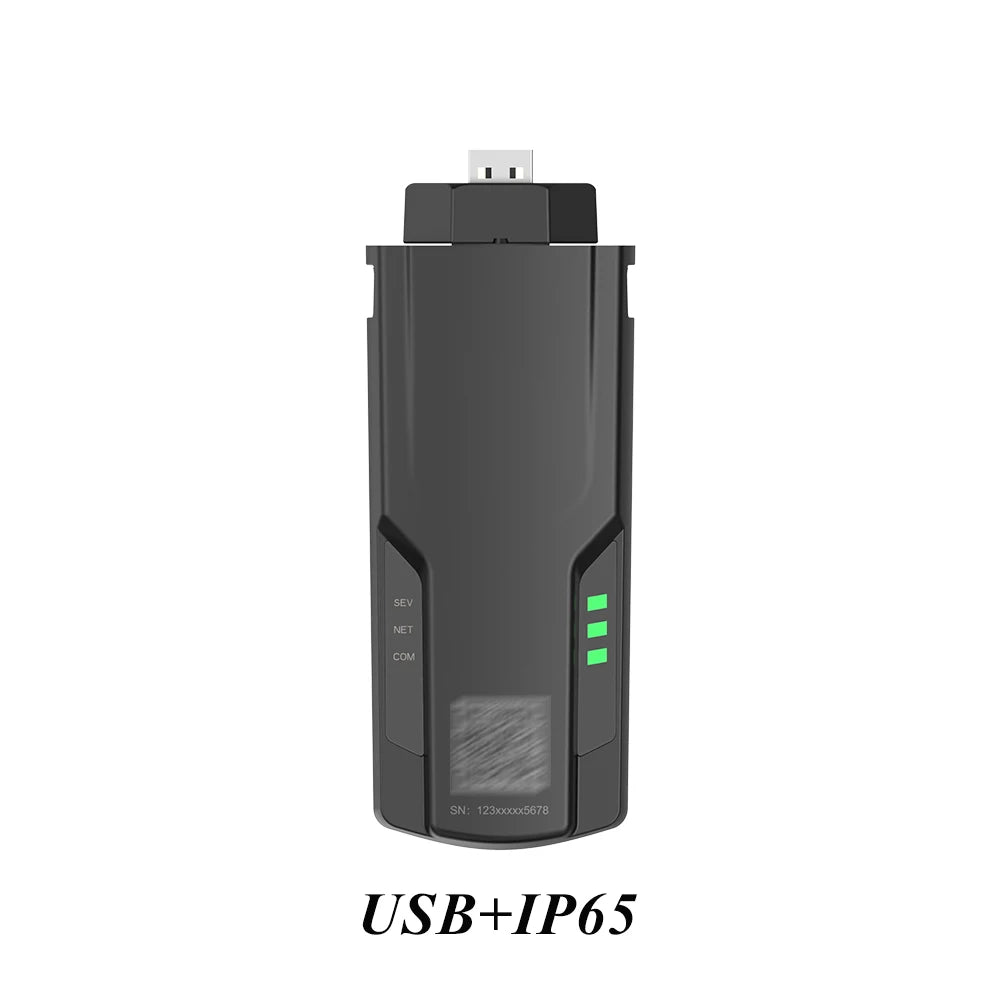

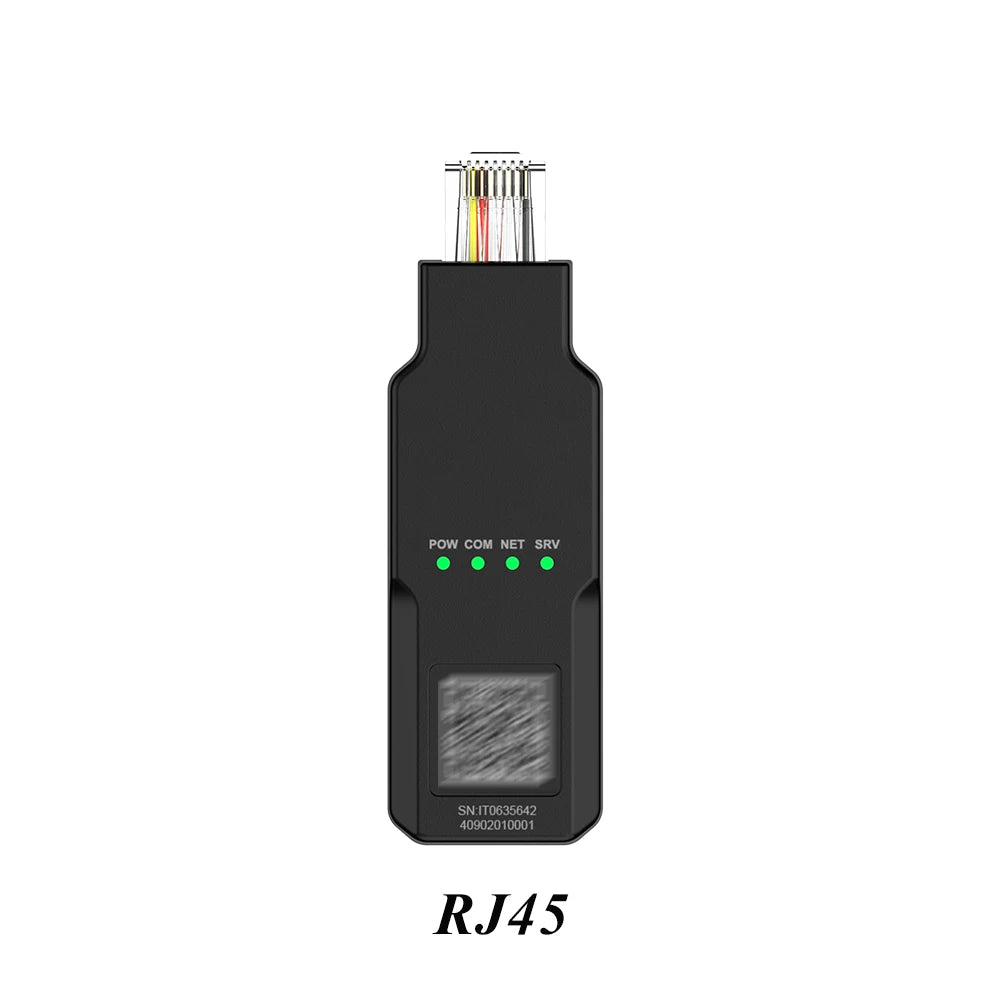

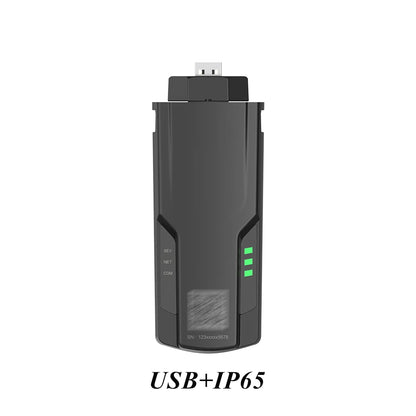

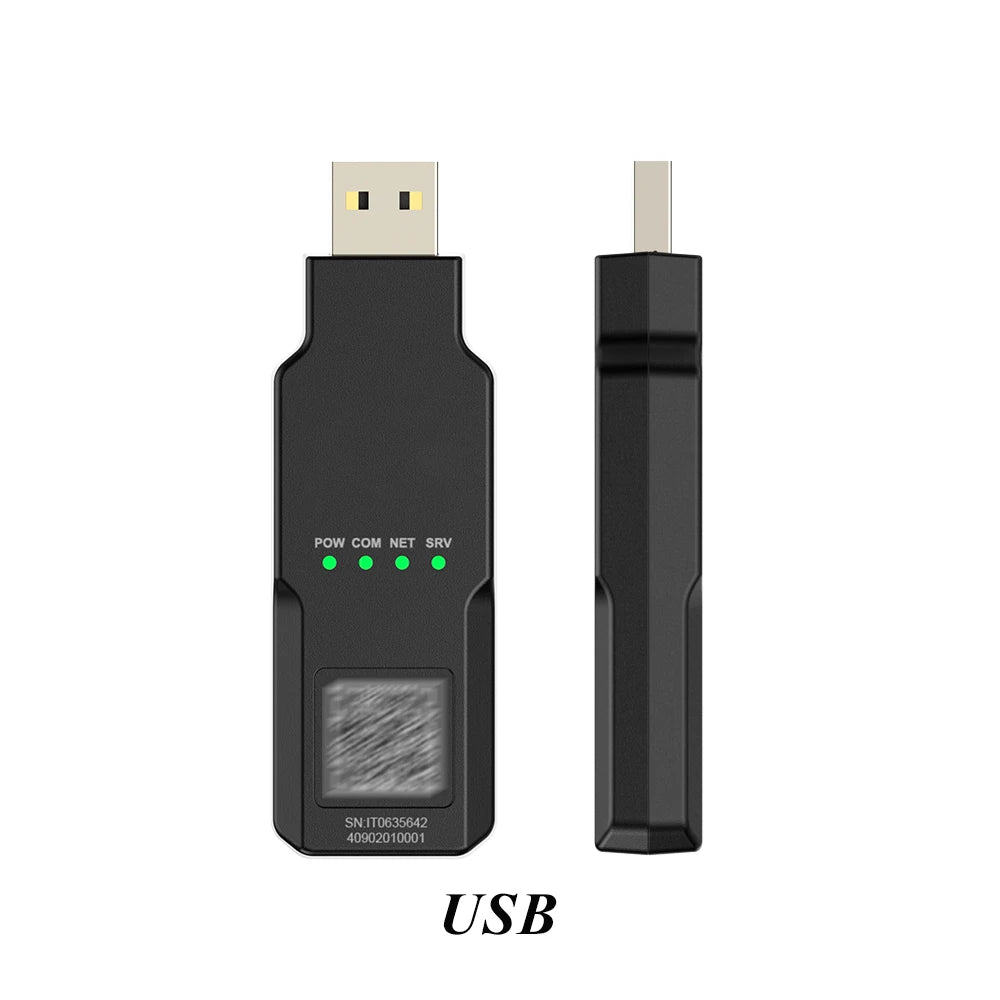

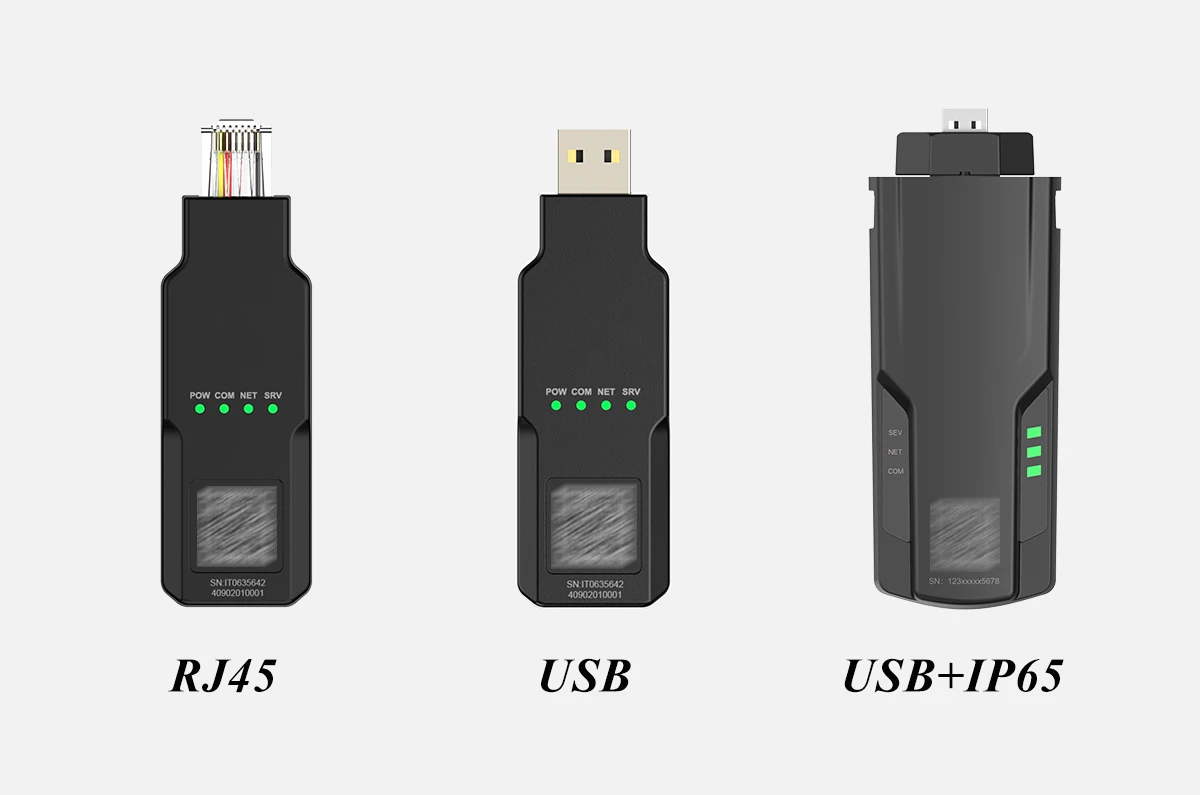

Interface mode: USB/RJ45

Installation method: plug and play

Indicator light: LED indicator light

Main control chip: QUECTEL FCM360W

Application processor: RISC processor (with a clock speed of up to 240MHz)

Storage: 512KB SRAM&4MB/8MB Flash

External storage: 8MB Flash

Operating System: Freertos

WLAN protocol: IEEE 802.11b/g/n/ax

WI-FI frequency band:

2.4GHz

802.11b/1Mbps

802.11b/11Mbps

802.11g/6Mbps

802.11g/54Mbps

802.11n/HT20MCS 0

802.11n/HT20MCS 7

802.11n/HT40MCS 0

802.11n/HT40MCS 7

802.11ax/HT20MCS 0

802.11ax/HT20MCS 7

WI-FI modulation:CCK/BPSK/QPSK/16QAM/64QAM

WI-FI working mode:AT/STA

Bluetooth protocol:BLE 5.1

Encryption mode:WPA-PSK/WPA2-PSK/WPA3-SAE/ASE-128

Network characteristics:IPv6

Protection level:IP54/IP65

Size(mm):

RJ45:25.5*80.2*12

USB:25.5*76.81*12

IP65:50*129.7*25.56

Temperature:-30℃~+75℃

Power supply:12V
