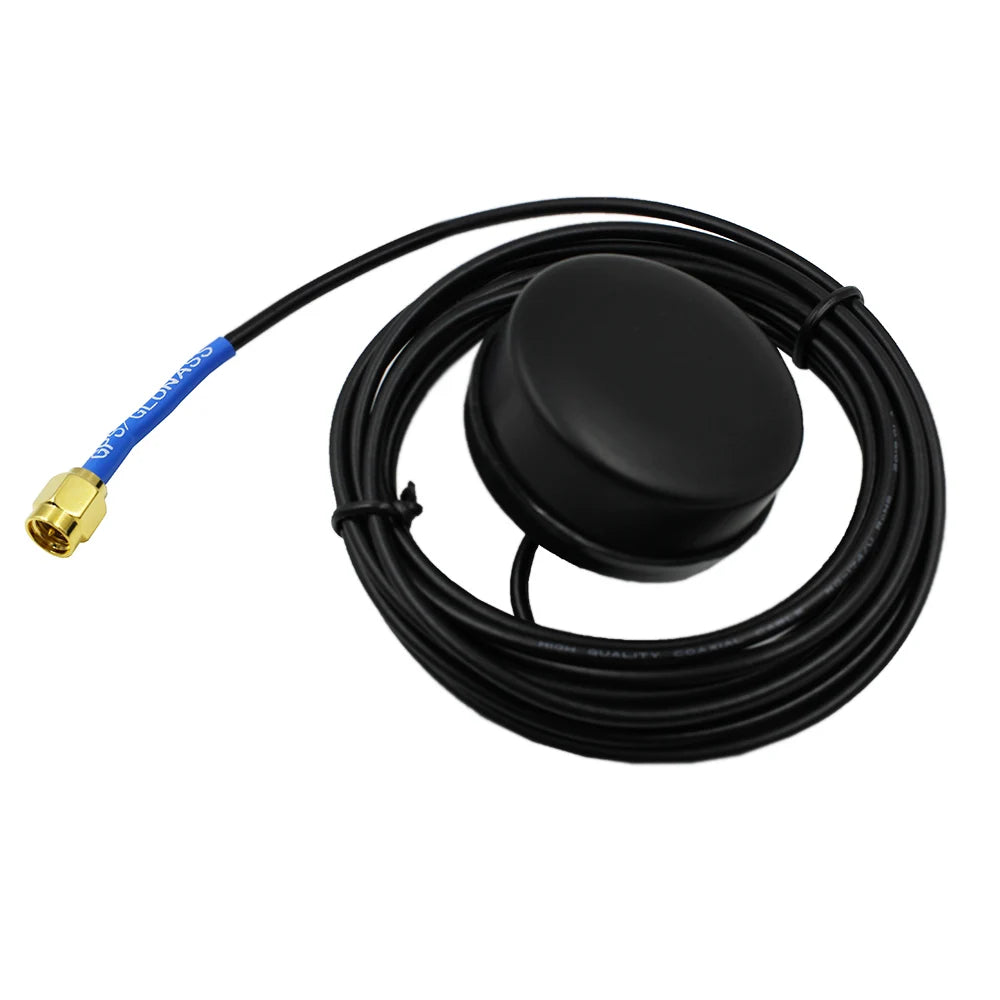

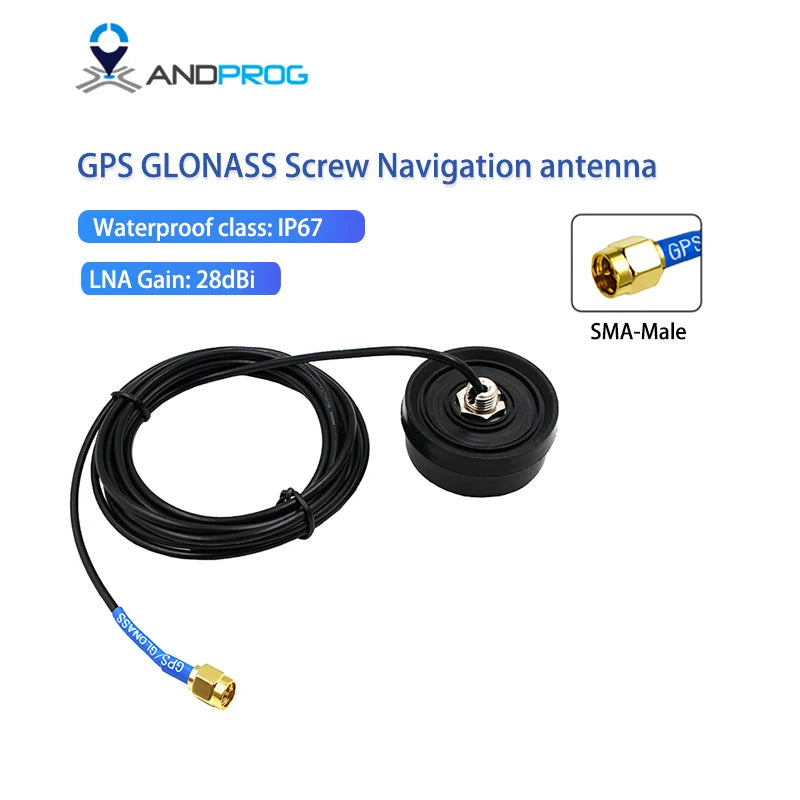

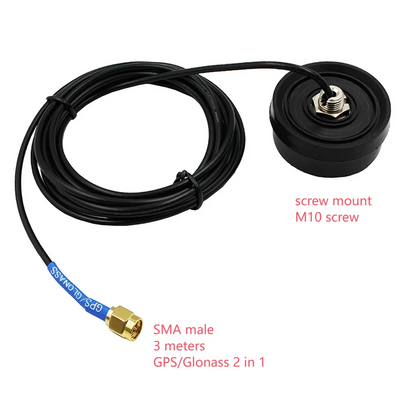

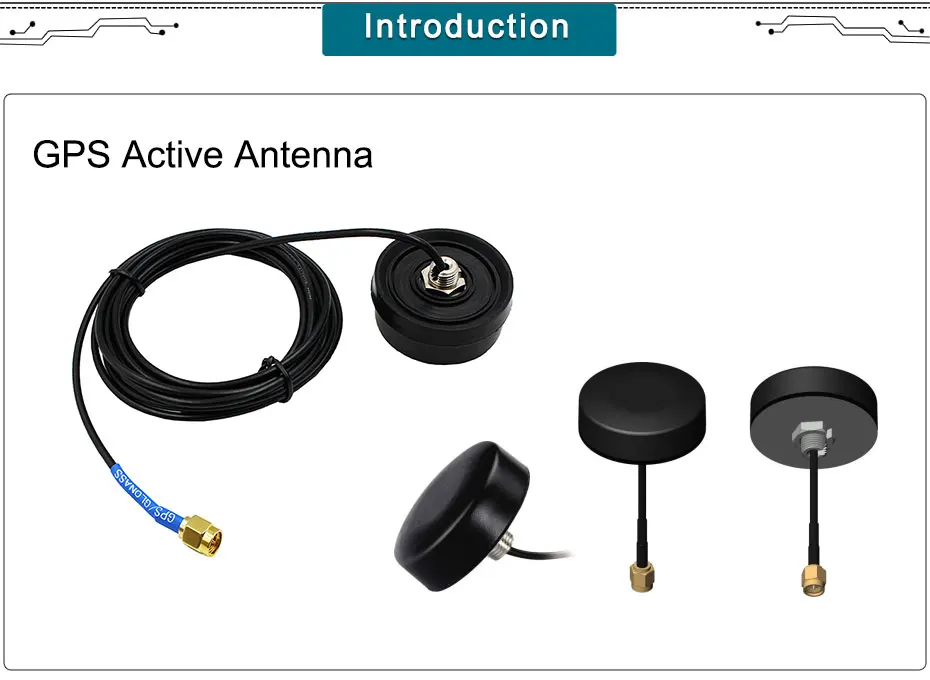

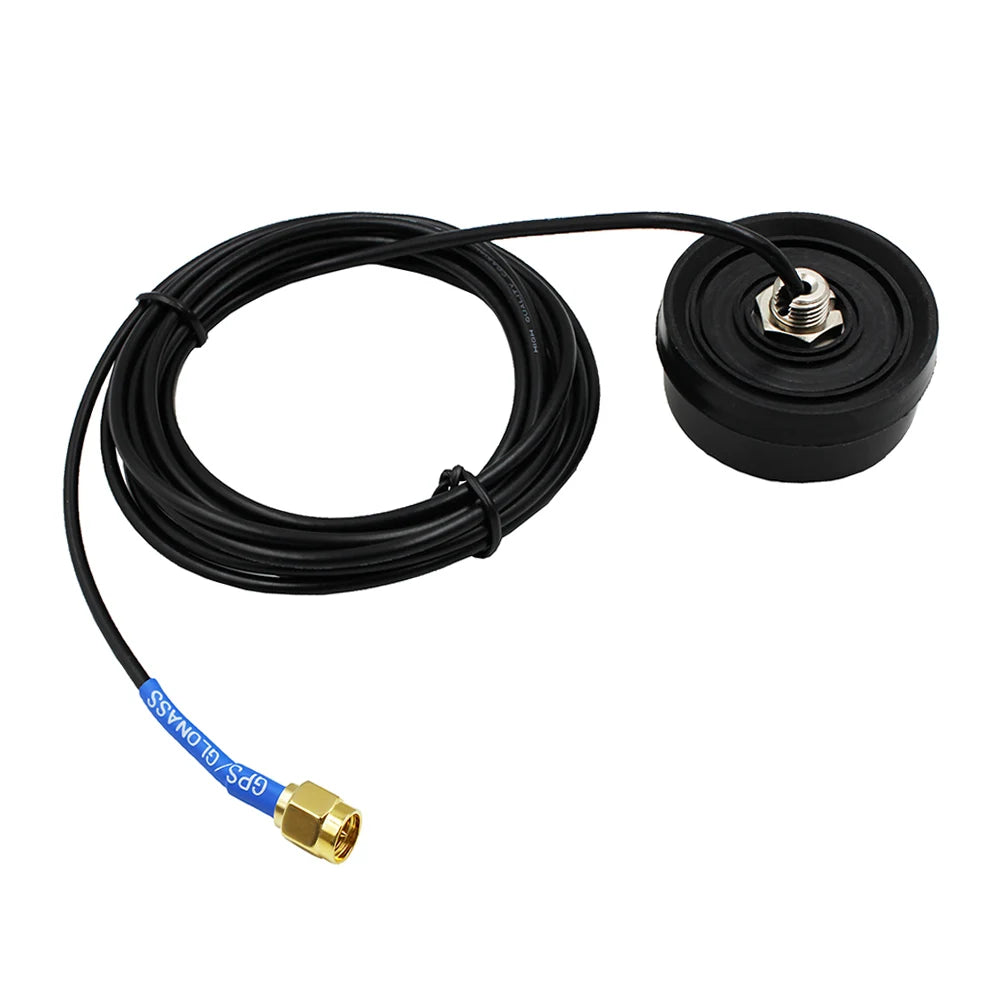

Low Profile GNSS GPS Car Antenna with SMA Connector

Low Profile GNSS GPS Car Antenna with SMA Connector

Regular price $22.90 AUD
Regular price $22.90 AUD Sale price $0.00 AUD
25% Off Sold out

3 meters length
3 meters length
Low Profile GNSS GPS Car Antenna with SMA Connector

Low Profile GNSS GPS Car Antenna with SMA Connector

Regular price $22.90
Regular price $22.90 Sale price $0.00
SAVE Sold out

 FAQ
Q:The picture is real product?
A:Yes,all product pictures are real product.
Q:If stock quantity is not enough from link, how to do?
A: Contact/Leave message to us, we will reply and help check exact stock within 12 hours.
     If go to bulk ordering, usually lead time 10-15 days.
Q:when I go to bulk several items, and find shipping cost is different, how do I do?
A: Shipping cost depends on unit weight, but if you find shipping cost very high,
Contact/Leave message to us, we will check whether shipping cost can be reduced.
Q:How can I get commercial invoice for company finance?
A: Contact/Leave message to us,leave billing address, we will send PDF version there.
Q:Is the antenna has different length cable or connectors?
A:Yes, can be custom-made, Contact/Leave message to us, we can quote for you.
GPS is for SMA Male/Fakra C(blue), which are normal.
Fakra C has straight and right angle(90 degree).
Wellcome to tell us of your requirements.
Q:Is GLONASS better than GPS?
A:The 2 systems also differ somewhat on accuracy. GLONASS position accuracy is 5-10m while GPS is 3.5-7.8m.
Therefore, GPS outweighs GLONASS in accuracy as lower error numbers are better.
Q:Should you use GPS with GLONASS?
A:Actually only gps should do its job in case satellite reception is perfect.
The combination with another system will improve accuracy when the signal gets weaker.
Q:Does GPS work without an antenna?
A:GPS (Global Positioning System) systems work by receiving signals from satellites.
That isn't possible without an antenna
Q:Where to put a GPS antenna?
A:In most cases, you can mount the GPS antenna near the top of the underside of your dash (behind or above the receiver).

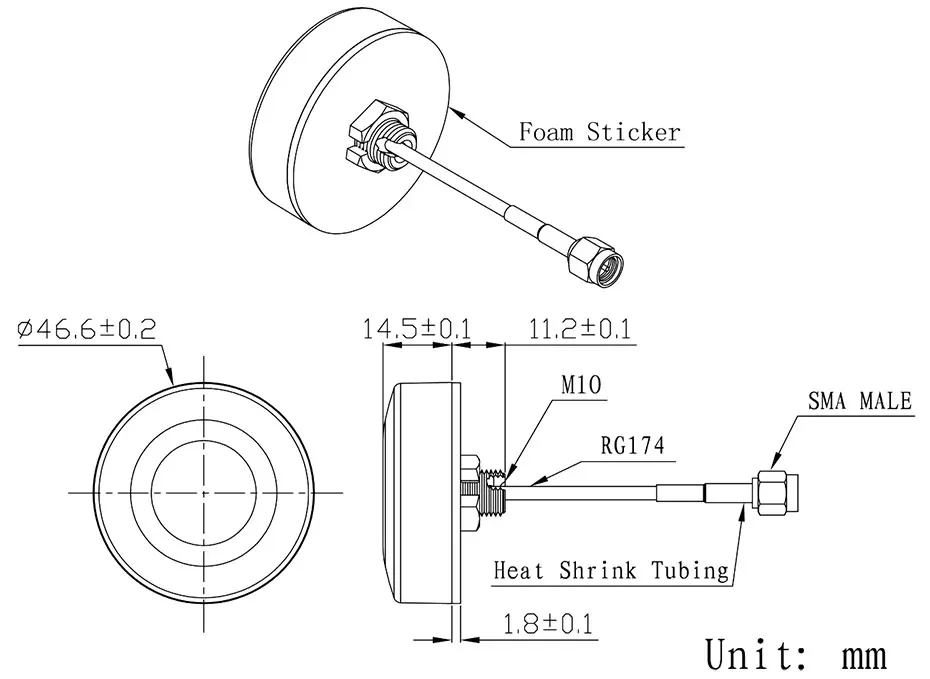

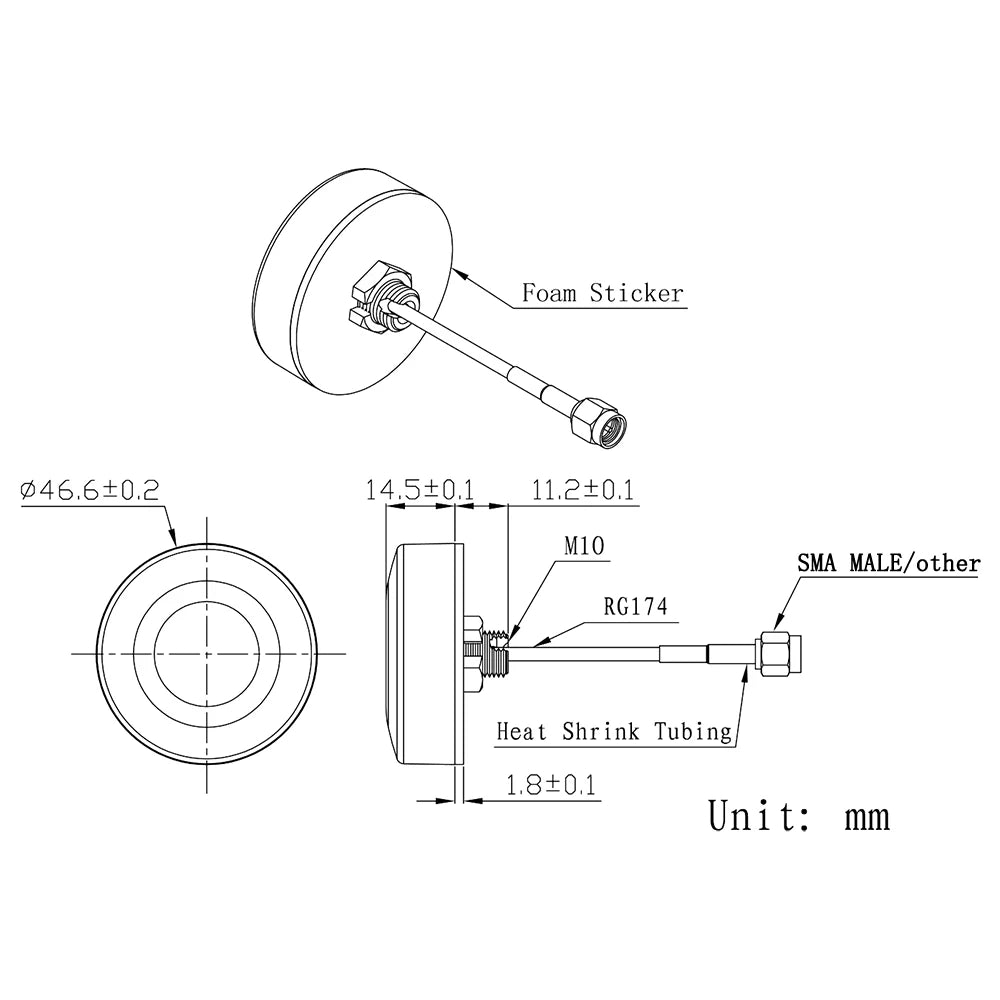

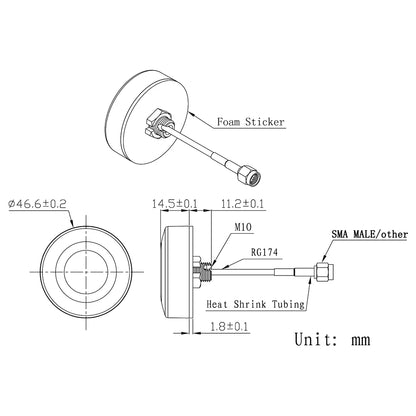

  DIMENSIONS& SPECIFICATIONS




Item

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

SMA/MCX or others

Radome Material

ABS

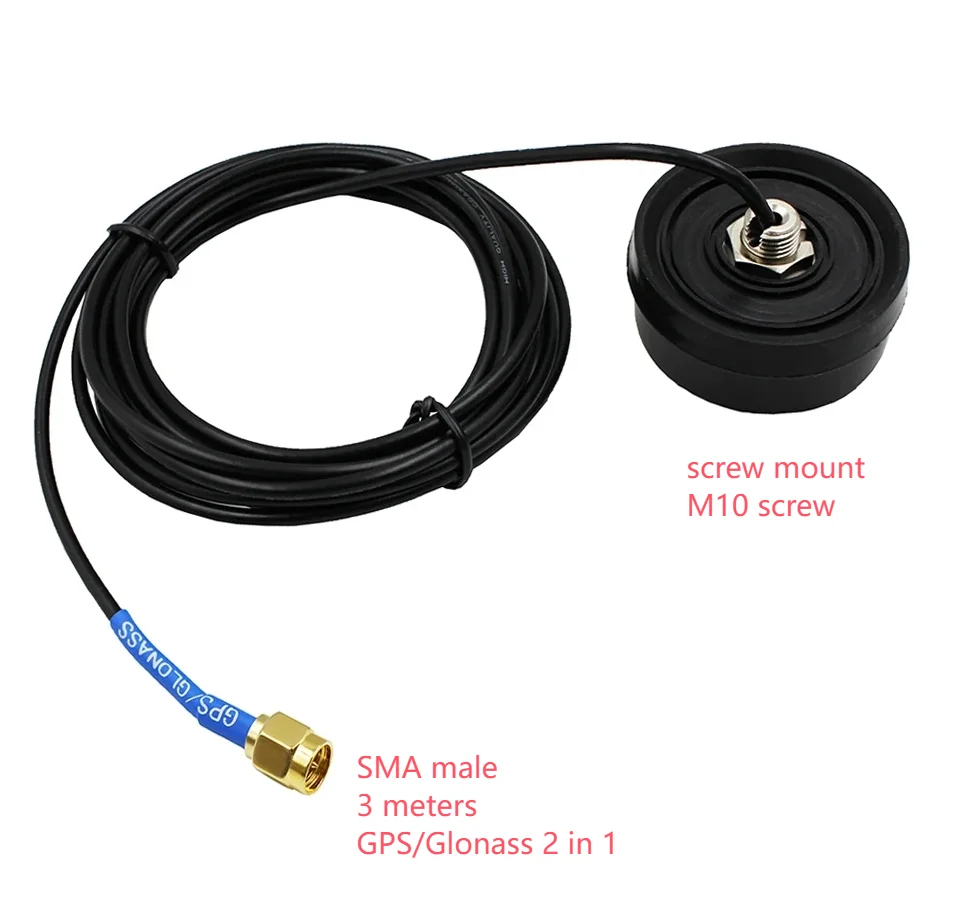

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

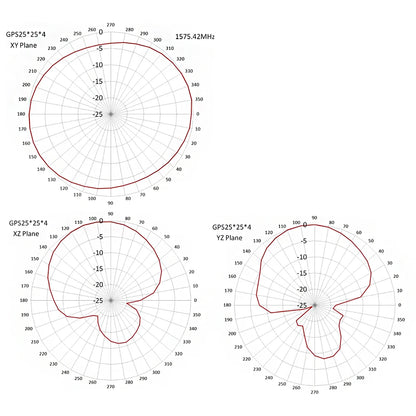

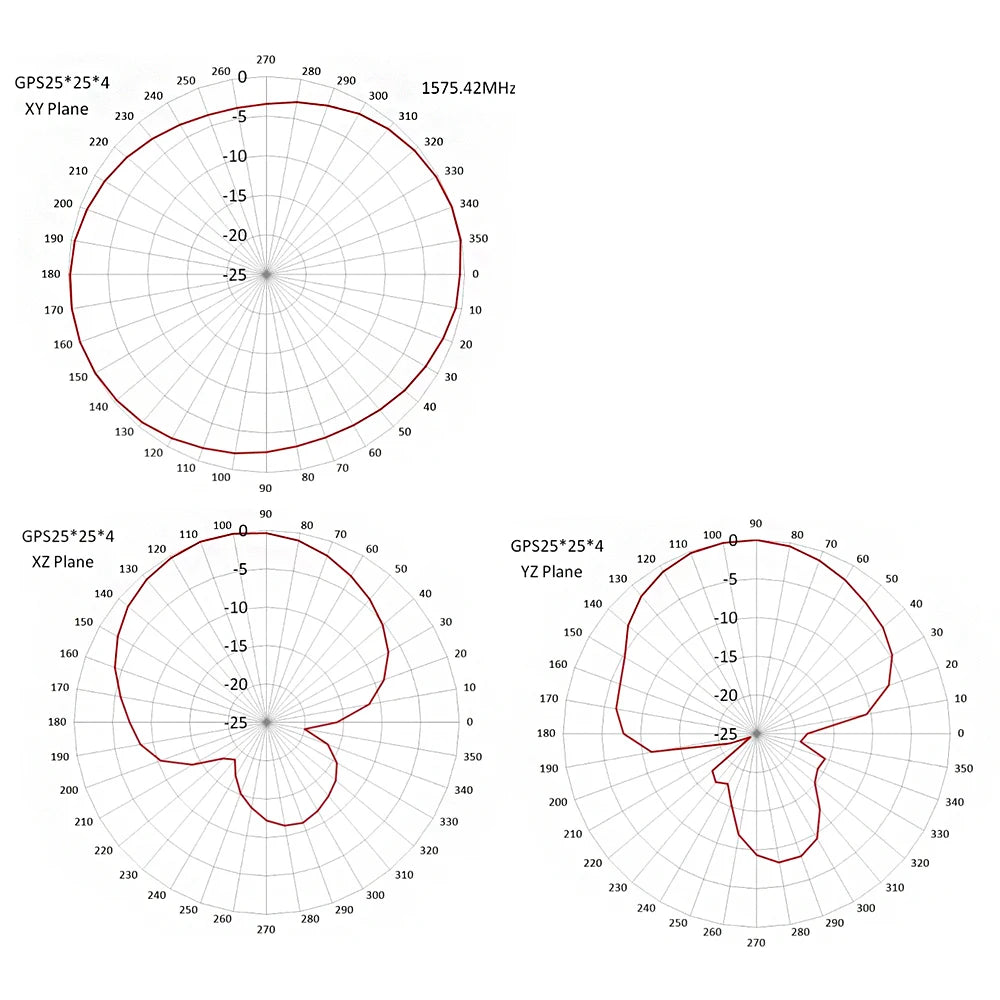

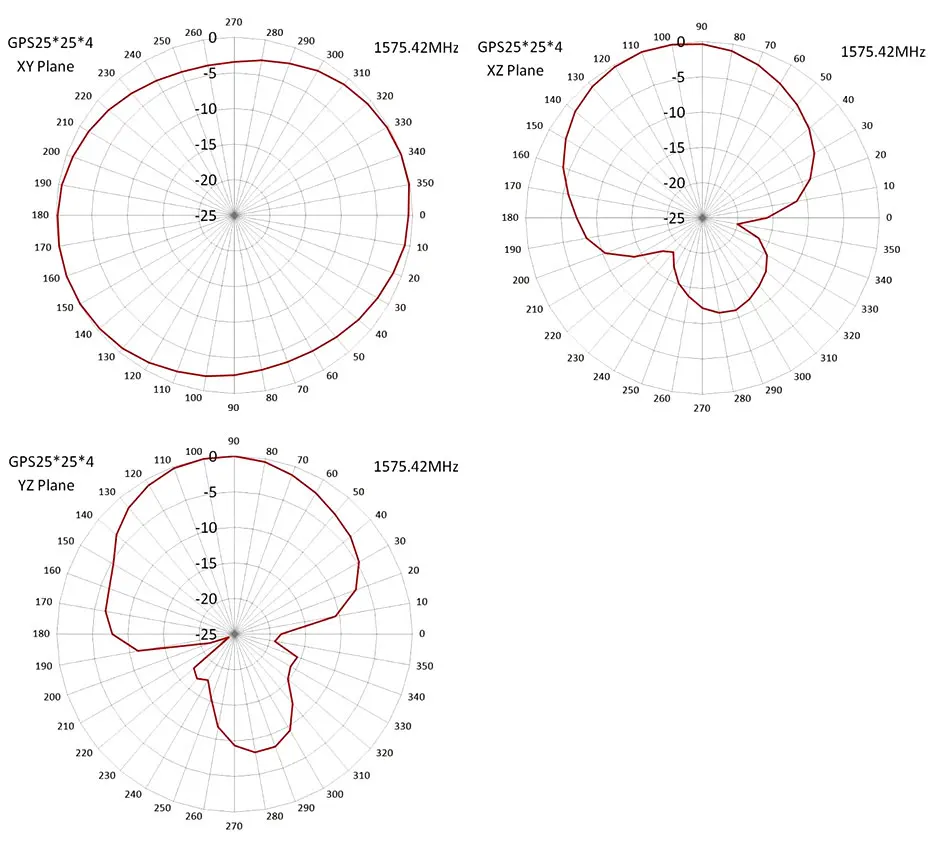

  Radication Pattern
