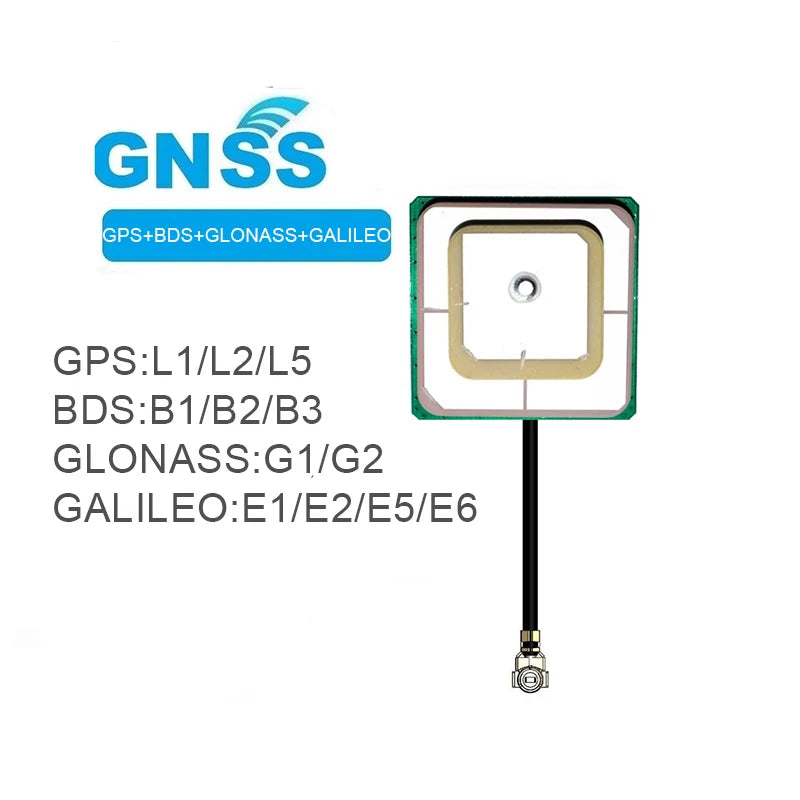

Multi Frequency GNSS Positioning Antenna for High Accuracy
Multi Frequency GNSS Positioning Antenna for High Accuracy
Regular price
$39.00 AUD
Regular price
$39.00 AUD
Sale price
$0.00 AUD
Unit price
per
Couldn't load pickup availability
Multi Frequency GNSS Positioning Antenna for High Accuracy
Regular price
$39.00
Regular price
$39.00
Sale price
$0.00
Unit price
per
Frequency:
GPS: L1/L2/L5
BDS: B1/B2/B3
GLONASS: G1/G2
GALILEO: E1/E2/E5/E6
Polarization: RCHP
Output VSWR: ≤2.0
Horizontal coverage angle: 360°
Center phase difference: ±2mm
Max gain: ≧5.5dBi
Feed impedance: 50Ω
LNA
LNA Gain: 38±2dBi
V.S.W.R: ≤1.8
In-band flatness±2dBi
Noise Figure: ≤1.5dB
Voltage: DC 3~5V
Current: ≤15mA
Differential input delay≤15ns
Structural characteristics
Antenna size: 38*38*13mm
Linear interface: IPX/MHF1
Line Length: 5cm
Environment Condition
Working Temp: -40℃~+85℃, 10%~95%RH
Storage Temp: -55℃~+85℃, 10%~95%RH
