Mini GPS GLONASS Patch Antenna with IPX Connector

Mini GPS GLONASS Patch Antenna with IPX Connector

Regular price $21.46 AUD
Regular price $21.46 AUD Sale price $0.00 AUD
25% Off Sold out

Screw with Fakra
Screw with Fakra
with screw
with screw
Mini GPS GLONASS Patch Antenna with IPX Connector

Mini GPS GLONASS Patch Antenna with IPX Connector

Regular price $21.46
Regular price $21.46 Sale price $0.00
SAVE Sold out

 FAQ
Q:The picture is real product?
A:Yes,all product pictures are real product.
Q:If stock quantity is not enough from link, how to do?
A: Contact/Leave message to us, we will reply and help check exact stock within 12 hours.
     If go to bulk ordering, usually lead time 10-15 days.
Q:when I go to bulk several items, and find shipping cost is different, how do I do?
A: Shipping cost depends on unit weight, but if you find shipping cost very high,
Contact/Leave message to us, we will check whether shipping cost can be reduced.
Q:How can I get commercial invoice for company finance?
A: Contact/Leave message to us,leave billing address, we will send PDF version there.
Q:Is the antenna has different length cable or connectors?
A:Yes, can be custom-made, Contact/Leave message to us, we can quote for you.

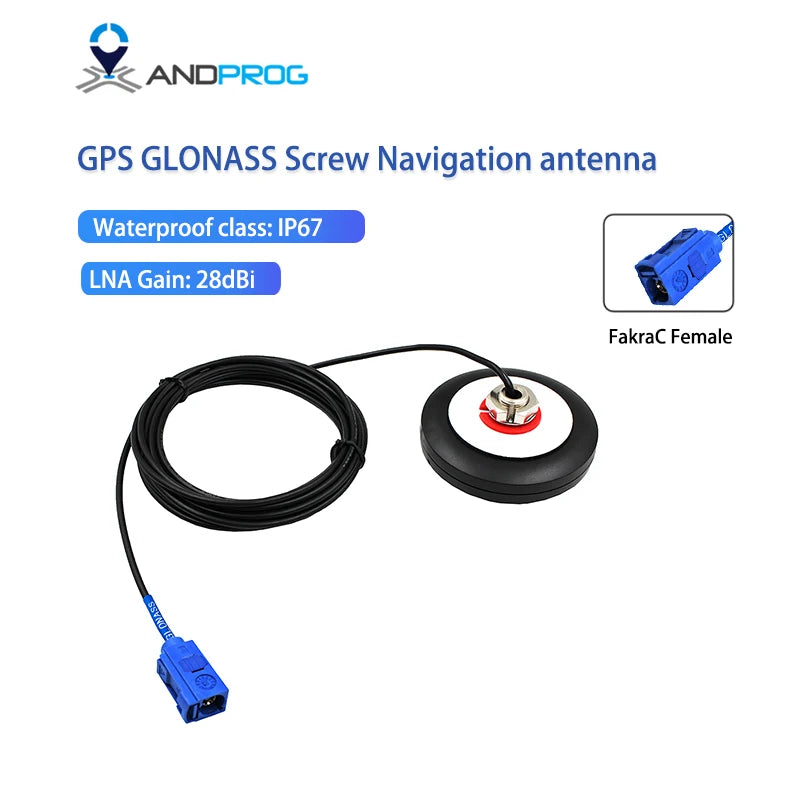

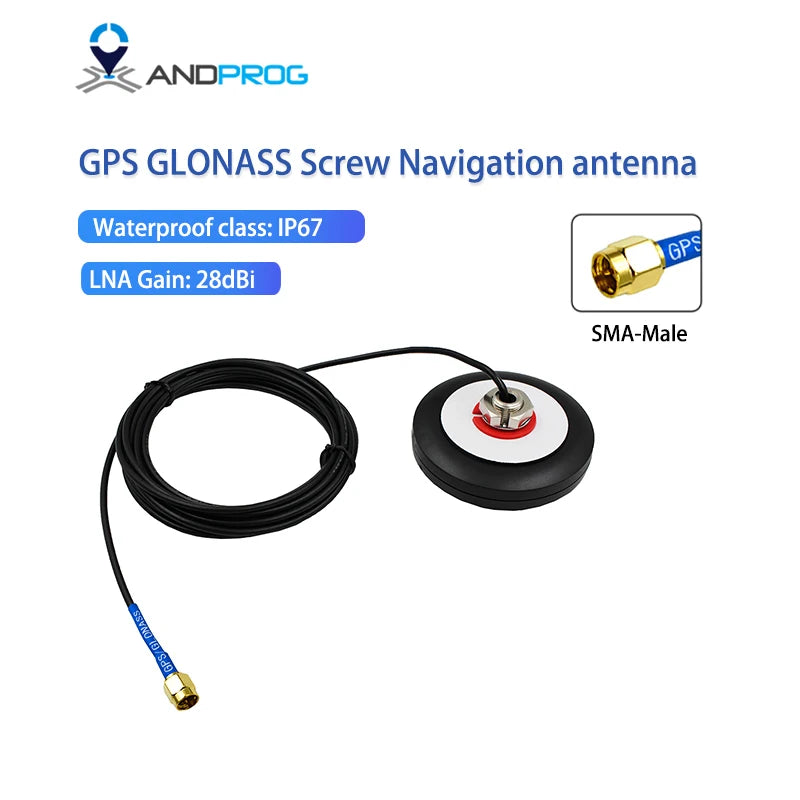

GPS is for SMA Male/Fakra C(blue), which are normal.
Fakra C has straight and right angle(90 degree).
Wellcome to tell us of your requirements.
Q:Is GLONASS better than GPS?
A:The 2 systems also differ somewhat on accuracy. GLONASS position accuracy is 5-10m while GPS is 3.5-7.8m.
Therefore, GPS outweighs GLONASS in accuracy as lower error numbers are better.
Q:Should you use GPS with GLONASS?
A:Actually only gps should do its job in case satellite reception is perfect.
The combination with another system will improve accuracy when the signal gets weaker.
Q:Does GPS work without an antenna?
A:GPS (Global Positioning System) systems work by receiving signals from satellites.
That isn't possible without an antenna
Q:Where to put a GPS antenna?
A:In most cases, you can mount the GPS antenna near the top of the underside of your dash (behind or above the receiver).

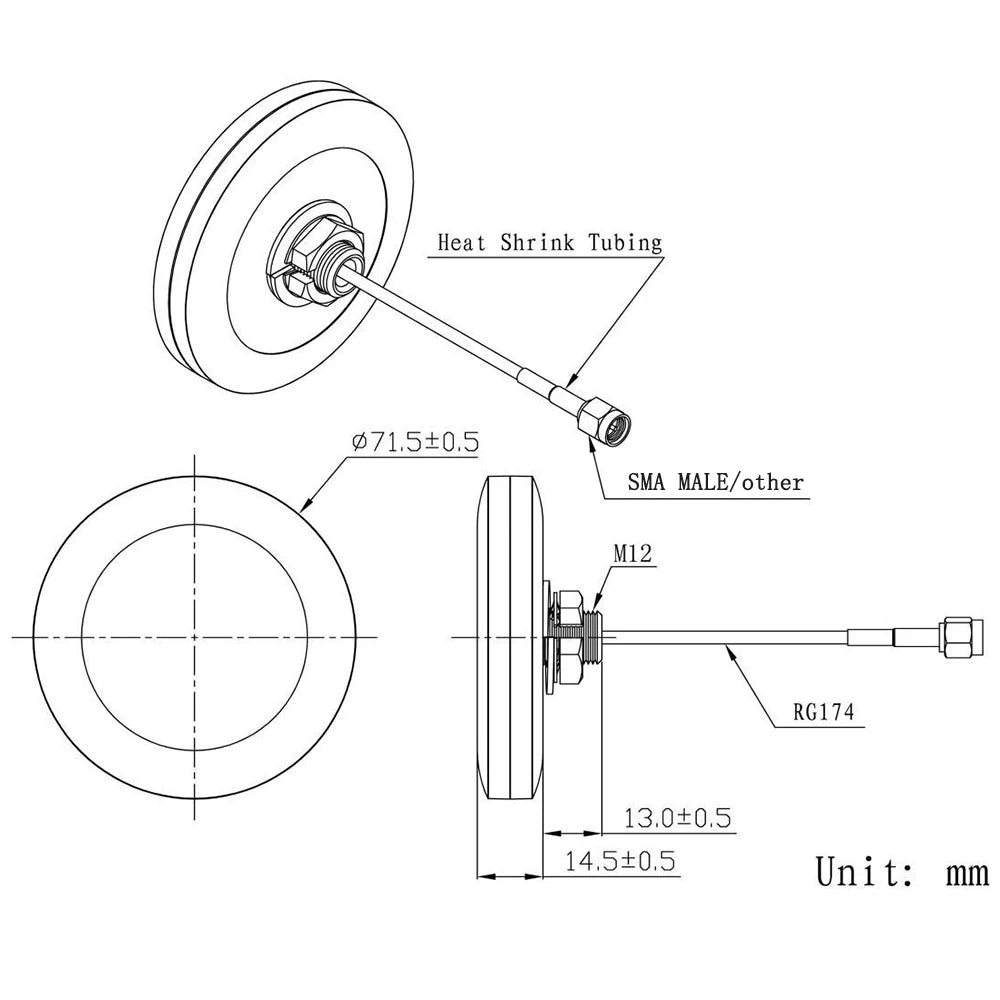

 DIMENSIONS&SPECIFICATIONS




Item

Specifications

Antenna

Center Frequency

1547~1602MHz

Band Width

CF±10MHz

Polarization

RHCP

Gain

5dBic

V.S.W.R

<1.5

Impedance

50Ω

Axial Ratio

3dB(max)

Dimension

35*35*3mm

LNA

Gain

28±2dB

Noise Figure

<1.5dB

Supply Voltage

3~5V DC

Current Consumption

12~26mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

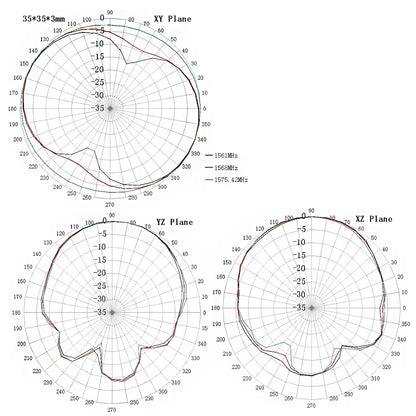

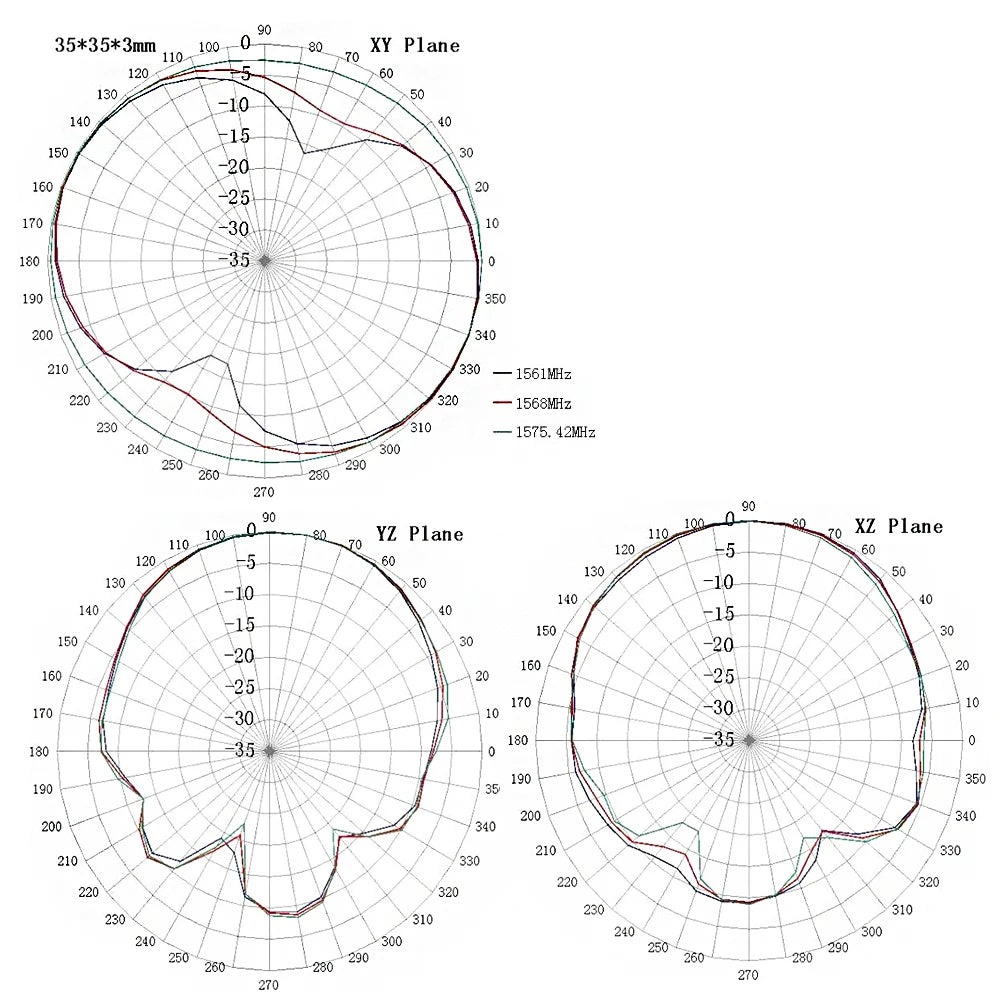

  Radiation Pattern
