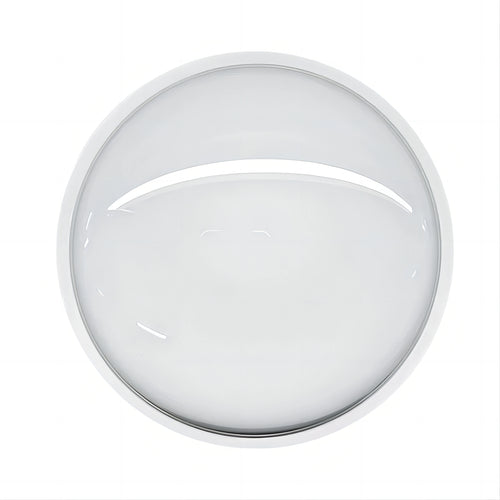

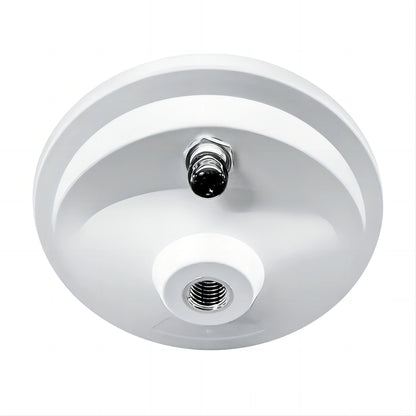

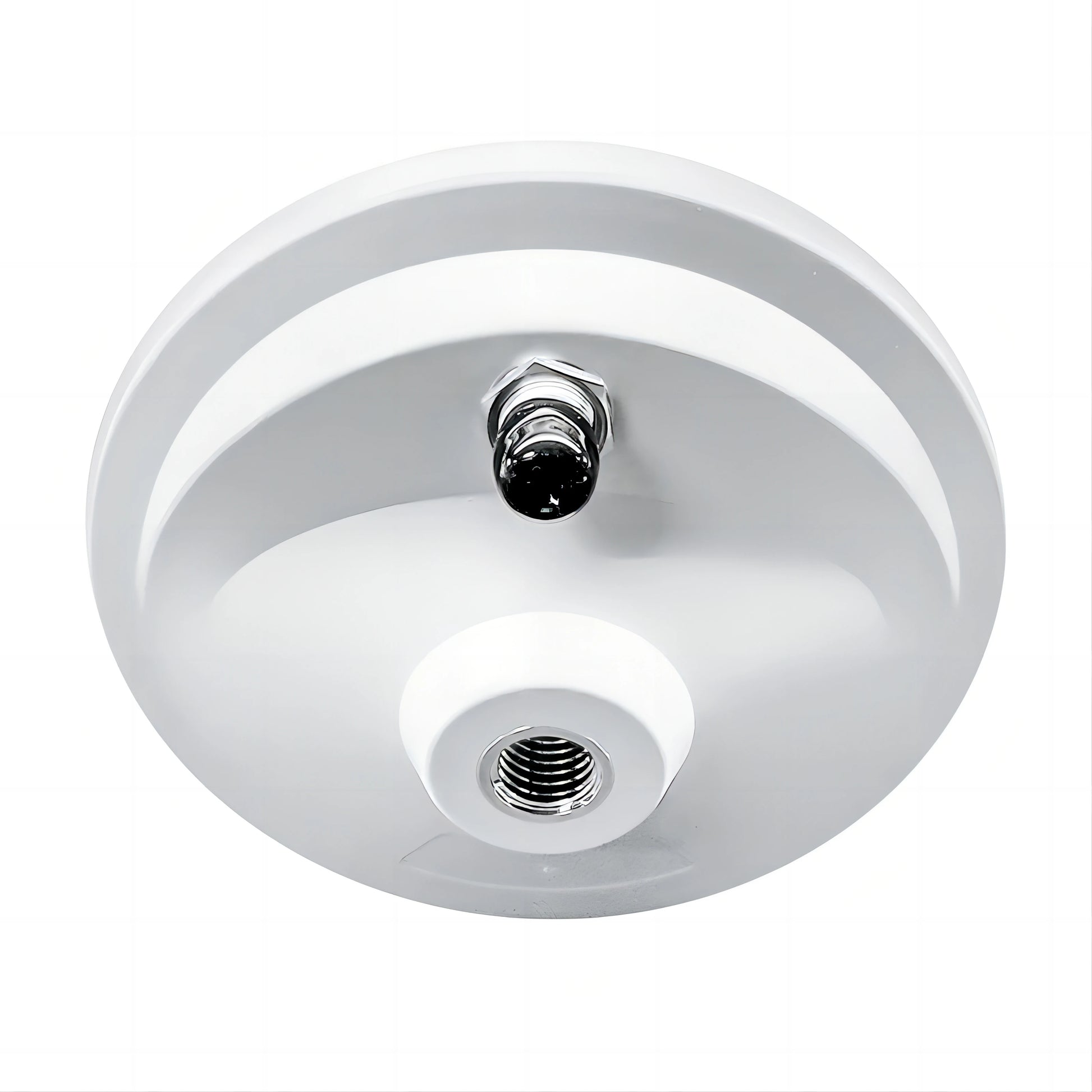

High Precision GNSS RTK Survey Antenna for Agriculture and Mapping

AT-603 is a full frequency GNSS measurement antenna that supports L1/L2/L5 satellite navigation signal reception for Beidou II, GPS, and GLONASS. It can be widely used in high-precision navigation and positioning applications such as geodetic surveying and mapping, marine surveying, precision agriculture, deformation monitoring, etc.

Product Application

• It can be widely used in geodetic mapping, oceanographic survey, precision agriculture, Deformation monitoring and other high-precision navigation and positioning occasions.

• Technical Characteristics

• The use of multi feed point design ensures the performance of right-handed circular polarization and phase center, reducing the impact of measurement errors;

• The antenna unit has high gain and good reception effect for low elevation satellite signals, ensuring a sufficient number of available satellites in the system;

• The low noise amplifier adopts pre filtering technology to effectively suppress out of band interference signals and improve system reliability;

• The IP67 protection of the outer shell provides protection for the antenna to work in the field for a long time.




Main technical indicators (typical)

Patch Architecture:Dual Four-point-feed, Single-layer Patch

Supported positioning signal bands

GPS：L1/L2/L5;

BDS：B1/B2/B3;

GLONASS：G1/G2/G3;

Galileo：El/E5a/E5b/E6

L-Band

Peak Gain*:≥5.0 dBi

Polarization:RHCP

Axial Ratio@zenith:≤1.5dB

Azimuth Coverage:360°

Impedance:50 ohm

Phase-center accuracy: ≤2.0mm

Phase-center repeatability: ≤1.0mm

LNA

Frequency Range:1164MHz~1290MHz/1525MHz~1615MHz

LNA Gain*:40±2.0dB（Typ. @25°C）

Group delay variation:≤5ns

Noise Figure*:≤2.0 dB@25°C , Typ.

Output VSWR:≤1.8:1 typ. 2.0:1max

Operation Voltage:3.0~6.0V DC

Operation Current:≤45mA

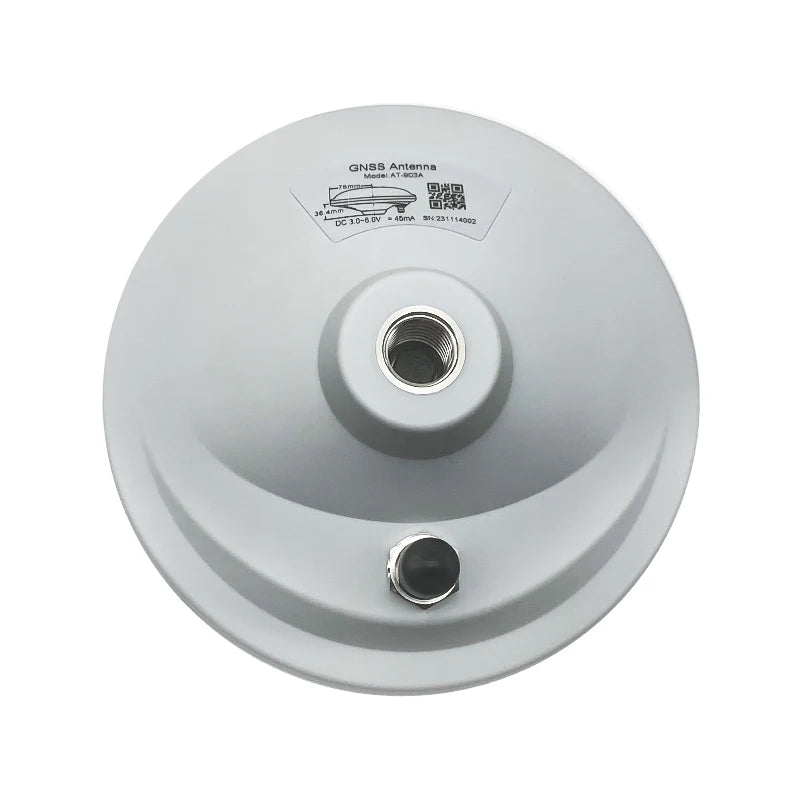

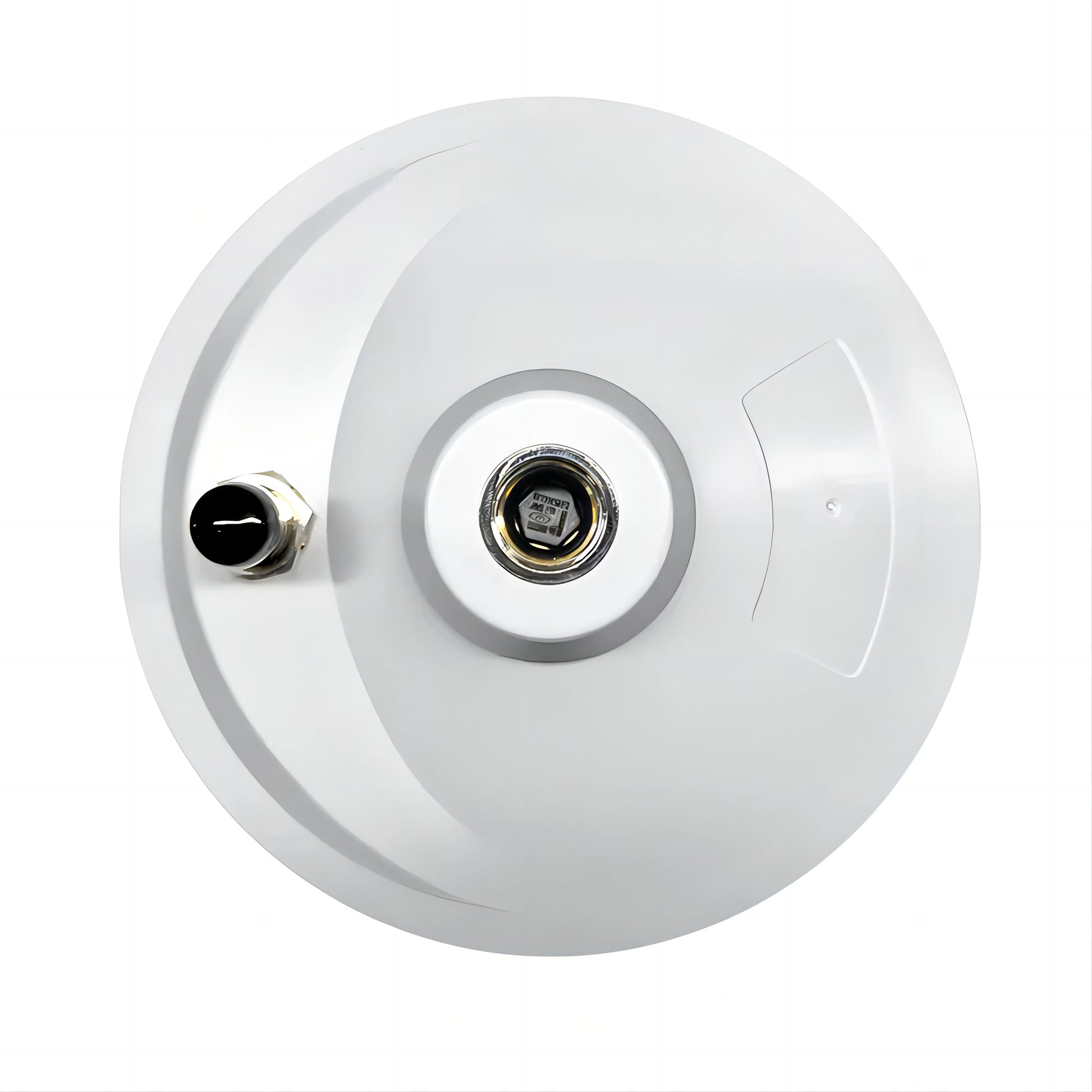

Mechanicals & Environmental

Dimension:Φ152mm*67.9mm

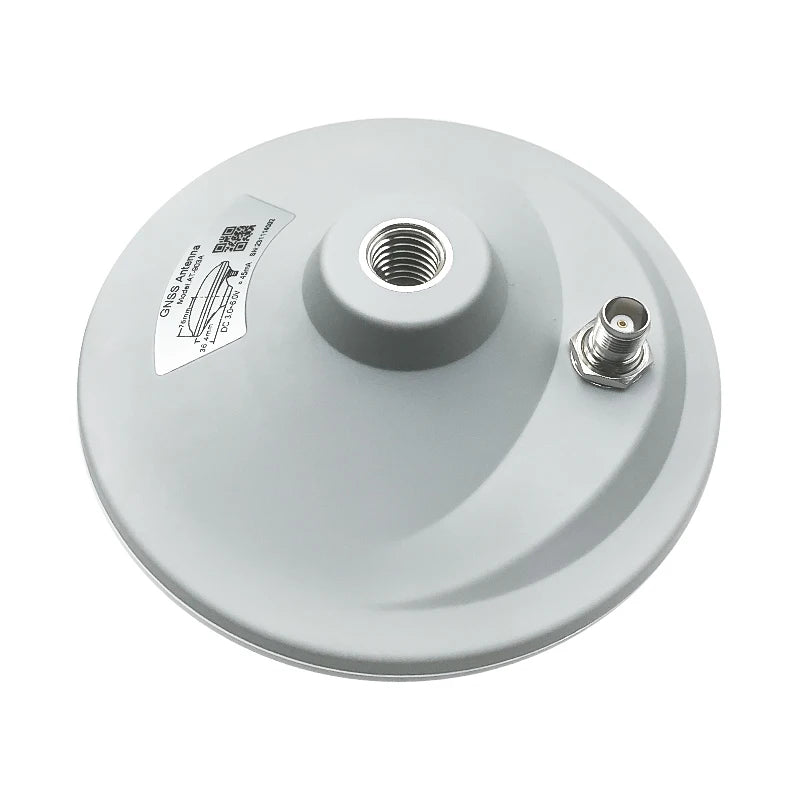

Connector:TNC Female

Radome:PBT+PC

Operating Temp:－40℃～＋85℃

Storage Temp:－45℃～＋85℃

Humidity:95% No-condensing

Waterproof:IP67
