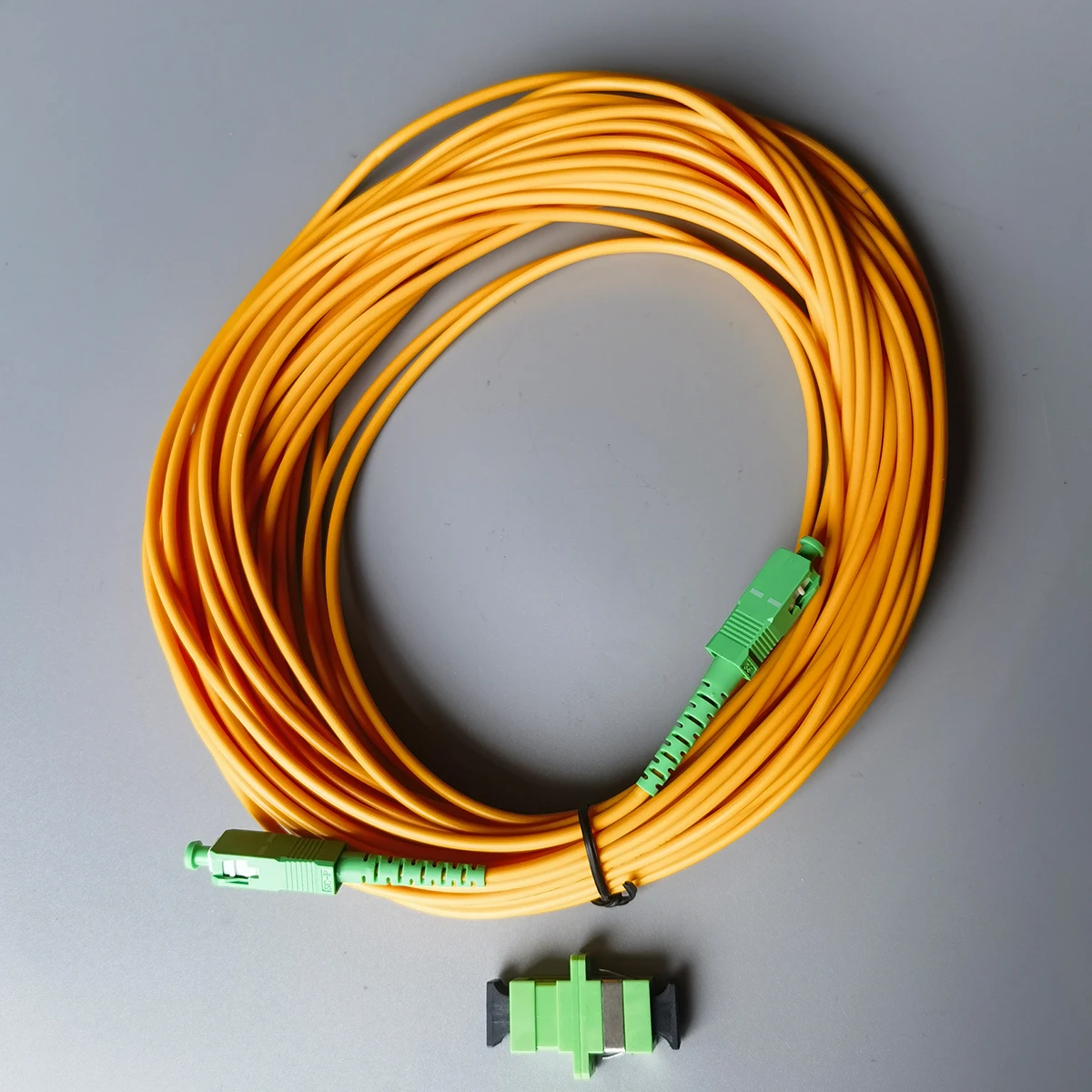

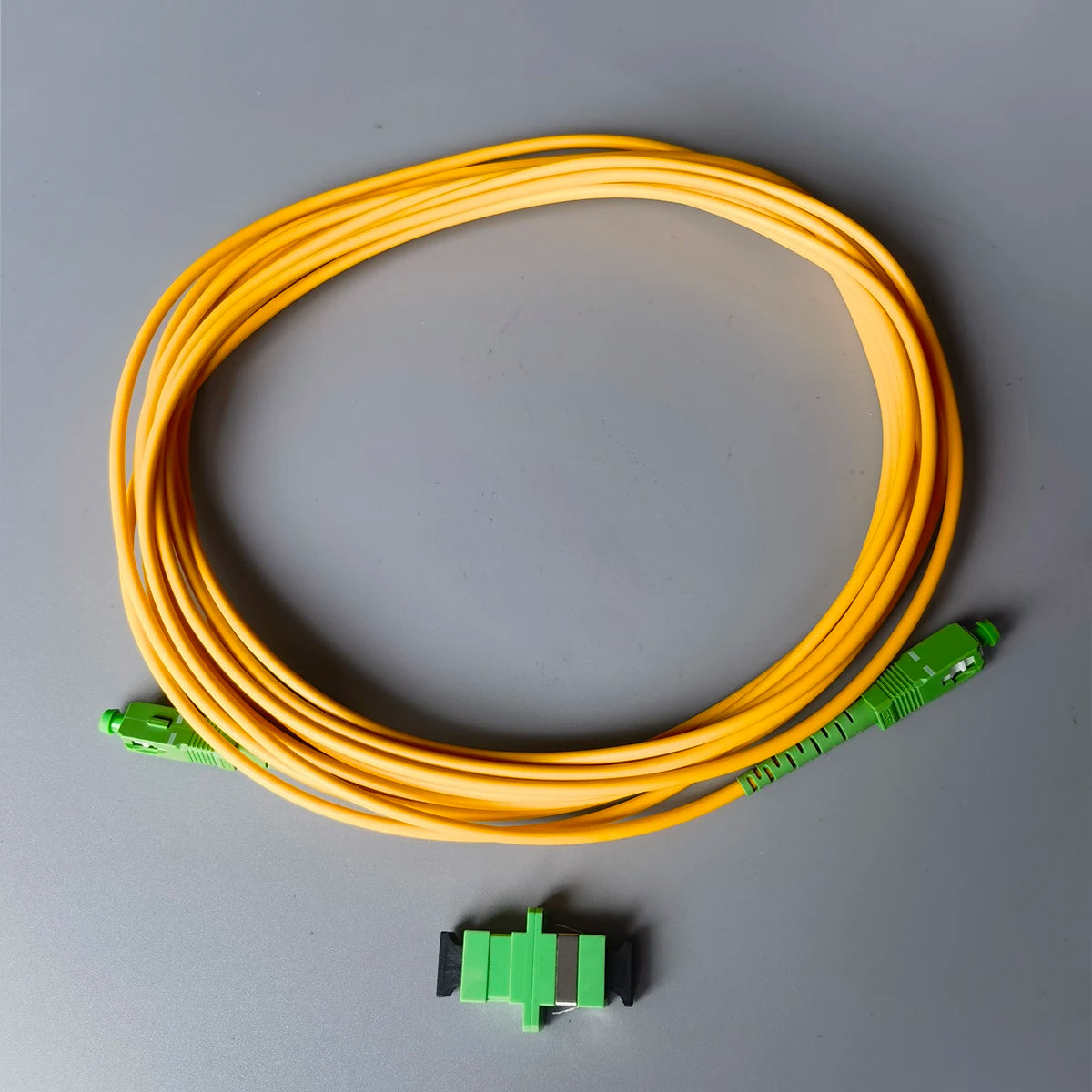

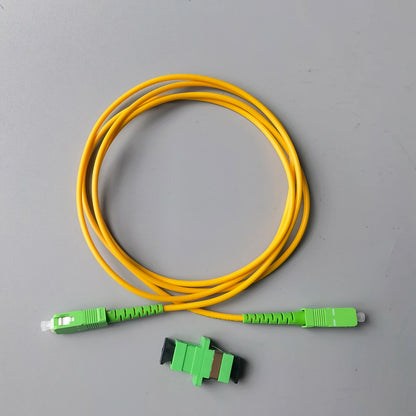

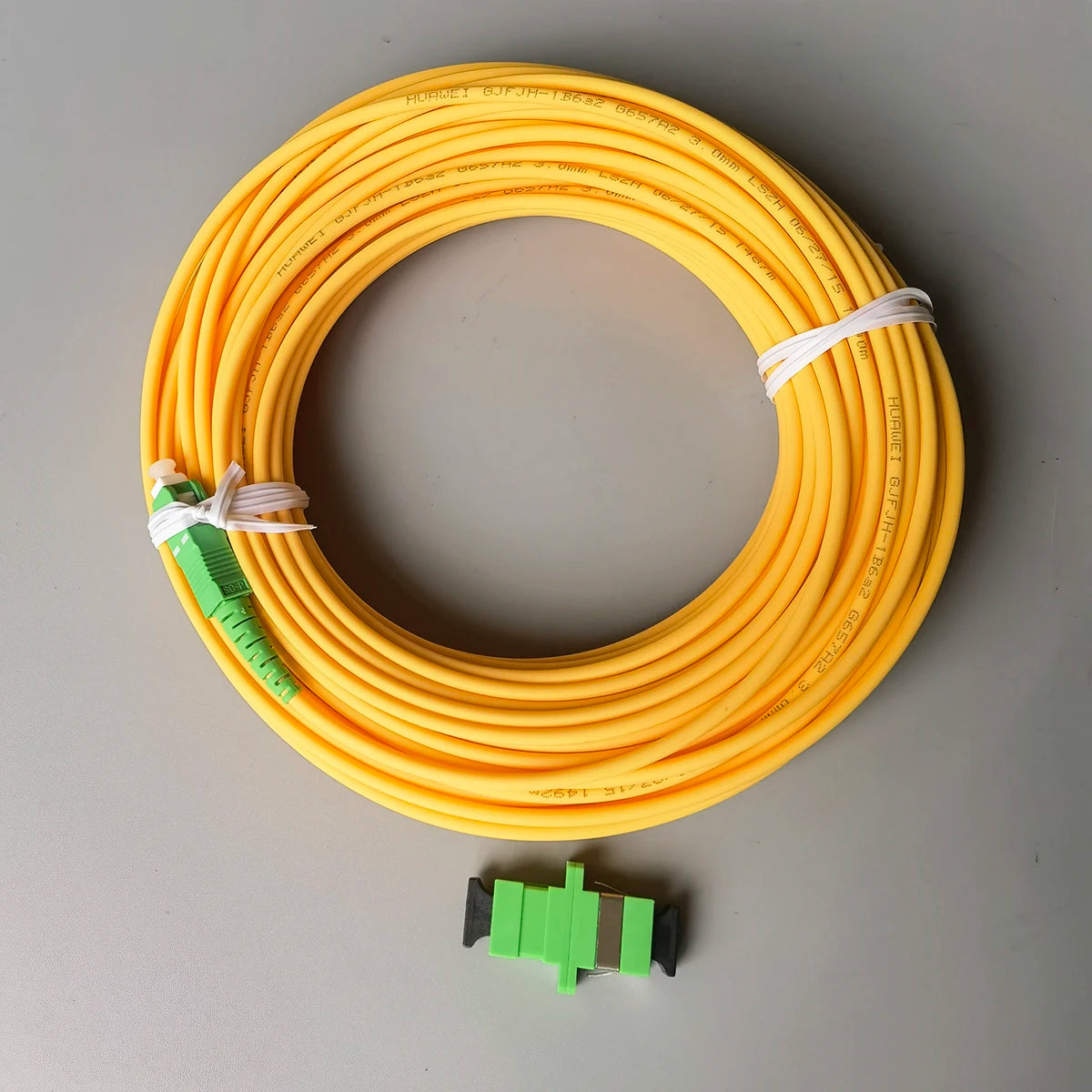

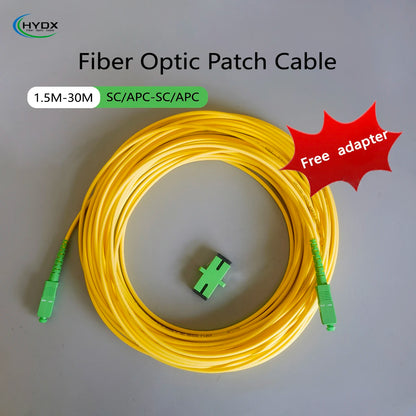

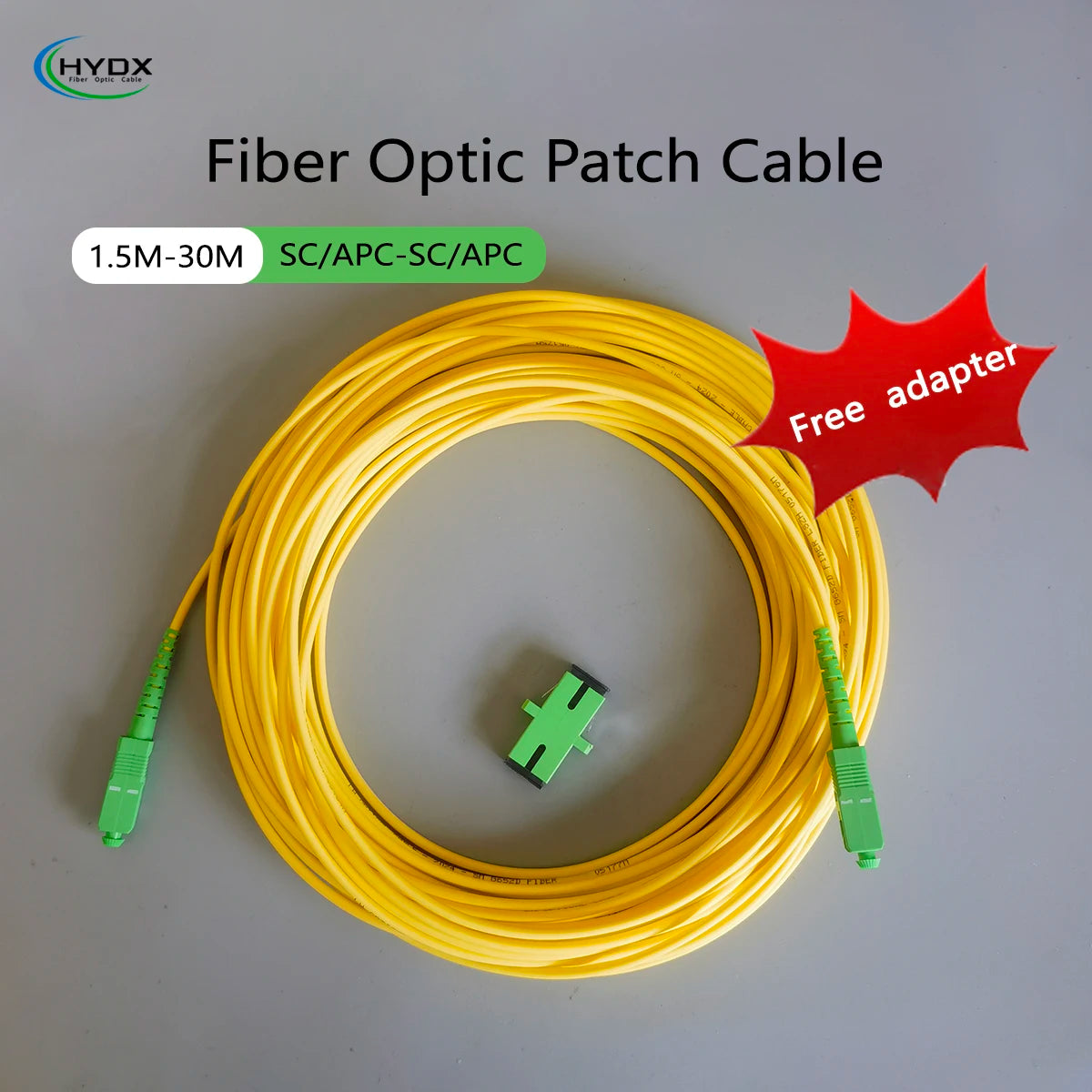

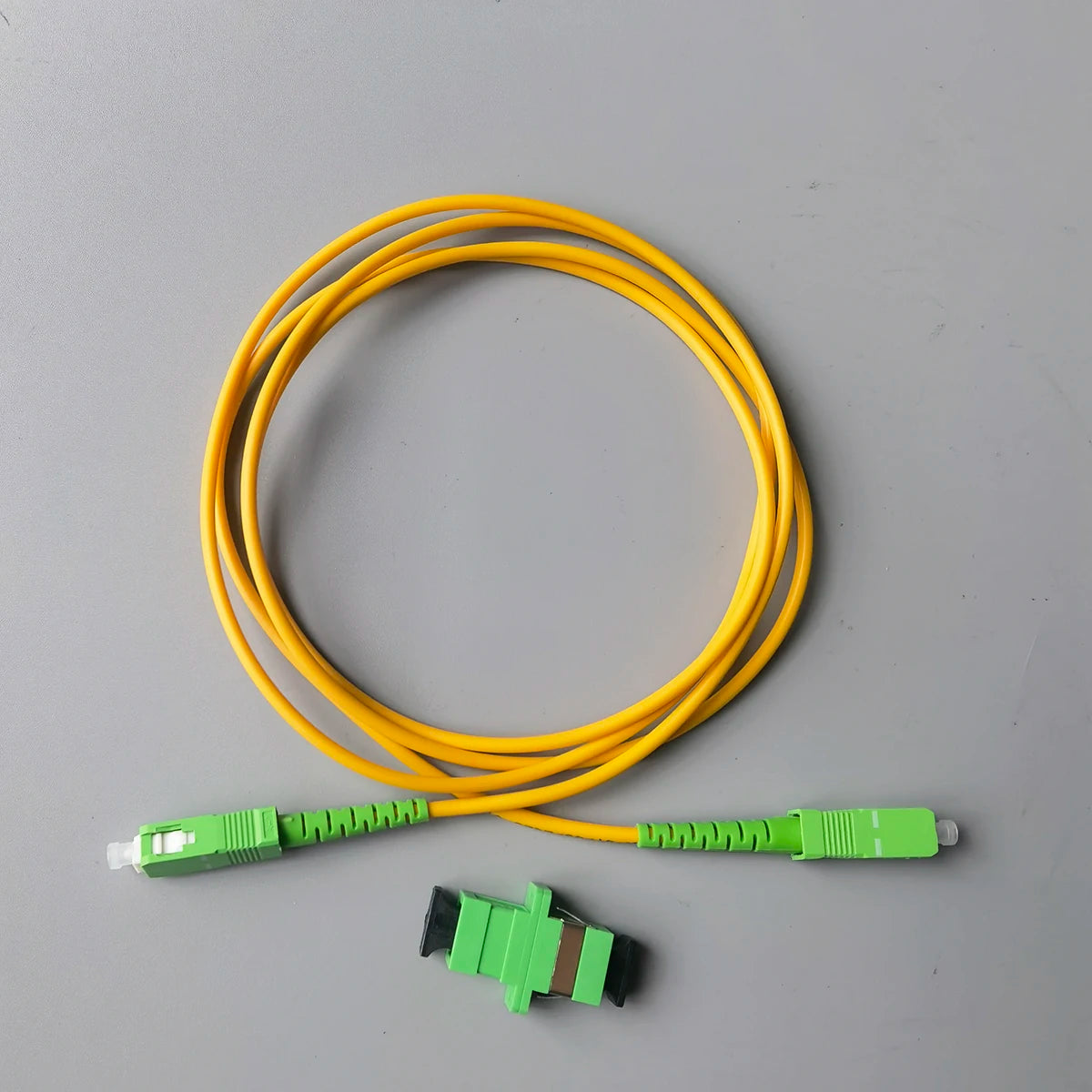

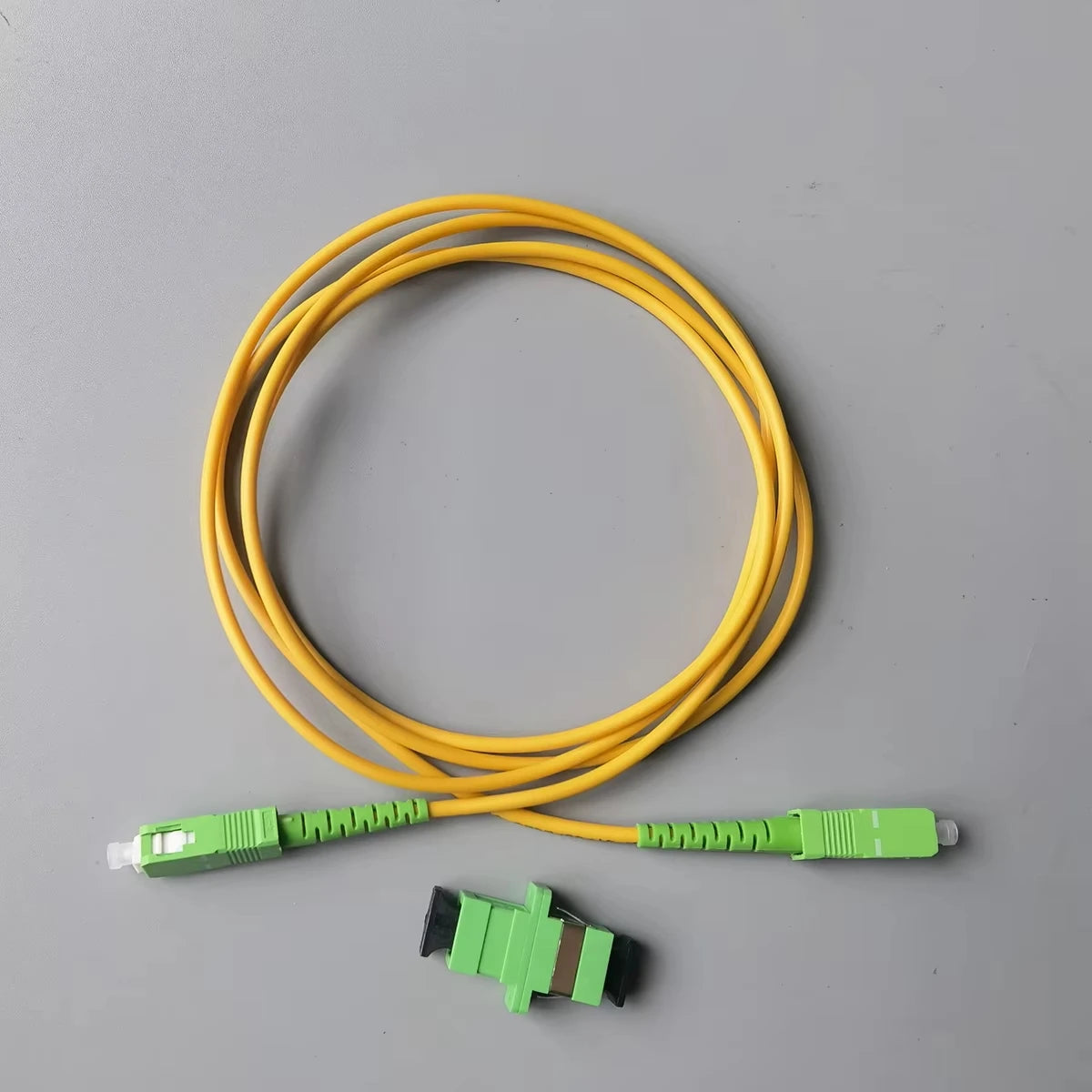

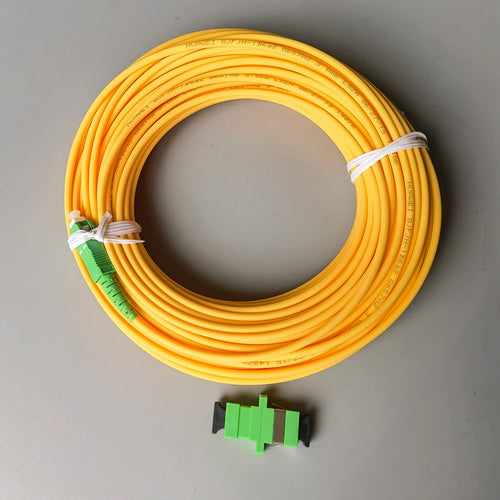

Single Mode SC APC Fiber Patch Cable with Adapter

Key Features:
✔ High-Quality Connection - SC/APC to SC/APC single mode fiber optic cable ensures low insertion loss and high return loss

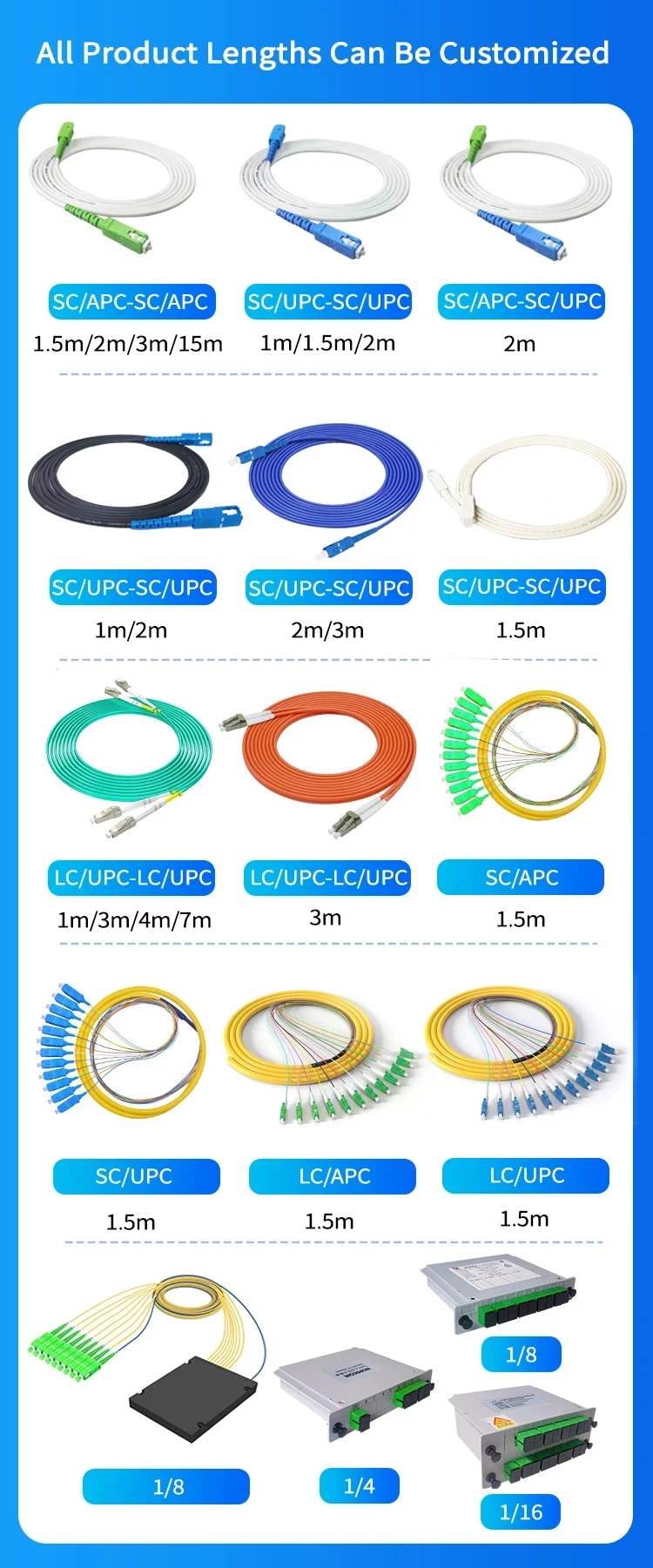

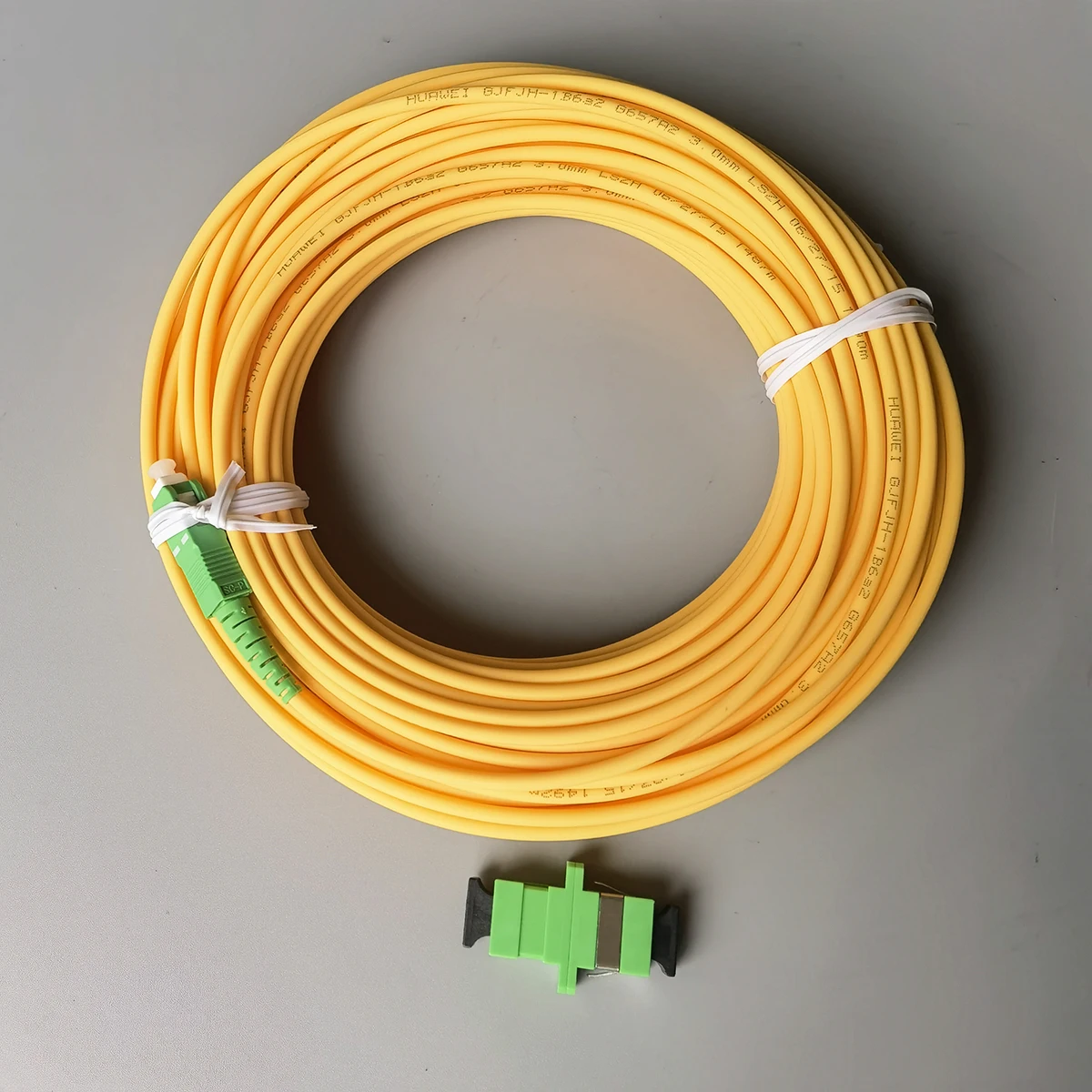

✔ Multiple Length Options - Available in 2M/5M/10M/15M/20M/30M to meet different installation needs
✔ Premium Materials - Corning compatible fiber with 9/125μm single mode fiber, 2.0mm or 3.0mm LSZH jacket
✔ FTTH Compatible - Perfect for fiber-to-the-home installations, telecom networks, and CATV systems
✔ Free Adapter Included - Comes with protective adapter caps for dust-free connection

Specifications:

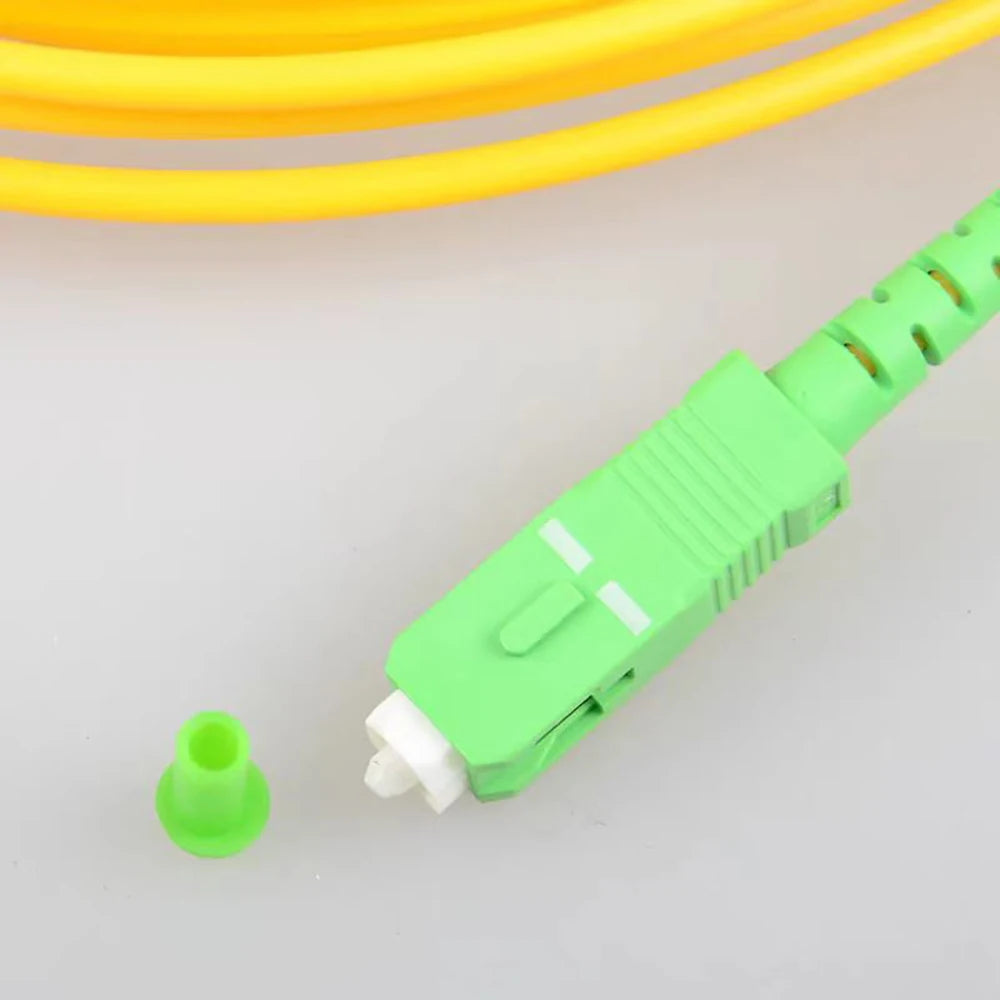

• Connector Type: SC/APC (Angled Physical Contact)

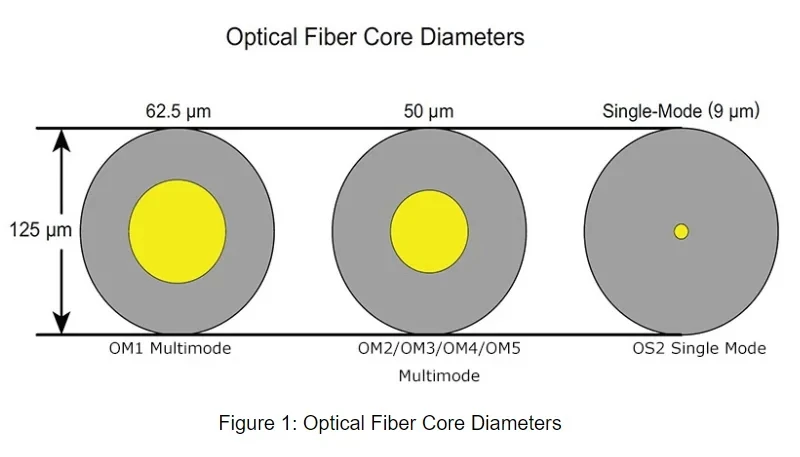

• Fiber Type: Single Mode 9/125μm

• Insertion Loss: ≤0.3dB

• Return Loss: ≥55dB

• Operating Temperature: -20°C to +70°C

• Tensile Load: >100N

• Durability: >500 mating cycles

Package Includes:
1× Fiber Optic Patch Cable (length as ordered)
2× SC/APC Dust Caps

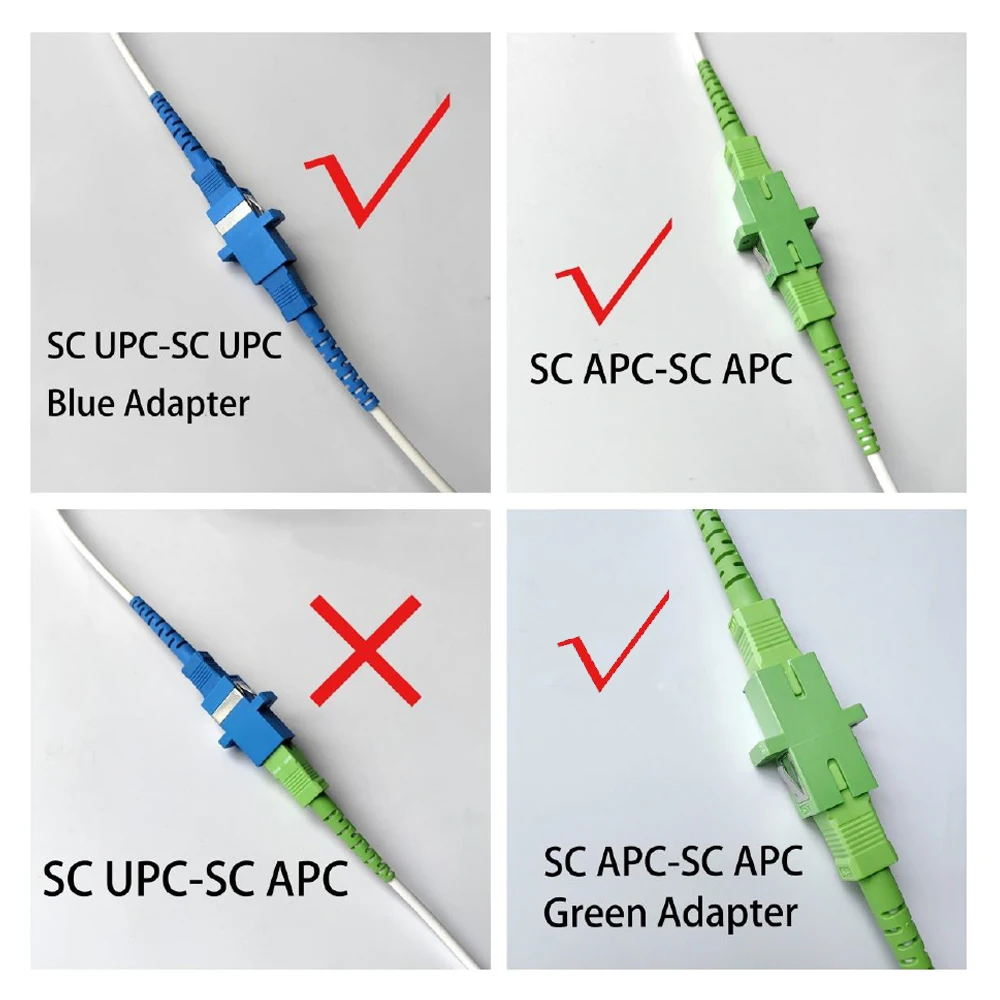

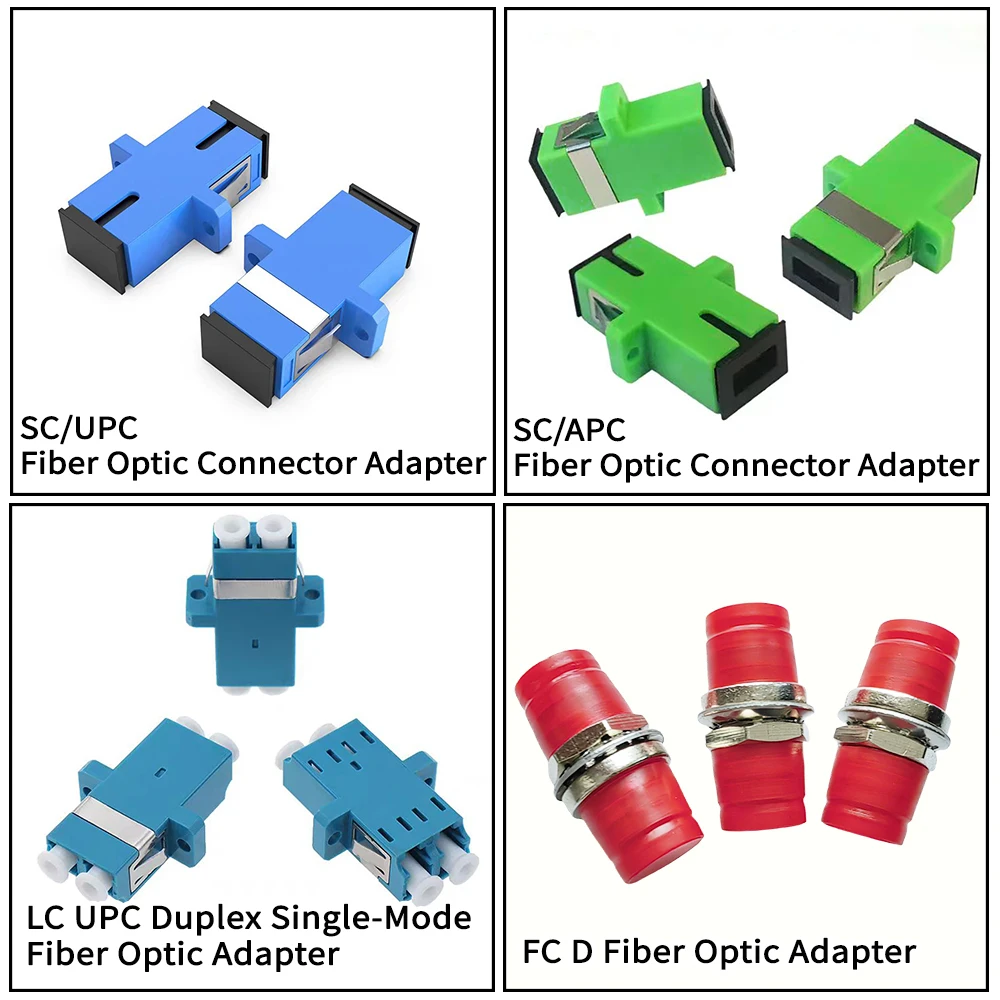

Differences between APC and UPC

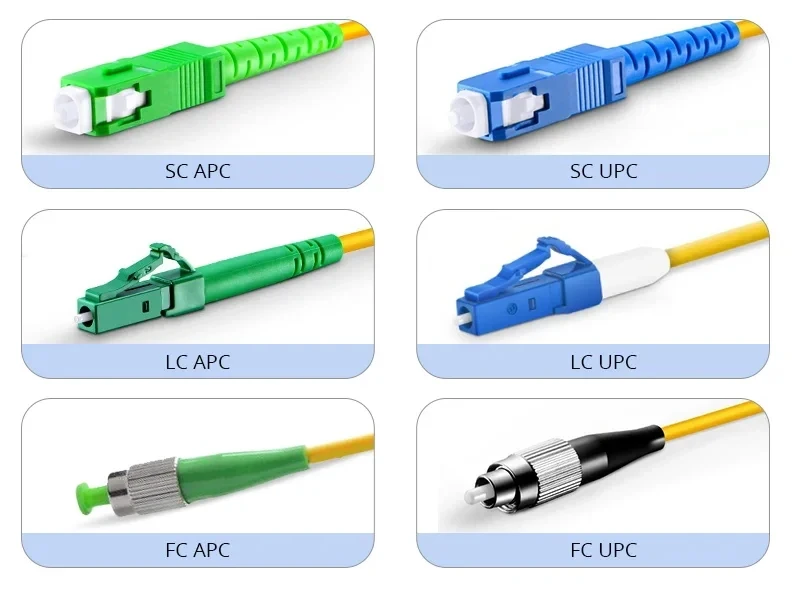

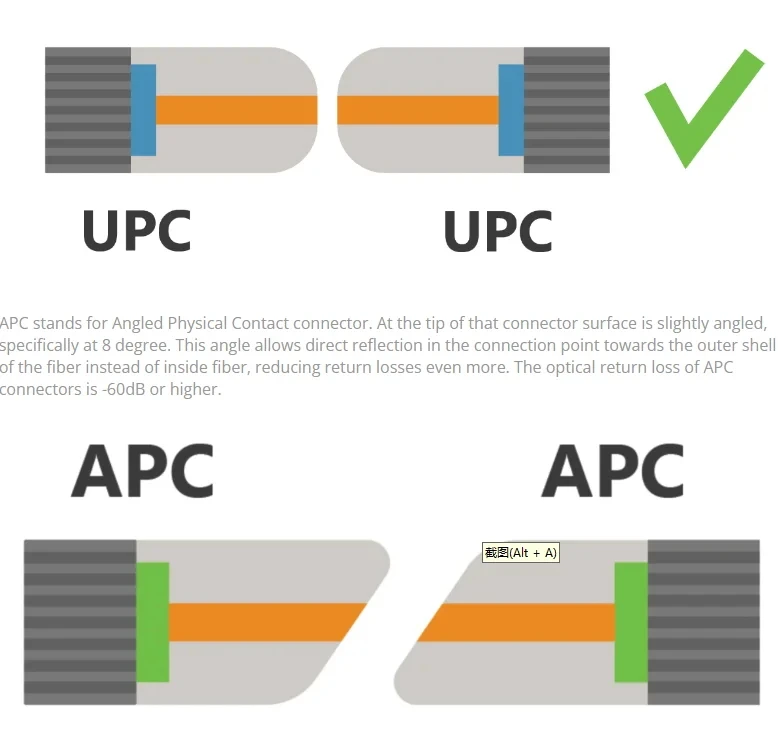

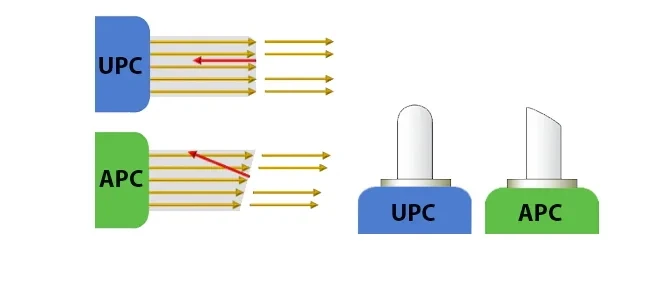

The main difference between APC and UPC connectors is the fiber endface. APC connectors feature a fiber endface that is polished at an eight-degree angle; UPC connectors are polished with no angle. UPC connectors are not exactly flat, however; they have a slight curvature for better core alignment. Another more obvious difference is color. UPC connectors are blue while APC connectors are green.
