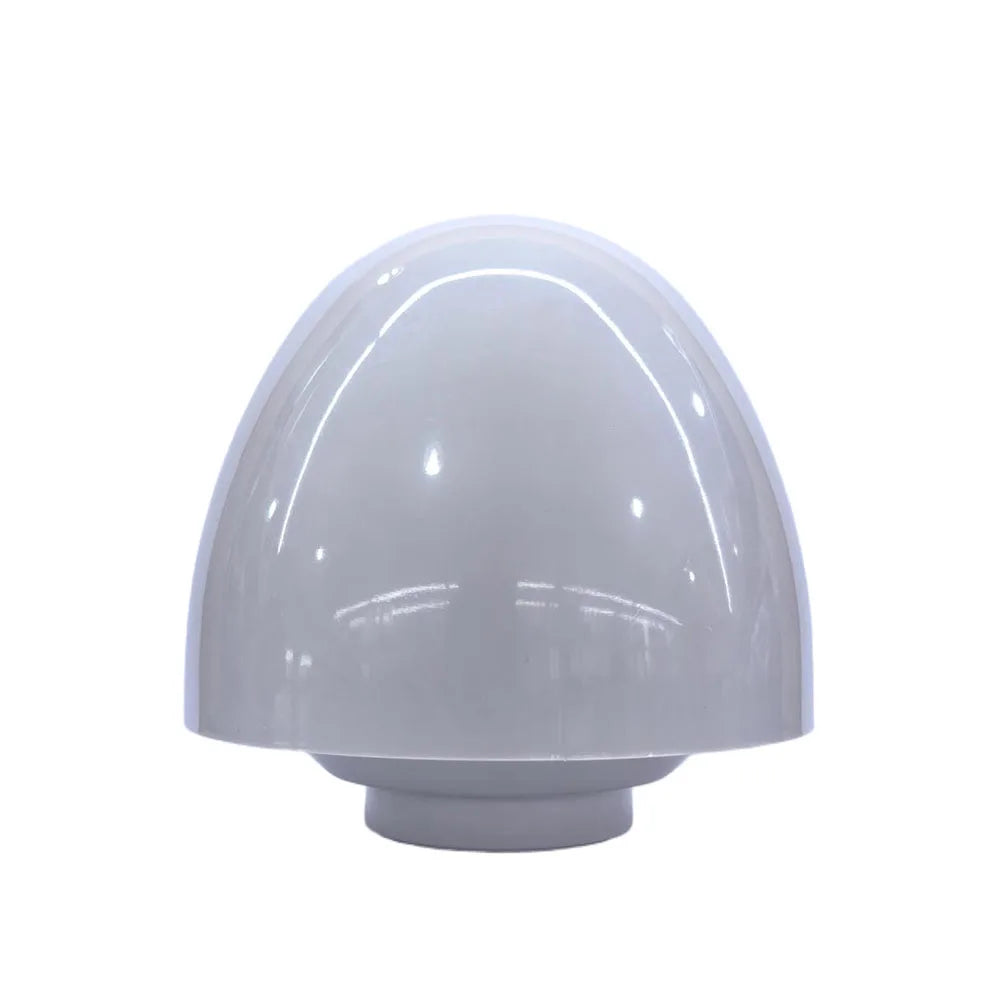

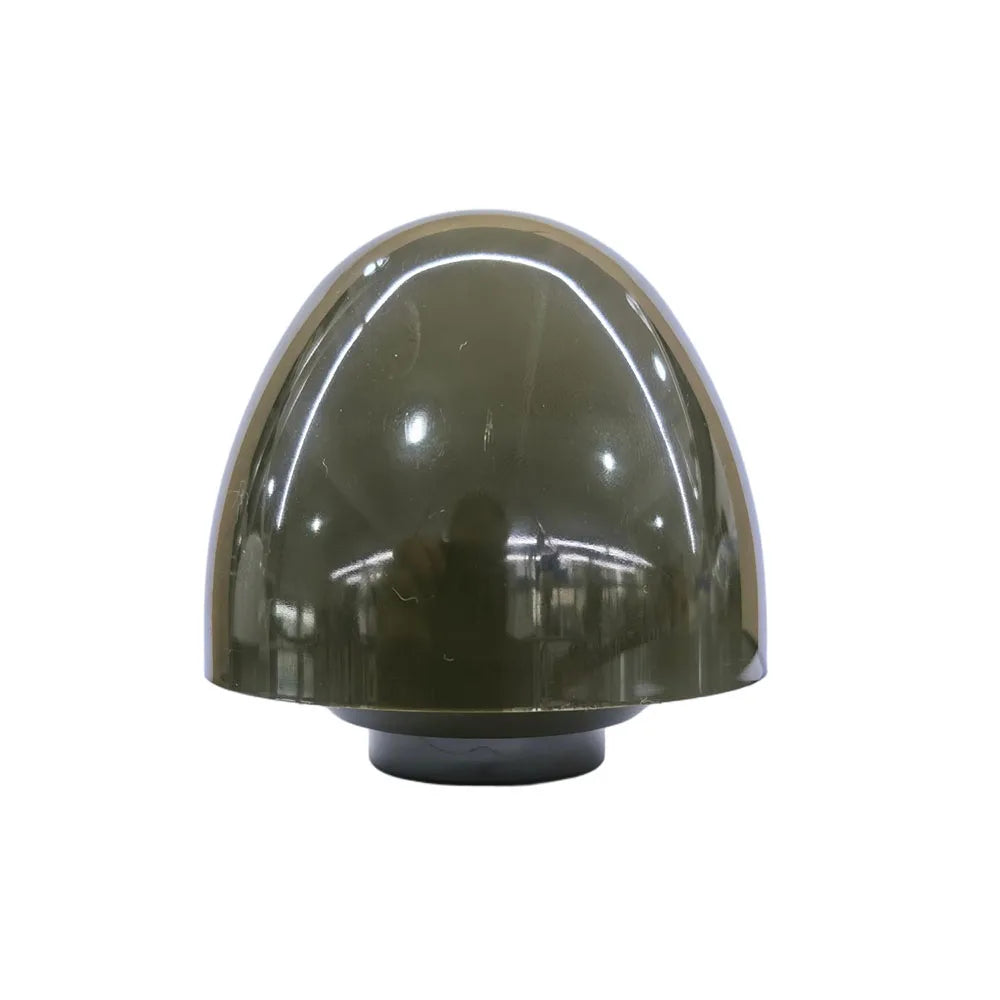

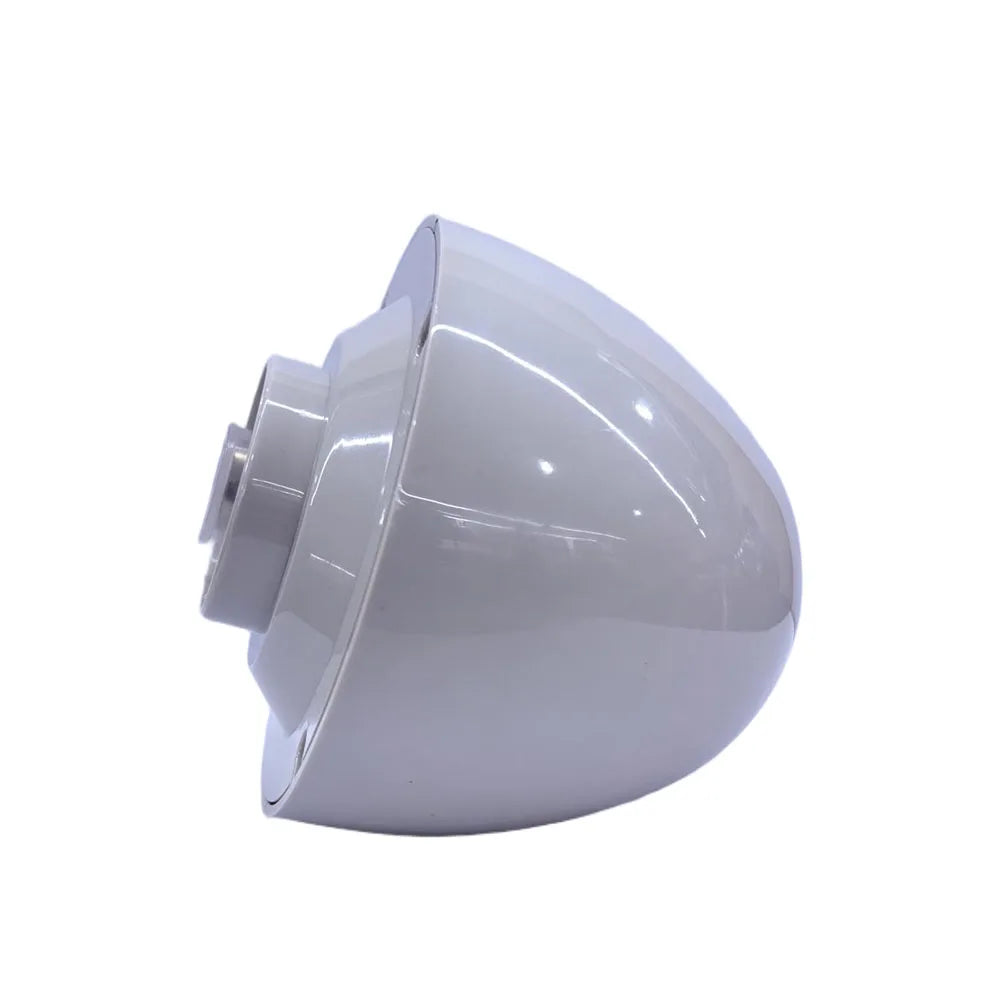

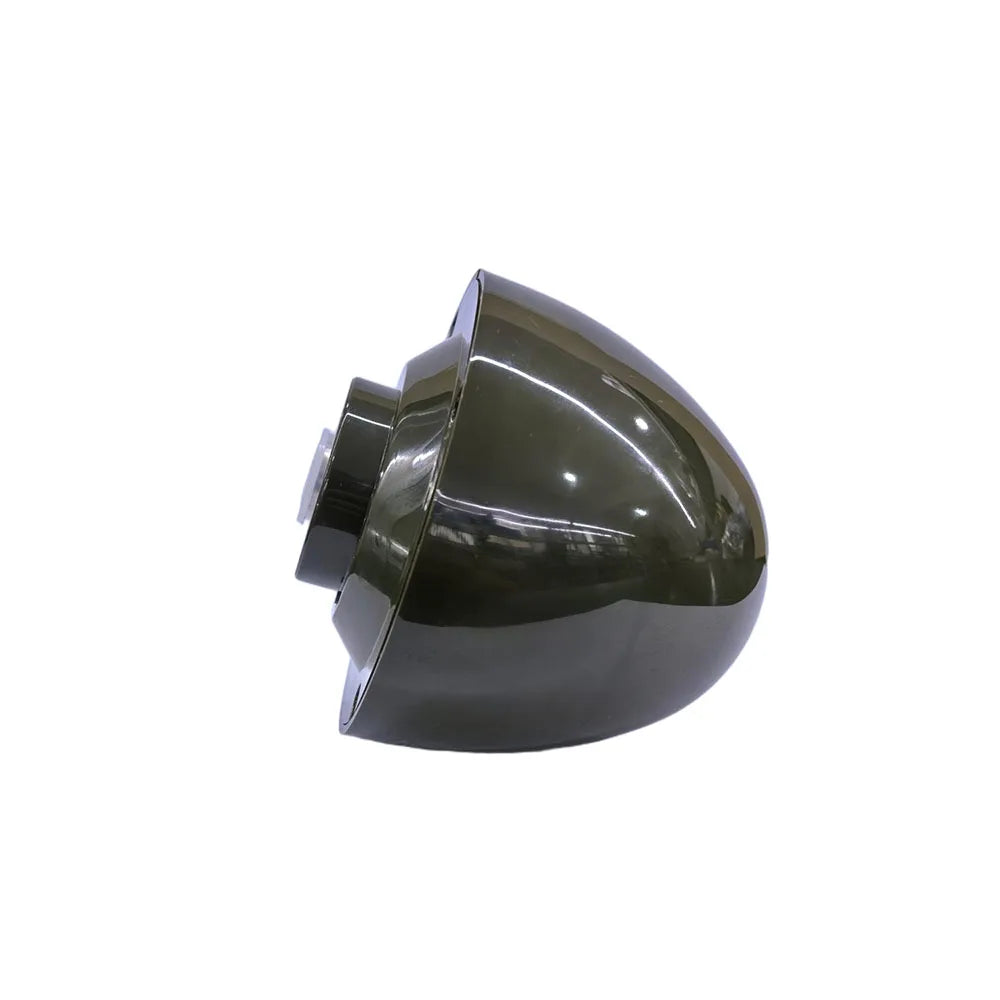

Dual Band Mushroom GNSS Antenna for High Precision Navigation

Electrical Parameters

Frequency (MHz):

GPS:L1/L5

BD:B1/B2a

Glonass:L1

Galileo:E1/E5a

Gain (dB):30dB±2

Axial ratio (dB):<5

Polarization mode:Right-handed circular polarization

standing-wave ratio:≤1.5

Noise coefficient (B):≤2.0

DC voltage (V):3~5V

Direct current (mA):≤10

Mechanical Parameters

Size (mm):89*86mm

Shell material:ABS+PC alloy

Storage temperature (℃):-40℃~+85℃

Working temperature (℃):-40℃~+85℃

Environmental humidity (%):5%~95%

Maximum wind speed (Km/h):200

Usage environment:outdoors

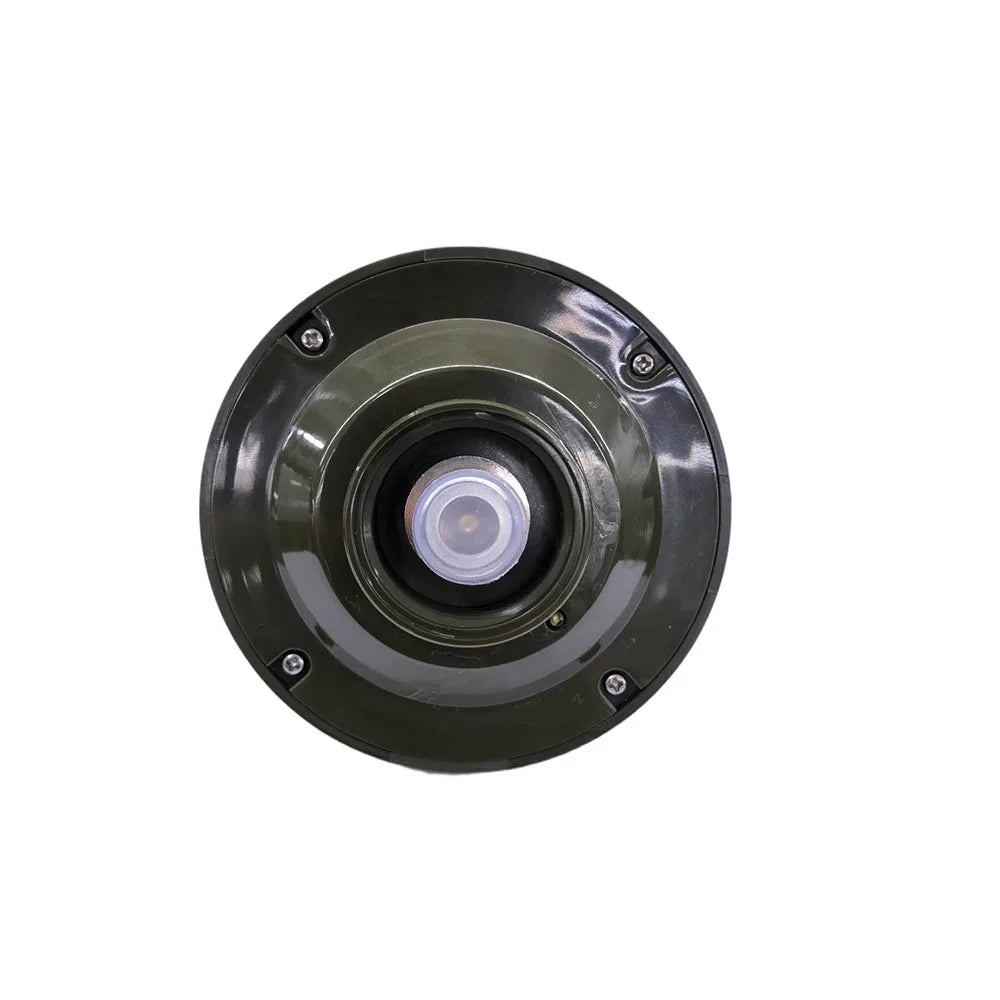

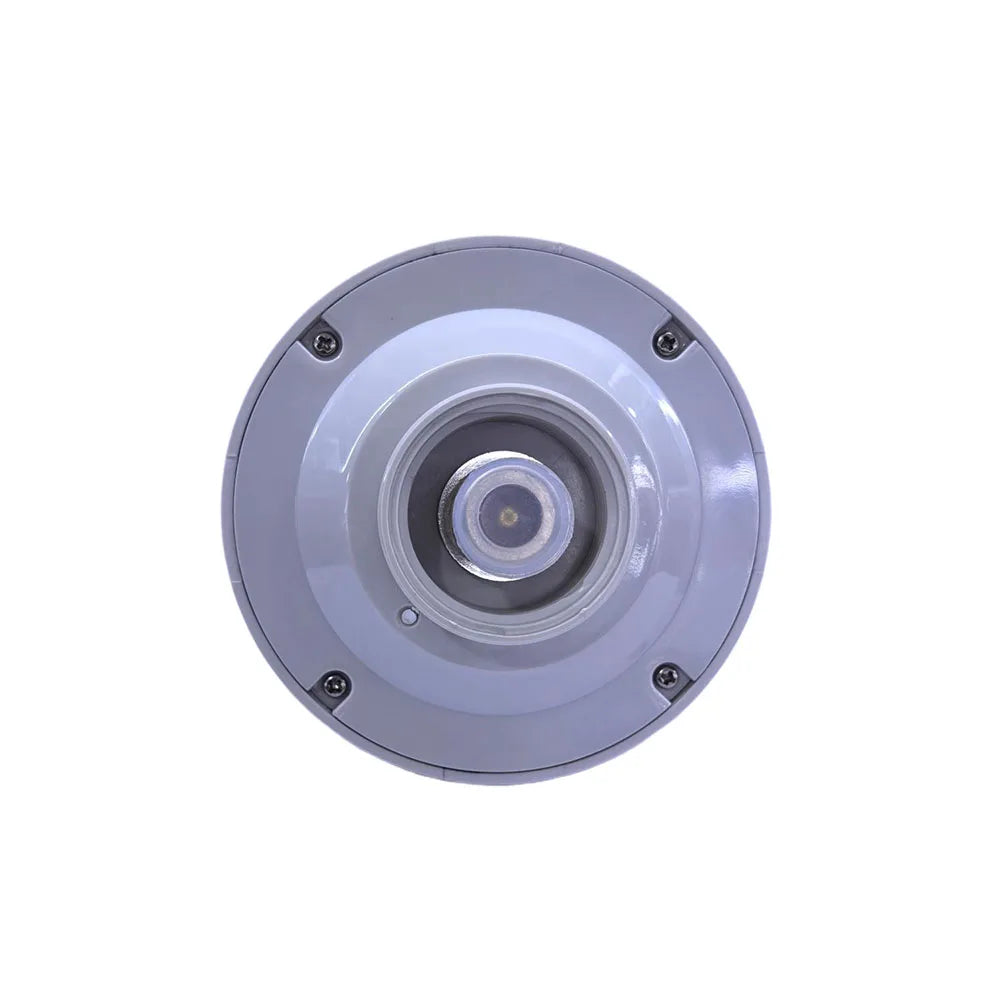

Connection:N/K

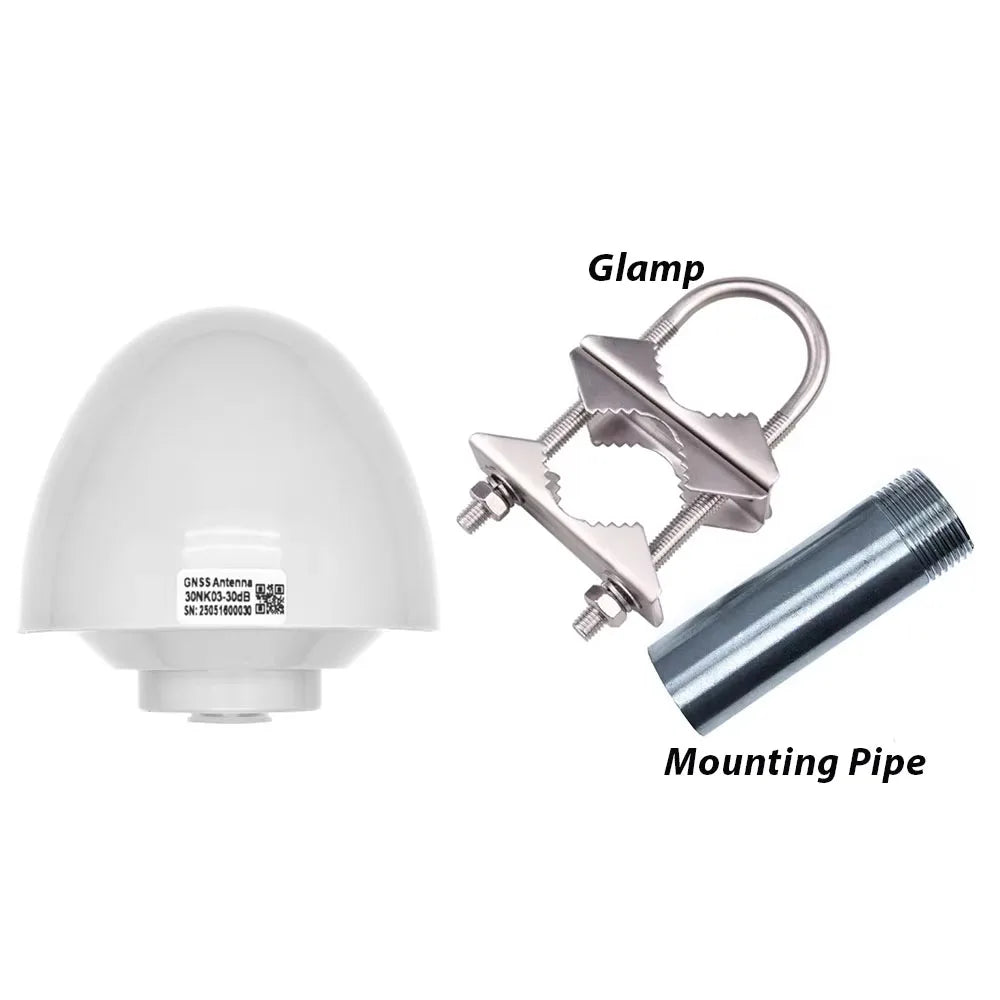

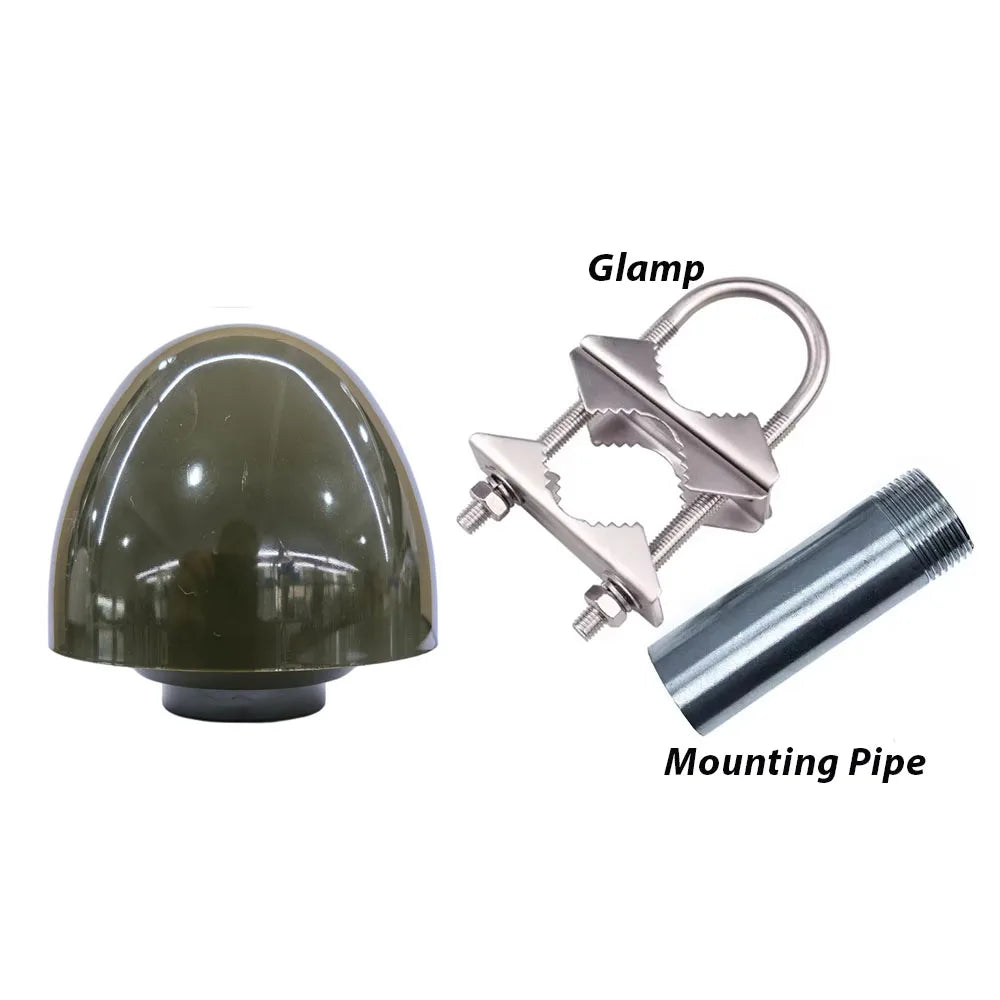

Pole size:100mm

Material of holding pole:stainless steel
