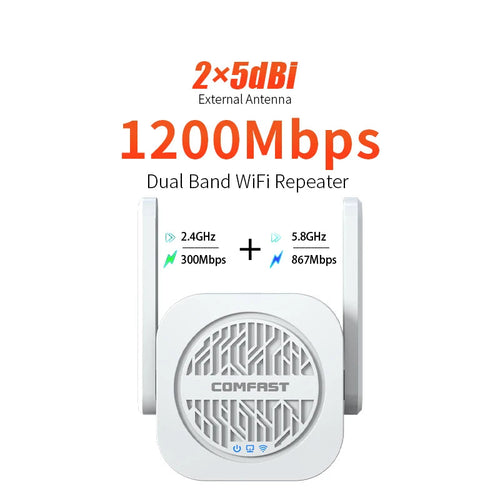

Product Overview:

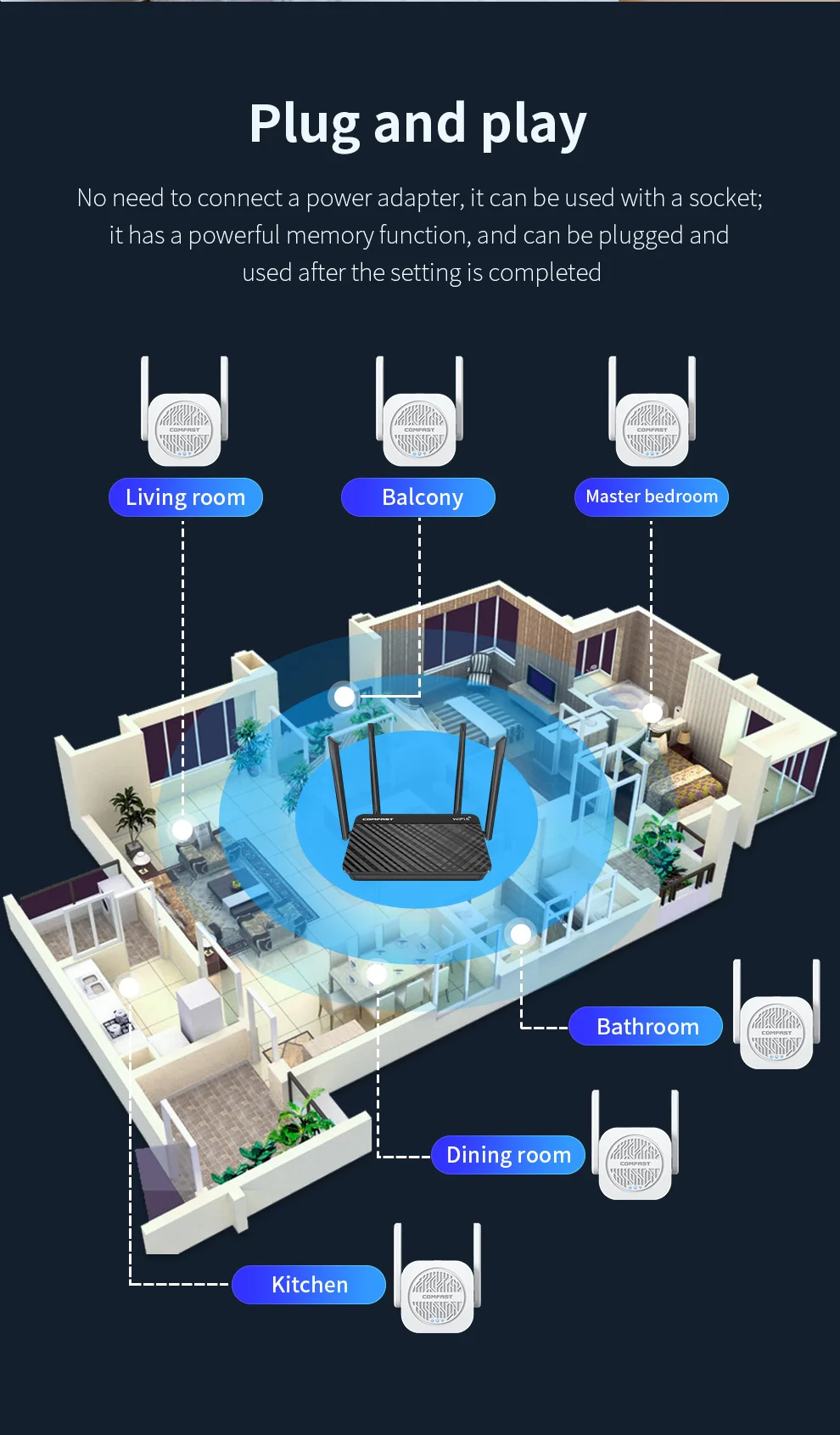

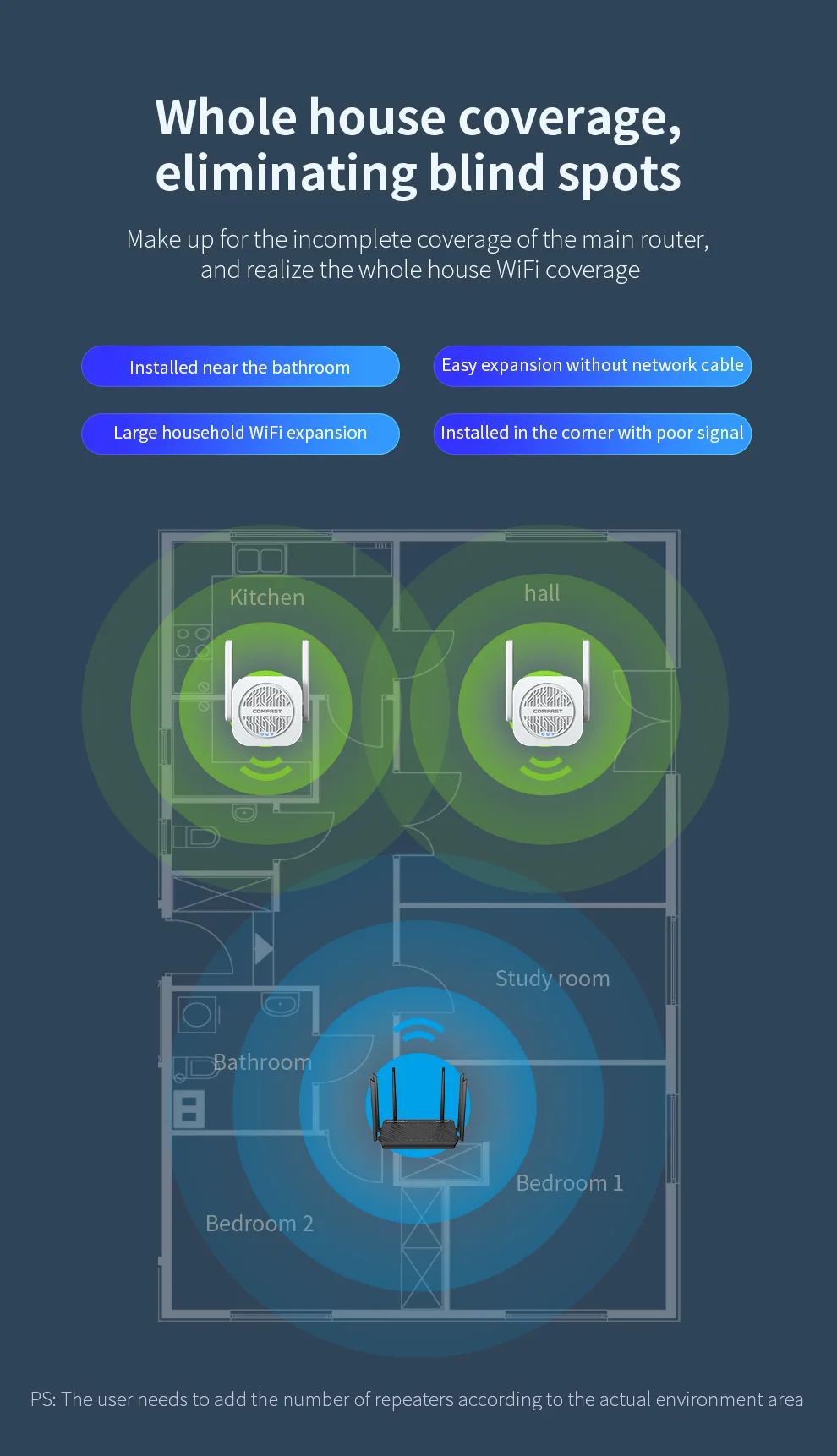

CF-WR765AC is a 1200Mbps dual band WiFi signal amplifier equipped with 2 high gain antennas for signal enhancement, with 4 independent signal amplifiers built-in. When used with a router, it can eliminate dead corners of WiFi signals at home, solve problems such as large multi bedroom areas and incomplete routing coverage in large houses, effectively expand WiFi coverage, and achieve true full house WiFi coverage.

Specification:

1.Model:CF-WR765AC

3.Chipset:MT7628DA+MT76 13B; 4*Power Amplifer Chips; DDR:64MB, Flash:8MB

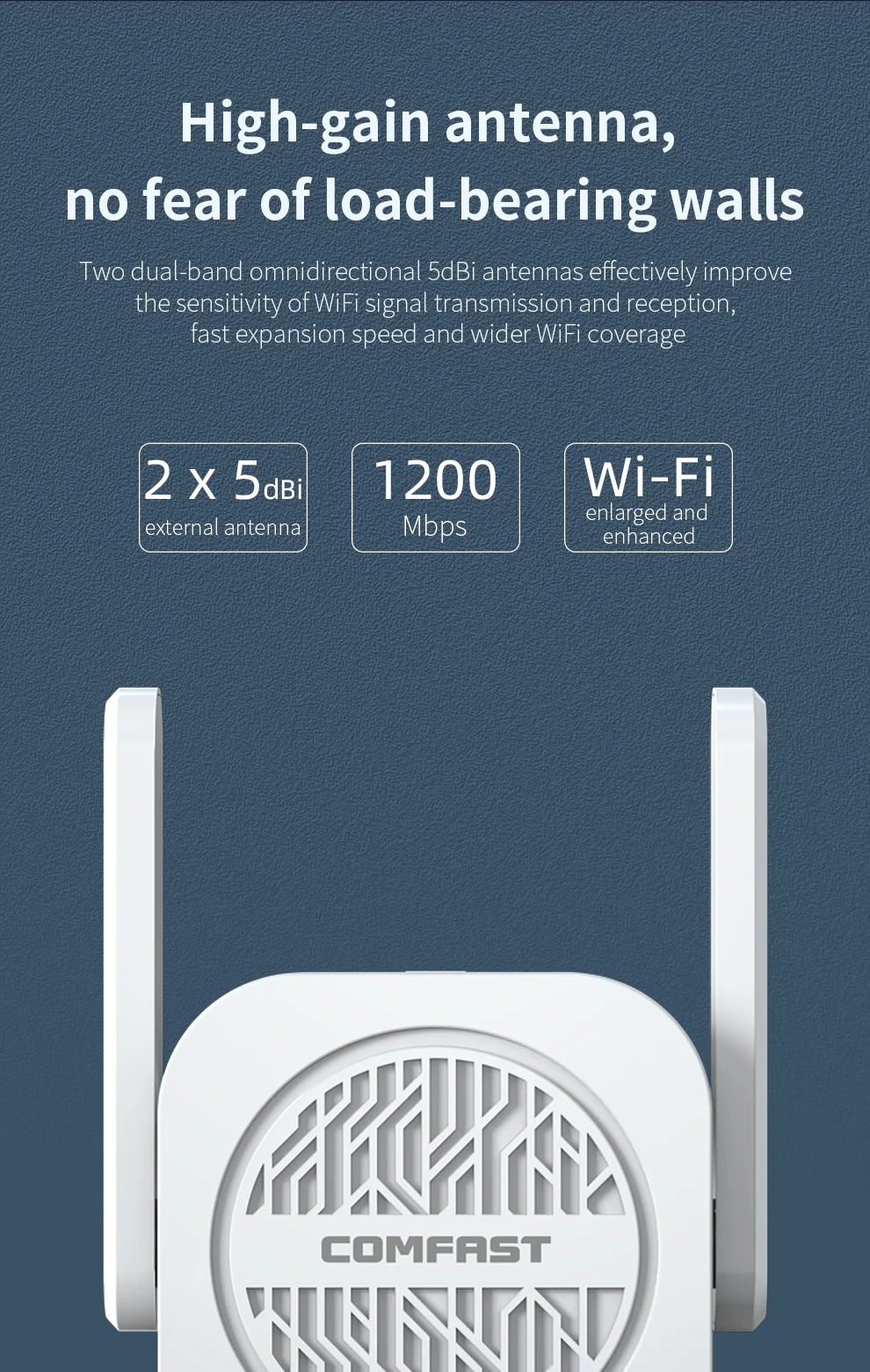

4.Antenna:2*5dBi Dual Band Omnidirectional Antennas

5.Wireless Standard:IEEE802.11a/b/g/n/ac

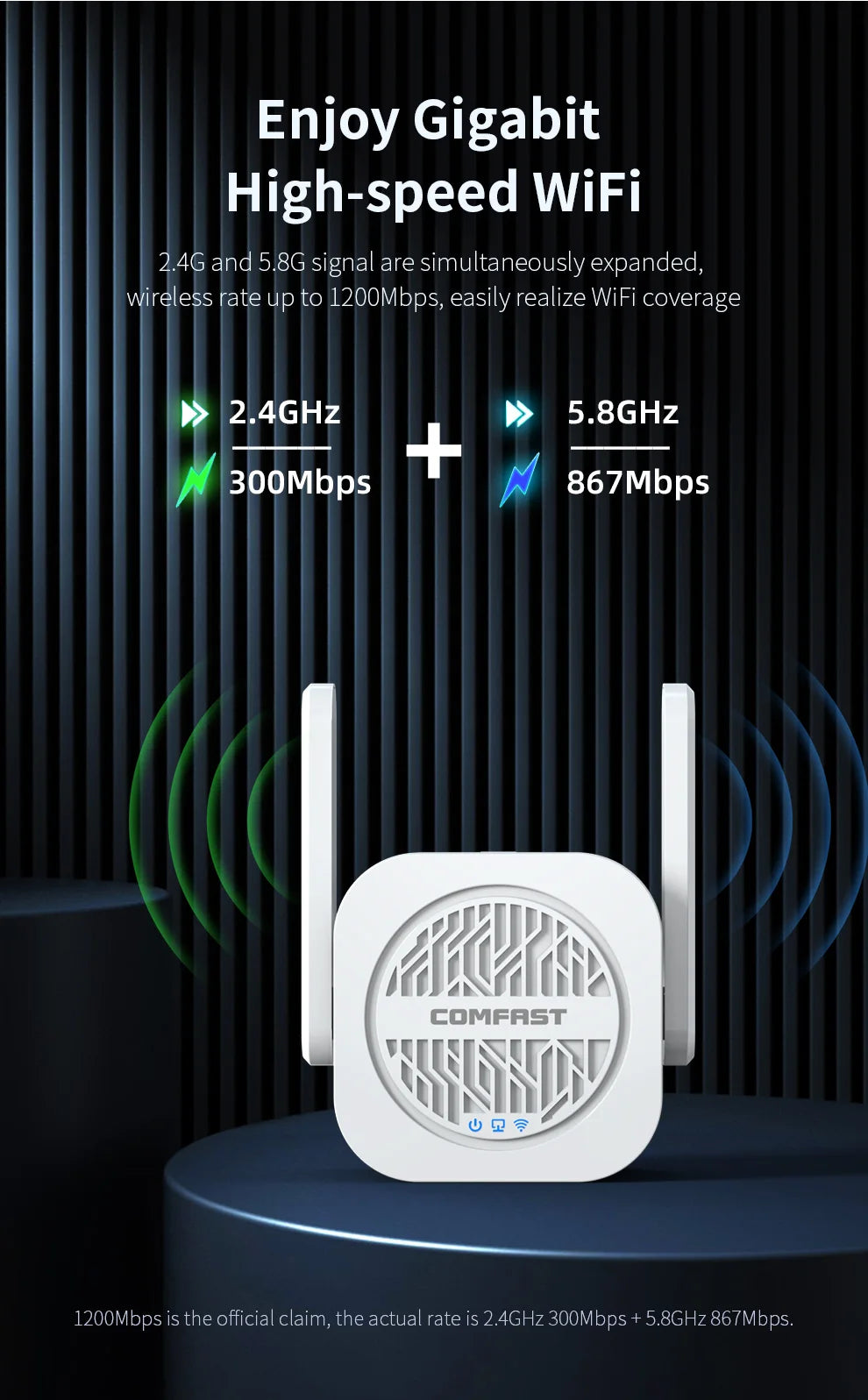

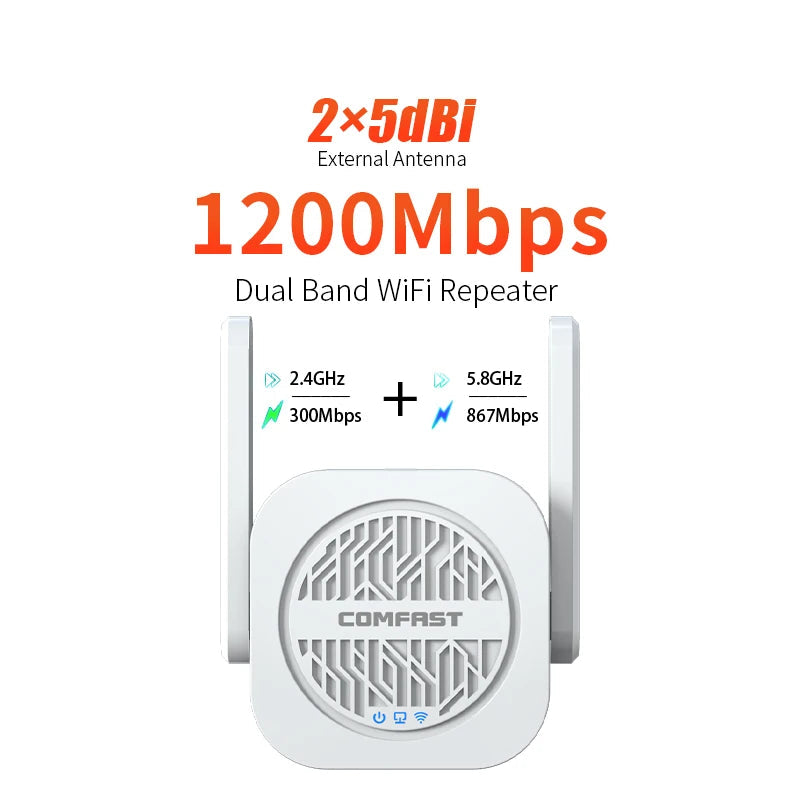

6.Transmission Rate:1200Mbps (2 4G:300Mbps; 5.8G: 867Mbps)

7.Button:1*WPS/RST Button

8.Physical Ports:1*10/100Mbps LANWAN RJ45 Ethemet Port

9.Indicator:Power, WiFi, Network port

10.Power:100~240V

11.Power consumption:16W

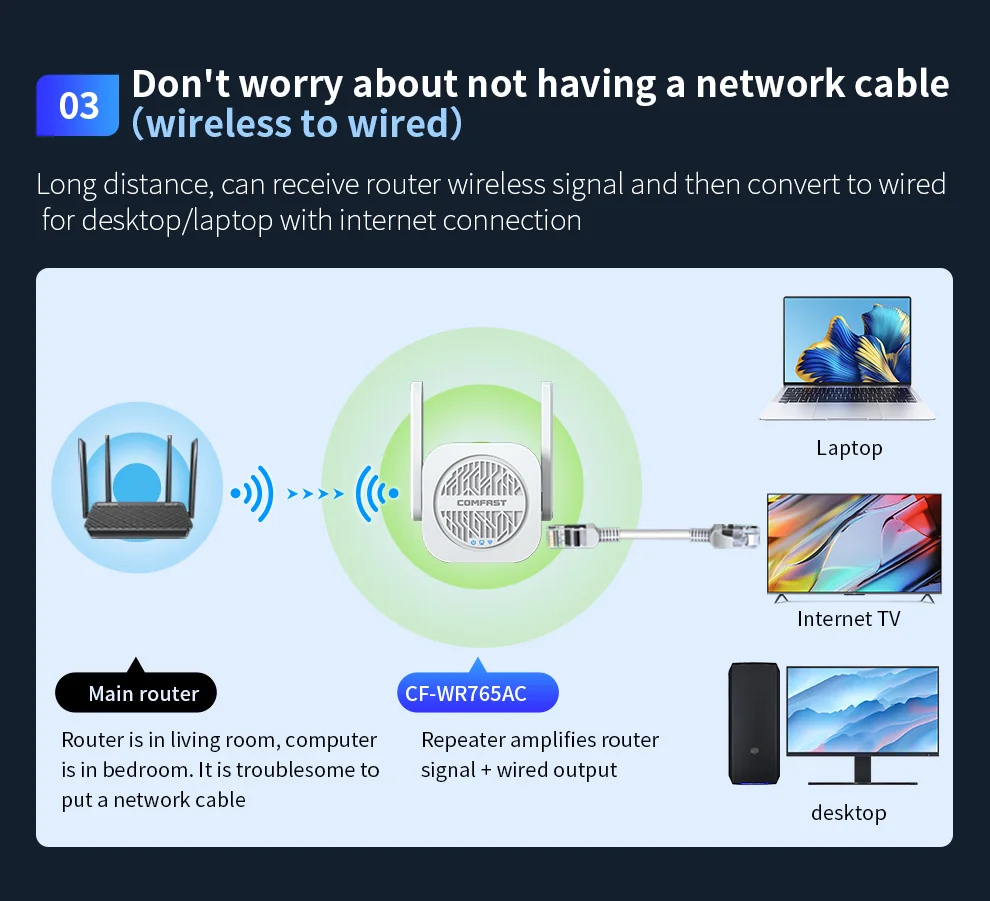

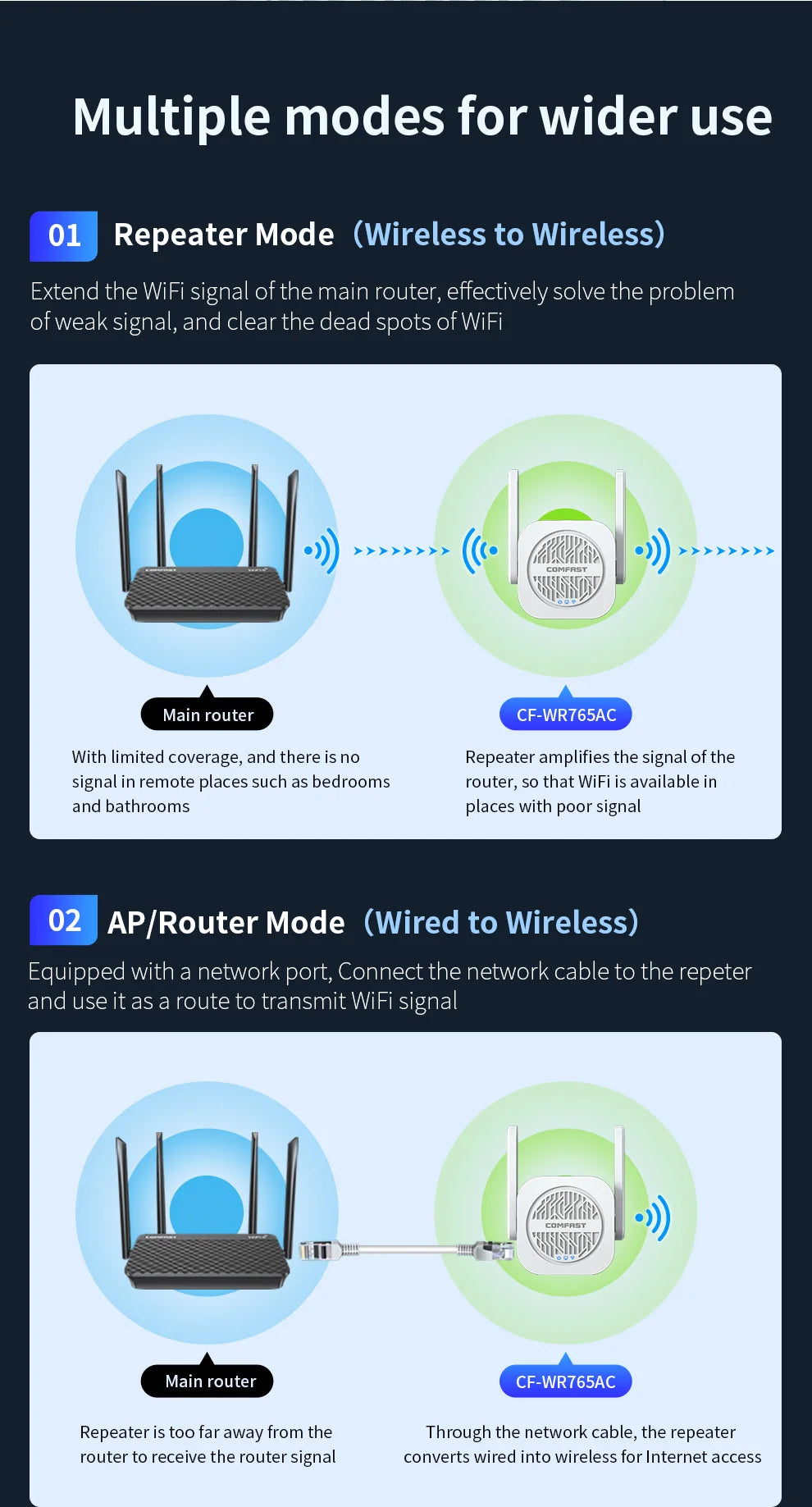

12.Working Mode:AP / Repeater / Router Mode

13.Case:Plastic Case (ABS Material

14.Size: 129*85*50mm

15.Working Temperature: -10°C~55°C

Storage Temperature: -40*°C~70°C

Working Humidity: 10%~90%RH Non-condensing

Storage Humidity: 5%~90%RH Non-condensing
