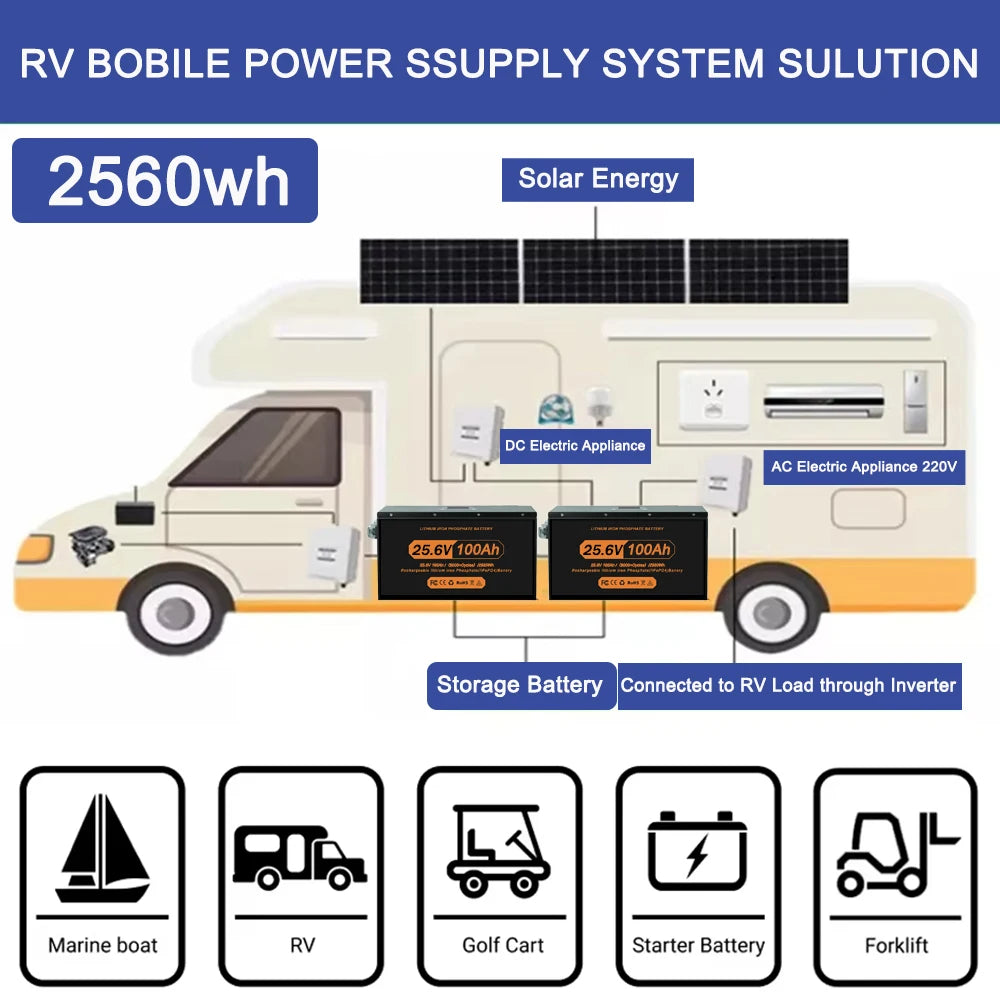

LiFePO4 Deep Cycle Battery for Solar Systems and RV Power

The difference between LIDPM and batteries on the market

The appearance of LIDPM battery has been completely upgraded, and all cells use Prismatic Cells.
All products are assembled with Grade A batteries.

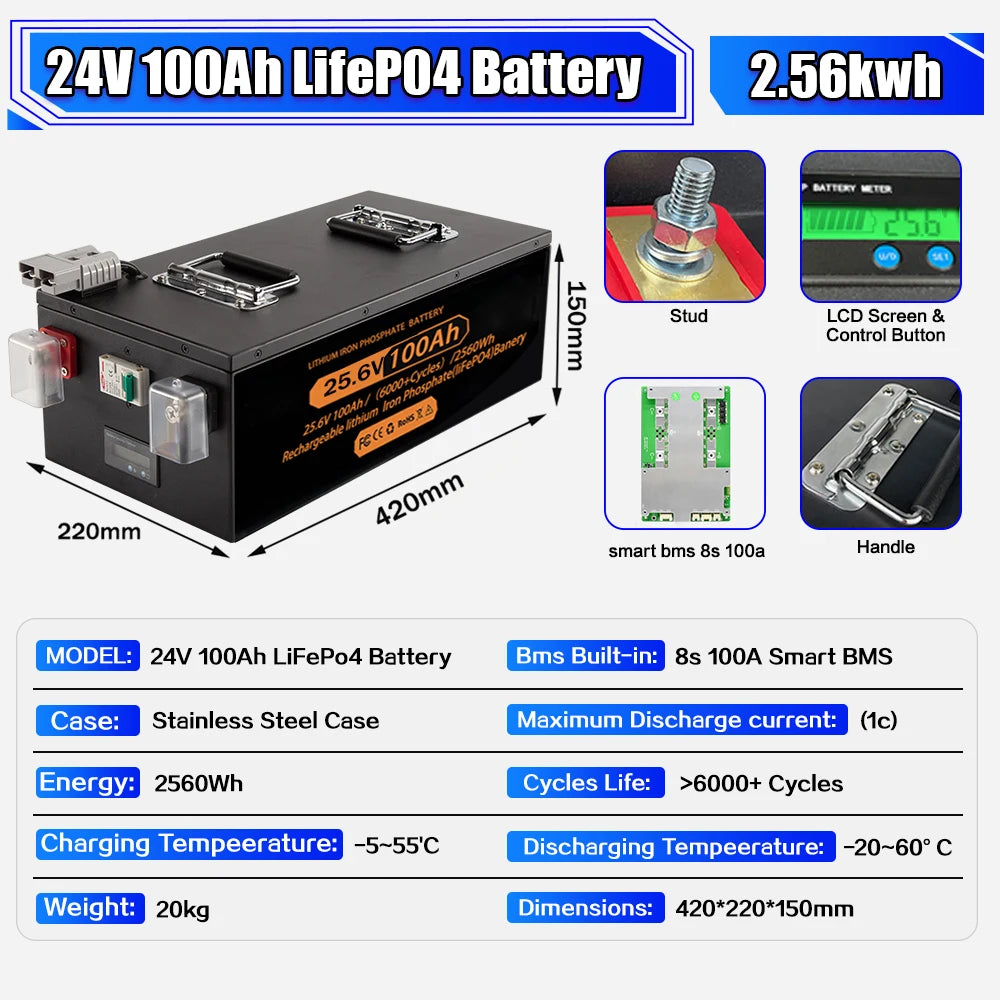

24V 100Ah LIFEPO4 BATTERY-2560Wh

Specifications
Rated voltage: 25.6 V
Rated capacity: 100 Ah 0.2 °C
Integrated BMS: 8S100A
Power: 2560Wh
Cycle life: >6000 cycles at 0.2 °C; End of life 70% capacity
Recommended charging current: 20 A
Max.Charging Current: 100 A
Discharge switching voltage: 20.0 V
Charging temperature: 0 to 45℃ (32 to 113 CharCharging temperature)
Discharge temperature: -20 to 60 °C℃ (-4 to 140 DiscDischarge temperature)
Storage temperature: 0 to 45℃ (32 to 113 StorStorage temperature) at 60 ± 25% relative humidity
Water and dust resistance: IP5
Housing material: ABS
Dimensions (L/W/H): 420*220*150mm/
Weight approx. 21 kg

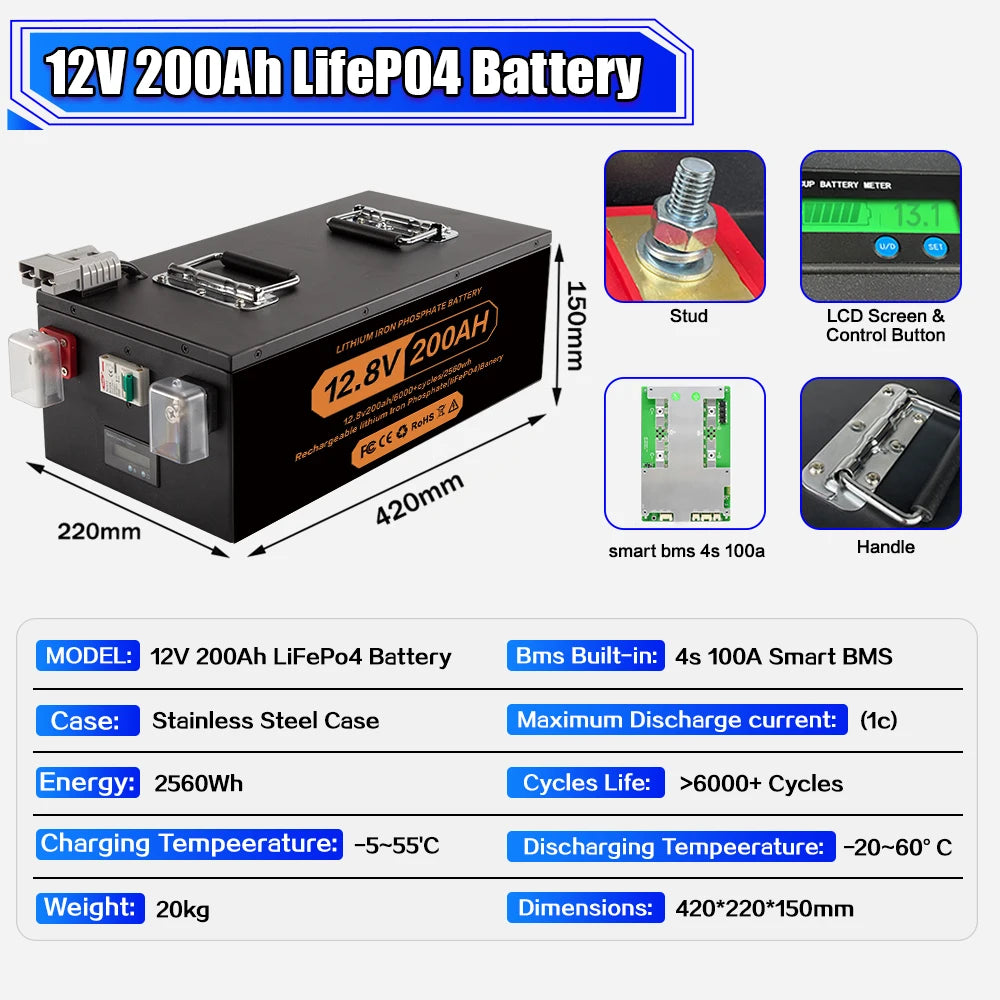

12V 200Ah LIFEPO4 BATTERY

Specifications
Rated voltage: 12.8V
Rated capacity: 200 Ah 0.2 °C
Integrated BMS: 4S100A
Power: 2560Wh
Cycle life: >6000 cycles at 0.2 °C; End of life 70% capacity
Recommended charging current: 20 A
Max.Charging Current: 100 A
Discharge switching voltage: 10.0 V
Charging temperature: 0 to 45℃ (32 to 113 CharCharging temperature)
Discharge temperature: -20 to 60 °C℃ (-4 to 140 DiscDischarge temperature)
Storage temperature: 0 to 45℃ (32 to 113 StorStorage temperature) at 60 ± 25% relative humidity
Water and dust resistance: IP5
Housing material: ABS
Dimensions (L/W/H): 420*220*150mm/
Weight approx. 21 kg

24V 200Ah LIFEPO4 BATTERY-5120Wh

Specifications
Rated voltage: 25.6 V
Rated capacity: 200 Ah 0.2 °C
Integrated BMS: 8S100A
Power: 5120Wh
Cycle life: >6000 cycles at 0.2 °C; End of life 70% capacity
Recommended charging current: 20 A
Max.Charging Current: 100 A
Discharge switching voltage: 20.0 V
Charging temperature: 0 to 45℃ (32 to 113 CharCharging temperature)
Discharge temperature: -20 to 60 °C℃ (-4 to 140 DiscDischarge temperature)
Storage temperature: 0 to 45℃ (32 to 113 StorStorage temperature) at 60 ± 25% relative humidity
Water and dust resistance: IP5
Housing material: ABS
Dimensions (L/W/H): 490*240*252mm/
Weight approx. 40 kg

24V300Ah LIFEPO4 BATTERY-7680Wh

Specifications
Rated voltage: 25.6 V
Rated capacity: 300 Ah 0.2 °C
Integrated BMS: 8S100A
Power: 7680Wh
Cycle life: >6000 cycles at 0.2 °C; End of life 70% capacity
Recommended charging current: 20 A
Max.Charging Current: 100 A
Discharge switching voltage: 20.0 V
Charging temperature: 0 to 45℃ (32 to 113 CharCharging temperature)
Discharge temperature: -20 to 60 °C℃ (-4 to 140 DiscDischarge temperature)
Storage temperature: 0 to 45℃ (32 to 113 StorStorage temperature) at 60 ± 25% relative humidity
Water and dust resistance: IP5
Housing material: ABS
Dimensions (L/W/H): 440*320*352mm/
Weight approx. 50 kg

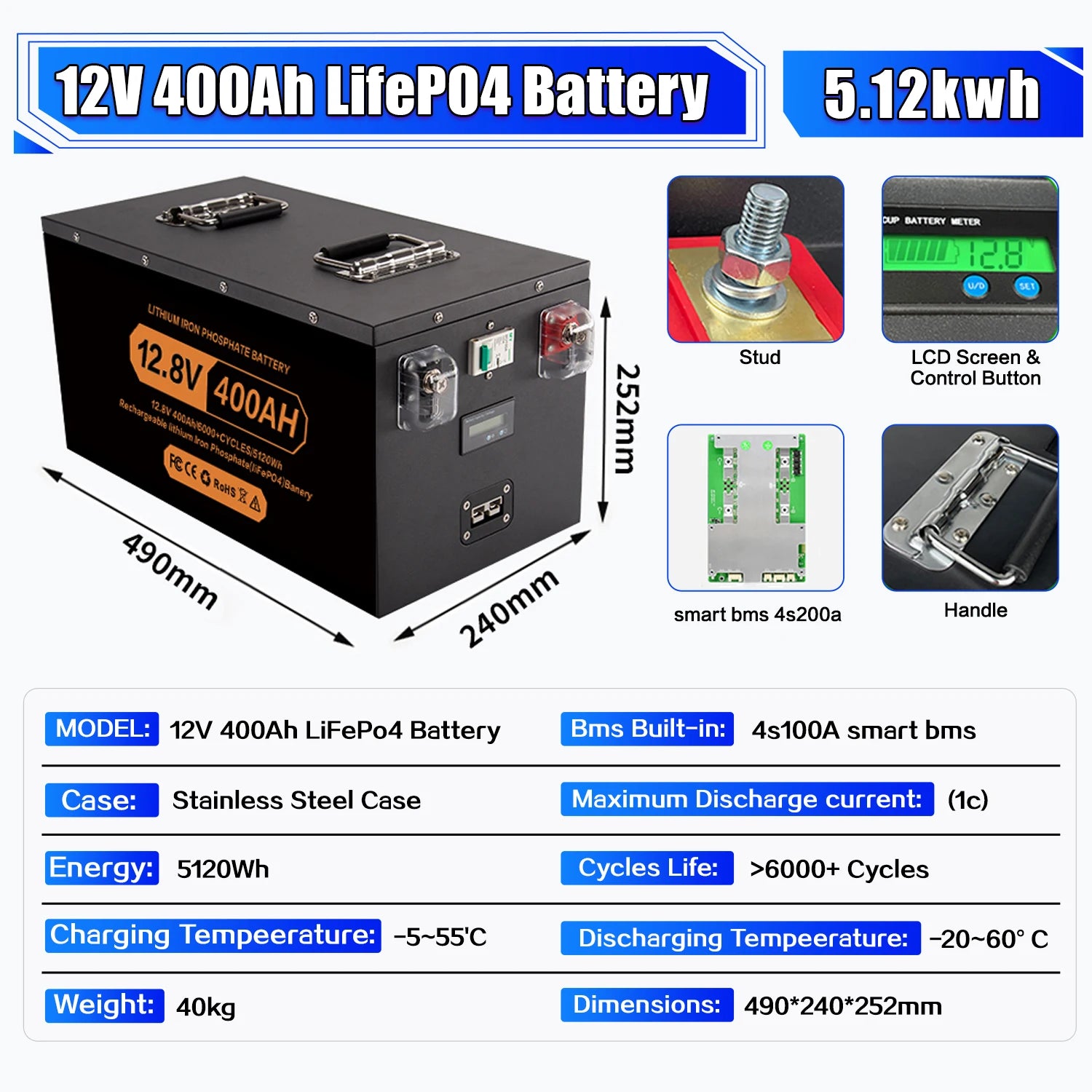

12V 400Ah LIFEPO4 BATTERY-5120Wh

Specifications
Rated voltage: 12.8V
Rated capacity: 400 Ah 0.2 °C
Integrated BMS: 4S100A
Power: 5120Wh
Cycle life: >6000 cycles at 0.2 °C; End of life 70% capacity
Recommended charging current: 20 A
Max.Charging Current: 100 A
Discharge switching voltage: 10.0 V
Charging temperature: 0 to 45℃ (32 to 113 CharCharging temperature)
Discharge temperature: -20 to 60 °C℃ (-4 to 140 DiscDischarge temperature)
Storage temperature: 0 to 45℃ (32 to 113 StorStorage temperature) at 60 ± 25% relative humidity
Water and dust resistance: IP5
Housing material: ABS
Dimensions (L/W/H): 490*240*252mm/
Weight approx. 40 kg

12V 100Ah LIFEPO4 BATTERY-1280Wh

Specifications
Rated voltage: 12.8V
Rated capacity: 100 Ah 0.2 °C
Integrated BMS: 4S100A
Power: 1280Wh
Cycle life: >6000 cycles at 0.2 °C; End of life 70% capacity
Recommended charging current: 20 A
Max.Charging Current: 100 A
Discharge switching voltage: 10.0 V
Charging temperature: 0 to 45℃ (32 to 113 CharCharging temperature)
Discharge temperature: -20 to 60 °C℃ (-4 to 140 DiscDischarge temperature)
Storage temperature: 0 to 45℃ (32 to 113 StorStorage temperature) at 60 ± 25% relative humidity
Water and dust resistance: IP5
Housing material: ABS
Dimensions (L/W/H): 260*240*145mm/
Weight approx. 11 kg

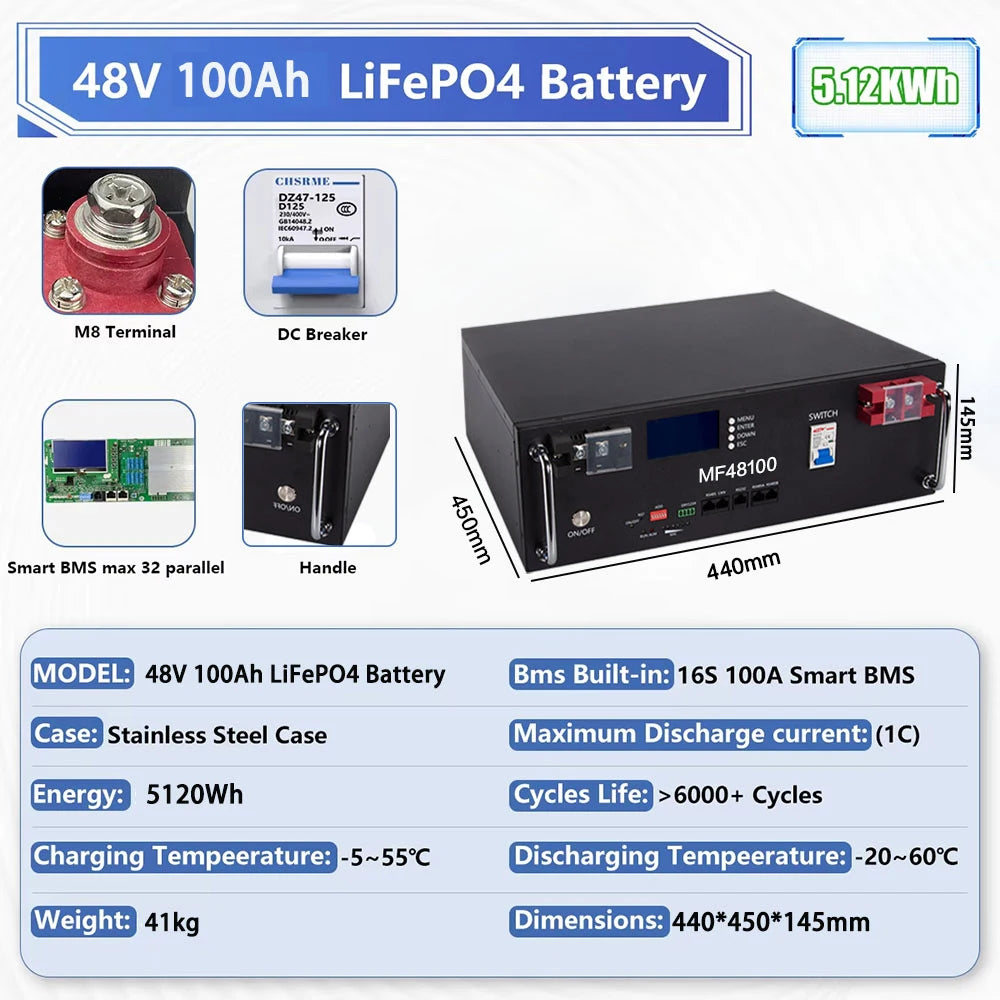

48V 100Ah LIFEPO4 BATTERY-5120Wh

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 440*450*145mm /
Weight: Approx. 41kg
Terminal Type: Dual M6

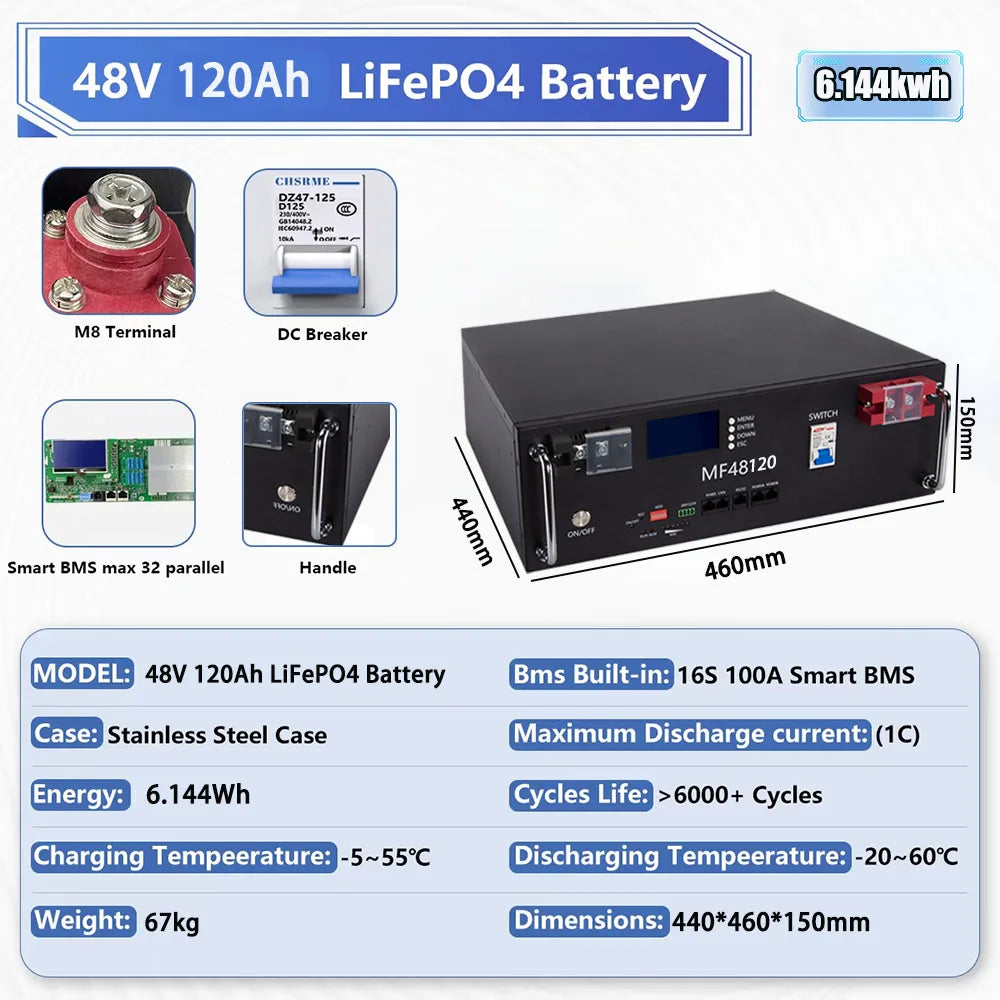

48V 120Ah LIFEPO4 BATTERY-6144Wh

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485 RS232
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 6144Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 440*460*145MM
Weight: Approx. 42kg
Terminal Type: Dual M6

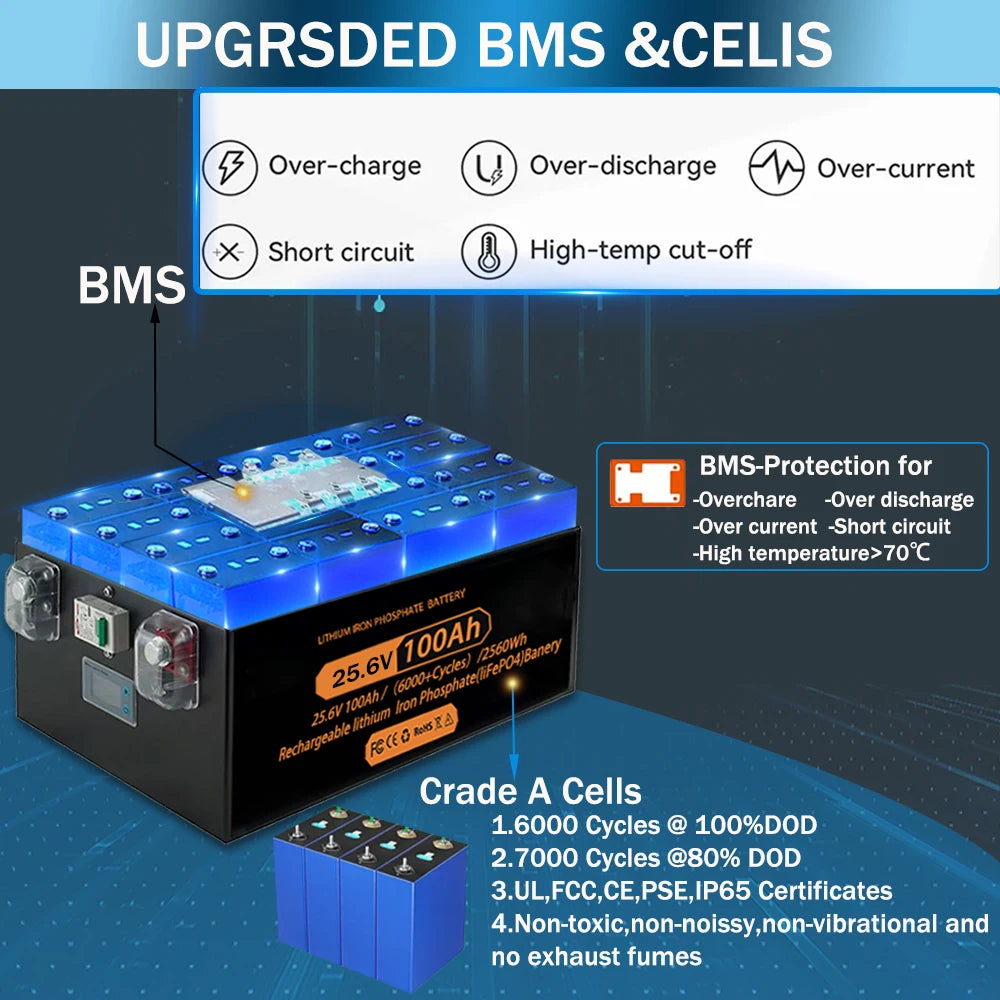

Grade A+ Cell & Smart BMS

Superior Built-in BMS protection
Made of Grade A+ Prismatic Cells

Simplified Wiring

Lower Internal Resistance
Reduced Battery Connections
Smaller Footprint
More Convenient and Economica
