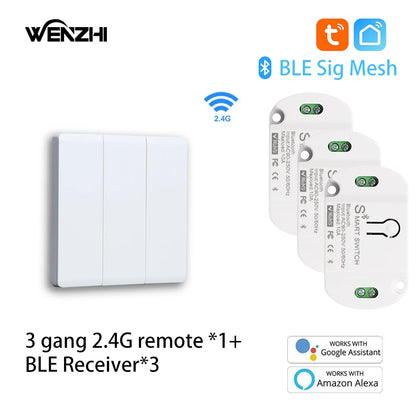

Bluetooth Switch Module

Main Features

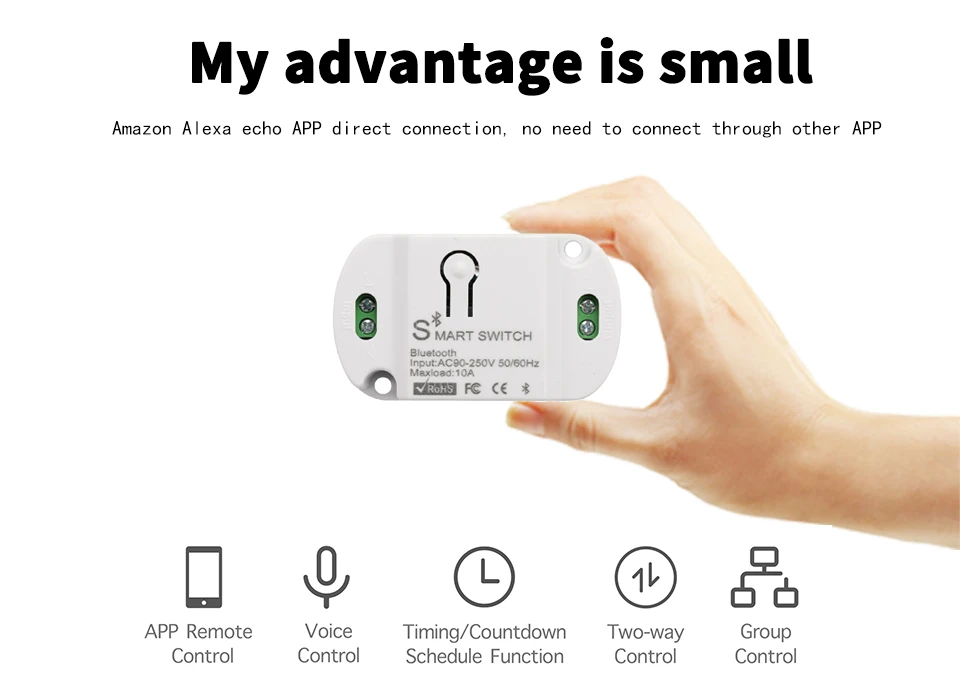

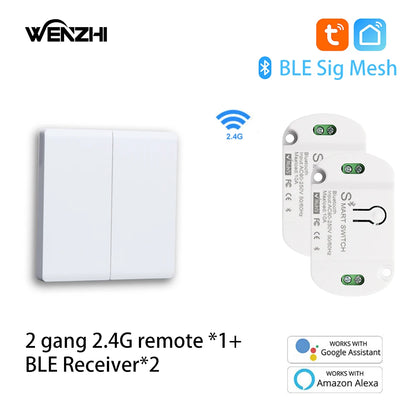

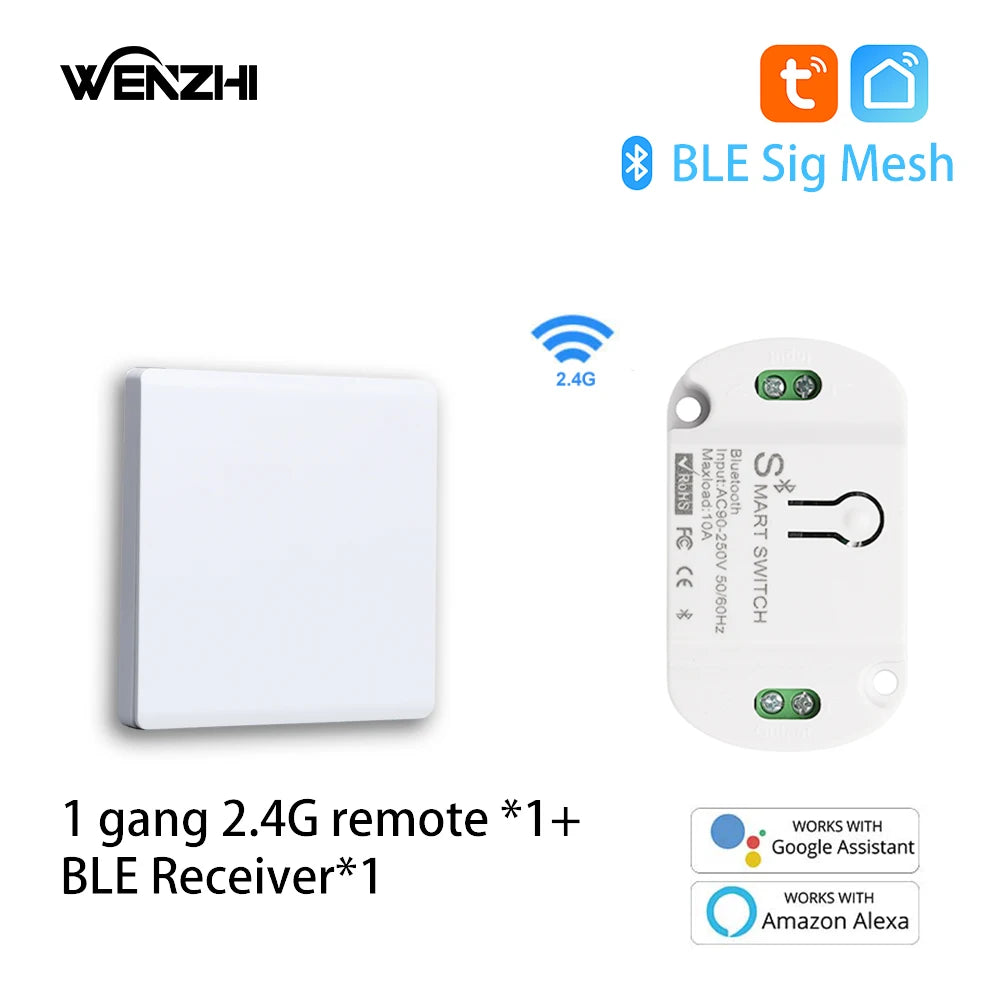

1.Various control methods: receiver buttons, Smart Life/Tuya App, 2.4G remote control panel, voice control.

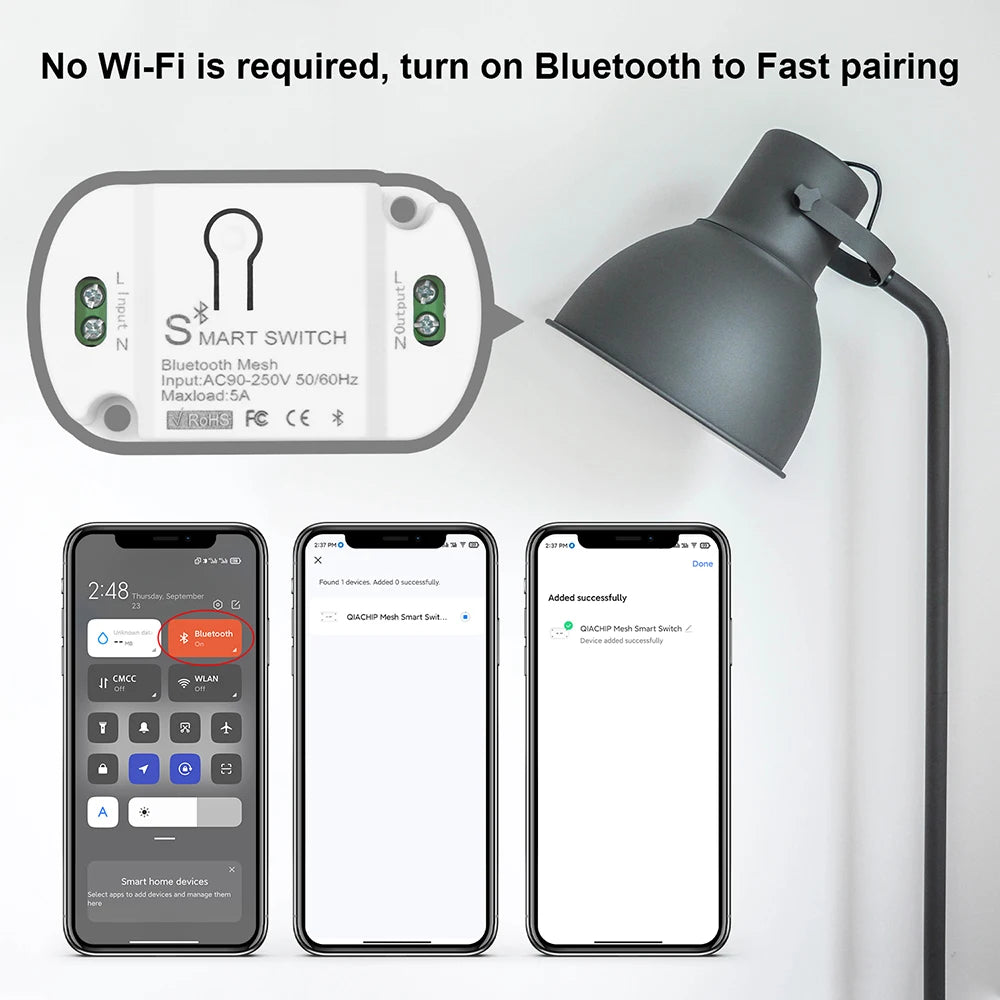

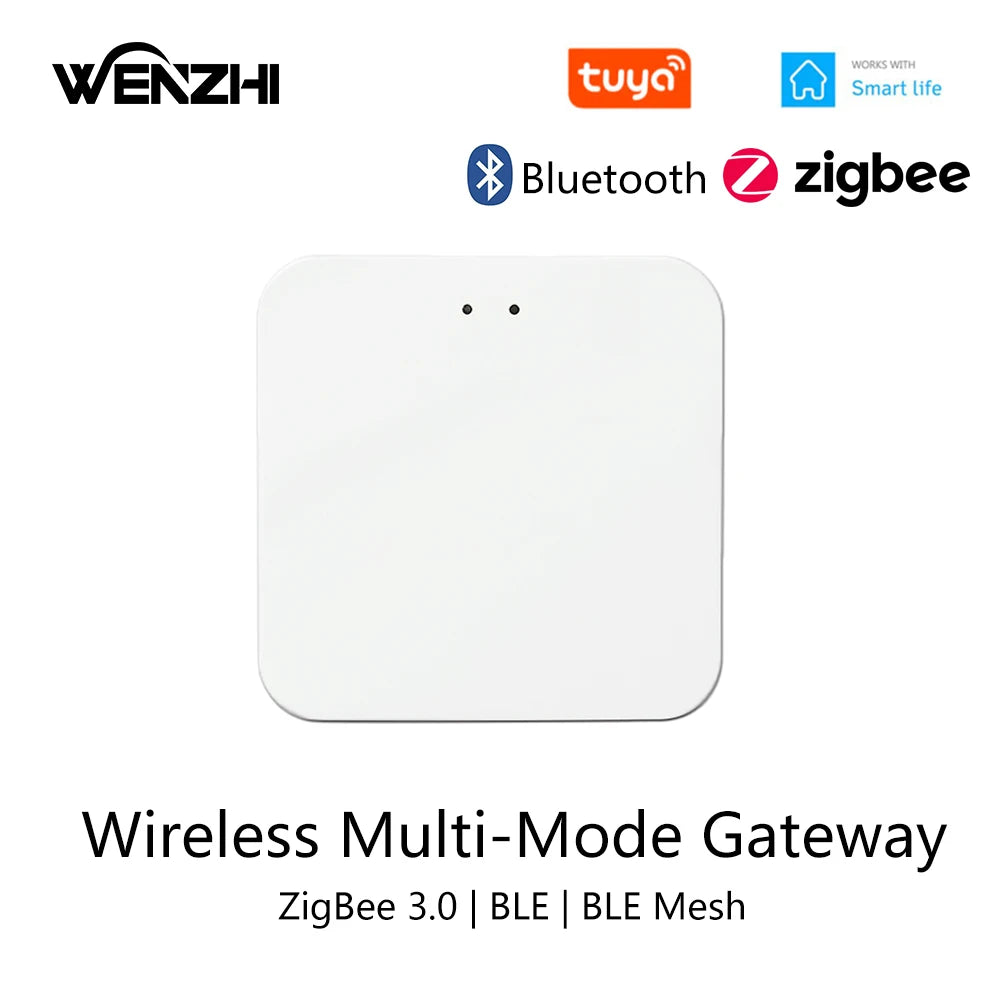

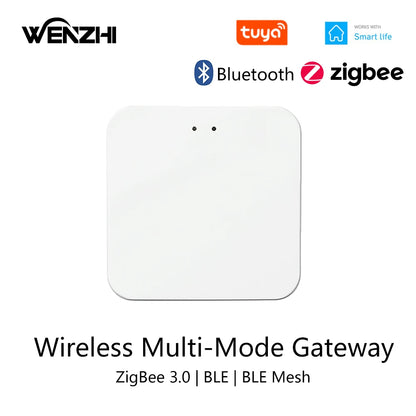

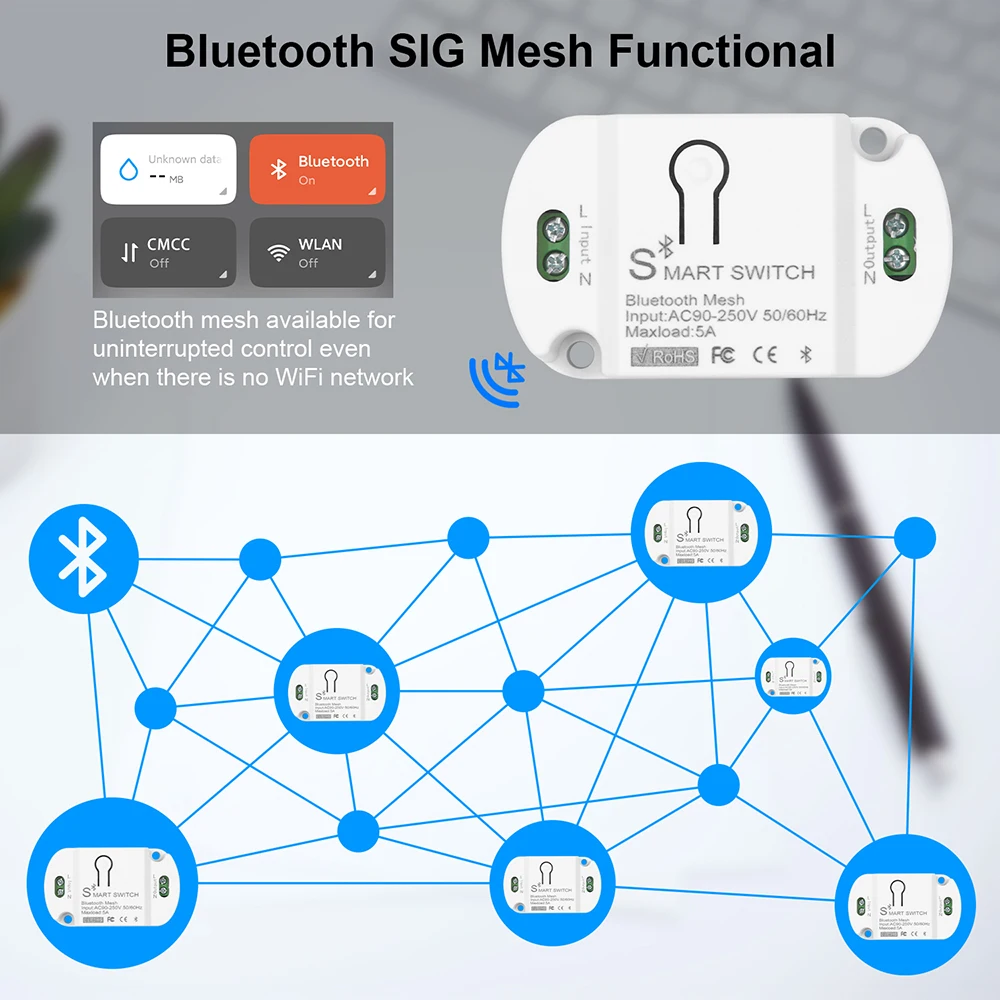

2.The receiver uses Bluetooth protocol and can be directly controlled locally using the Smart Life/Tuya App (the phone needs to have Bluetooth enabled). You can also connect the receiver to the Tuya Bluetooth hub for remote control.

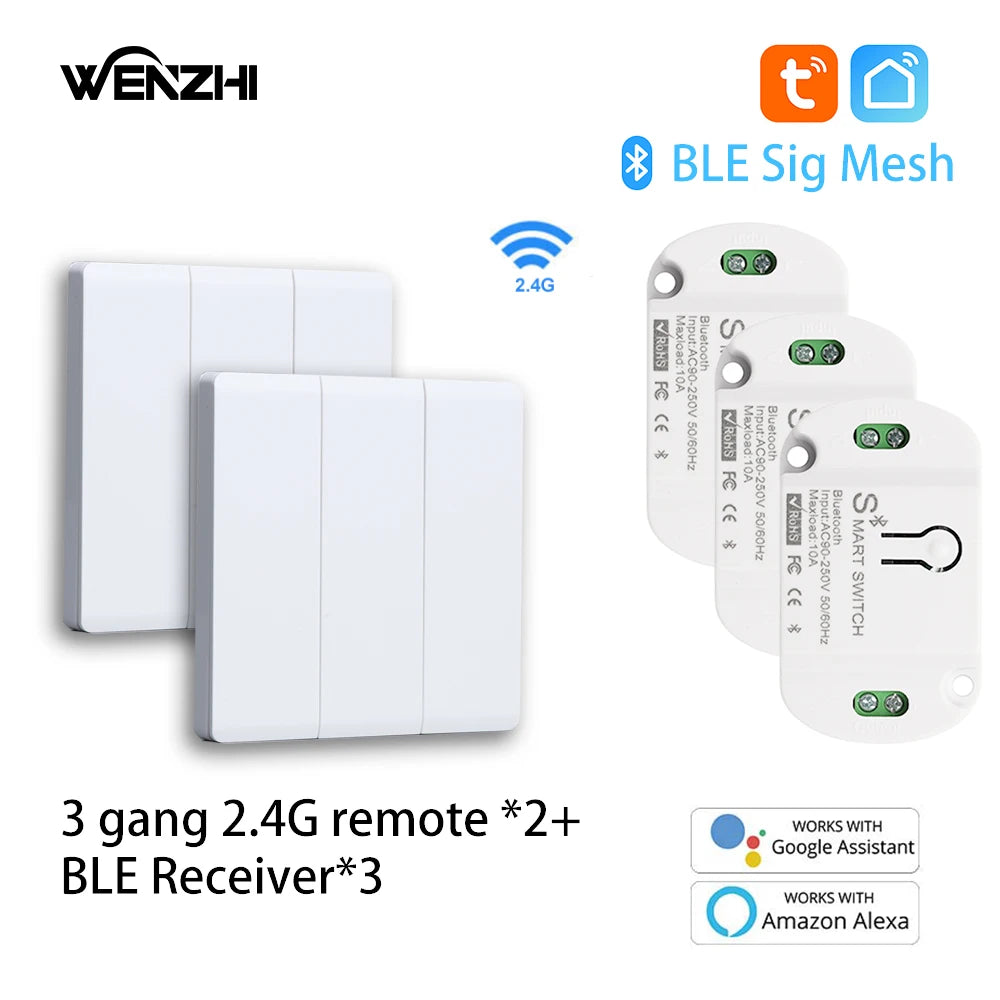

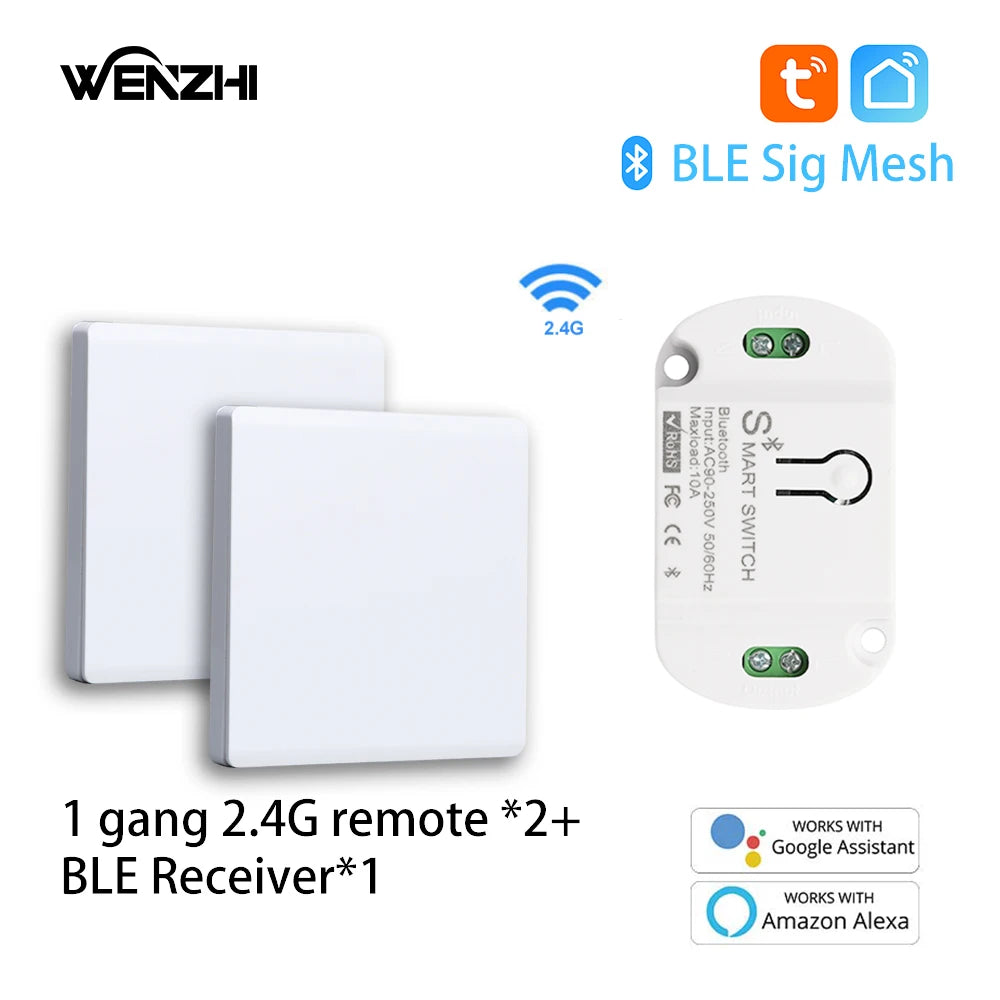

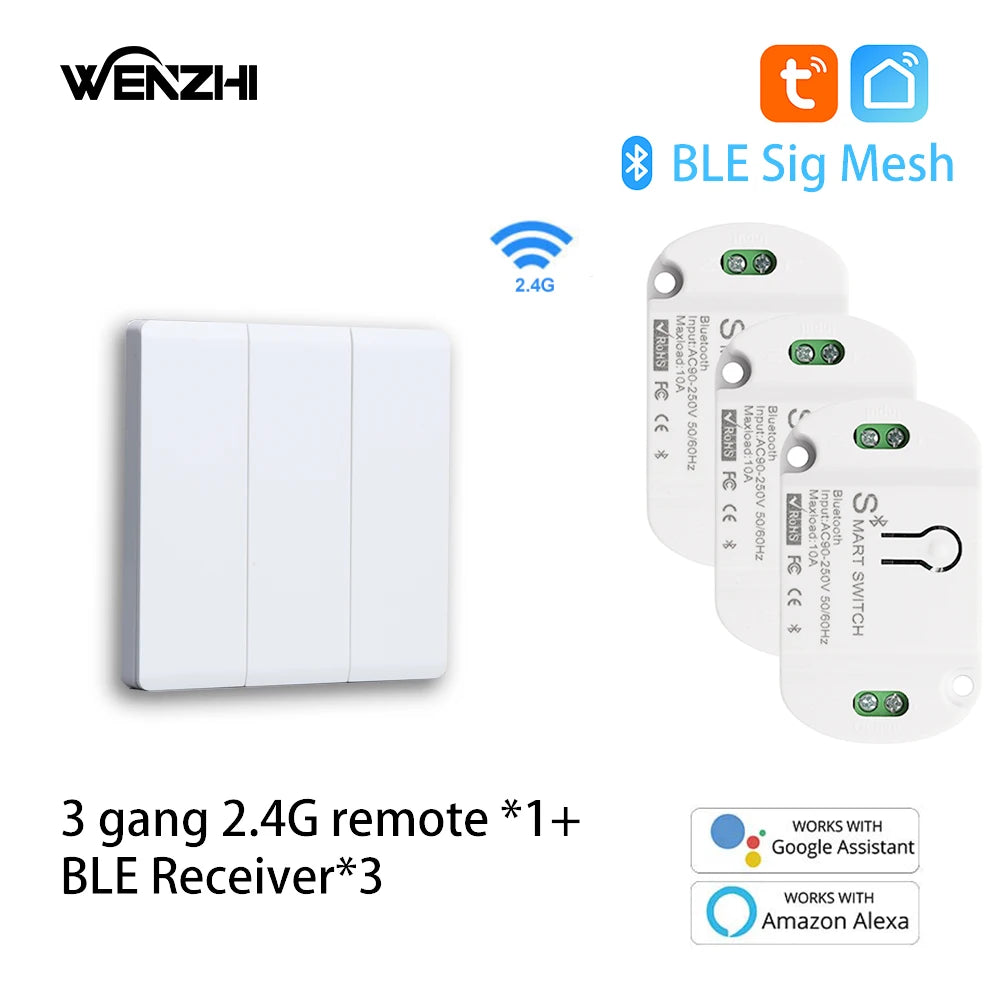

3.The receiver supports local control with a 2.4G remote control (only the 2.4G remote control provided in this link), with a control range of approximately 10 meters.

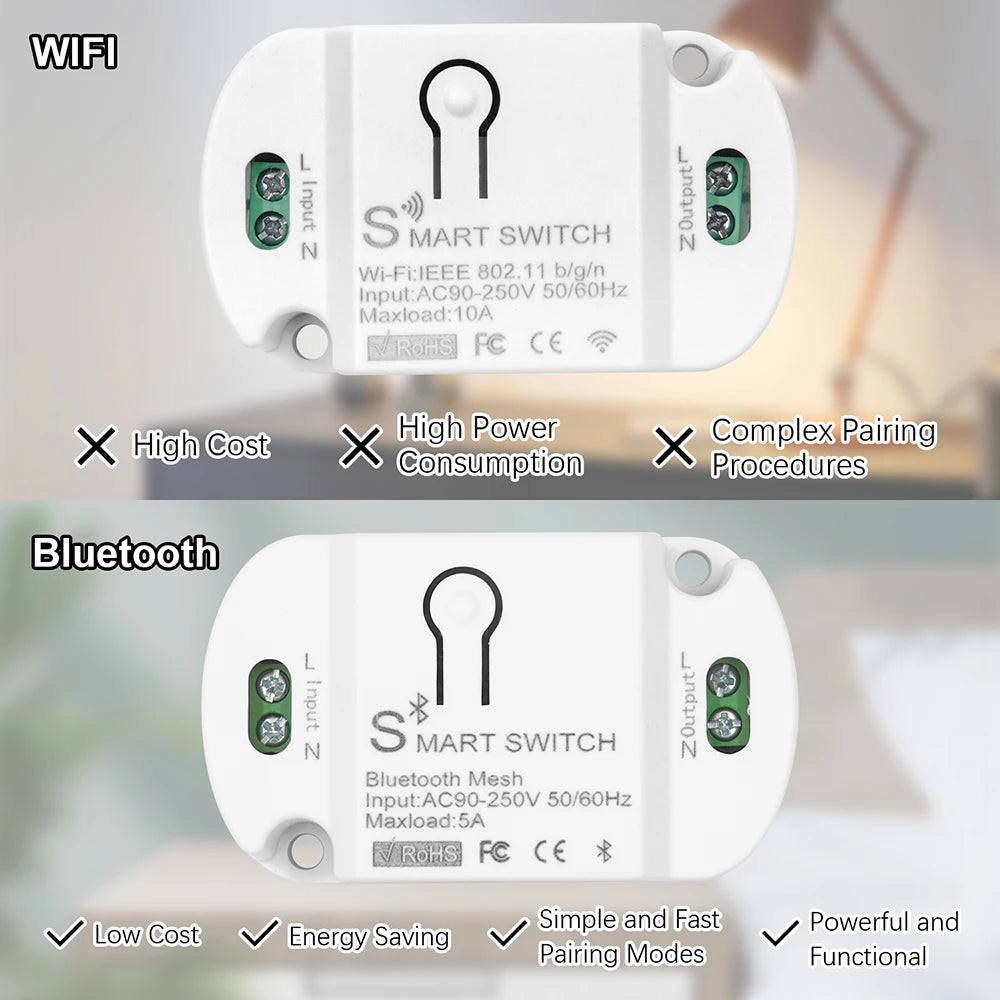

4.Advantages of 2.4G over R433: 2.4G is less susceptible to interference.

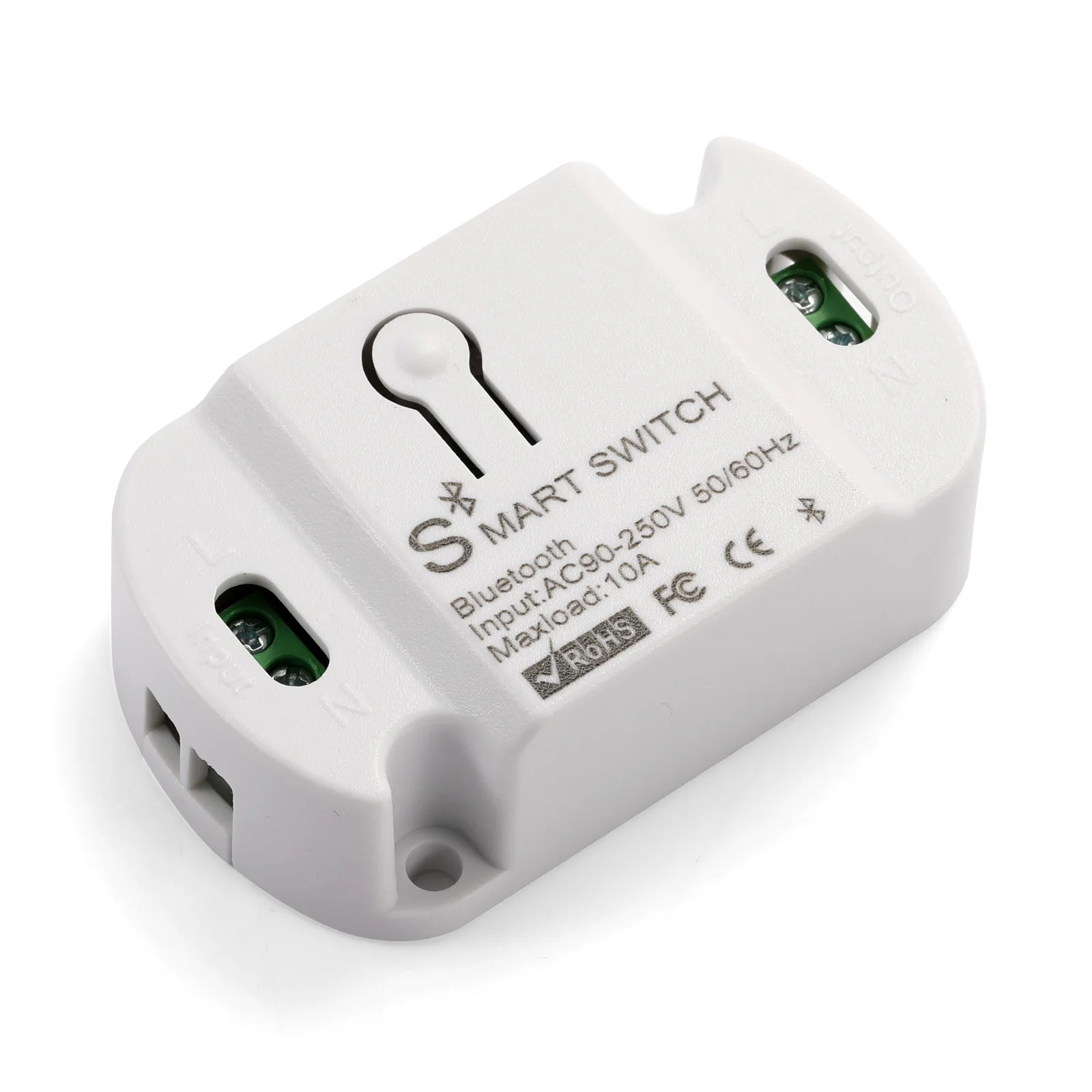

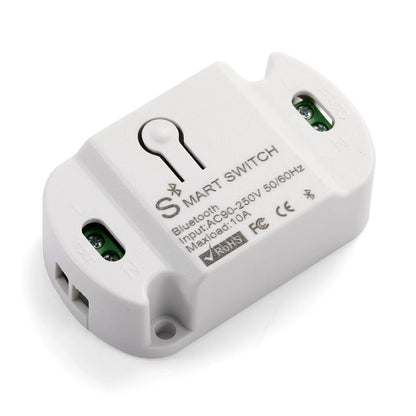

Product parameters（Receiver）

1.Working voltage:AC90-250V 50/60Hz
2. Maximum relay contact current: 10A
3.Frequency: 2.4GHz
4.Wireless protocol: Bluetooth BLE
5. Control method: device button/mobile App/2.4G free panel switch/smart speaker

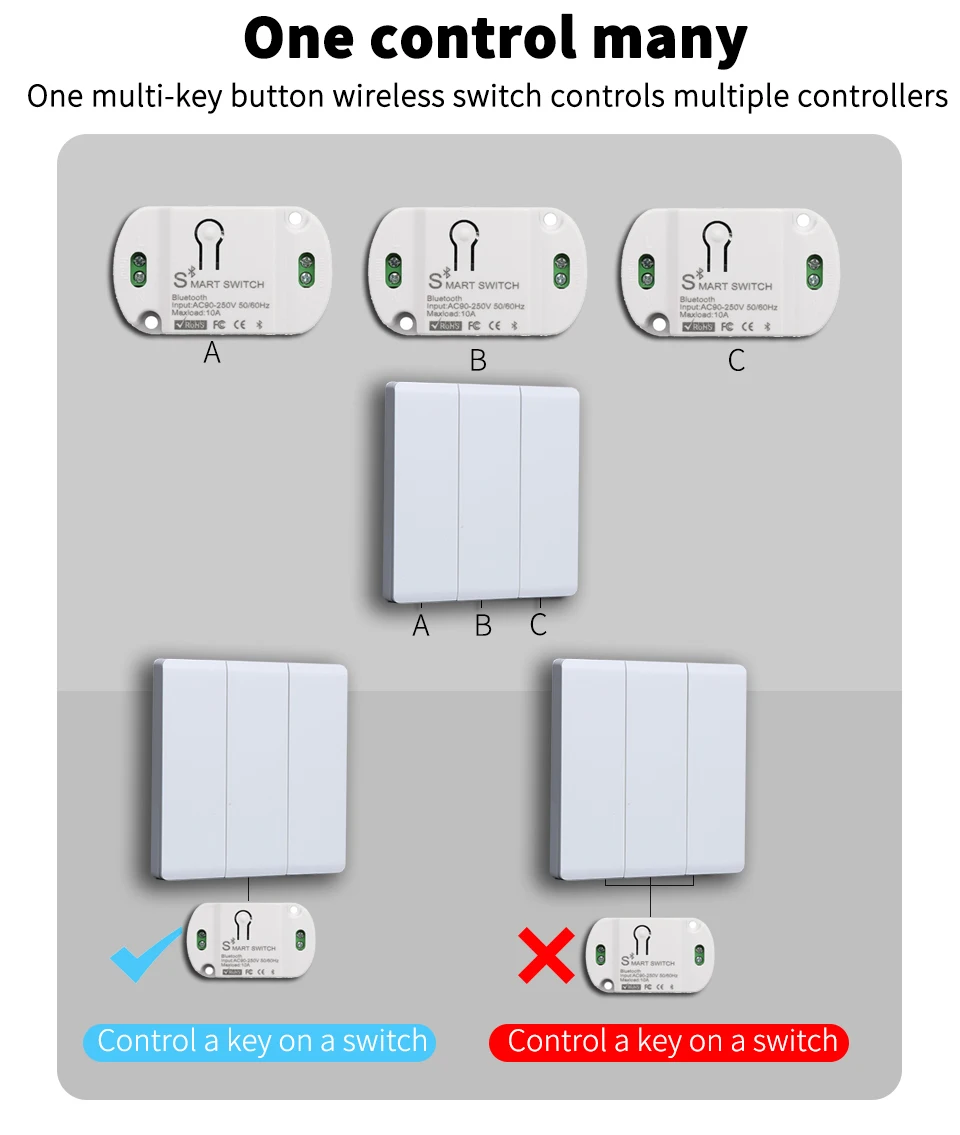

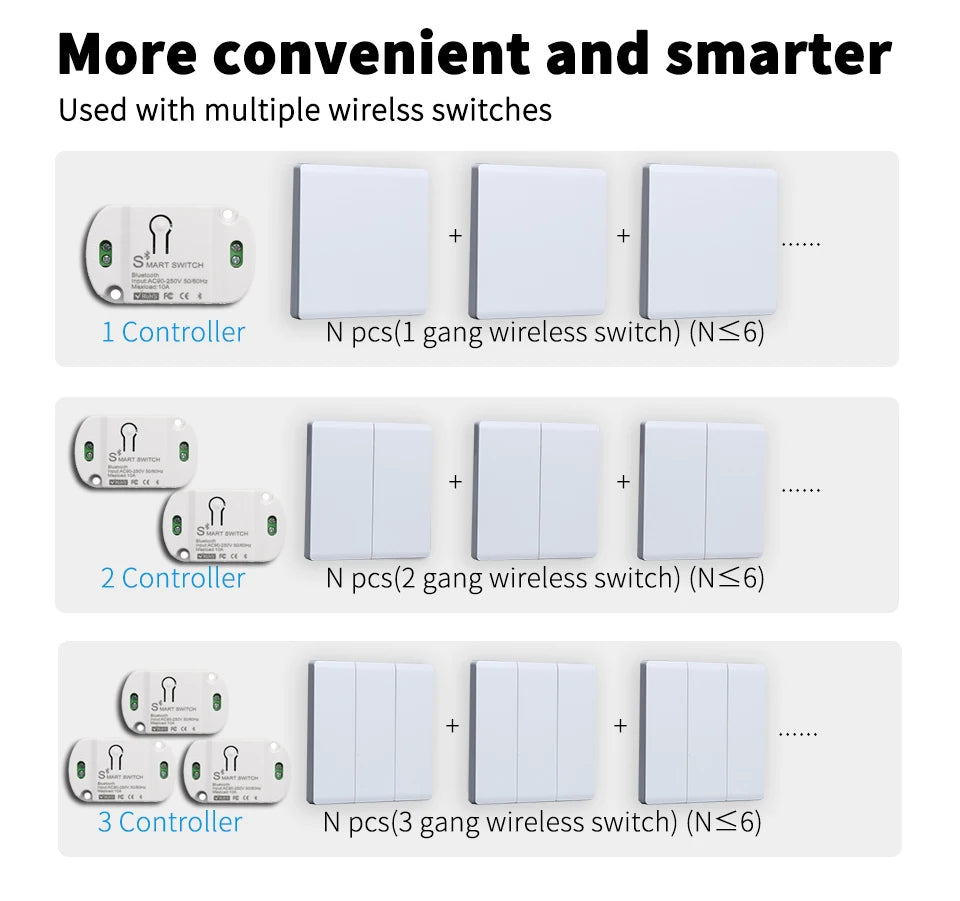

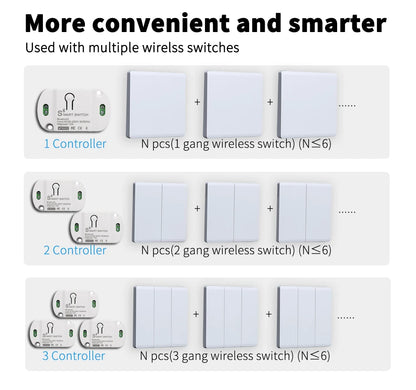

6. Number of panel switches (single button version)that support pairing: 16

resistive power 2200W
Induction power 500W
Capacitive power 200W
Incandescent lamp 2200W
LED light 300W
Energy-saving lamp 300W

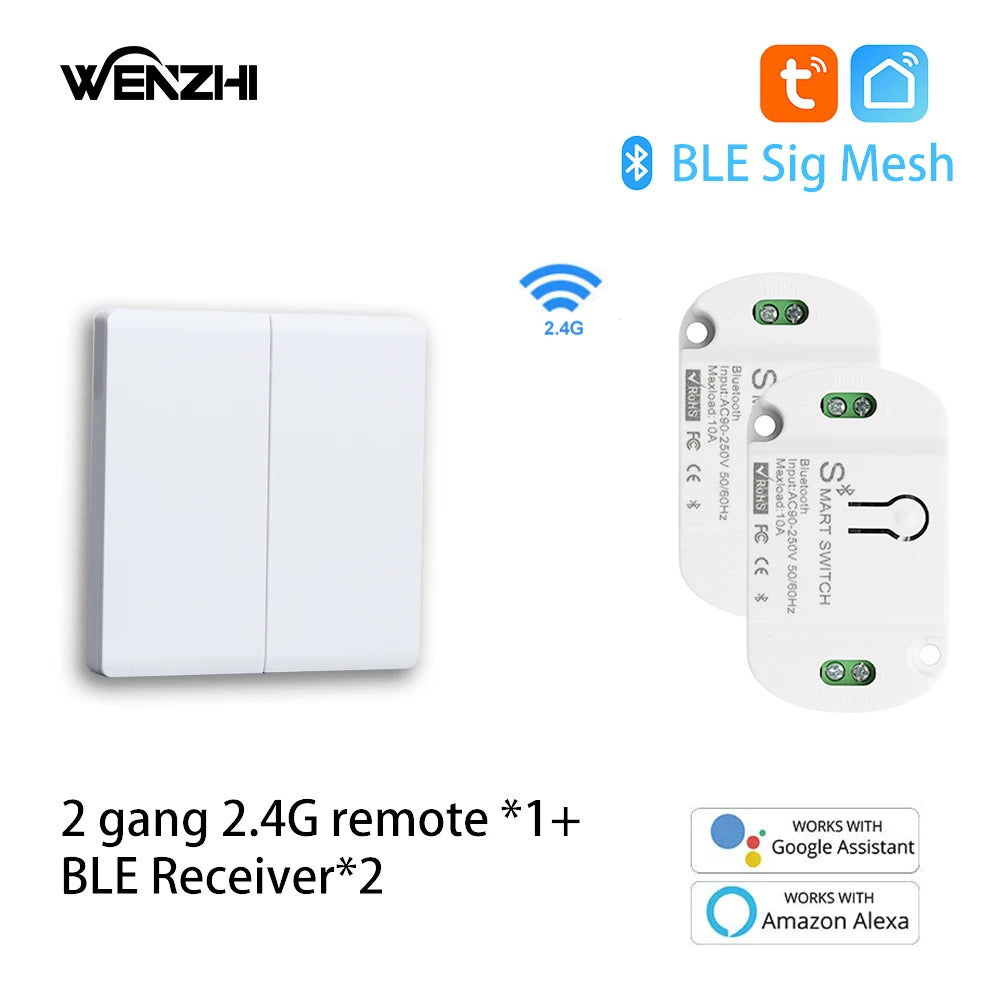

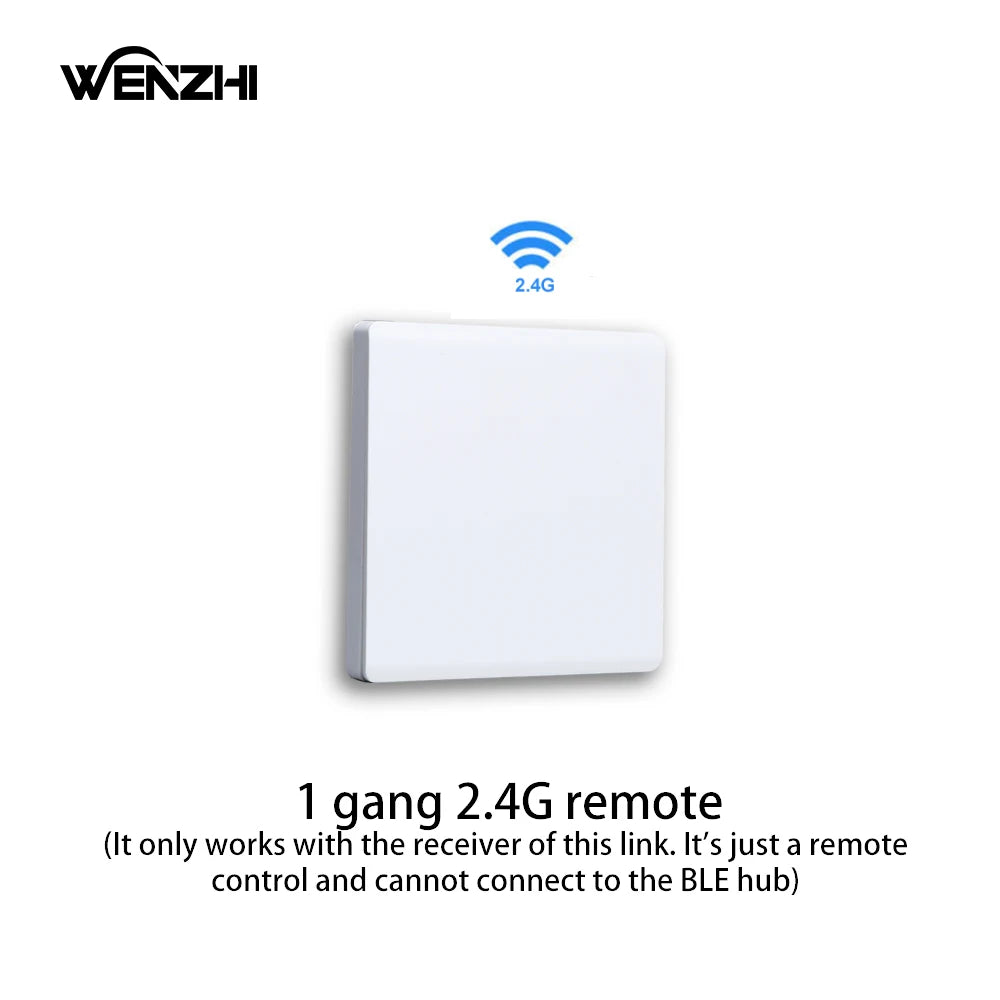

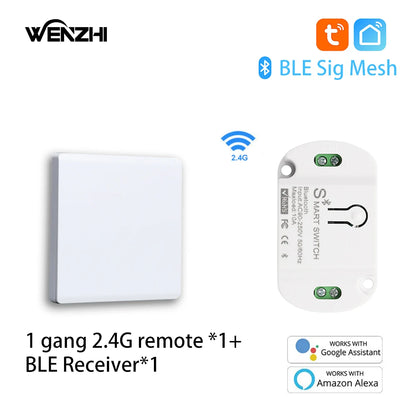

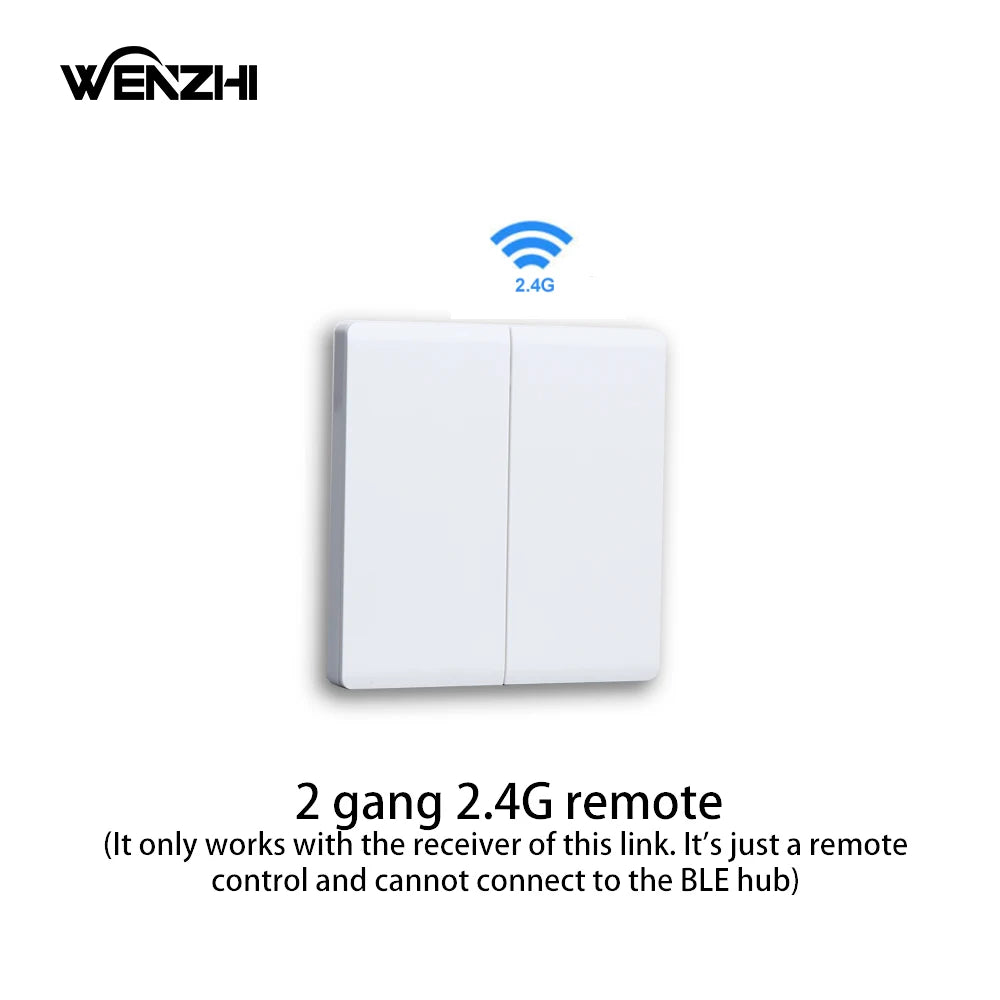

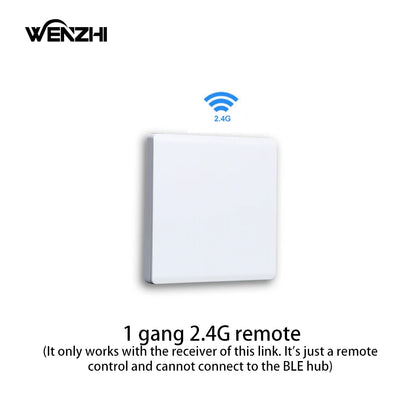

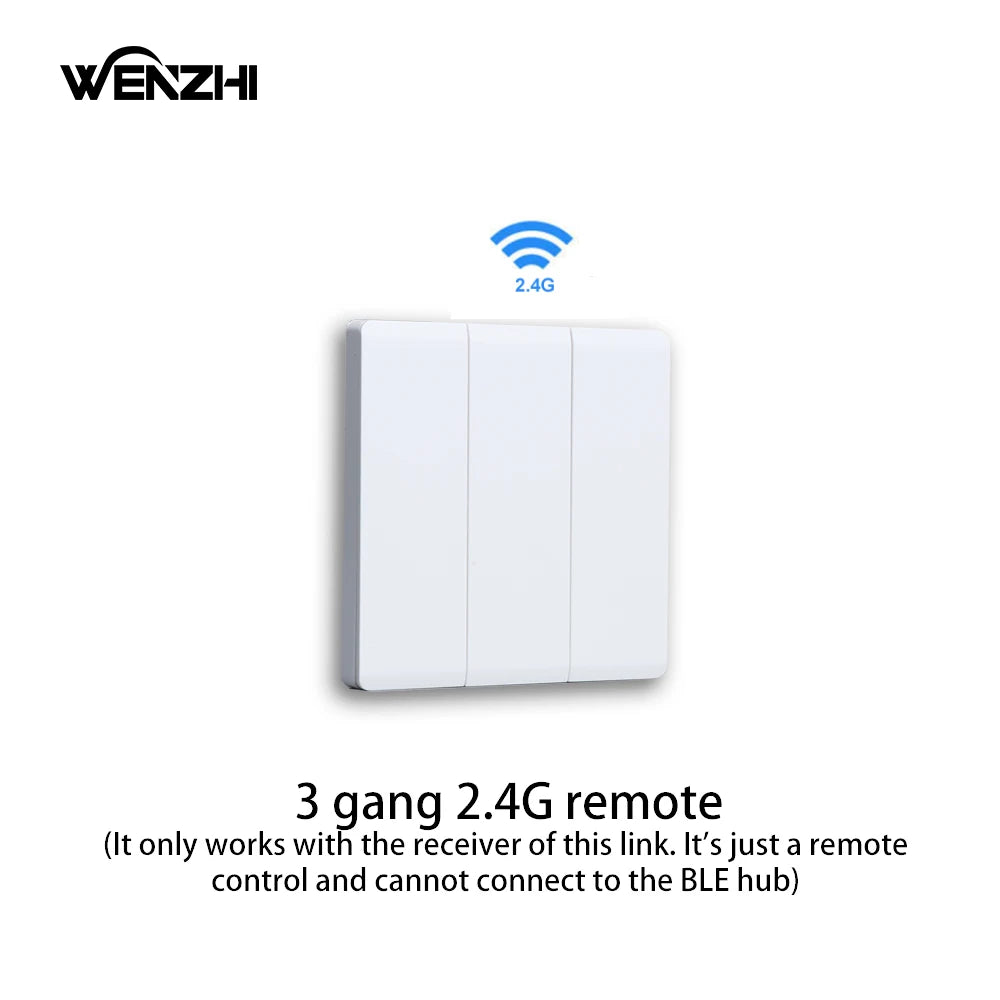

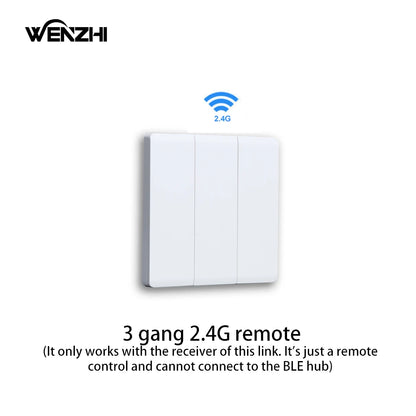

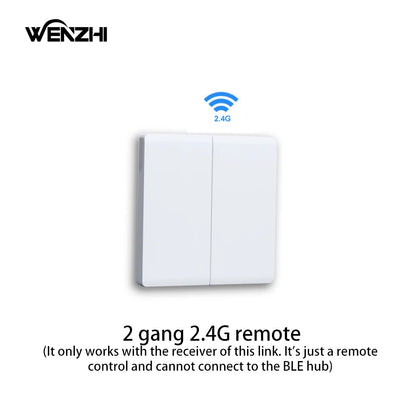

Product parameters（2.4G Remote Control）

1.Battery Model: CR2032 (Package Not included battery)
2.Dimensions: 88mm x 90mm x 10mm
3.Distance:About 10 meters.

NOTE

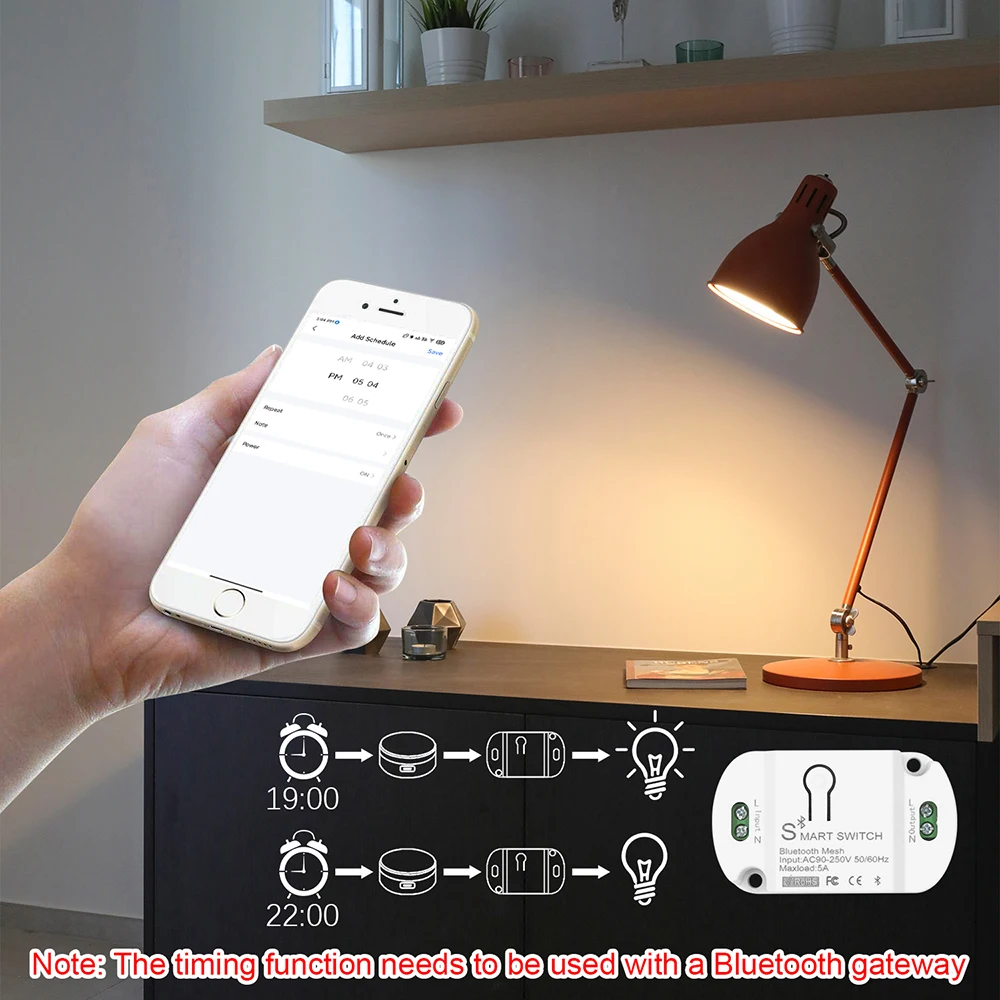

1. The timing function in the mobile App must be used with a tuya Bluetooth hub, and the countdownfunction can be used independently.
2. The optional panel switch should be our 2.4G remote control.
3. If you are using an Android phone, you must operthe location permission of the App.
4.The 2.4G remote control cannot be connected to the Tuya Bluetooth hub, only the receiver can be connected.
5.The indicator light of the 2.4G remote control is located under the plastic panel, and you can pair the remote control and receiver when installing the battery.
