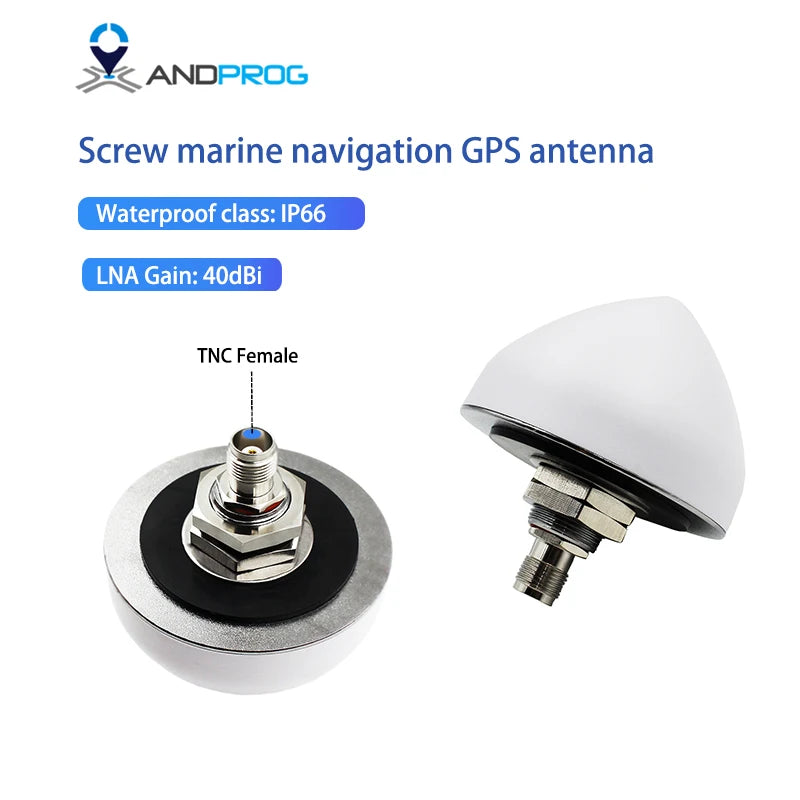

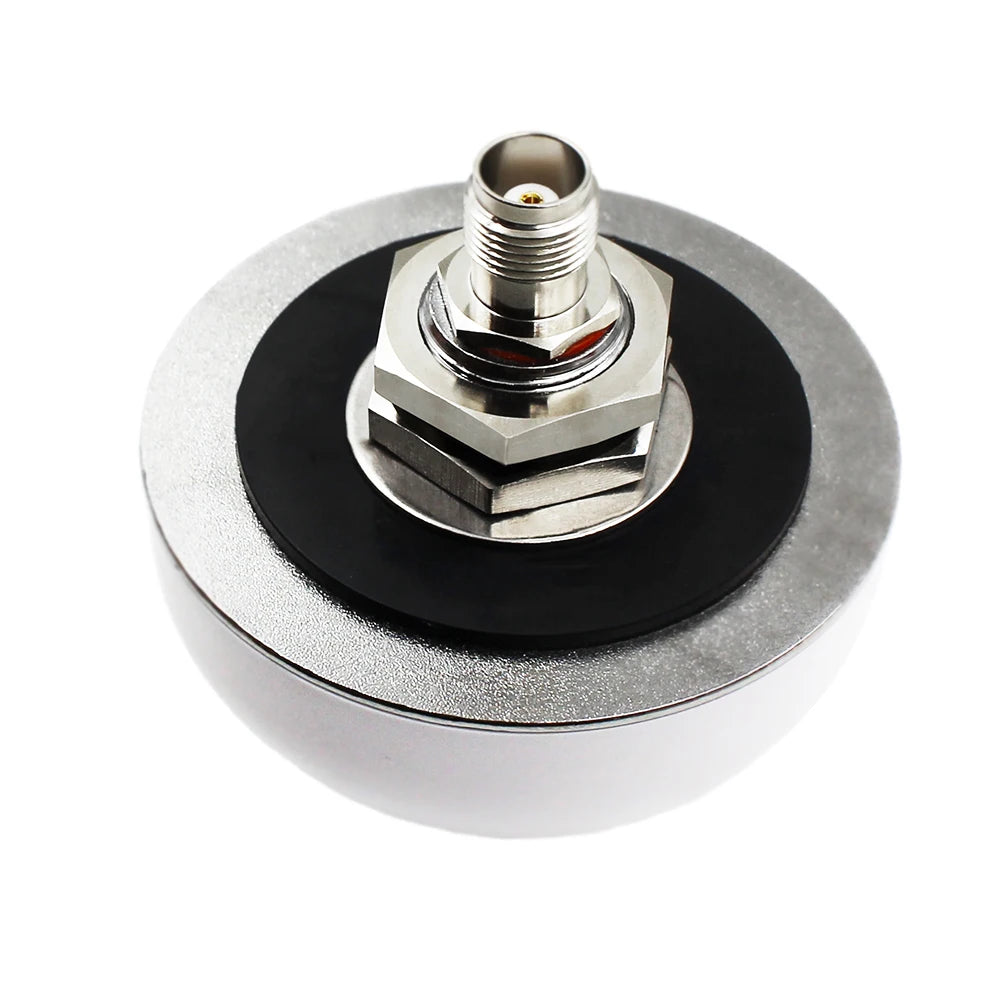

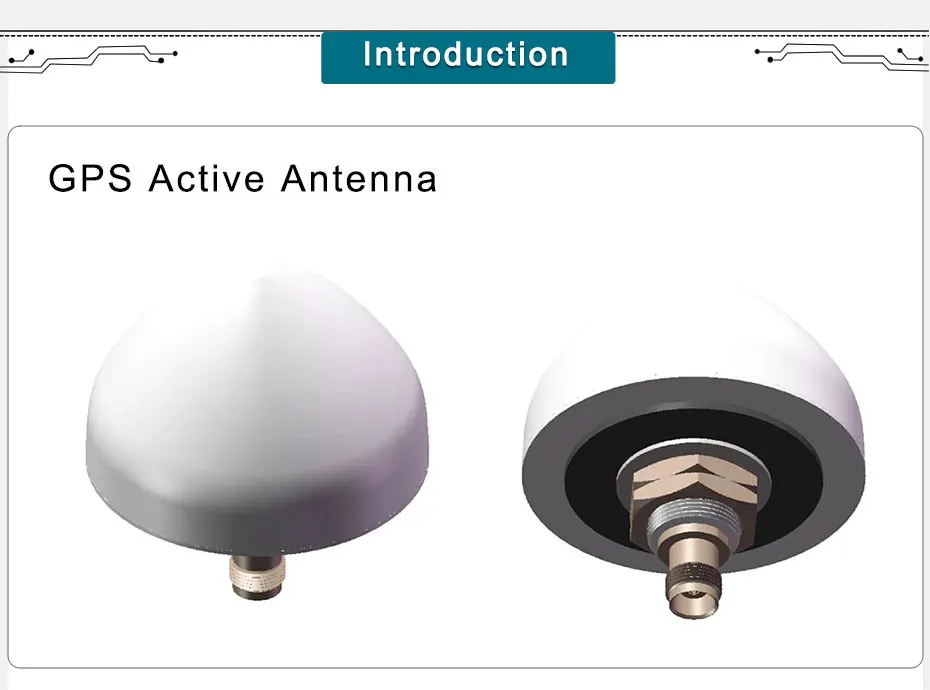

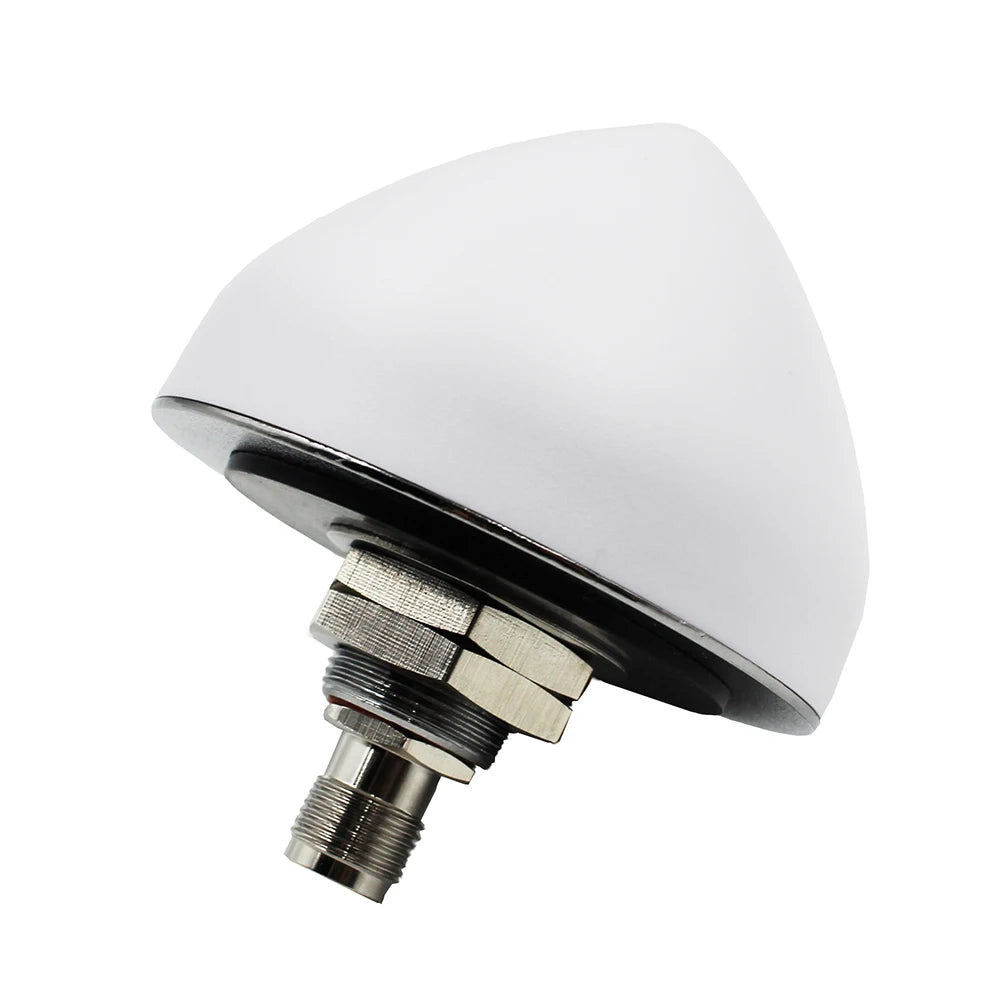

Marine Navigation High Gain GPS Antenna with TNC Connector
Marine Navigation High Gain GPS Antenna with TNC Connector
Couldn't load pickup availability
Marine Navigation High Gain GPS Antenna with TNC Connector
Q:What is an RTK antenna?
A:RTK is short for real time kinematics. A GPS receiver capable of RTK takes in the normal signals from the Global Navigation Satellite Systems along with a correction stream to achieve 1cm positional accuracy. GNSS includes satellites from GPS (USA), GLONASS (Russia), Beidou (China), and Galileo (Europe).
Q:What is the difference between GPS and RTK?
A:Unlike traditional GPS systems, which rely on data from satellites alone, RTK GPS systems use additional data from a nearby base station to improve the accuracy of the GPS data. This can provide positioning data that is accurate to within centimeters, making it ideal for a wide range of applications.
Q:The picture is real product?
A:Yes,all product pictures are real product.
Q:If stock quantity is not enough from link, how to do?
A: Contact/Leave message to us, we will reply and help check exact stock within 12 hours.
If go to bulk ordering, usually lead time 10-15 days.
Q:when I go to bulk several items, and find shipping cost is different, how do I do?
A: Shipping cost depends on unit weight, but if you find shipping cost very high,
Contact/Leave message to us, we will check whether shipping cost can be reduced.
Q:How can I get commercial invoice for company finance?
A: Contact/Leave message to us,leave billing address, we will send PDF version there.
Q:Is the antenna has different length cable or connectors?
A:Yes, can be custom-made, Contact/Leave message to us, we can quote for you.
Q:Is GLONASS better than GPS?
A:The 2 systems also differ somewhat on accuracy. GLONASS position accuracy is 5-10m while GPS is 3.5-7.8m.
Therefore, GPS outweighs GLONASS in accuracy as lower error numbers are better.
Q:Should you use GPS with GLONASS?
A:Actually only gps should do its job in case satellite reception is perfect.
The combination with another system will improve accuracy when the signal gets weaker.
Q:Does GPS work without an antenna?
A:GPS (Global Positioning System) systems work by receiving signals from satellites.
|

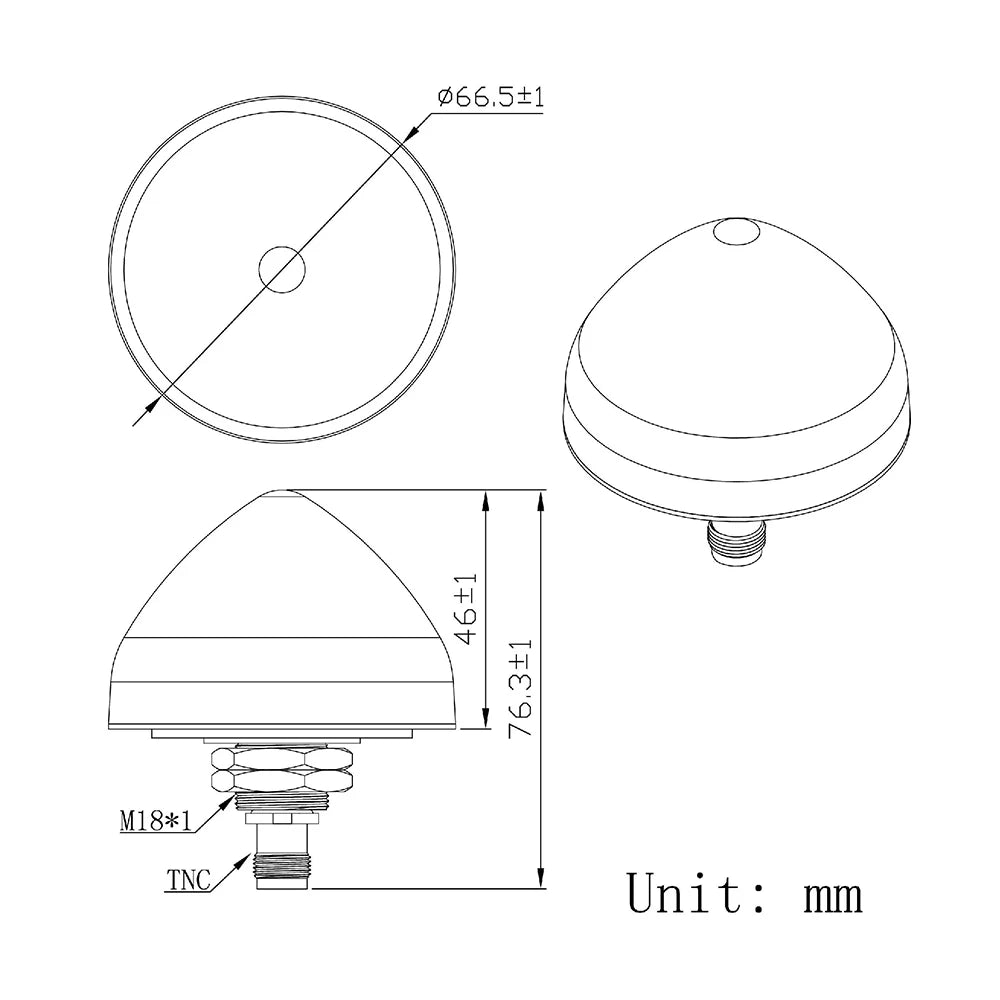

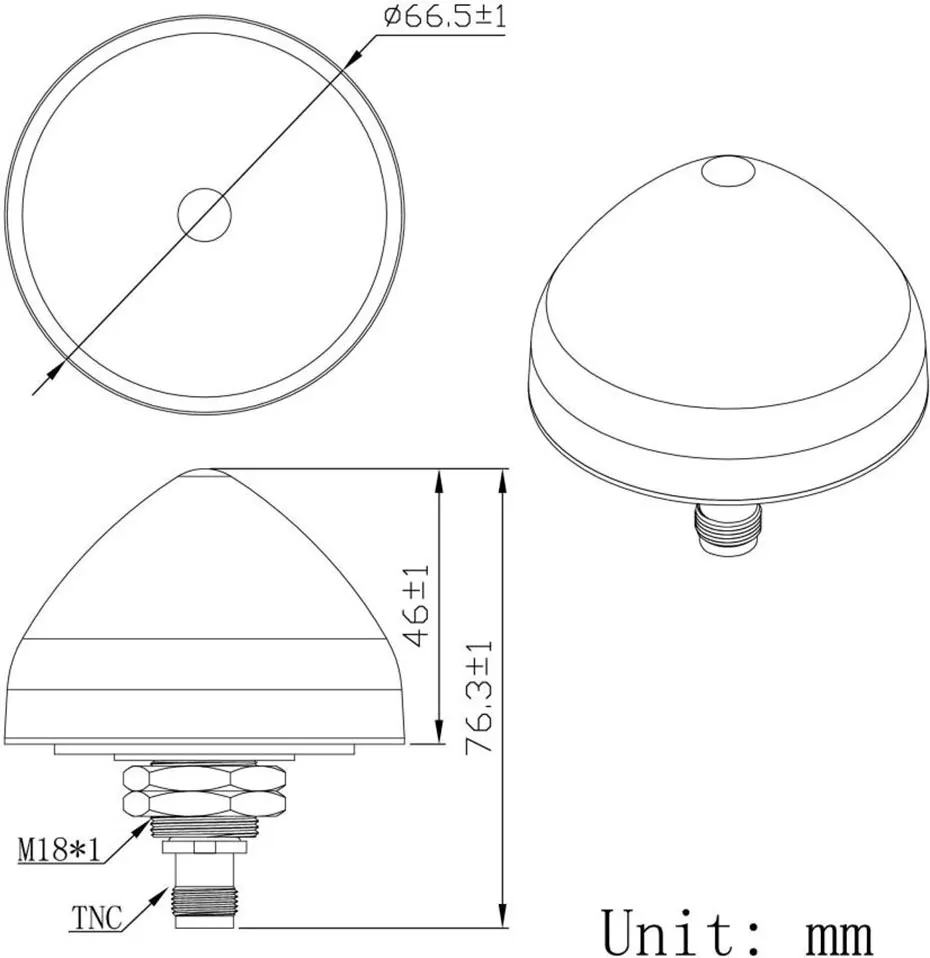

DIMENSIONS&SPECIFICATIONS |
|
|
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBic@100mm Ground Plane（Zenith） |
|
|
V.S.W.R |
＜1.5 |
|
|
Impedance |
50Ω |
|
|
Axial Ratio |
4dB@90°,6dB@20° |
|
|
Dimension |
25*25*6mm |
|
|
LNA |
Gain |
40dB typ. |
|
Noise Figure |
＜2.5dB |
|
|
Ex-band Attenuation |
50dB@CF±50MHz |
|
|
Supply Voltage |
2.7~10V DC |
|
|
Current Consumption |
＜25mA |
|
|
V.S.W.R |
＜1.5 |
|
|
Mechanical |
Connector |
TNC |
|
Radome Material |
ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 |
|
|
Vibration |
3 axis,10 to 200Hz,sweep 15min,3G |
|
|
Shock |
Vertical axis:50G,other axes:30G |
|
|
Environmentally Friendly |
ROHS Compliant |
|
|
ESD Protection |
15KV air discharge |
|
|

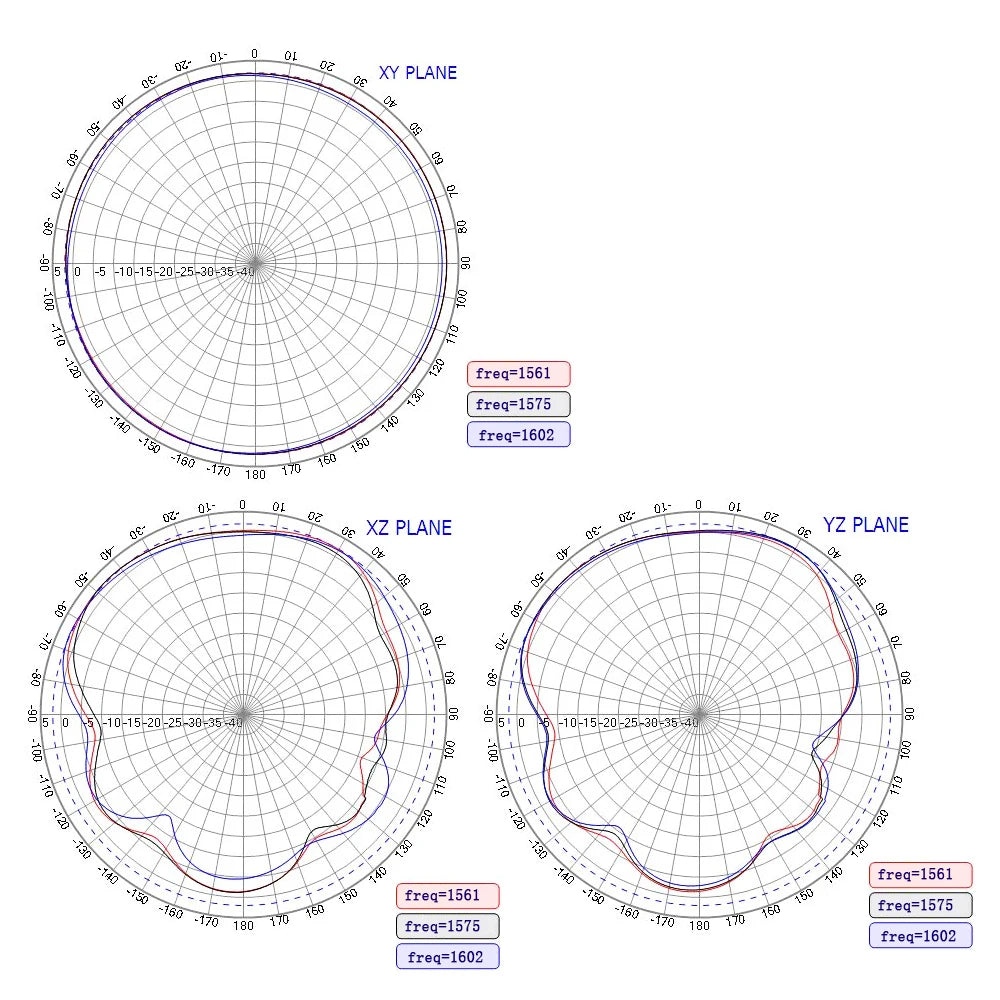

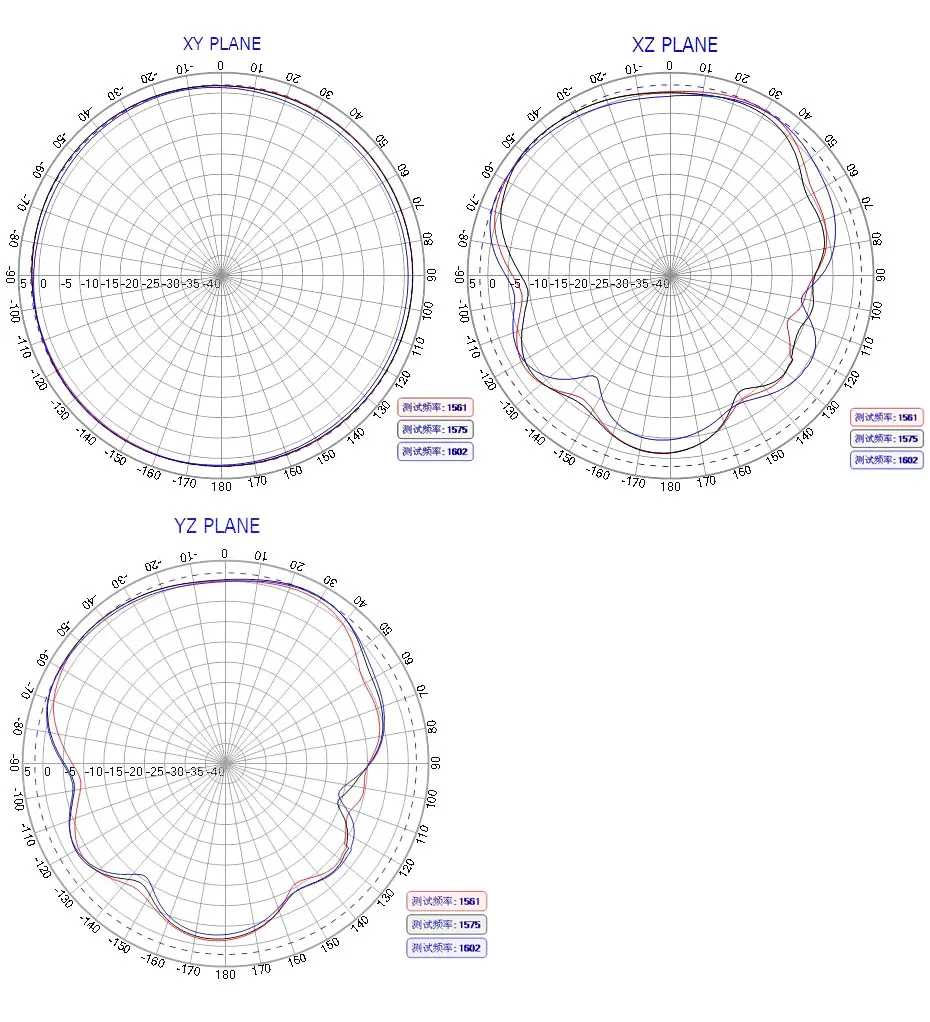

Radication Pattern |
|
|
