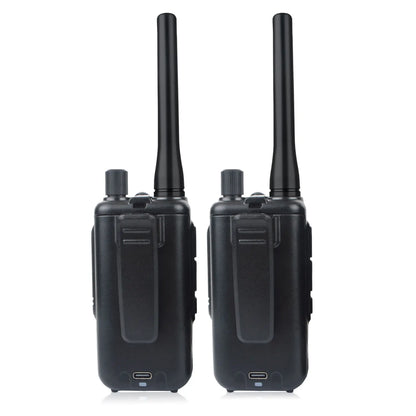

Compact Dual PTT Walkie Talkie Set with Air Band Reception
Compact Dual PTT Walkie Talkie Set with Air Band Reception
Couldn't load pickup availability
Compact Dual PTT Walkie Talkie Set with Air Band Reception
Photos:
Features:

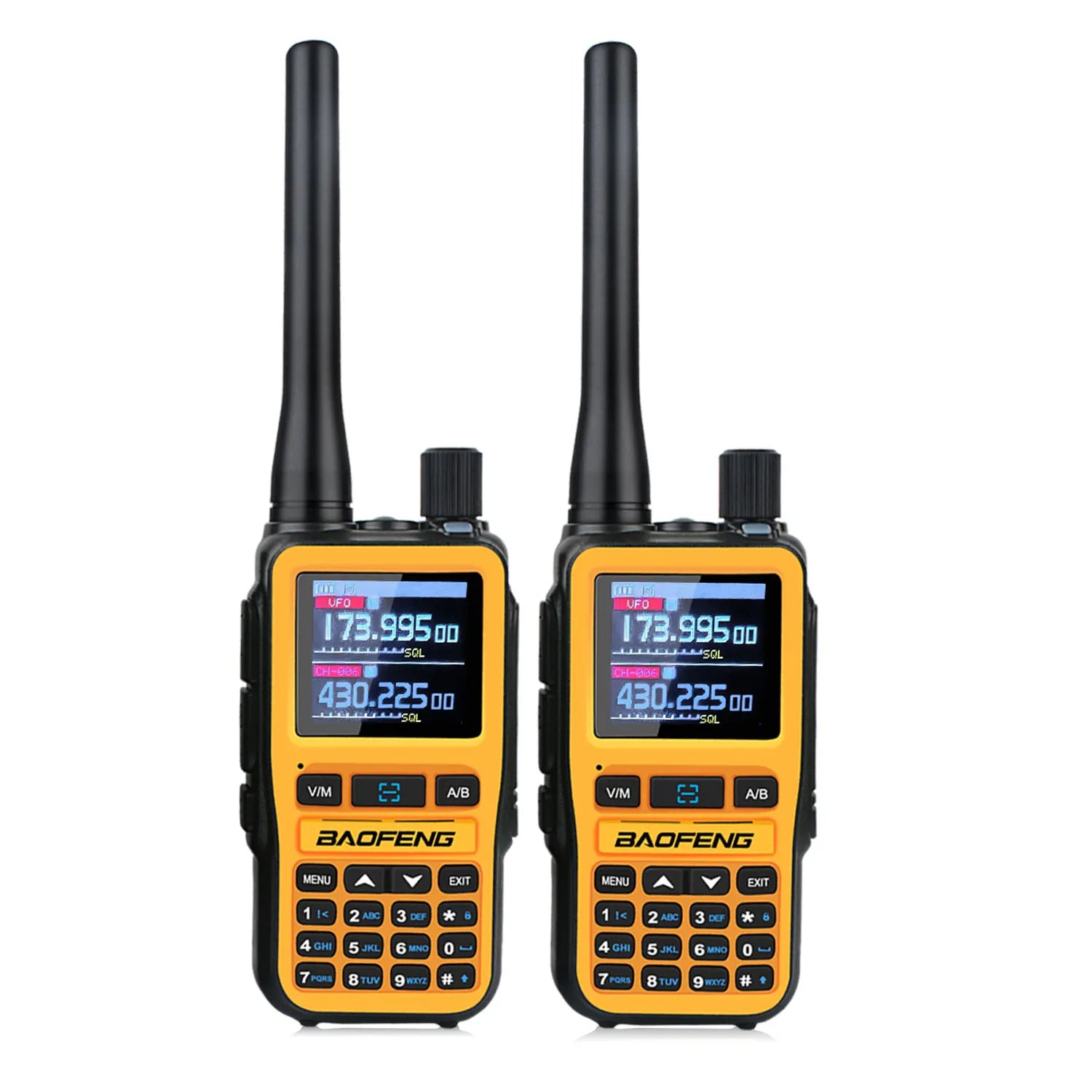

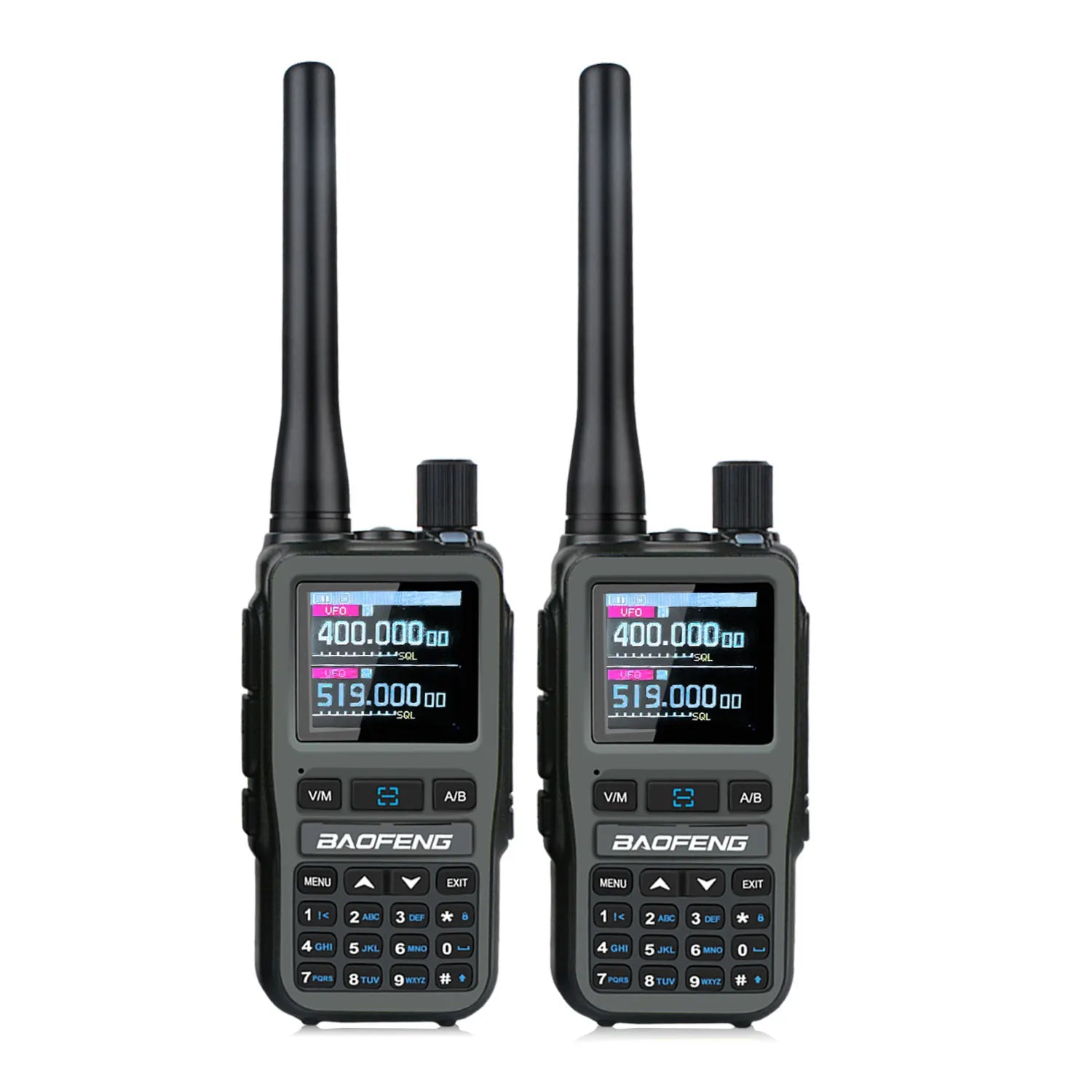

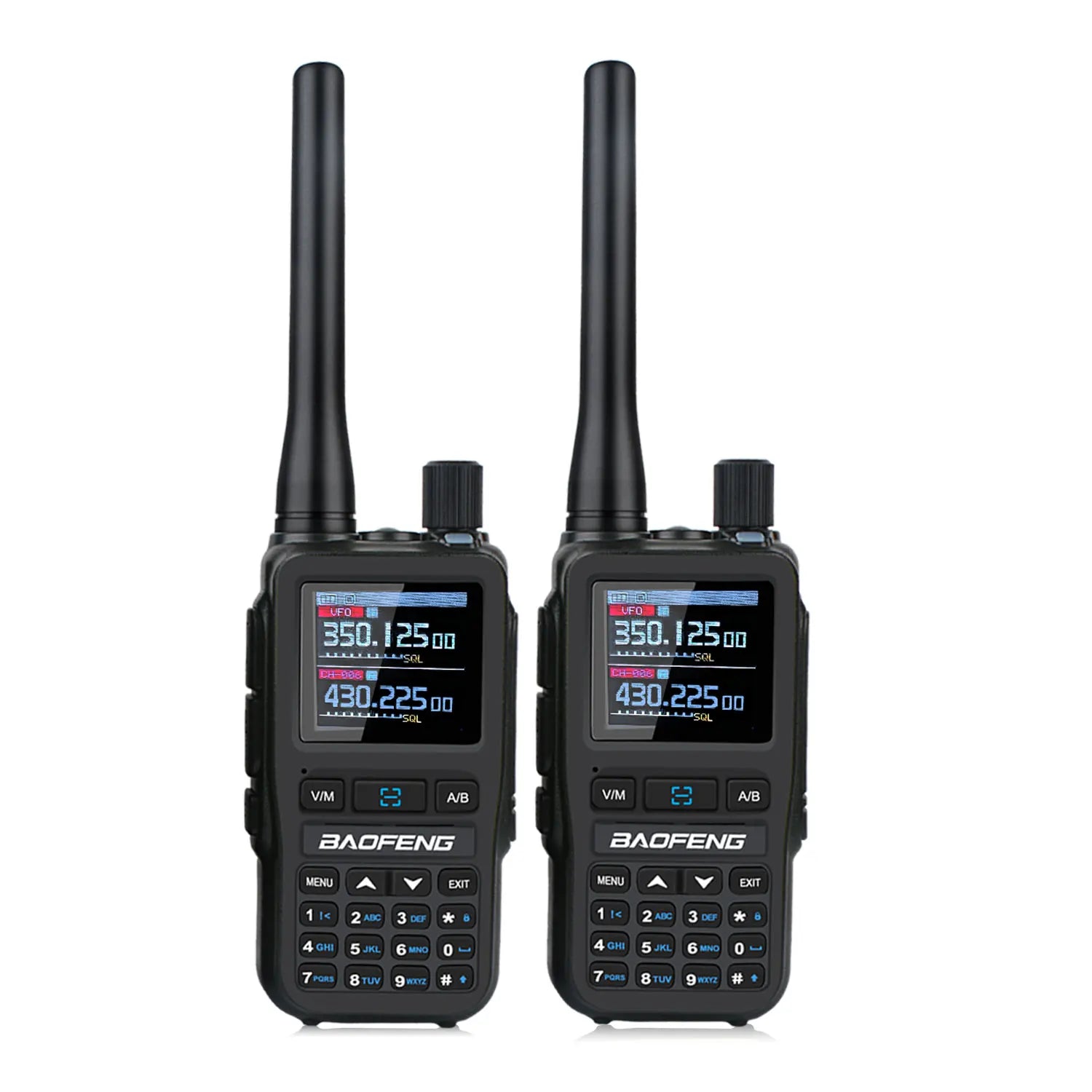

Paired Package

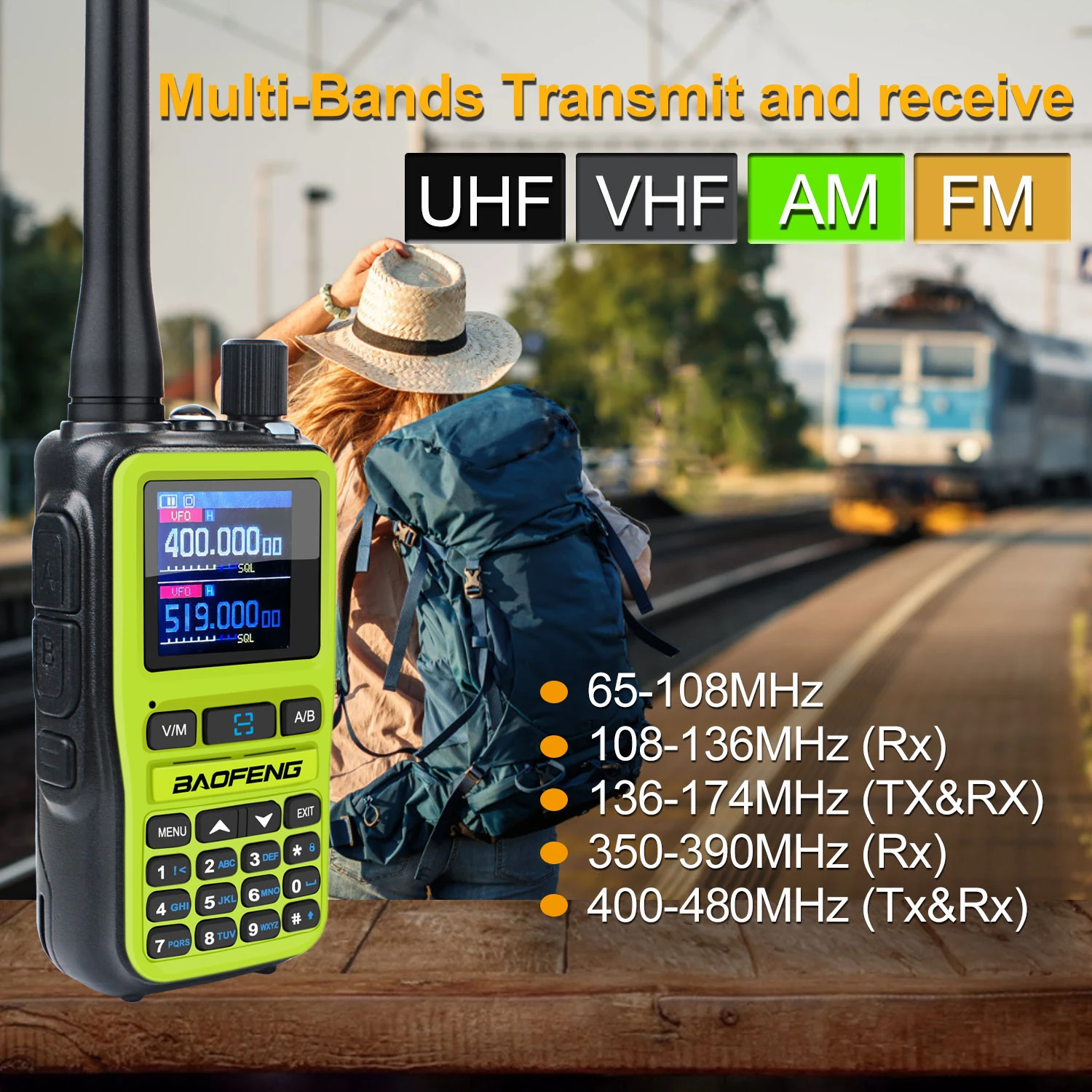

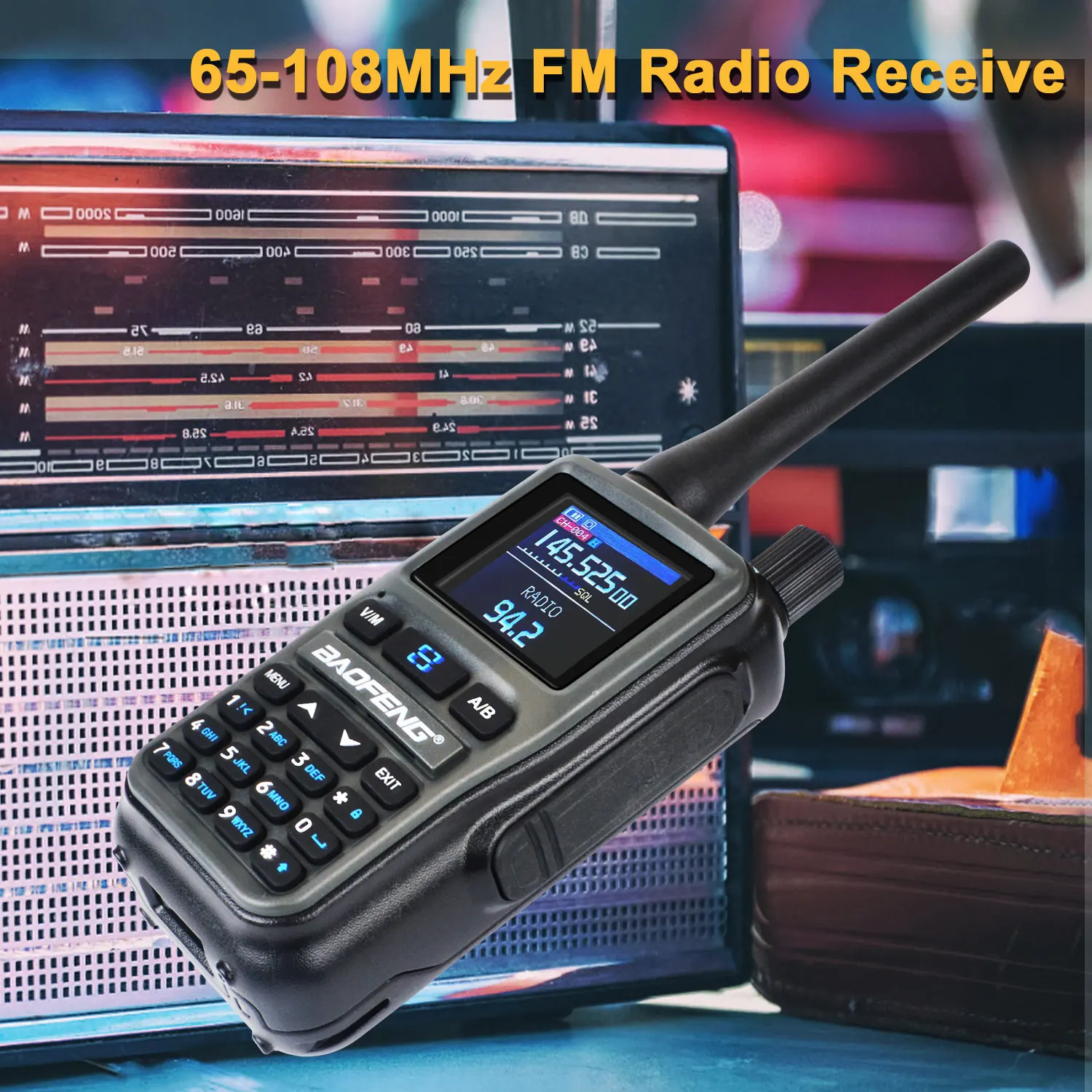

65-108MHz FM commercial Radio Receive only

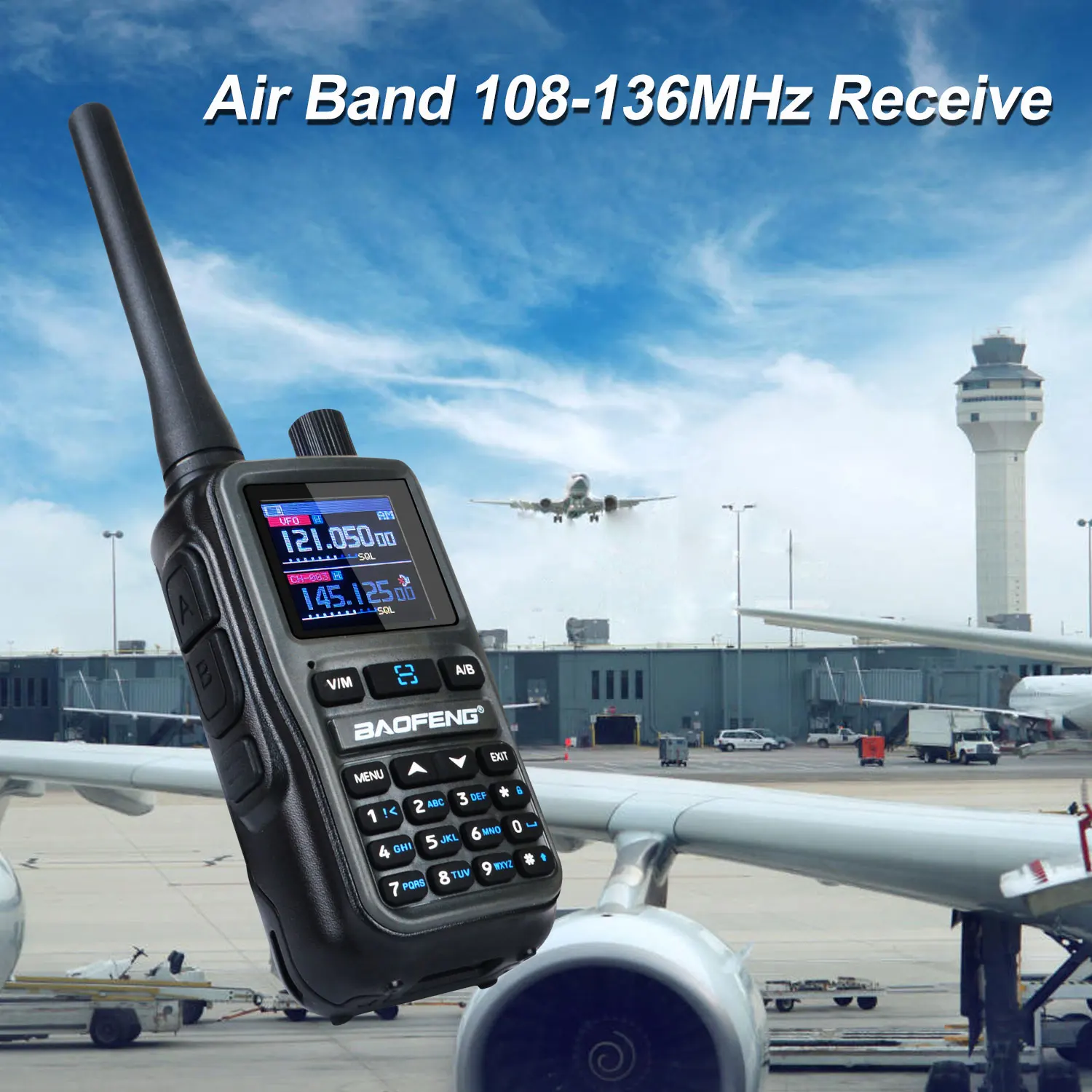

108-135.99750MHz Aviation Band Receive only
VHF:136-174MHZ TX&RX
UHF: 400-520MHz TX&RX

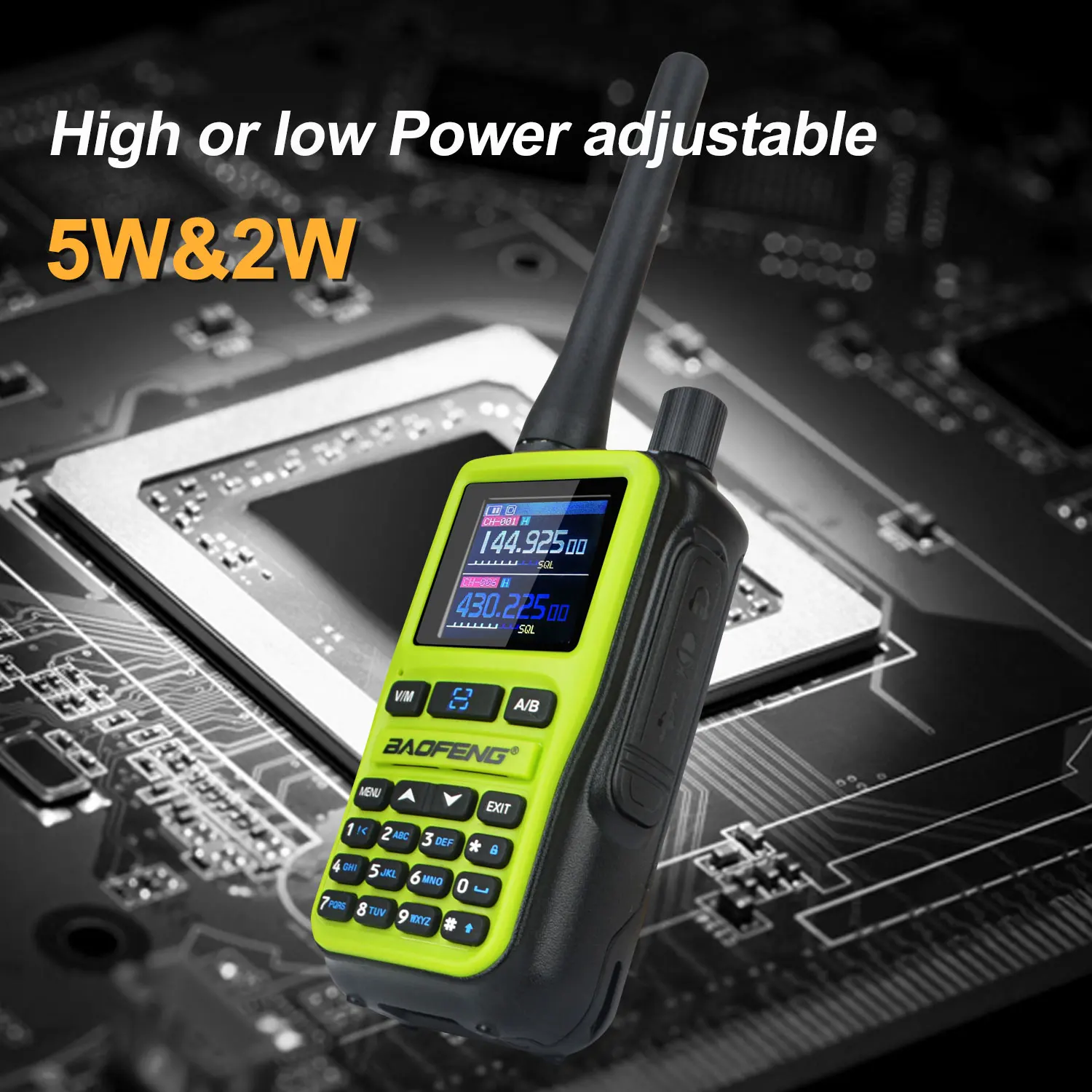

High Power (5W)/Low Power (2W) Select-able 5W/2W

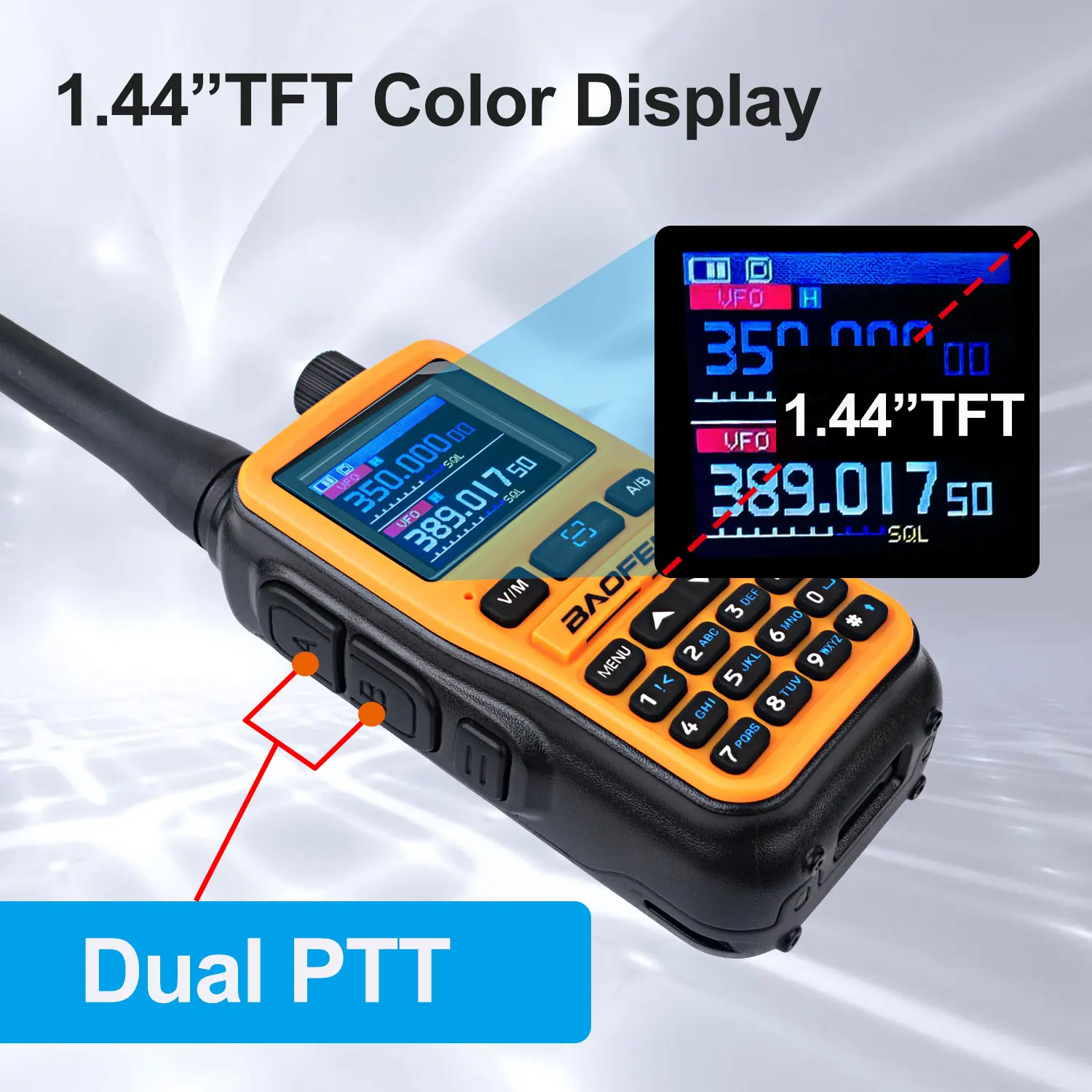

1.44 inch TFT Color Display Screen
one key fast Channel Copy

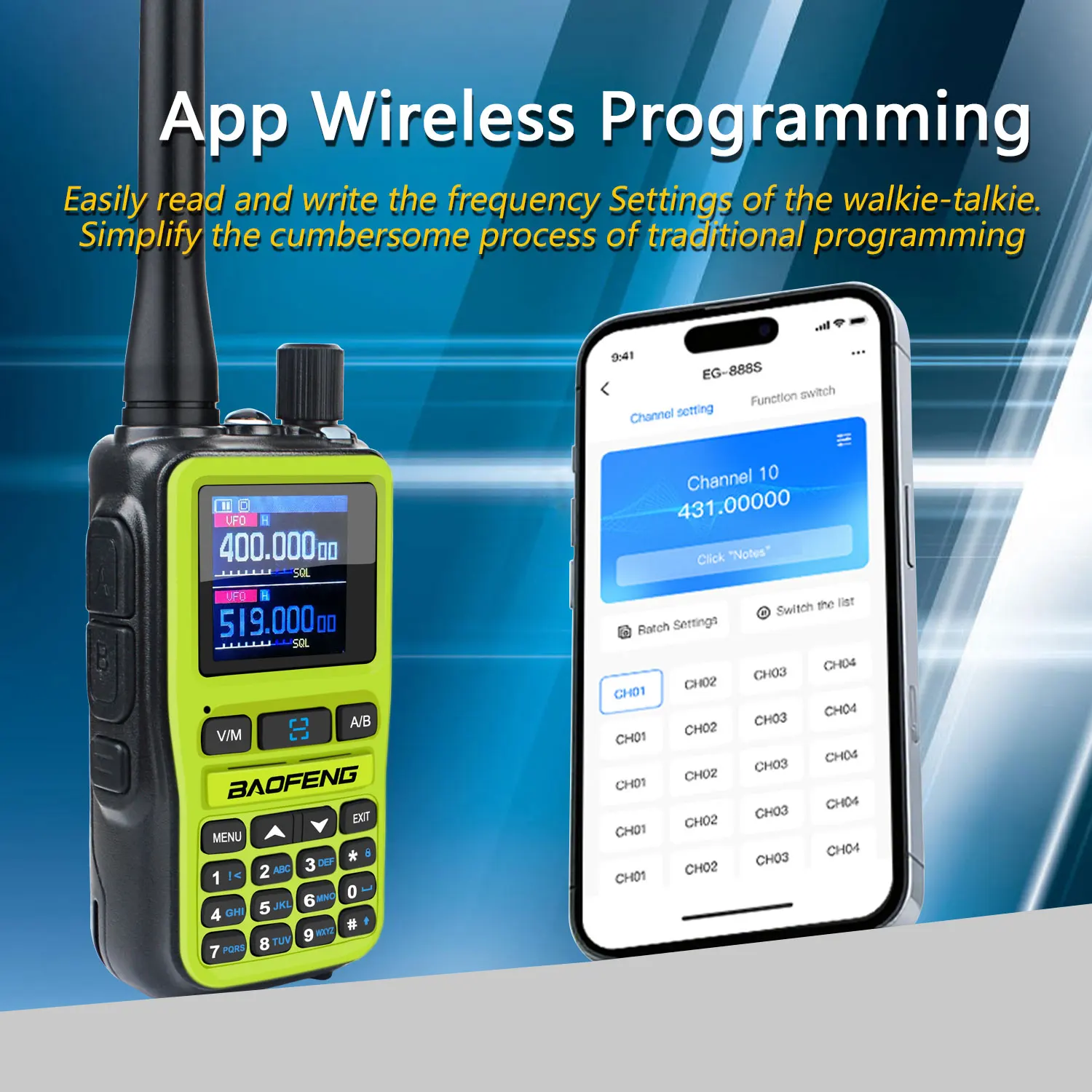

APP Wireless Programming

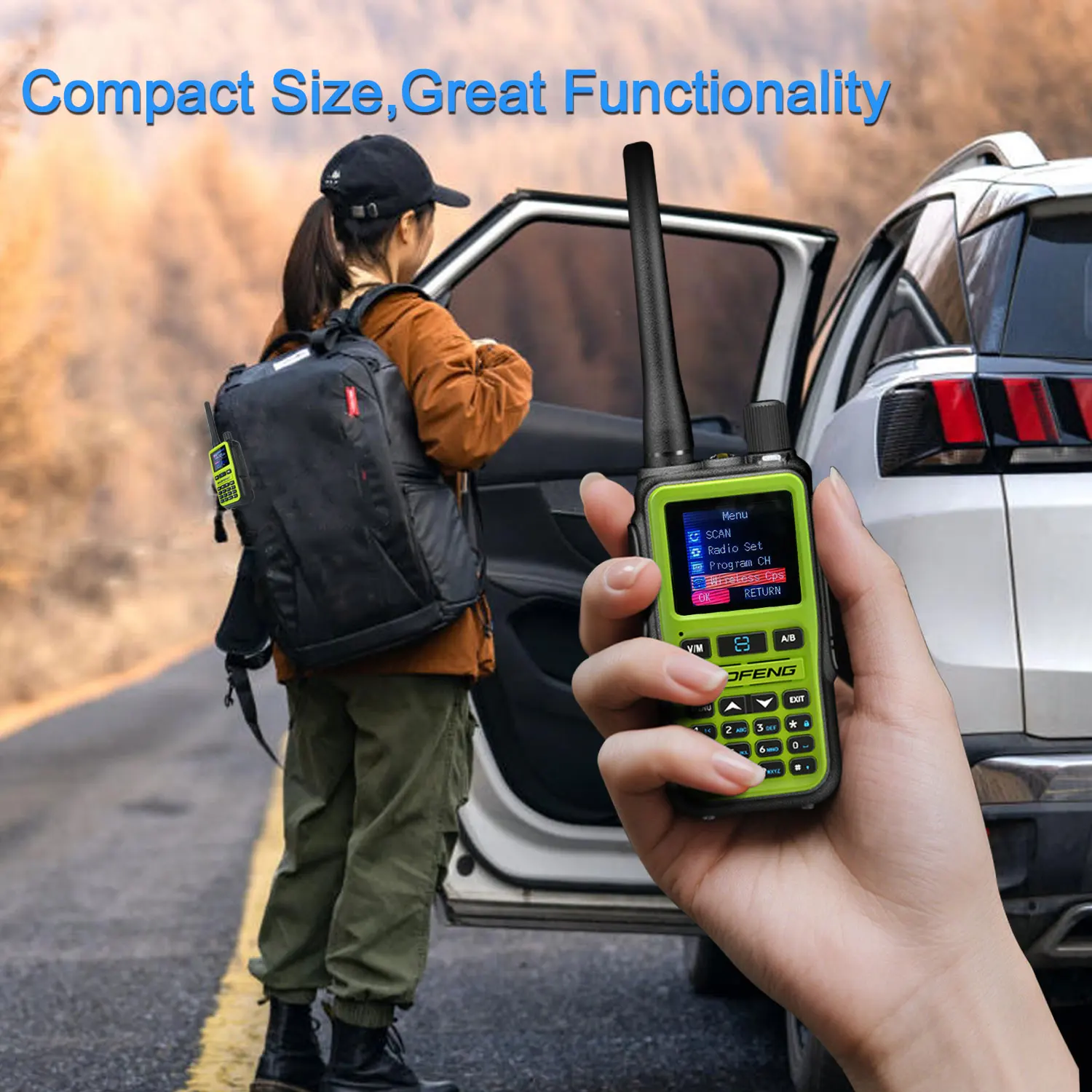

Mini Compact size

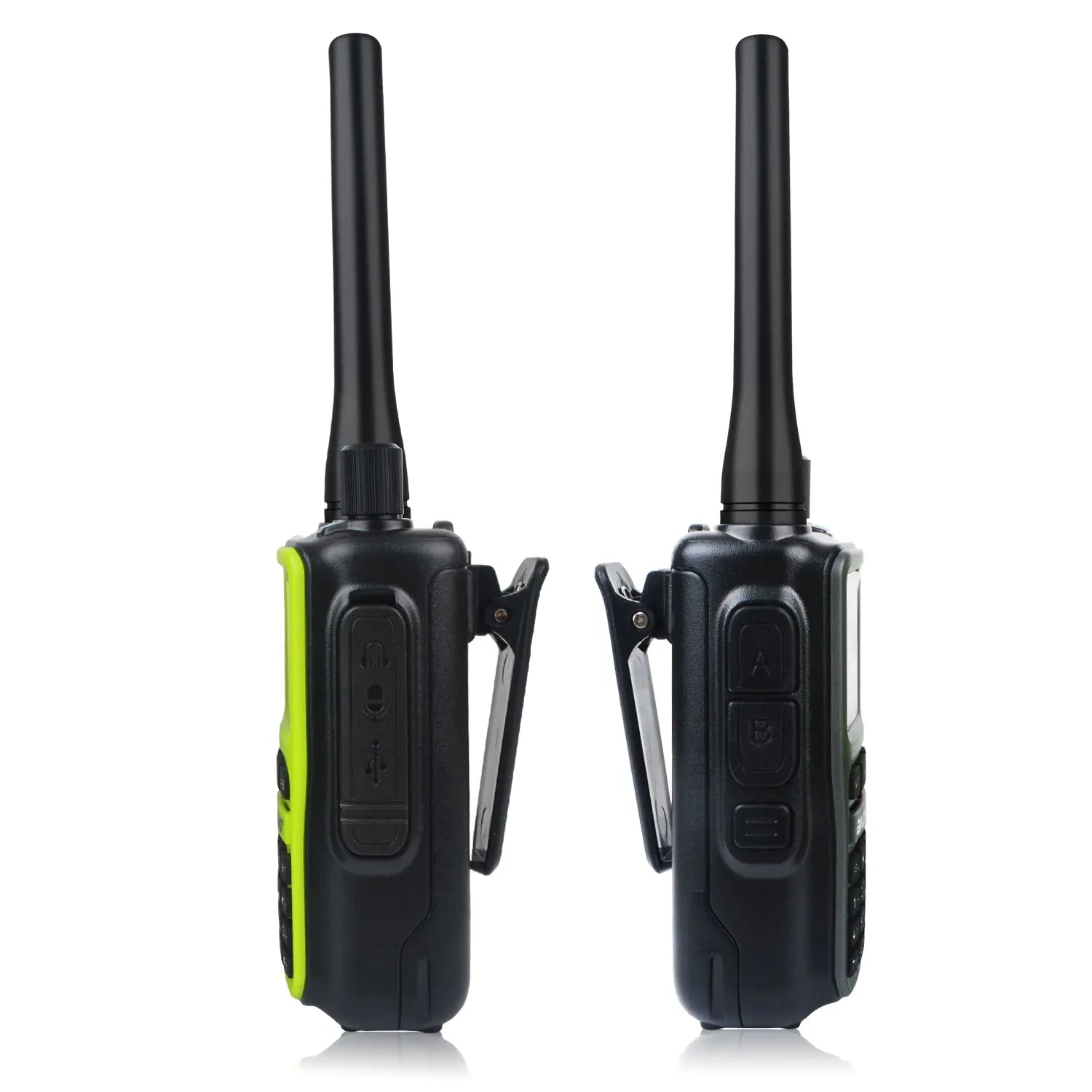

Dual-PTT Switches Design
1000Hz/1450/1750/2100Hz alert

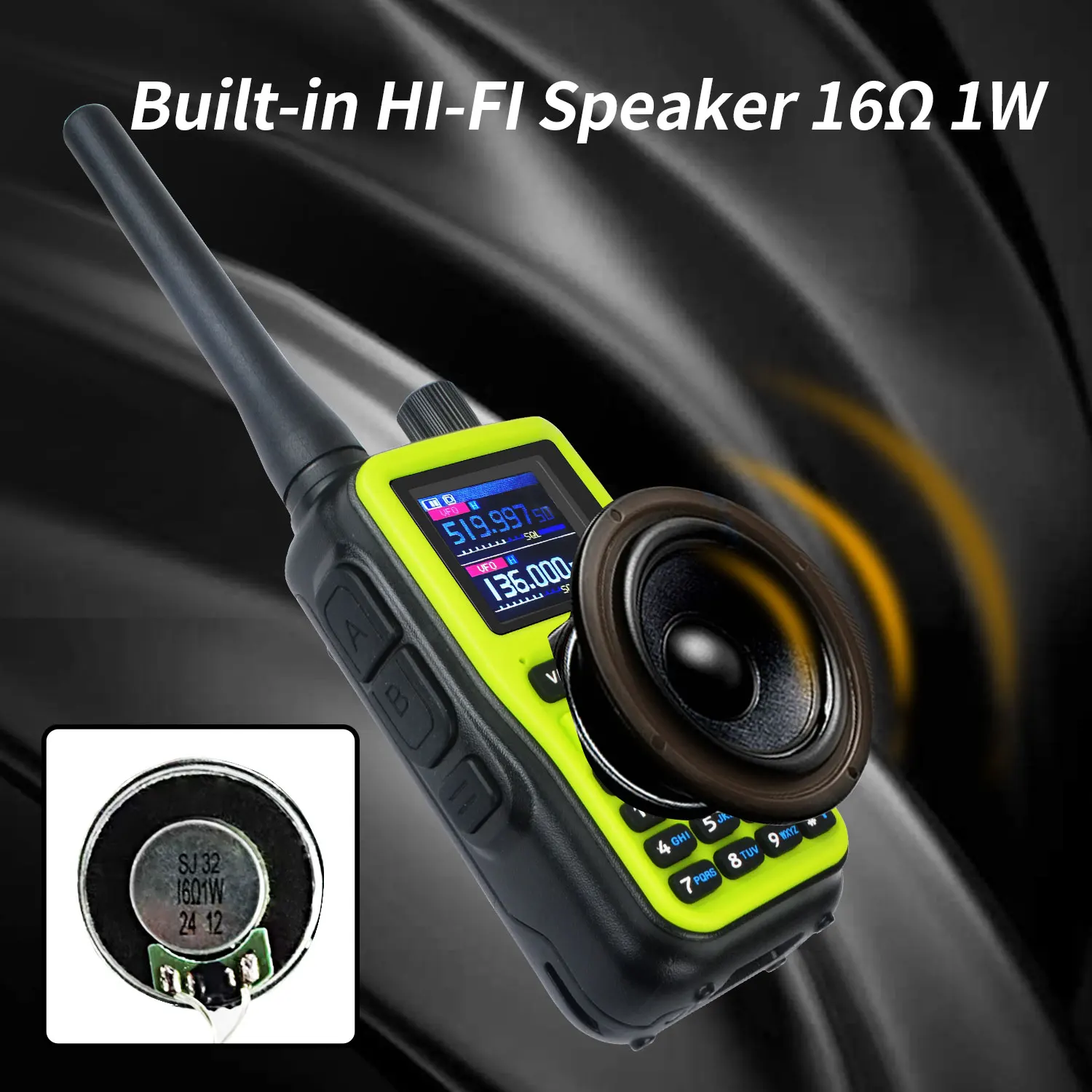

Built-in HI-FI Speaker 16Ω 1W

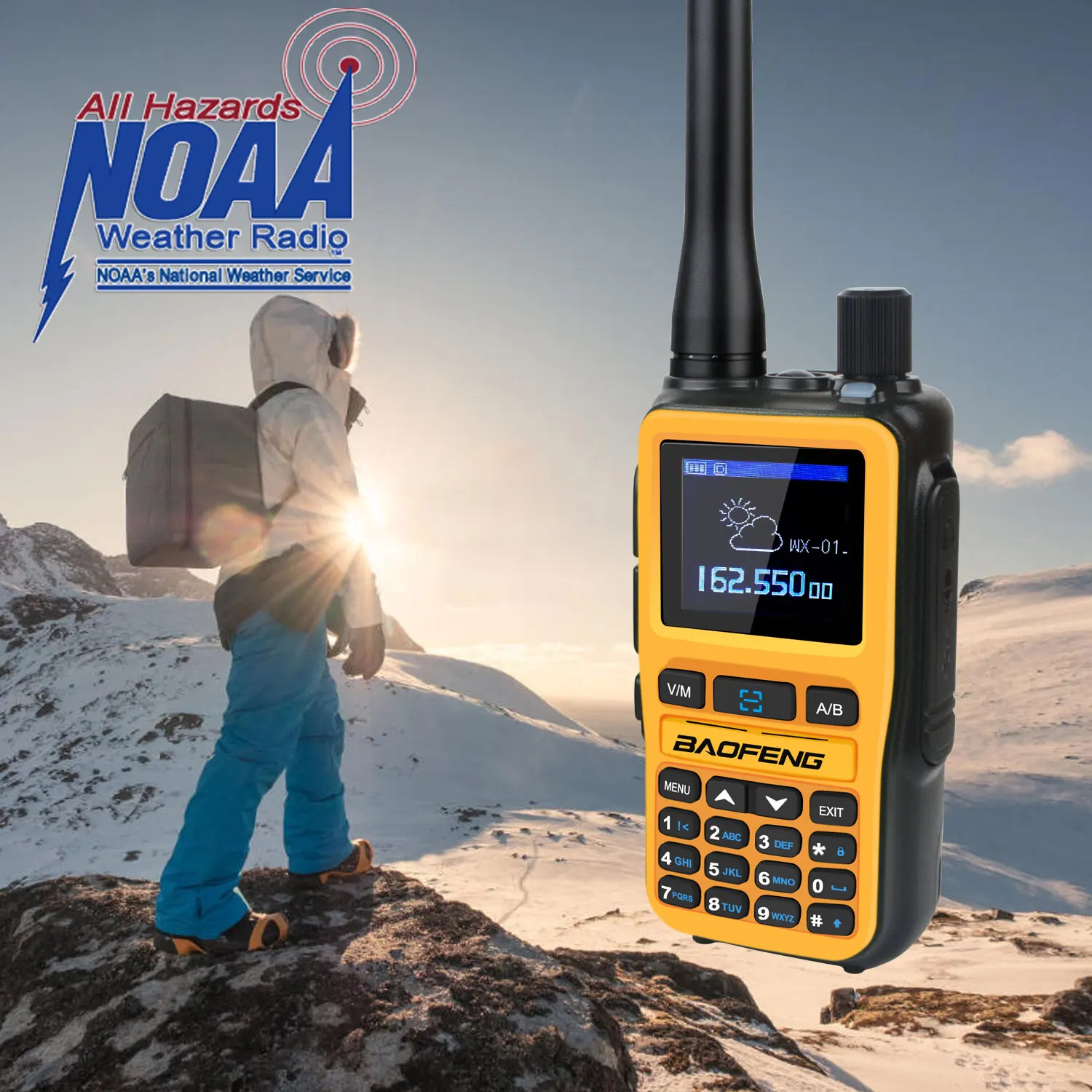

10 NoAA Weather Forecast Channels

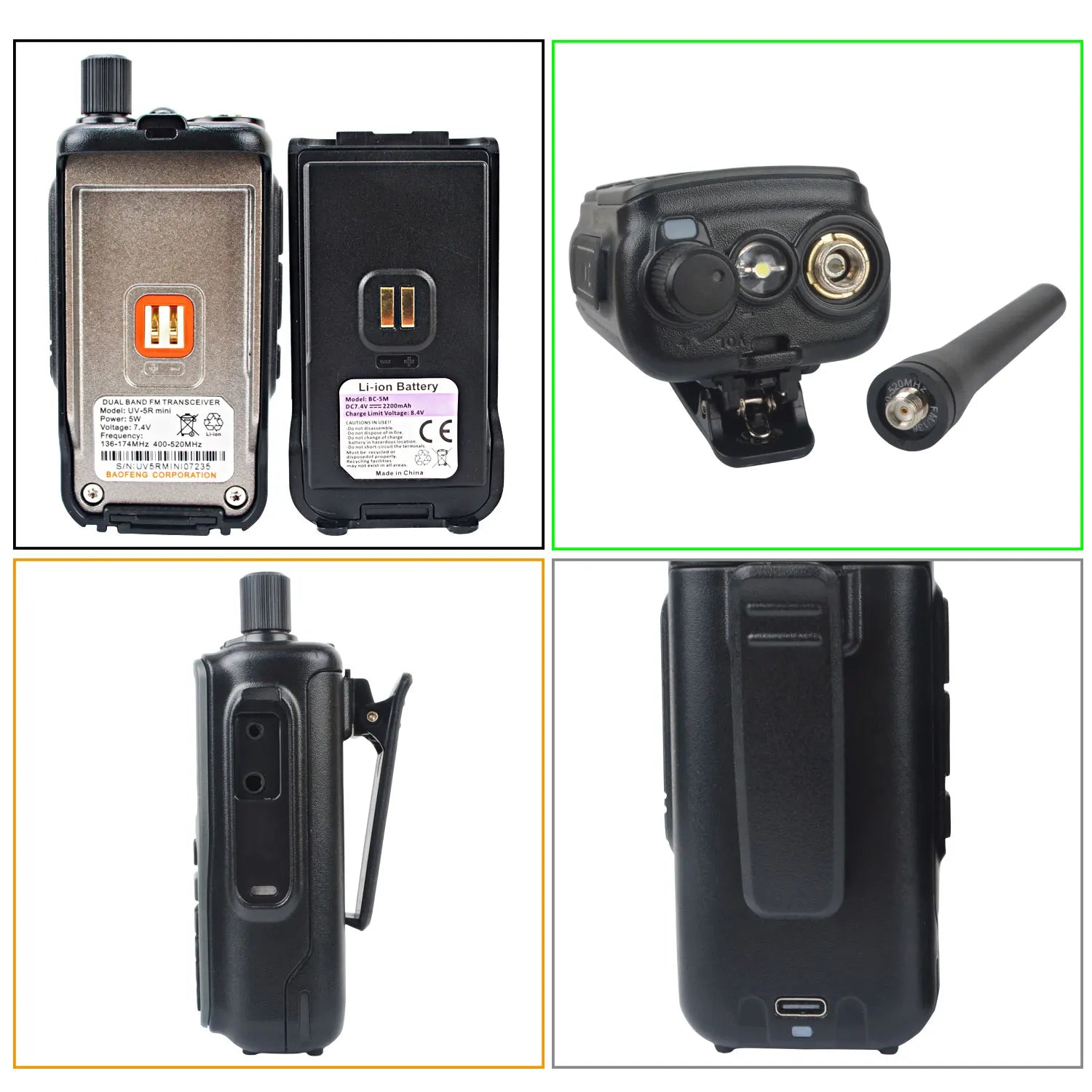

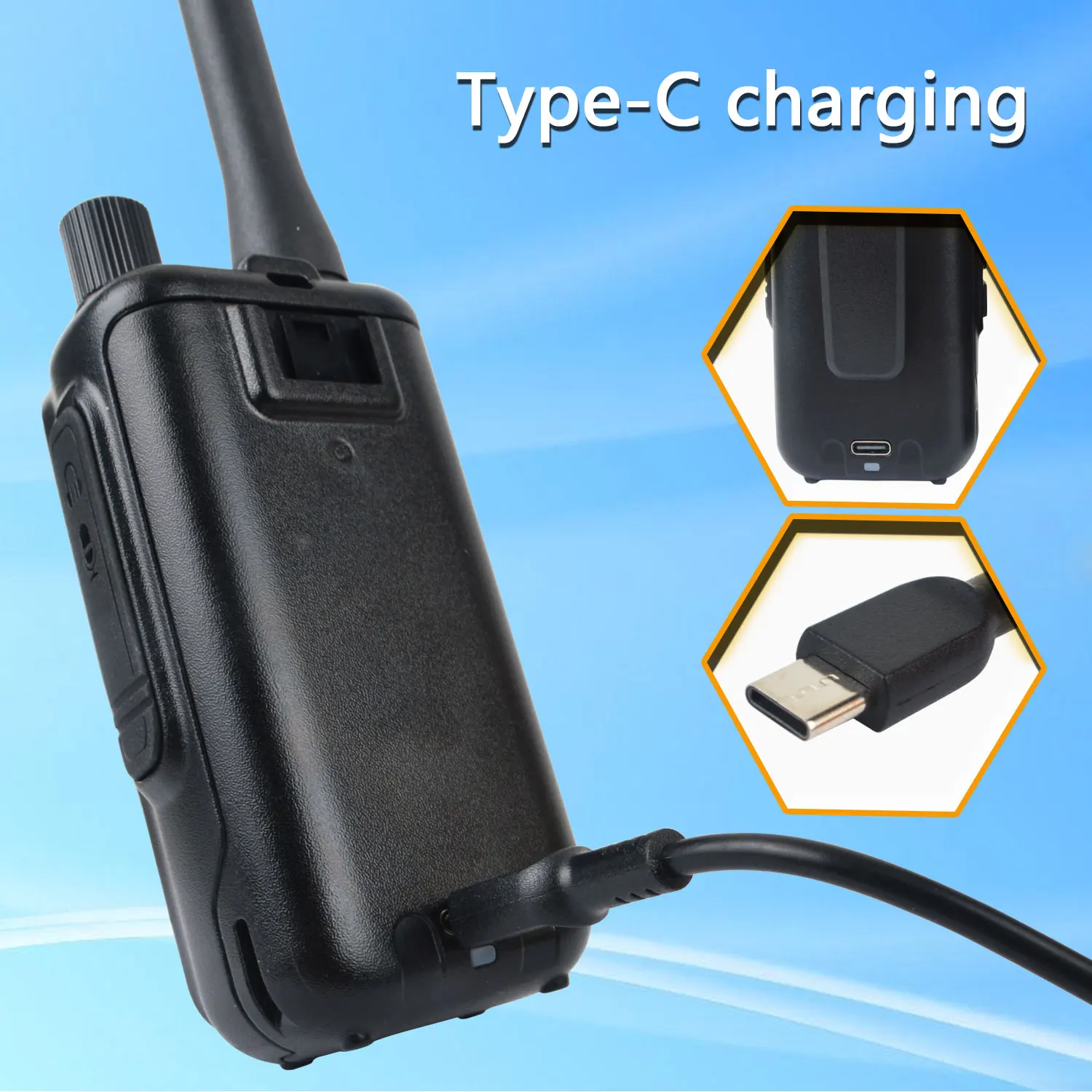

Direct Type-C cable charging port on the battery
1600mah ultra high battery power Capacity for a longer working time duration

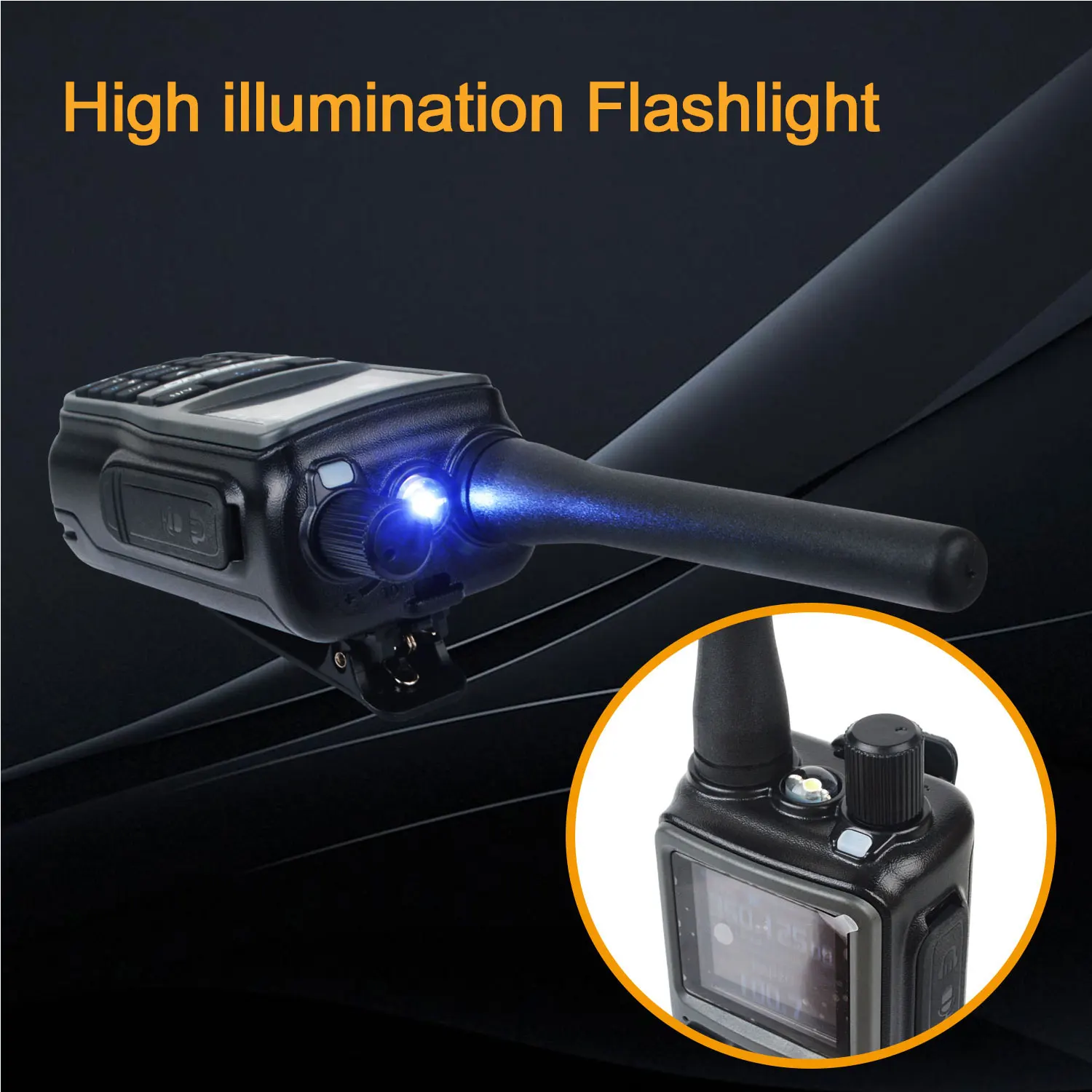

High-illumination Flashlight

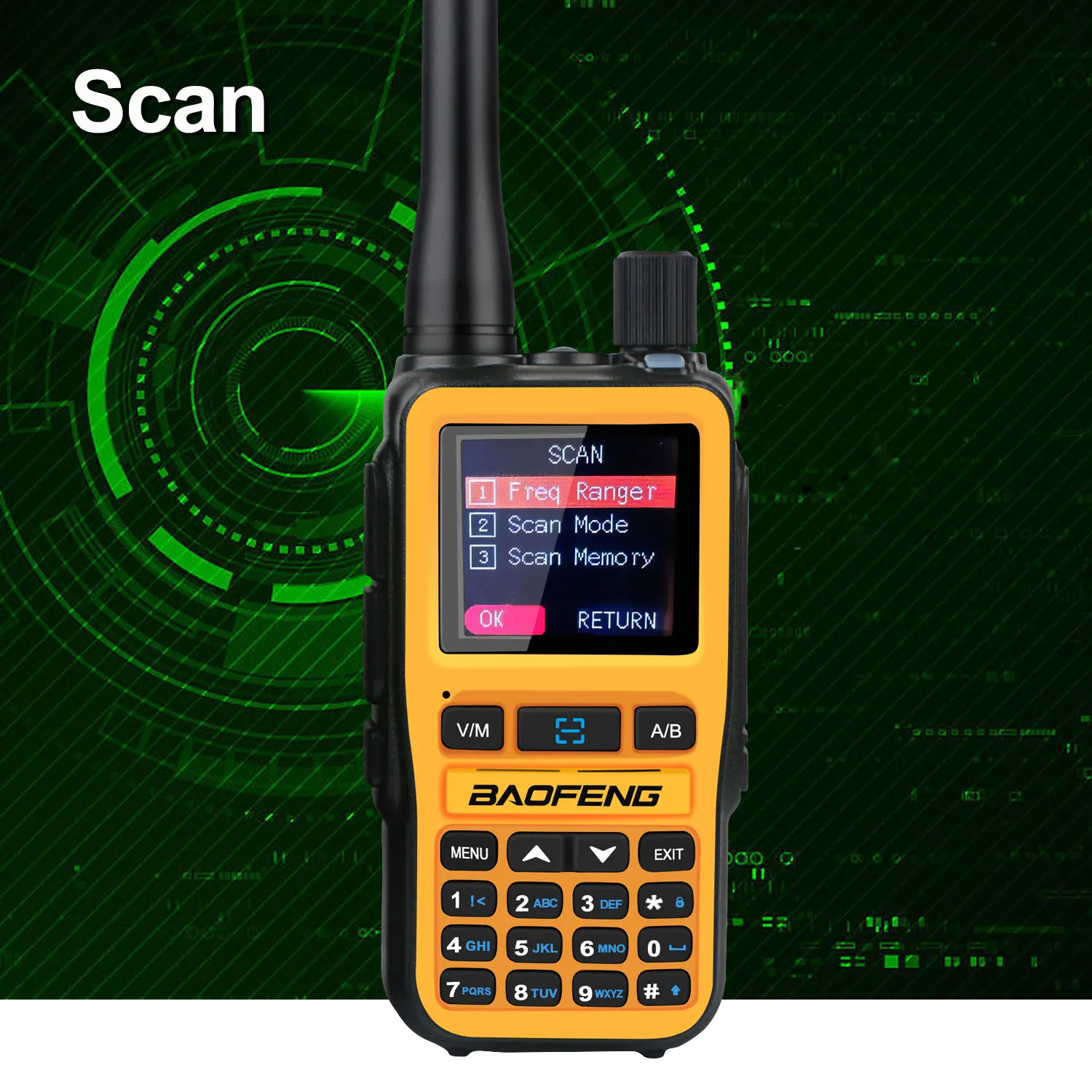

Scan
VOX
Roger Beep
Dual Watch
DTMF
PTT-ID PTT
SOS Alarm
Manual Programming
Technical Specifications:
|
General |
|
|

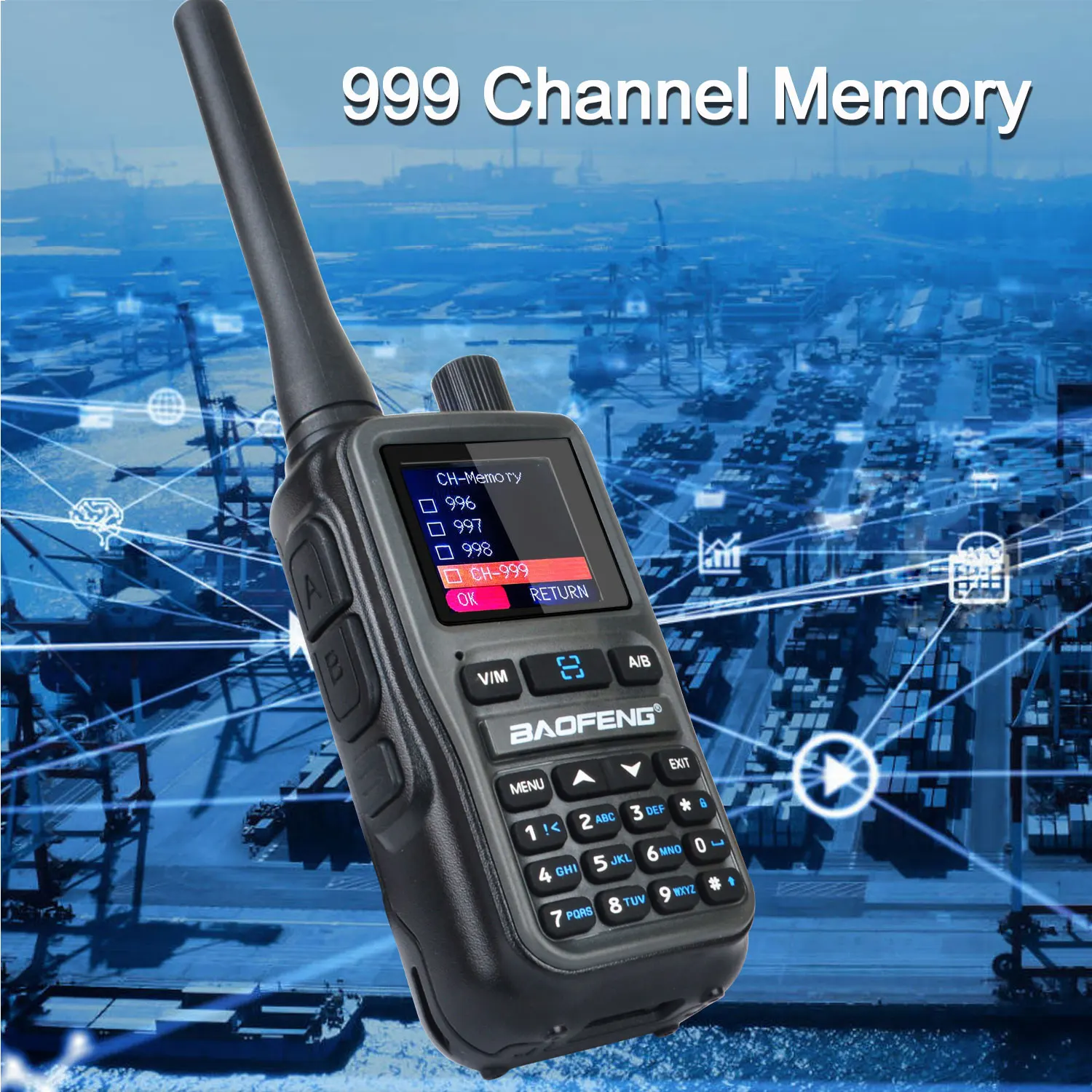

Channel Capacity |
999 |
|
Channel Spacing |
25KHz (Wide Band),12.5KHz(Narrow Band) |
|
Input Voltage |
DC7.4V(Rechargeable Lithium Battery) |
|
Frequency Stability |
±2.5ppm |
|
Antenna Impedance |
50Ω |
|

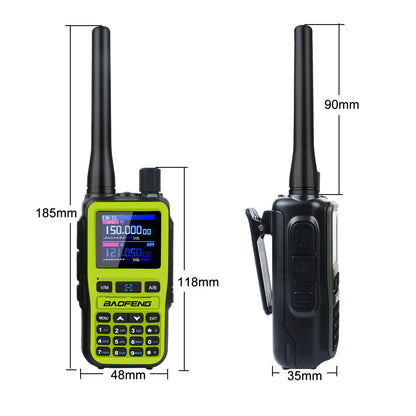

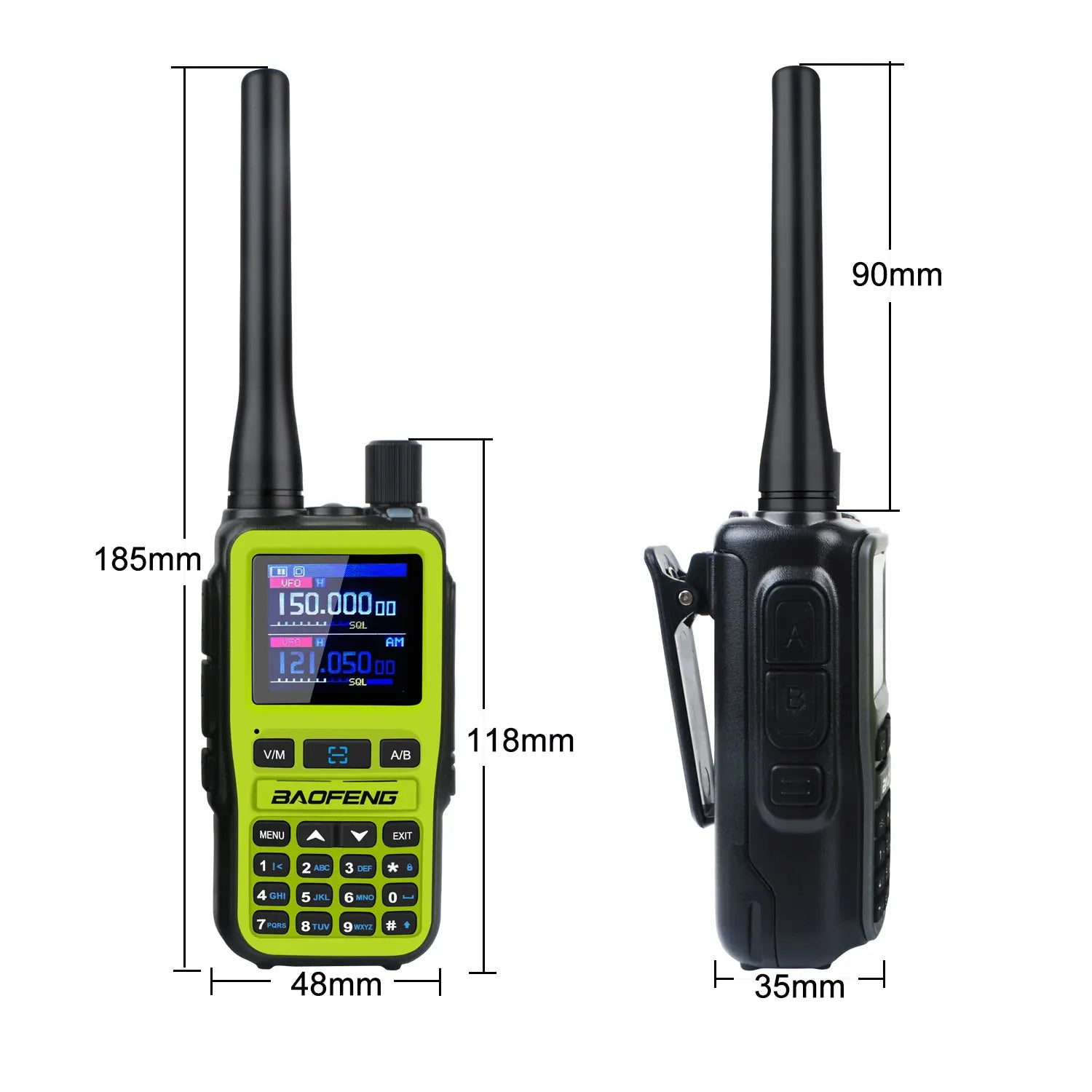

Radio Dimensions |
52(W)*107(H)*37(D)mm |
|
Radio Weight |
200g (including antenna and battery) |
|
Transmitter |
|
|
Transmit Current Drain |
≤1.6A |
|
Modulation |
16K0 F3E/11K0 F3E |
|
Max Frequency Deviation |
≤5KHz/≤2.5KHz |
|
FM Hum & Noise |
≥-45dB/≥-40dB |
|
Receiver |
|
|
Sensitivity |
≤0.25Uv (12dB SINAD) |
|
Rated Audio Power Output |
1W 10% |
|
FM Hum& Noise |
≥45dB |

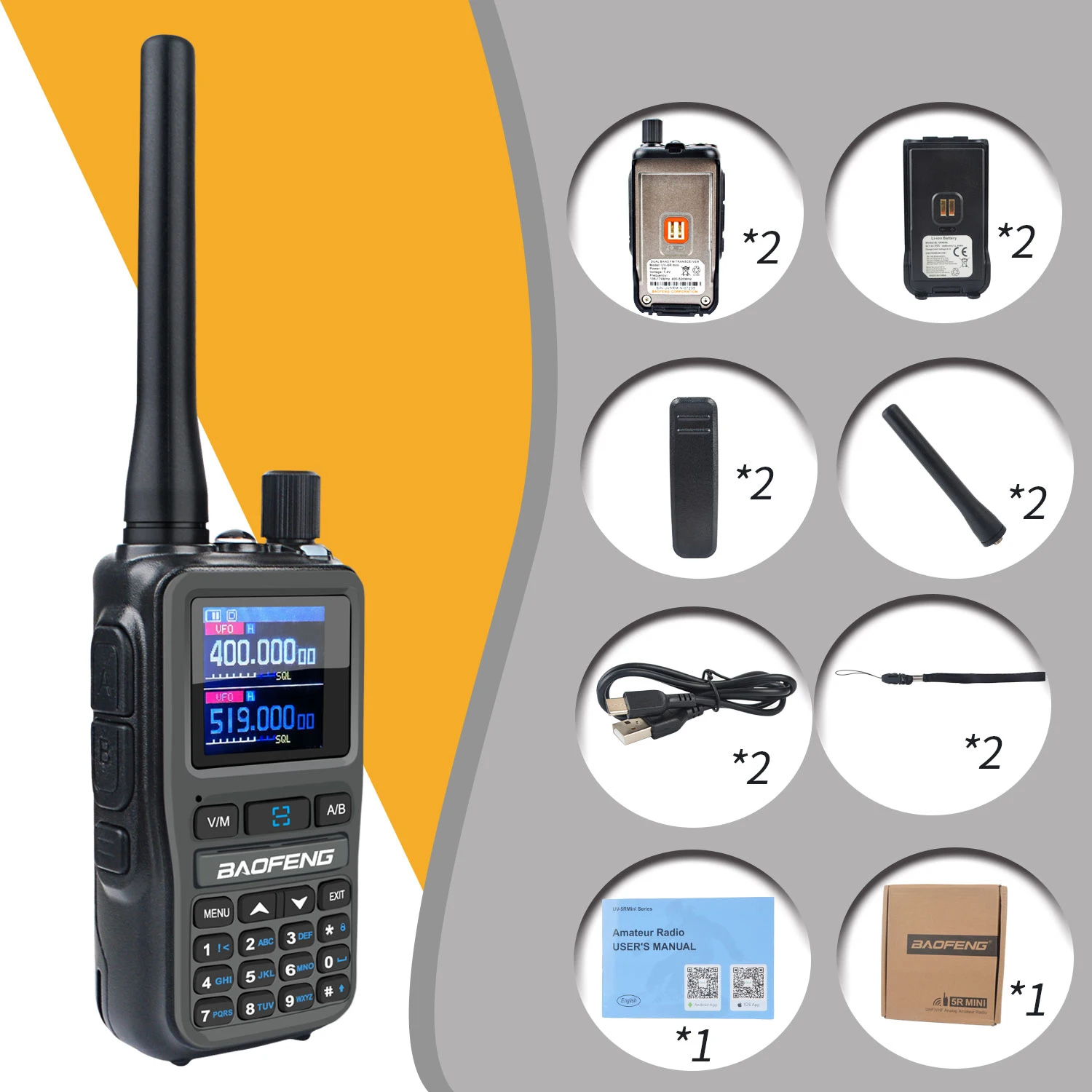

Package Contentsof Each Unit:
2×UV-5R mini Radio Body
2×1600mAh Type-C Rechargeable Battery BC-5M
2×FM/136-174/400/520MHz SMA-Female Antenna
2×Belt Clip
2×USB-C Charging Cable
2×Lanyard
1×English Instruction Manual
