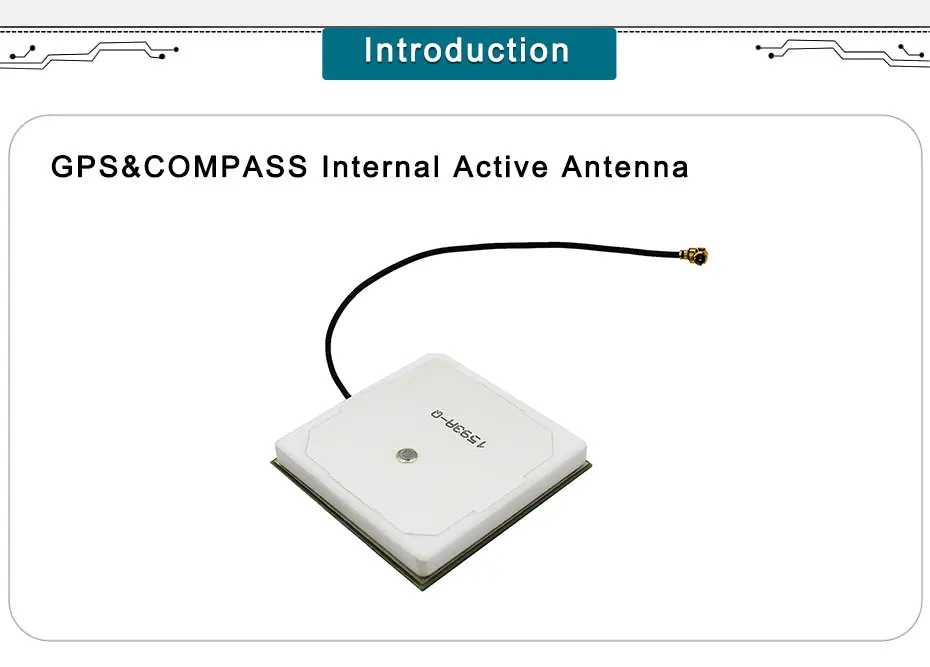

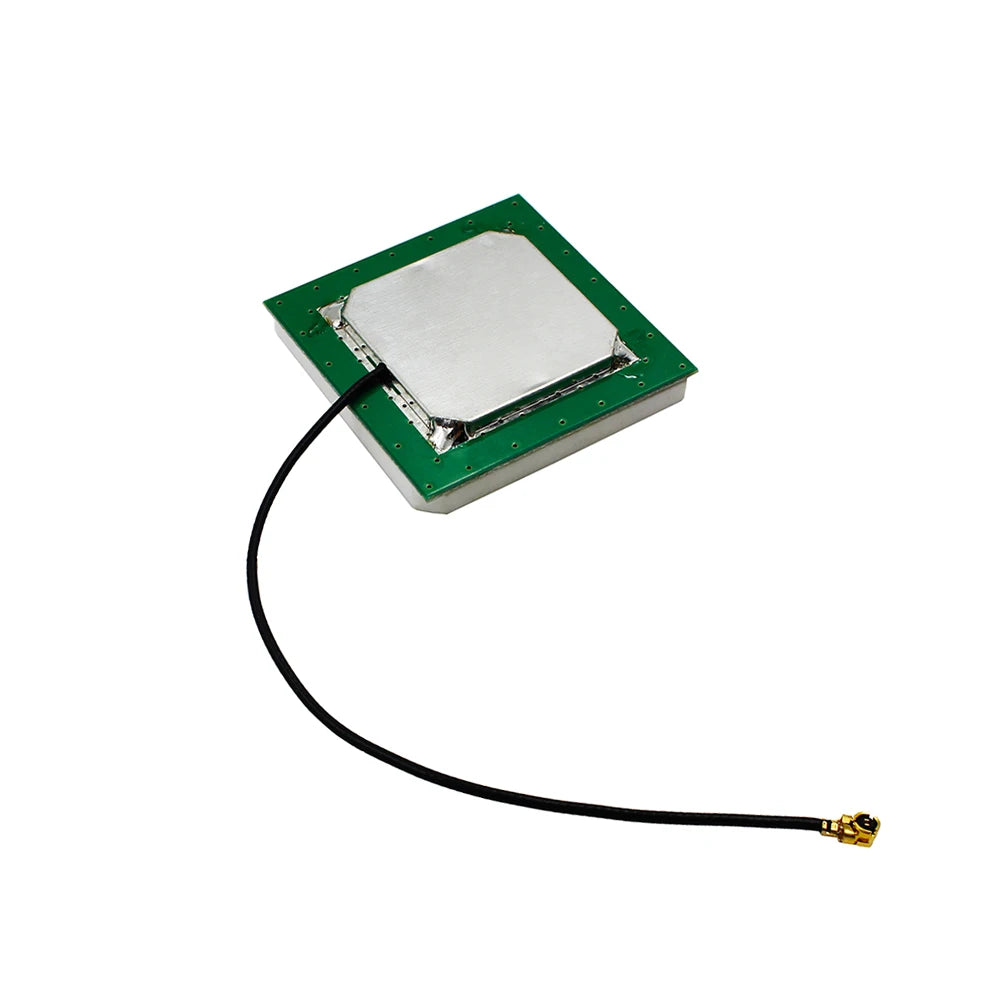

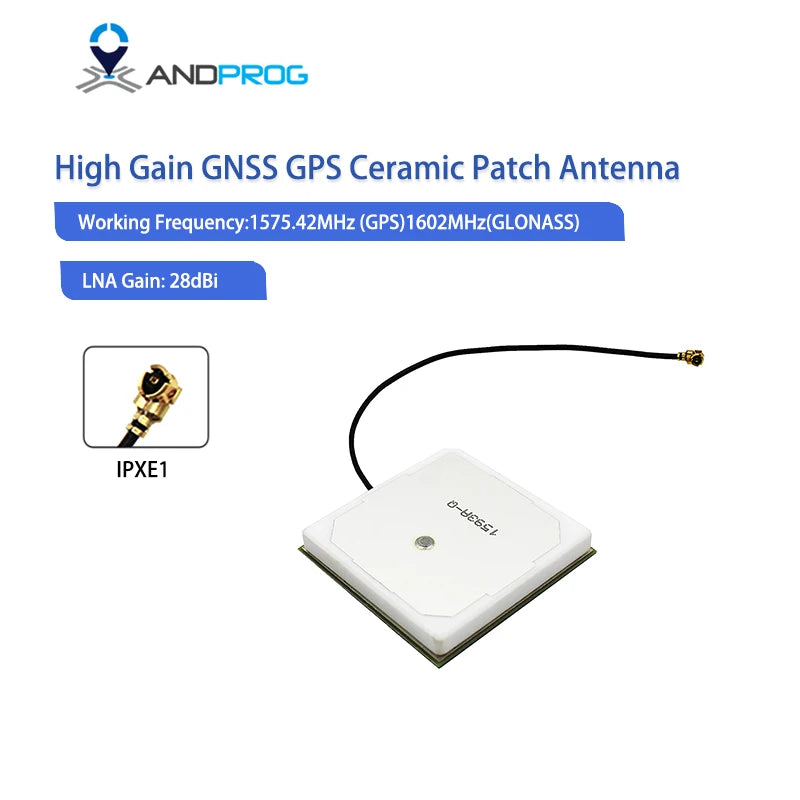

High Gain GNSS GPS Patch Antenna with IPX Connector

High Gain GNSS GPS Patch Antenna with IPX Connector

Regular price $15.45 AUD
Regular price $15.45 AUD Sale price $0.00 AUD
25% Off Sold out

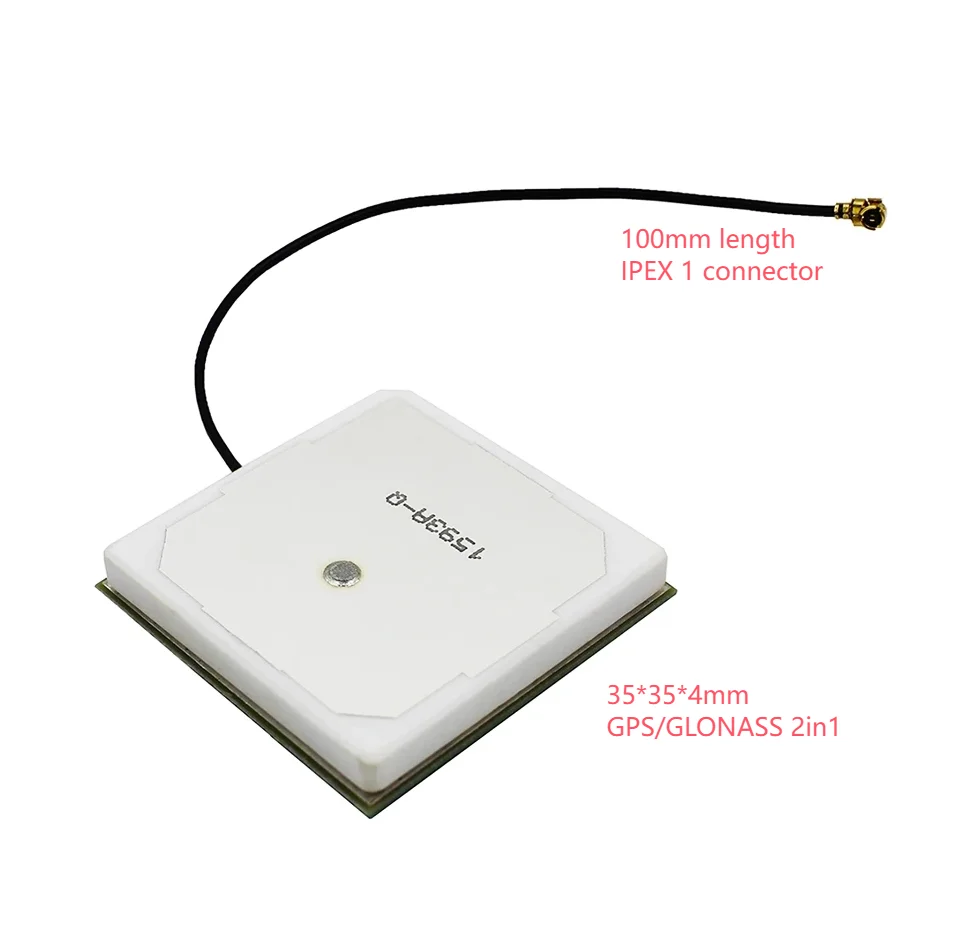

10cm cable
10cm cable
High Gain GNSS GPS Patch Antenna with IPX Connector

High Gain GNSS GPS Patch Antenna with IPX Connector

Regular price $15.45
Regular price $15.45 Sale price $0.00
SAVE Sold out

 FAQ
Q:The picture is real product?
A:Yes,all product pictures are real product.
Q:If stock quantity is not enough from link, how to do?
A: Contact/Leave message to us, we will reply and help check exact stock within 12 hours.
     If go to bulk ordering, usually lead time 10-15 days.
Q:when I go to bulk several items, and find shipping cost is different, how do I do?
A: Shipping cost depends on unit weight, but if you find shipping cost very high,
Contact/Leave message to us, we will check whether shipping cost can be reduced.
Q:How can I get commercial invoice for company finance?
A: Contact/Leave message to us,leave billing address, we will send PDF version there.
Q:Is the antenna has different length cable or connectors?
A:Yes, can be custom-made, Contact/Leave message to us, we can quote for you.
GPS is for SMA Male/Fakra C(blue), which are normal.
Fakra C has straight and right angle(90 degree).
Wellcome to tell us of your requirements.
Q:Is GLONASS better than GPS?
A:The 2 systems also differ somewhat on accuracy. GLONASS position accuracy is 5-10m while GPS is 3.5-7.8m.
Therefore, GPS outweighs GLONASS in accuracy as lower error numbers are better.
Q:Should you use GPS with GLONASS?
A:Actually only gps should do its job in case satellite reception is perfect.
The combination with another system will improve accuracy when the signal gets weaker.
Q:Does GPS work without an antenna?
A:GPS (Global Positioning System) systems work by receiving signals from satellites.
That isn't possible without an antenna
Q:Where to put a GPS antenna?
A:In most cases, you can mount the GPS antenna near the top of the underside of your dash (behind or above the receiver).

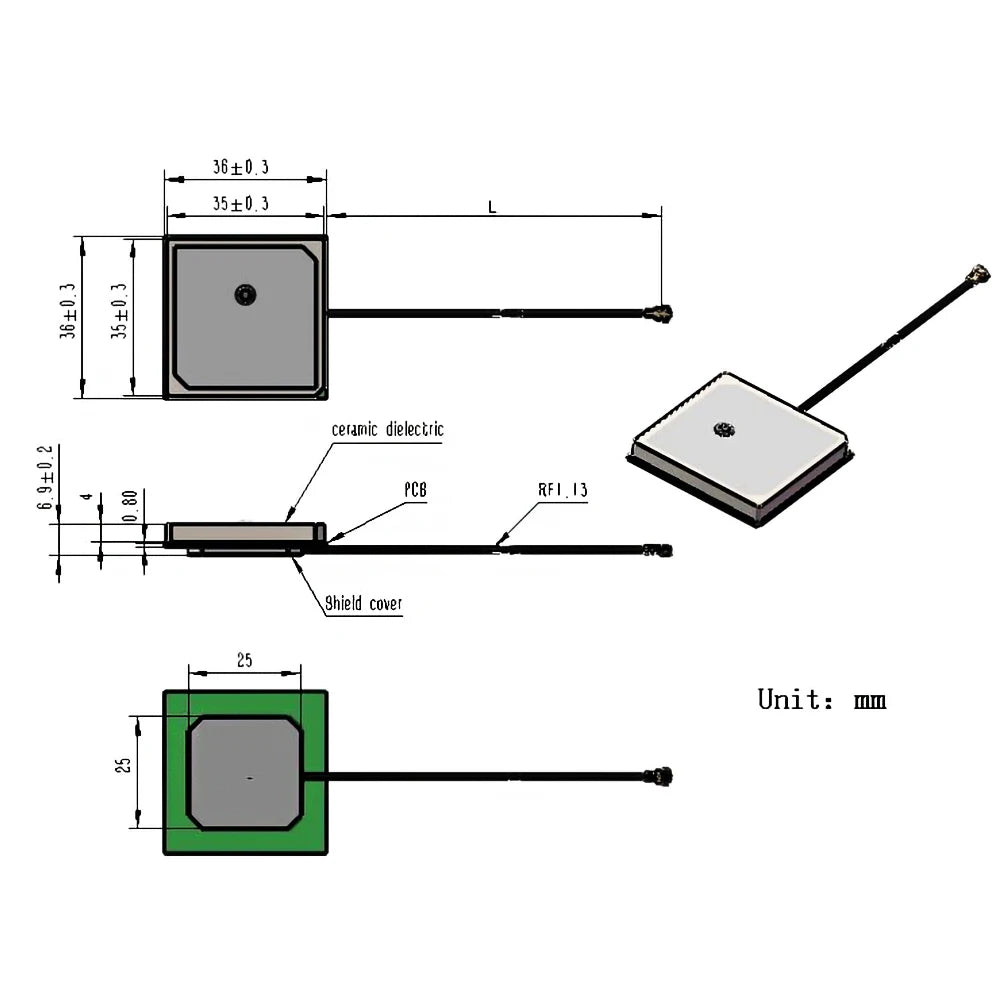

DIMENSION & SPECIFICATIONS




Item

Specifications

Antenna

Frequency Range

1561.098~1575.42MHz/1602MHz

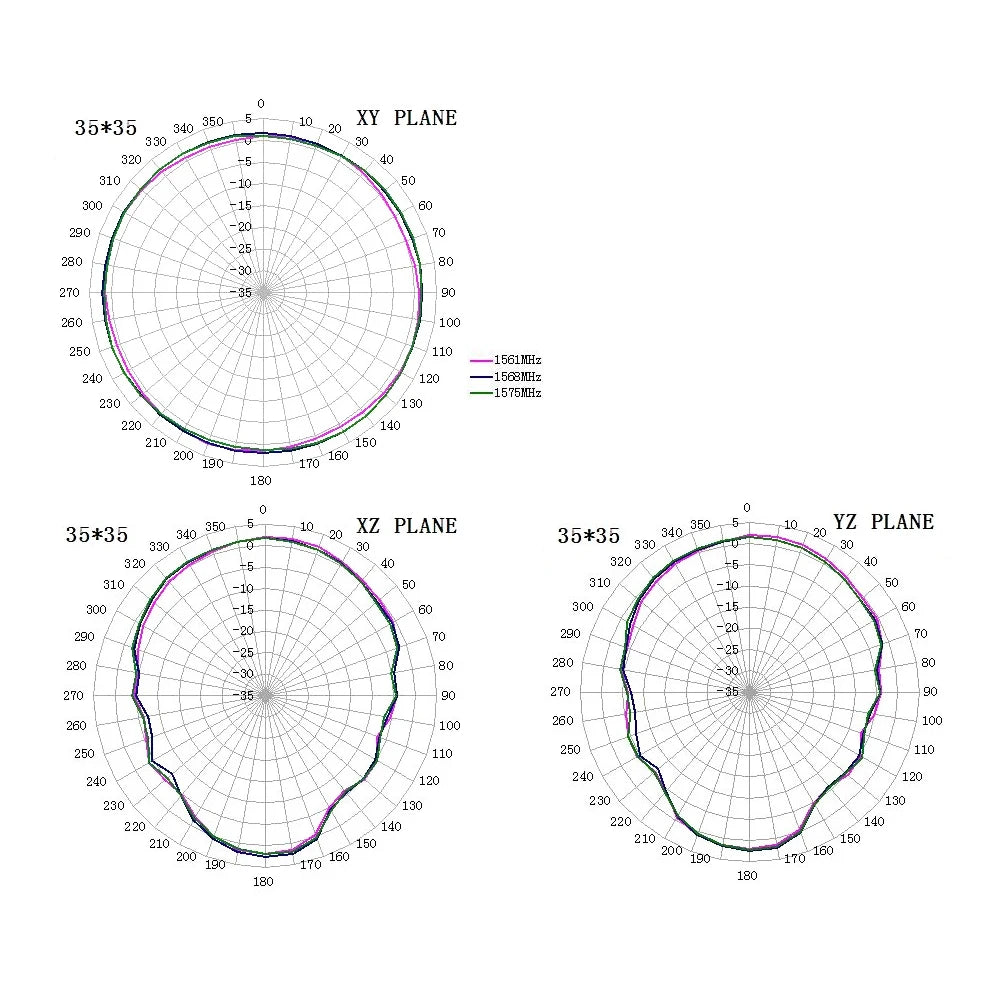

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impedance

50Ω

Axial Ratio

3dB(max)

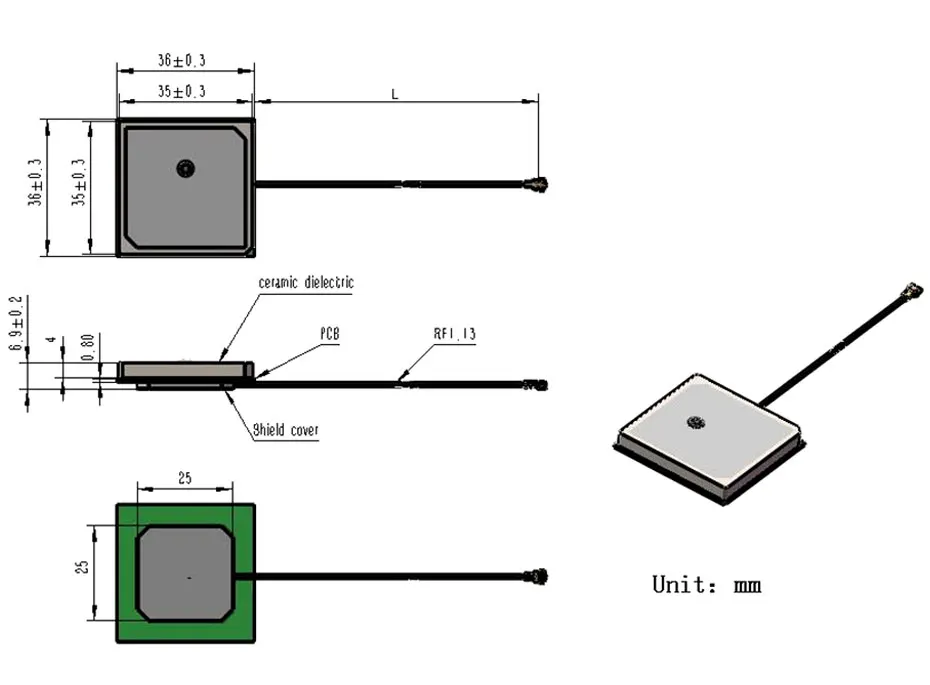

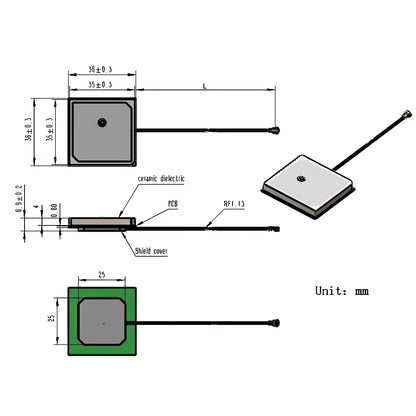

Dimension

35*35*4mm

LNA

Gain

28±2dB

Noise Figure

<1.5dB

Supply Voltage

2.2~5V DC

Current Consumption

<15mA

V.S.W.R

<2.0

Mechanical

Cable

RF1.13 or others

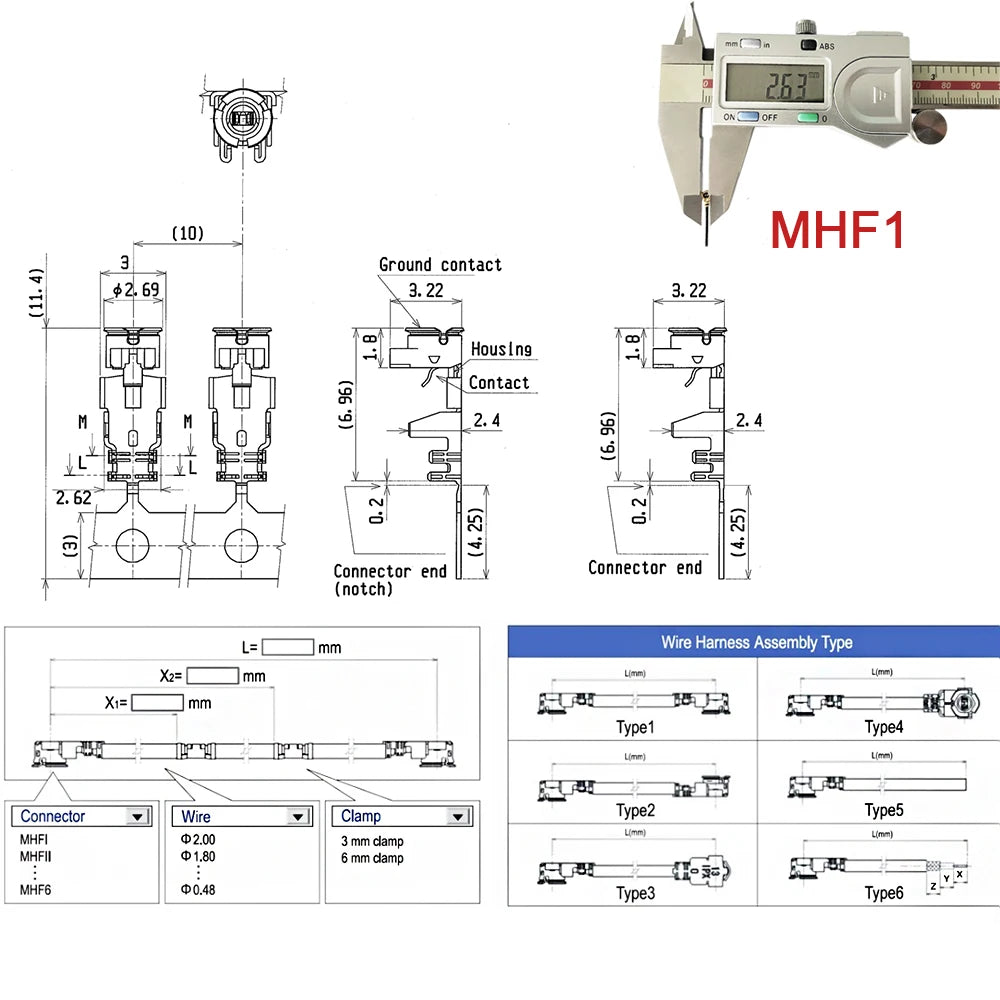

Connector

IPEX or others

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 75%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
