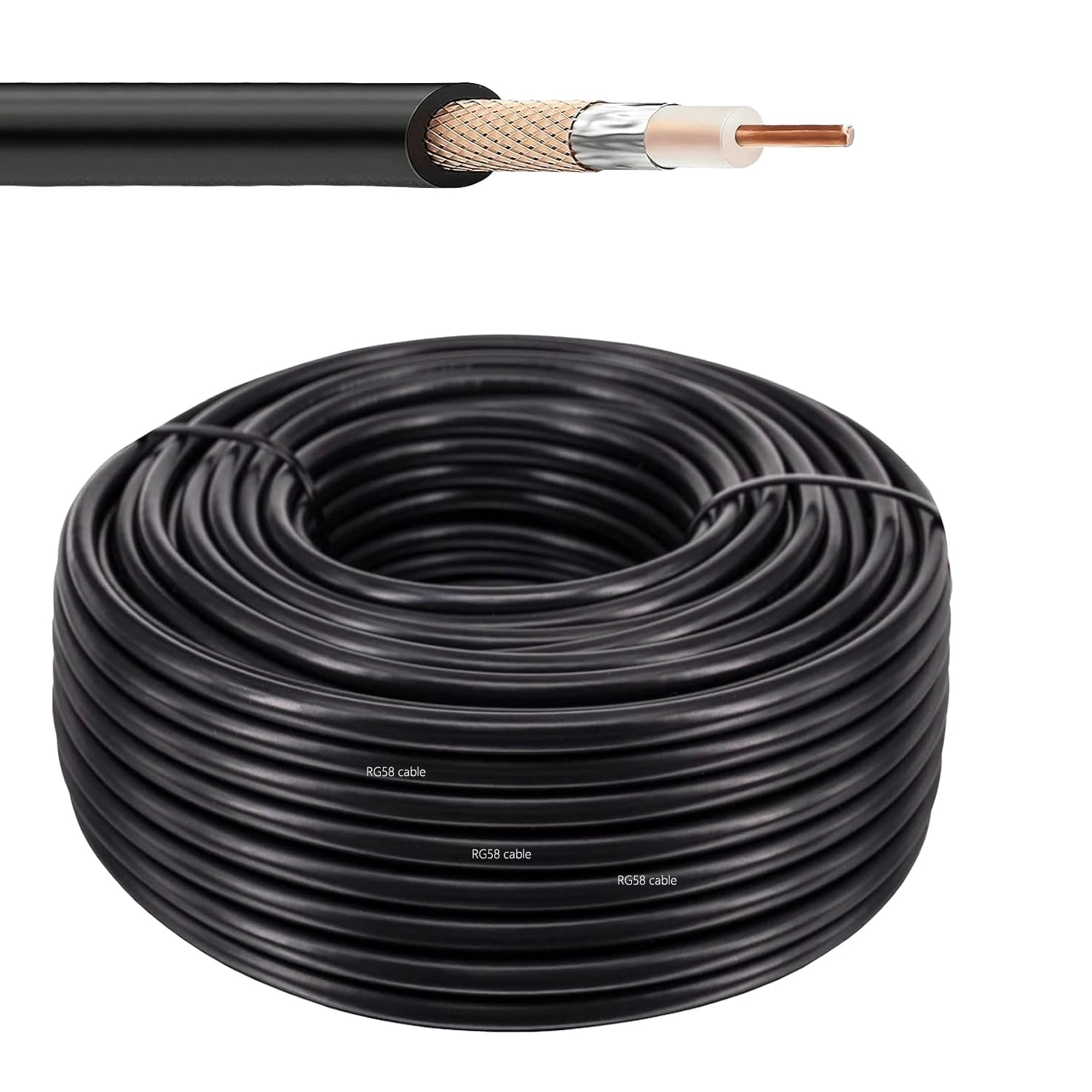

Low Loss RG58 Coaxial Cable for RF Connections

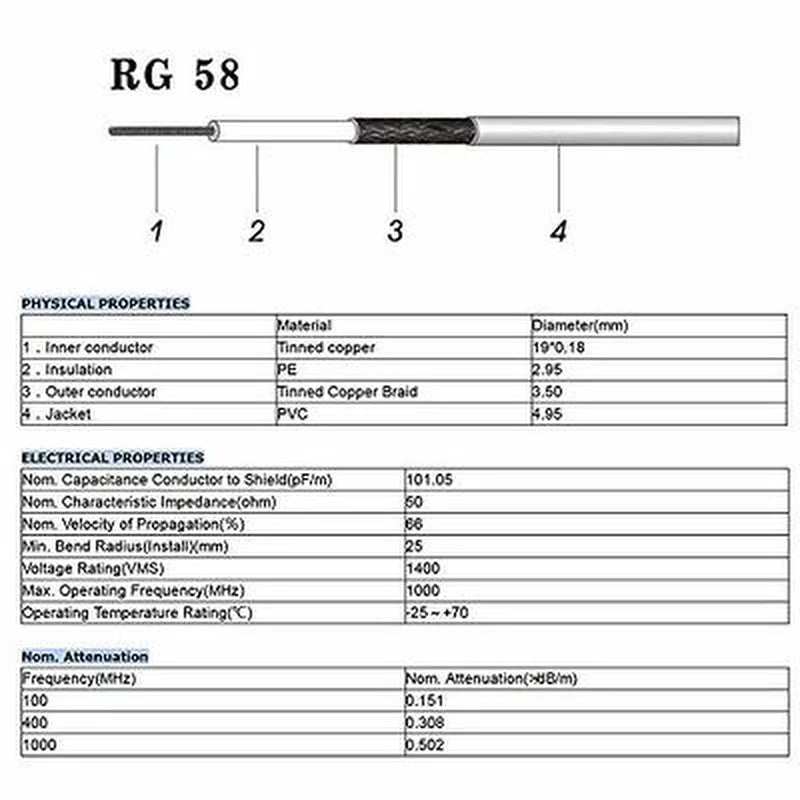

RG58 Specifications
Construction Specifications
Description Material Size (mm)
Inner Conductor Bare Copper 0.90mm
Dielectric Solid PE 2.95mm
Outer Conductor Aluminium Tape 3.10mm
Outer Braid Tinned Copper 96*0.12mm
Jacket PVC 5.00mm


Electrical Specifications
Description Unit Value
Impedance ohms 50
Capacitance pF/m 100±5
Velocity of Propagation % 66
Max Voltage VMS 1,500
Max Frequency MHz 3,000
